Drilling Rig Services

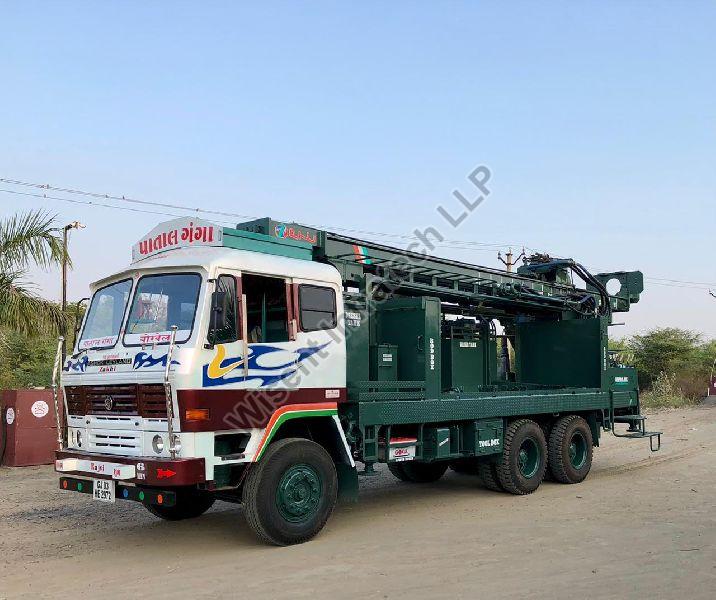

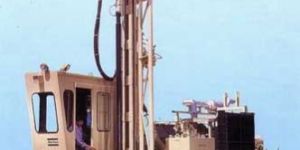

Drilling Rigs (AIM 029-G, AIM 029-SP, AIM 029-P, AIM 029-SH, AIM 029-T, AIM 029-TH, AIM 029-CM)   The Aimil-Swak Drill is designed as a compact, moderately priced,fully mechanically  hydraulically controlled drill to handle complete drilling requirements in shallow and medium depth ranges. These can be installed on a wide range of medium or heavy duty vehicles and exhibits a remarkably low maintenance cost as compared to mechanically driven rigs.Aimil-Swak Drill can be used for a variety of purposes ingeotechnical engineering including boring (Power Auger Boring, Rotary Drilling,Diamond Core Drilling), Sounding(SPT, DCPT, SCPT) and Sampling.   Application Fulfills the need to reach shallow and medium depths up to 700 meters. Provides necessary facilities for conducting Vane Shear test, Pressuremeter test. Increases efficiency of site investigation, soil sampling, SPT, DCPT, auger boring for locating water wells, etc. Makes shallow prospecting for minerals and ores more profitable. Industry Chemical/Process Agricultural Civil Infrastructure Dams & Tunnels Geophysical/ Seismology Testing Geotechnical (soil/ rock) Testing Irrigation Mining Real Estate Roads, Highways & Bridges Education Architecture Building Technology Civil Department Geotechnical Mining Engineering Science Colleges Traffic & Transportation Railways Roads, Highways & Bridges

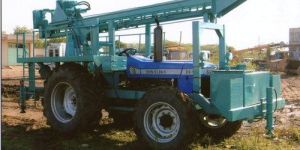

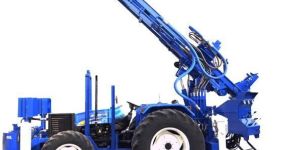

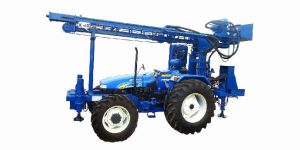

Capacity:Tractor New Holland 75 HP or 90 HP 4x4 Pile drilling 1200 mm diaupto -50mtrs - DMC (Direct Mud Circulation ) method, DTH Curn Rotary Drilling 200 mtrs, 6- bore. Mast Structure:Sturdy Steel Channel Construction Length 5000 mm, Head travel of 4000 mm rod handling 3 mb- drill rods 4 � " 0D. Feed System:Pull up force 7900 kgs, pull down force 5400 kgs Pull up speed 35 mtrl min, Pull down speed 23 mtr min.

In order to produce quality products, we make use of superior grade raw materials. Our quality auditors strictly check the raw materials against varied quality parameters before procurement. We maintain proper schedules for the delivery of bulk or urgent consignments so as to deliver the range in set time and gain utmost customer satisfaction. We supply Water Well Drilling Rigs which have outstanding dimensional precision and a sturdy metal body.

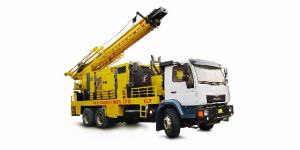

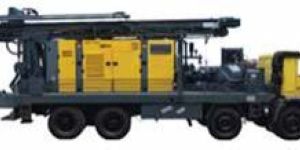

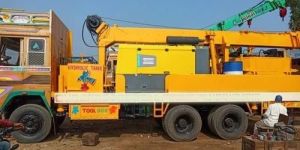

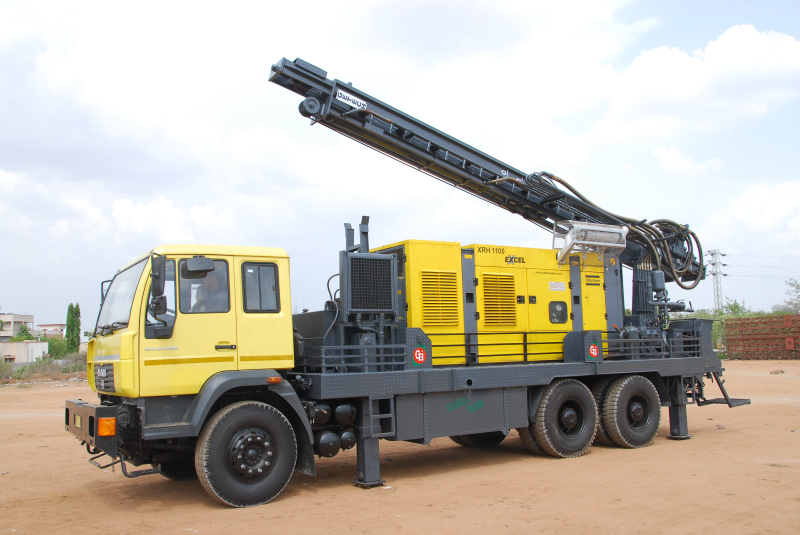

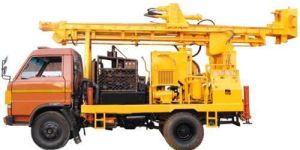

The comprehensive range of KLR DTHR 300 drilling rig offered by us is widely used in DTH cum Rotary drilling drilling rig which is suitable for hole dia 6.5” (continuous), 9”, 10” and 12”(over burden) by DTH Drilling and 8”(Continuous),12 ¼ & 16”(Reaming) by Rotary Drilling up to a depth of 300 meters. These truck mounted rigs use power from truck engine through transfer gear box to ensure better performance. The rig has a box type structure with excellent rod handling capacity. The pull-up and pull-down functions are performed by means of hydraulic cylinder and wire rope in the equipment. We offer our products with additional attachments like welding machine, 6” x 8”mud pump.

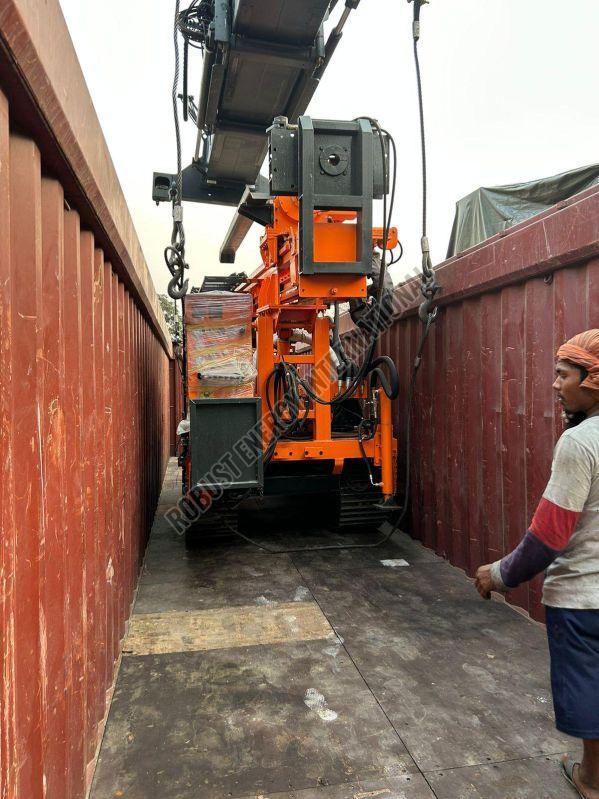

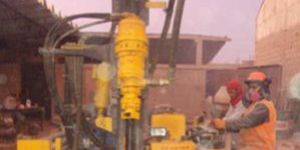

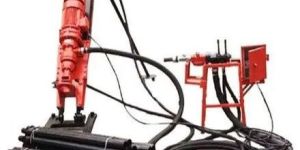

Product Code: DTH   DTH series drilling rigs possess powerful crawling possibility, high adaptability to bumpy road. Thsy can drill borehole in diverse diameters, depths, positions, and angles. Dry-type or wet type dust extractor  can also be equipped on the drill rig to reduce dust pollution effectively.Features and Benefits: 1, Safe and stable crawler attachment2, Centralized controll mechanism3, Easy-to-maintain hydraulic pumps4, Safe and stable hose structure5, Powerful and strong push and return mechanism6, Flexible operation of drill arm7, Advanced dust collection unit   Features:1. Safe and stable crawler attachment2. Centralized control mechanism3. Easy-to-maintain hydraulic pumps4. Safe and stable hose structure5. Powerful and strong push and return mechanism6. Flexible operation of drill arm7. Advanced dust collection unit

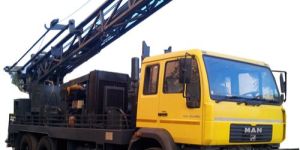

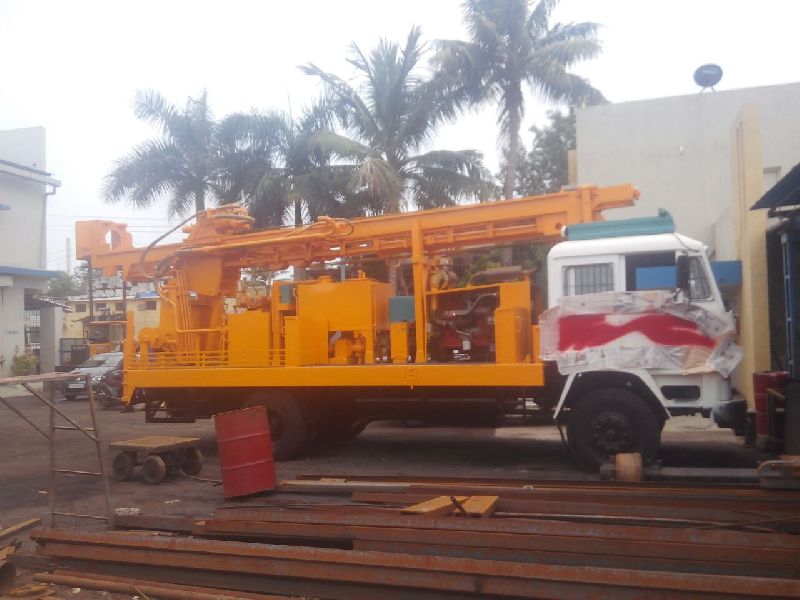

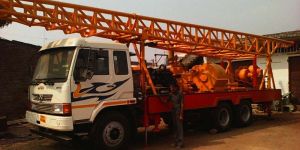

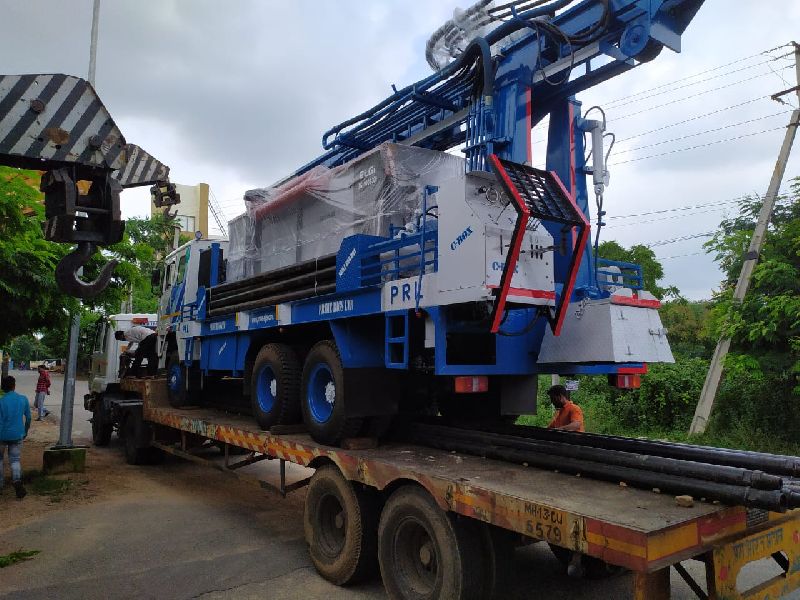

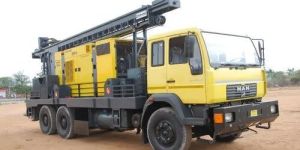

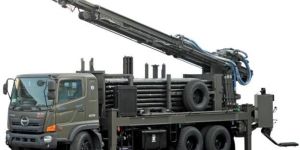

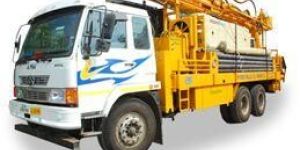

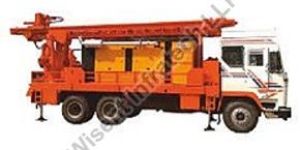

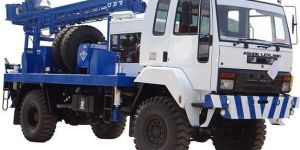

We are offering water well drilling rigs. Prd 650 a prd 650 model dth cum rotary drilling rig with mast assembly, rotary head, control panel and other related accessories mounted on a new 6 x 4 truck with all other standard accessories. A hydraulically driven prd 125 mud pump is also mounted on the same truck. Power for the rig is taken from truck engine through transfer gear box. Welding machine is also mounted on th

A Down-The-Hole Drill is called DTH in most drilling terms. The down-the-hole drill is basically a mini jack hammer that screws on the bottom of a drill string. The fast hammer action breaks hard rock into small flakes and dust and is blown clear by the air exhaust from the DTH hammer. The DTH hammer is one of the fastest ways to drill hard rock. Now smaller portable drillcat drilling rigs with DTH hammers can drill as fast as much larger truck rigs with this newer technology. In DTH drilling, the percussion mechanism – commonly called the hammer – is located directly behind the drill bit. The drill pipes transmit the necessary feed force and rotation to hammer and bit plus compressed air or fluids for the hammer and flushing of cuttings. The drill pipes are added to the drill string successively behind the hammer as the hole gets deeper. The piston strikes the impact surface of the bit directly, while the hammer casing gives straight and stable guidance of the drill bit. This means that the impact energy does not have to pass through any joints at all. The impact energy therefore is not lost in joints allowing for much deeper percussion drilling. This is a Great break through for smaller portable water well drilling rigs, that before were limited. The DTH on smaller rigs now can get same results as large heavy truck rigs. `

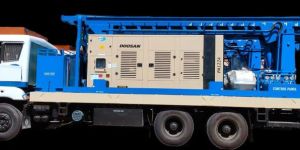

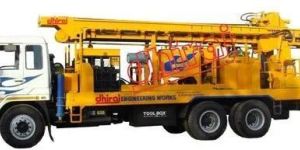

DTH Drilling Rig Manufacturers use optimum quality, modern techniques & instruments to manufacture our products. The drilling rigs are a specialised solution for mining business. In addition to it, our drills are used to drill oil wells, water wells, fossil fuel extraction well and so on. Our DTH drillings have excellent drilling tendency, sturdiness and energy exploitations.

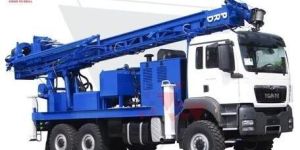

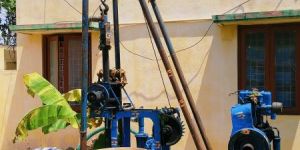

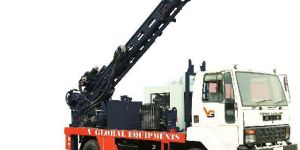

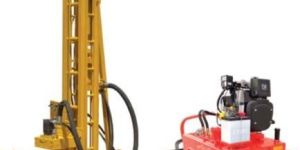

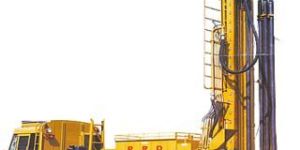

We are offering water well drilling rigs. By utilizing the full capacity of our experienced manpower we are able to give the high quality range of water bore drilling rigs to our prestigious customers. The raw materials are used in the fabrication of these rigs are obtain from the trusted vendors of the industry to maintain its strength and durability.

Our product portfolio consists of rigs for water well, mining, core, piling & all accessories like dth hammers, button bits, rock roller bits, drill rods, drill collars, drag bits, stabilizers and all hydraulic spares, accessories of compressors, truck and rig, hand pumps, casing pipes​, mud pumps​ and​ ​ soil investigation rig​s.
