This unit keeps the lot free from the factors like duct, rain, sunlight, etc. In order to deliver the best in class finished products, we make use of quality-tested raw material and modern work methods. Also, we make sure that the material is sourced from the reliable places only.

Insulated Safe Track DSL Busbar Conductor System (Bolted Joint type with 4 bolts) is designed in accordance to International Regulations for multitide of Power Supply Applications.   Bolted type Insulated Safetrack 2 DSL Bus bar Conductor System for electrification of EOT Crane, Electric Hoists, Straight / Curved Monorails, Conveyors, Amusement Drives, Electric Trolleys, Transfer Cars, Automated Storage Systems, Material Handling Systems etc. Bolted type Shrouded DSL Safe track 2 Busbar Conductor System can be installed in most atmospheres such as dusty, humid, chemical / acidic etc.   Compact Safetrack 2 Shrouded Conductor System Bolted type is supplied with Galvanised Steel (G.I) Conductor or Copper (Cu) Conductor or Aluminium (Al) Conductor with S.S. (Stainless Steel) Strip for straight or curved sections (Minimum Radius: 400mm). They can be mounted in Horizontal or Vertical configuration. The Conductor Bars are 4.5 meters long and to be supported at every one meter. The design allows Uni pole / Multi pole mounting arrangement. The Conductors can be mounted side by side. The Conductors conform to IP21. These conductors are compact, insulated and easy to install. V Contact design ensures positive contact. The Conductors are colour coded RYGB.

We are authorised marketing assosiate of ms suheel engineering co for saferack system in northern india , we supply & erected safe track shrouded conductor system , we have professionaly trainded erection team for safe track system . We supply safetrack system in uae , shri lanka, kenya napal, bangladesh . These bars are manufactured using the g.i , copper and aluminum with help of bolted or clamp connections these bars can be connected to each other and to other electrical apparatus. To reduce the contact resistance these bars have matching surfaces of silver-plate at the joints between high-current bus section. We offer the range of these products in various sizes and shape we supply safetrack system 60 amp -600 amp for any application

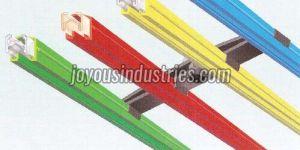

Special Features Shrouded DSL offered are finger safe, insulated from end to end making them accident free. Maintenance free The sleeves are in red, yellow, blue and green colours for distinct indication of phase and earth conductors. Spring loaded current collectors ensure that there is no sparking/loss of contact and therefore no single phasing. Only contact shoes are wearing parts. GI/Copper conductors are available for a wide range of current ratings upto 600 amps. SS/Aluminium conductors are available for corrosive atmosphere. They are very compact and require very less space.   Spares Spares are available for Hoist-o-mech (homech) Hoists. Spares for cranes and other conical type hoists are available Ex-Stock.

We are offering Down Shop Lead (DSL) system with both copper conductor as well as Galvanized iron conductor system ranging from 125 Amps to 250 Amps. We are also supplying DSL system accessories like Current Collector, DSL Hanger Clamps, Bus bar Phase Indications etc.

We at, silverline India are engaged in manufacturing an ample range of DSL System, Shrouded Busbar system / Conductor Rails / Mobile Electification system / Conductor System We use sophisticated technology and machinery to manage the appropriate assembly and verify the quality of the products. The products we manufacture are in compliance with global quality standards.

Down shop lead system (DSL) Conductor bar track are super finished and cross section is maintained to achieve requirement ampere. The material for Bus bar is copper, Aluminum & Galvanize. Conductors shall be accurately aligned to ensure positive electrical contact between the collector and the conductor. Separate conductos shall be provided for each phase. Insulation cover shall be rigid PVC, Self extinguishing, with a heat distortion point of 700c at 260 psi.

We offer high quality Shrouded dsl power feeding busbar system for cranes & hoists. The options are GI Aluminium Copper Rating : 60 A. To 250 Amp.

We are offering shrouded bus bar. Conductor bar are used for power transformation conductor rail provide a safe & economical supply of electric power for track guided mobile machinery. Single pole individually insulated conductors. Ideally used for eot cranes etc.

Fully insulated with compact type system. Available in GI/Copper & Aluminum types. Available in 60 amps to 400 amps current rating. We can see the RYBG colors visibly. Fully closed type also available in Giovenzana make.

DSL SYSTEM ALSO KNOWN AS DOWN SHOP LEAD SYSTEM Conductor Power Bar (DSL SYSTEM)Components & Specifications Power supply to the runway electrification shall be by means of bridge conductors and collector system as shown above. The typical components and specifications are as follows: Conductor Bar – Track are super finished and cross section is maintained to achieve required Ampere.The material for track is GI,Al/SS & Copper. Conductors shall be accurately aligned to ensure positive electrical contact between the collector and the conductor. Separate conductors shall be provided for each phase. More than one conductor in a single enclosure will not be permitted. Maximum voltage drop from the building power takeoff point for the track electrification system tothe hoist motor shall not exceed 4 percent, and the equivalent conductance shall not be less Size of bridge conductors shall be proportioned to limit the total voltage drop in the conductors to a maximum of 3 percent of the supply voltage when the current on the individual motors is full load. Power feed – This is an attachment for incoming power and is a fully insulated simple clamp type is easily installed anywhere on the system for incoming power to the conductor rails. The power supply to the runway conductors shall be controlled by a switch or circuit breaker located on a fixed structure, accessible from the floor, and arranged to be locked in the open position. A fused, manual disconnect switch with a lockable handle mounted through the panel door shall be provided and wired into the incoming power circuit. All power for crane shall be supplied through one main visible blade fuse switch located on the crane bridge in an easily accessible position. 3) Collectors - Current collector assembly consists of a spring loaded sliding contact type shoe of hard copper alloy or sintered copper graphite. Shoe shall be mounted in an insulating case of phenolic or urea compound of suitable temperature and insulation quality. Exposed parts of current collectors shall be grounded and of corrosion-resistant material. Current collector assembly shall be designed to operate through gaps, splices, and switches and shall be self-centering. System shall include expansion sections for every 150 meter for systems using galvanized steel conductors and every 175 meter for systems using copper conductors. 4) Hangers- Supports the conductor bar, may also be used as an anchor to direct movement due to expansion and contraction 5) End Cover- Used to close the end of the conductors to cover exposed conductor and avoid accidental contact. 6) Insulating cover –Insulation cover shall be rigid PVC, self extinguishing, with a heat distortion point of 160ºF at 260psi. 7) Connector pins - Used to join the conductor bar sections together . System shall be complete with unit length conductors, insulating conductor covers, insulators, splices and splice covers, end caps, support brackets and fasteners, current collectors, expansion, isolation and power-interrupting sections, disconnect switch, and conduit and wiring to power takeoff point. We manufacture Dsl system ranging from 60A to 1250 A Advantages Of Our Dsl System 1.Dip of the track is maintain properly for movement of Current collector 2.Center Powerfeed is provided to decrease voltage Drop 3.The play between Track & Sleeve is Minimum 4.Current collector is provided spring steel with max dia to avoid breakage We give Test certificate & Warranty Certificate for Dsl system & There erection for Period of 1 Year

Made of PVC dielctric housing of tour poles. The conductors are freely installed in the housing. The power suplí is by end feed or by line feed. Possilbity to assemble in indoors or in outdoors with temperaturas between – 30 deg C to +60 deg C.

Customers should not worry about the security of their payments with us as we follow secured Online and Offline Payment Processing. If you want to purchase quality with quantity, we are the name to be reckoned with! We are affianced in making available dsl system. We are renowned for providing eminent quality DSL Busbar System in various materials like copper, GI, aluminium etc.

Shrouded Bus Bar (DSL) system are used for the electrification of mobile equipment. This system is very easy to install and has less failure rate. Wear and tear is also less which improves life of the system. Smooth running of the DSL ensures best performance of control panels with VVF drives.

We offer Shrouded Busbar System (DSL) that is used for the electrification of mobile equipment. Our Shrouded Busbar System is a safe and economical way to solve mobile electrification requirement. The Shrouded Busbar System can be designed to accommodate 60 to 1200 amperes current. Depending on the application there are various options and accessories that can be customized in Shrouded Busbar System. Portions of the Shrouded Busbar System can be pre-assembled at the factory for easy installation.Product Details : Conductor bar can be found on overhead crane runways, hoists, trolleys, conveyors, port cranes and people movers Cover with ultra violet additive for outdoor sun locations High temperature cover (280F) for all conductors Stainless steel conductors in for corrosive atmospheres Epoxy coated, stainless steel, and insulated hangers for wet and corrosive atmospheres Factory built expansion sections and anchors for expansion control Factory bent curved conductor sections systems A variety of covers for matching competitive systems Heated conductor systems for ice prevention on outdoor systems or freezer storage Totally enclosed covers with flap for air-born contaminants, indoor & outdoor versions Bare conductors available for extreme heat applications Special long-wear collector brushes for systems
