EMI Filter Dealers

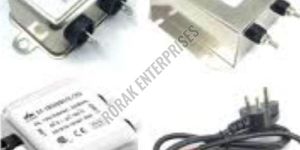

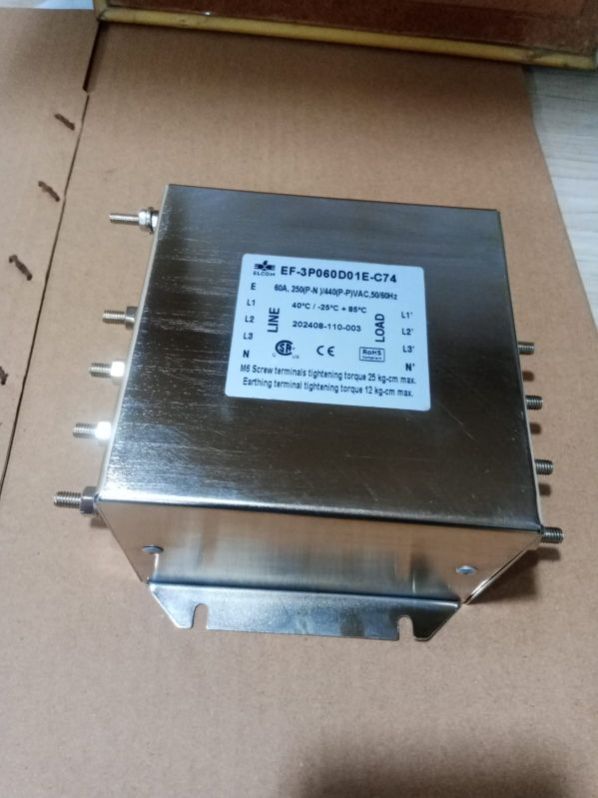

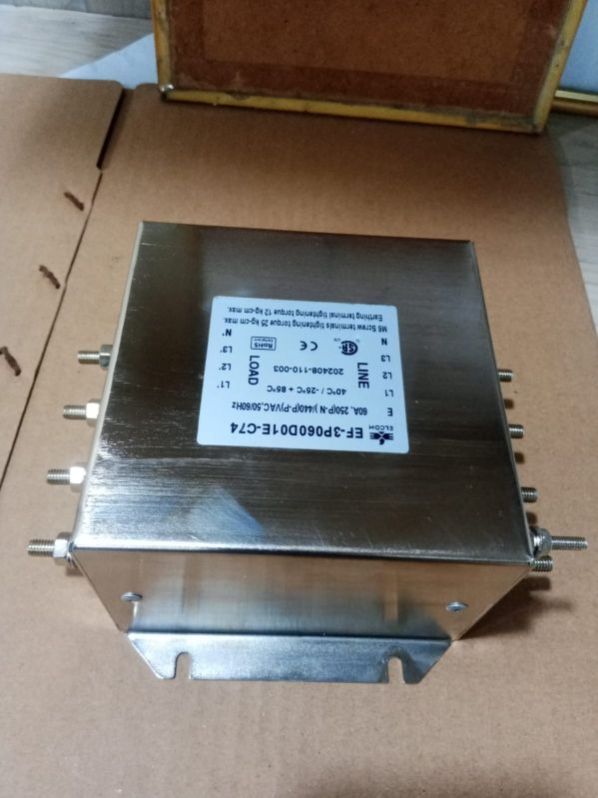

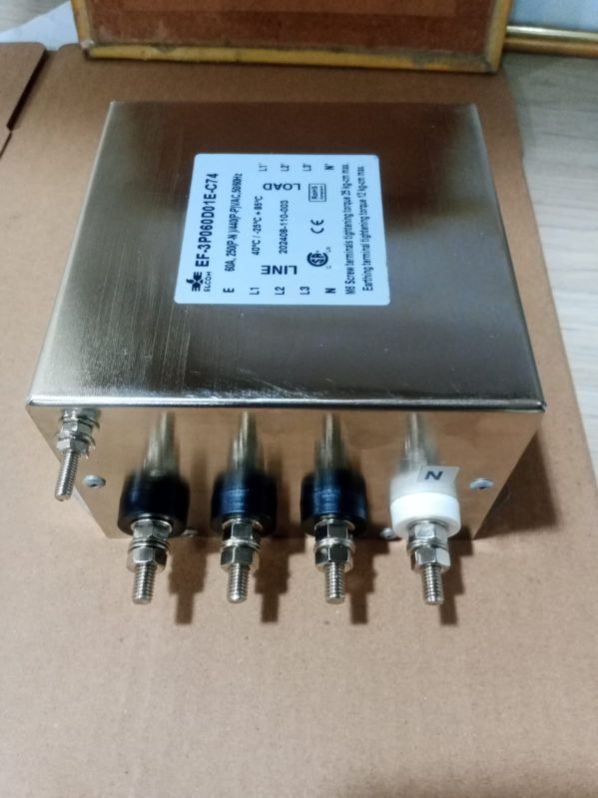

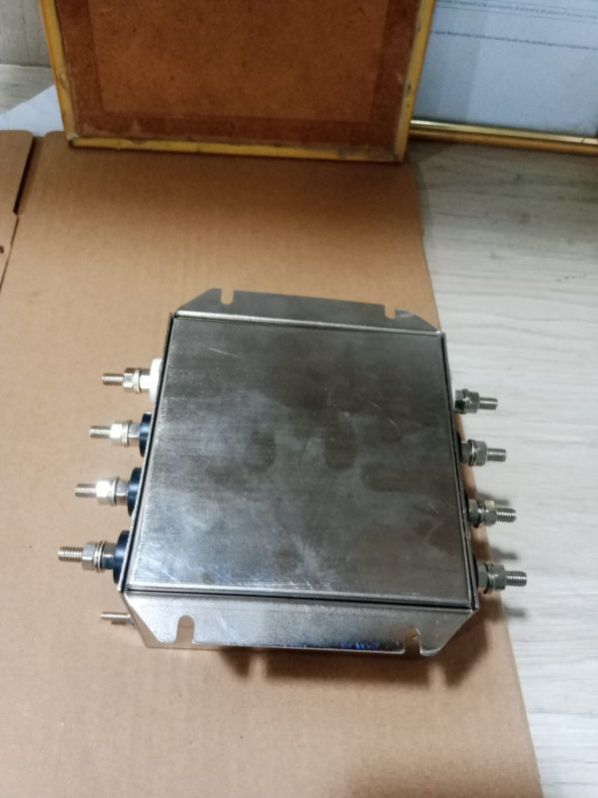

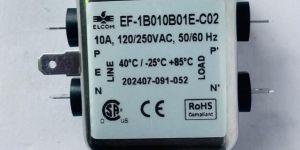

Elcom manufactured EMI (Electromagnetic Interference) RFI (Radio Frequency Interference) Filters, basically are passive electronic devices that are used to suppress conducted interference that is found on a signal or power line. RFI/EMI Filter will suppress the interference created by other equipment and the interference of the module or system itself, with the desired result being improvement to the immunity from EMI signals in the surrounding setting. RFI/EMI Filters are available in different configurations (Single phase - chassis mountable, PCB mountable, Panel mountable, Three phase - with screw Terminals ,with bus-bar terminals etc). RFI/EMI Filter works by presenting a significantly higher resistance to higher frequency content. In other words, the low pass design of the RFI/EMI Filter (the combination of shunting capacitors and series inductors) results in the restriction/impeding of the flow of high frequency signals, effectively shorting it to ground. The final result of the RFI/EMI Filter is that it reduces and attenuates the unwanted signal strength, thereby having a minimal effect on other components or devices. Elcom has state of art manufacturing facility. Elcom has a dedicated team in the R&D to provide customized filters as per the applications & customer's requirements.

We keep stock wide range of EMI/ RFI Components of sizes 0201,0402, 0603,0805,1206,1210 ,1806, 1812, 2606, 3.2 x 1.6 x 1.8 mm

We are offering emi filter . An emi channel, or electromagnetic interference filter, is an electronic uninvolved device which is utilized as a part of request to suppress led interference that is introduce on a sign or power line. Bla etech provides the best emi filters to solve all electrical equipment problems. We guarantee our product and services. Our main products include iec inlet filters, motor drive filter, military filters and so on.

• Packaging Type: Carton Box
• Specialities: High Quality
• Shape: Rectangular
• Condition: New
• Country of Origin: India
• Certification: ISO 9001:2008

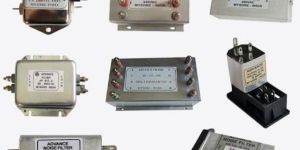

Advance product range covers the full spectrum of rfi and emi upto 1ghz, for dc or ac power line voltages, from 1a to 400a current range. Various mounting arrangements such as clamp, pcb type, flange, bottom stud and various terminal arrangements are available. integral socket type filters are also available.

• Country of Origin: India
• Voltage: Upto 520 VAC
• Brand Name: Treffer
• Attenuation Performance: Standard, High, Very high
• Motor Power: 2.2 to 315 kW
• Operating Frequency: Upto 60 Hz
• Rated Current: 3 to 600 A

• Voltage: 220V
• Condition: New
• Motor Power: 2HP
• Country of Origin: India
• Corrosion Resistance: Yes

0 to 240V AC DC. Operating Frequency : 0 to 60 Hz, 1 Phase. DC Galvanic Isolation : 300M Ohm & above between Input Output Shorted together & Earth, at 500V DC. Break Down Voltage : 1500V AC between Input - Output Shorted together & Earth for 60 Seconds. Leakage Current : 2 x 0.2mA max. At 240V, 50Hz. Voltage Drop : 0.8V r.m.s. Max. Operating Temp. Range : -10�C to +85�C.

• Brand: EMI Solutions PVT LTD
• Temperature range: -25 Degree C to +85 Degree C
• Leakage Current: 1.2mA
• Maximum Continuous Operating Voltage: 250 VAC
• Operating Frequency: 3A to 32A @40 DegreeC
• High Potential test voltage: L to G 2200Vdc for 1 Minute L to L 1440Vdc for 1 Minute
• Model Name/Number: MF710
• Design Corresponding to: UL1283, CSA 22.2 No.8-13 and IEC 60939
• Features: Rated Current up to 32A, Full frequency spectrum

• Application: Audio
• Capacitance: 1KPF
• Brand Name: MURATA
• Voltage Rating: 100V
• Capacitor Type: Ceramic Capacitor
• Color: BRAWN

• Type: Ceramic Inductor, Wire Wound Inductor
• Brand Name: Magno Teknik
• Rated Current: 5 A
• DC Resistance: 0.030 to 0.700 Ohms
• DC Current: 360 to 2300 mA
• Thickness: 0.66 mm
• Mounting: Surface Mount

• Country of Origin: India
• Type: Emi Filter
• Material: Iron
• Application: Industrial
• Feature: Durable

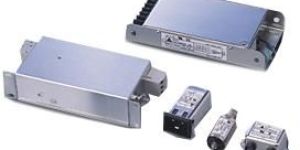

Delta EMI filter offer varied voltage range, single phase 115250Vac, 3 Phase520Vac and up to 600A maximum rated current. Different kind of connection also available. Delta EMI filter can associate customer solve the EMC problem effectively, shorten the design cycle time and provie reliable EMC solutions.

• Frequency: 50 / 60 Hz
• temperature: 40˚C

EMI-RFI Filters are passive electronic devices provides the most diversified line of radio frequency interference suppression, electromagnetic compatibility in the industry. MIRACLE filters control electromagnetic interference produced by electronic devices as computers, radio transmitters, receiver and such electrical equipment as motors, generators and switches etc. EMI-RFI filters works by presenting high resistance to higher frequency signals like low pass filter results in the restriction to higher frequency signals effectively shorting it in to ground. The final result of the EMI filter is that it reduces and reduces and attenuates un wanted signal strength and having minimum effect on the other components.

• Voltage: 230V, 50Hz
• Voltage: 1500V ac
• current: 6A, 10A & 15A.
• Features: Excellent functionality, Highly durable ,Precise design

We are the leading manufacturers, exporters and supplier of this products.

Delta EMI filter offer varied voltage range, single phase 115/250Vac, 3 Phase520Vac and up to 600A maximum rated current. Different kind of connection also available. Delta EMI filter can associate customer solve the EMC problem effectively, shorten the design cycle time and provie reliable EMC solutions.

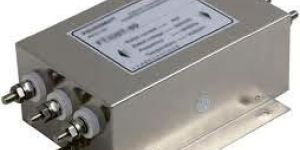

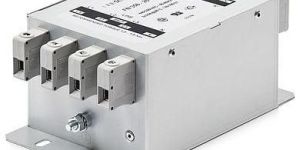

We offer high quality EMI Three Phase Filters in the market. The EMI Three Phase Filters are very efficient and durable in nature. They are manufactured using high quality raw materials and provide efficient performance. Details L-Section, 1-Stage@480 VAC 100, 150, 200, 300 Amps General Specifications Current Overload : 6x rated for 8 secondsMaximum Operating Ambient Temperature at Rated Current : 40oCHumidity Range : 0-95% RHInsulation Resistance : 9x109 Ohms at 100 VDCUnits may be paralleled for higher current requirements EMI Three Phase Filters Design To achieve adequate suppression of the spurious noise, filter style or circuit schematic should be first chosen following the rule of thumb of having the capacitor end of a filter facing the high impedance and the inductor end facing the low impedance.The next step will require determination of the working voltage, rated current, maximum DC resistance, cut-off frequency and insertion loss.When specifying working voltage and rated current, any rerating requirements should be taken into consideration. Maximum allowable voltage drop will usually govern maximum DCR of a filter. The cut-off frequency is often selected one decade above the frequency of a signal.The insertion loss data throughout the catalog is based on MIL-STD-220 and provide means of comparison and testing only. IL performance of any given filter could be quite different for systems having actual source and load impedances other than 50 Ohms.To help the user be acquainted with this catalog and EMI filter design, every effort has been made to organize the data sheets and list the parts in a logical order. Every table starts at the top with lowest voltage/current and consequently highest capacitance/insertion loss characteristics parts. These are followed by higher voltage and naturally lower capacitance and insertion loss performance devices.Our EMI filter design catalog provides you with the most comprehensive and widely used selection of EMI filters. However, it represents only a cross-section of capabilities. Whether your application requires unique electrical characteristics or customized mechanical configuration, there is a high probability that we will be able to satisfy your specific needs without compromise.

Multipurpose Three-Phase Filter with Many Current VariationsHigh-Attenuation Type Single-Phase Filter with Various Variations and FunctionsDIN rail installation compatible type are also availableCompliant with RoHS directivesOptional low-leakage current characteristic type3 to 300A wide range lineupLow-profile design

The RS-SG range, especially for Yaskawa AC servo drives. Help to ensure EMC compliance of machinery and installations using drives. Help to ensure EMC compliance of machinery and installations using drives. All filters are designed and manufactured to UL requirements. Filter ranges may also be used with 200V three phase inverters, but care should be taken in the filter selection. Running a filter on under-voltage is perfectly acceptable, but running at over-current for any extended period is not advisable.
