Etching Machine Dealers

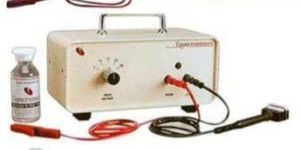

Your quest for Manual Etching Machine ends at Yugma Impressions. We offer Chemical Manual Etching Machine that has found applications in diverse industries. Easy operation, cost effective and highly efficient is the chief characteristics of Manual Metal Etching Machines offered by us.

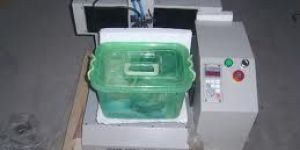

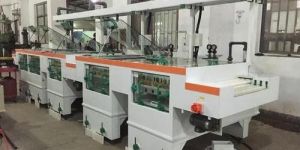

Vertical Etching Machines are designed for modern etching of Line and Halfone plates (copper or zinc), aluminium metal lables, also etching of printed circuits boards by conventional process. These machines are made of acid resisting PVC such as nitric, chromic, cupric and ferric chloride. The thickness of PVC sheet is 5 mm, and mounted upon an iron base provided with anti-rust paint. The acid tank is fitted with a plastic tube for draining out acid. There is also a fume exhaust to let out the acid fumes to conform to the Factories Act Regulations. Plastic cover for motor is provided to safe guard the motor from acid.

The company has gained a unique reputation of manufacturing high quality machineries to clientele all over India for various market segments. The company has also bagged export orders from USA for etching and stripping machines. The company has a full fledged manufacturing unit with efficient service backup located in Bangalore, with its marketing wings spread across the country. It has a perfect blend of experience and expertise in producing high quality machinery at par with international standards. All at an affordable cost without compromising on quality.

Memsstar’s Orbis dry release etch process tools are available using vapor Hydrogen Fluoride (HF) andXenon DiFluoride (XeF2) chemistries.   Available in variants Alpha, 1000 and 3000.   The new generation of ORBIS platforms enable the most advanced processing capability from research, to commercial R&D through to high-volume manufacturing.   The ORBIS platform approach delivers many benefits to our customers, such as:   1.  Upgrade paths from R&D through to full-scale production   2.  Cost-effective solutions—lab or fab   3.  Seamless process transfer—from lab to fab 4.  Low cost of ownership

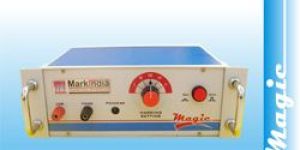

EtchON Chemical Metal Etching Machine, Model: ME102 Electro-Chemical etching systems are perfect for marking various conductive metals. Metallic Items can all be marked through Consumables like Stencils and Electrolyte Solution. Using metal etching technique we are capable of marking high quality logos, simple text messages, part numbers, dates, serial numbers and other required information, directly onto the psroduct - EtchON ME 102 ", This model is portable manual electrochemical metal etching machine. This model is economical and suitable for high batch production. Variable Etching Output Voltage for controlling etching Depth and Time, Etching process is limited only for blackbrown as well as white marking. Black and White Etching Controller, Graphite based Marking Head for Durability. Non Corrosive Electrolyte, Reusable Felt, This machine is nothing but economical substitute for laser marking machines EtchON ME102 TECHNICAL FEATURES Working Style : Manual Etching Marking Color : BlackBrownWhite AC Voltage Output : Yes DC Voltage Output : Yes Etching Time : Average (2-3 Seconds) Etching Depth Less then 0.01 mm (100 microns) Etching Quality : Very good and Sharp TECHNICAL SPECIFICATION Transformer :Sealed Compact Input Voltage : 230VAC Output Voltage :0-25V (Direct) Max Power :50VA DIMENSIONS (mm):L X W X H (205x270x90) Weight: 5 Kg APPLICATION :Applicable for All Conductive Metals(Non Coated) WARRANTY : 1 Years Carry-in

Windows based EtchMaster-Pro™ layout creation software, Graphical and textual interfaces provide ease of use, Support for all windows based printers Support for Visual Basic scripting, Support for all windows based printers Support for Visual Basic scripting, Barcode and Data Matrix including support for UID specification, Graphical CAD file imports, Flexible variable modes including serial numbering and timedate, All True Type fonts supported as well as several vector formats.

Overall Size : 1.2*0.9*2.2m Power:3kw Weight: 150kgs Voltage current: adjustable Main application: Materials:Galvonized Steel, Stainless steel, iron, copper, brass, alloys, etc., Comprehensive application: Metal etching machine could be widely used in advertisment, signage, utilities, logo printing, arts andcrafts, machinery name plates, bill board, electronics board, mobile, etc.,

Mecshot roll etching machine is specially designed for surface etching & cleaning the rolls of variable sizes to generate desired roughness matte finish on roll out steel sheets.

We are primarily engaged in the manufacturing of etching machine that is mainly used for making designs on metal plate by the corrosive action of an acid. Manufactured using optimum quality components and going through stringent quality testing procedures, the entire range is appreciated for the dimensional accuracy, durability, high tensile strength and corrosion & abrasion resistance. The machine is easy to operate and install and consume less electricity. We also provide customized solutions to achieve maximum client satisfaction.

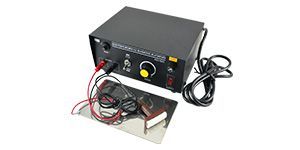

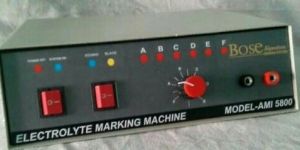

Electro-chemical etching systems are perfect for marking various conductive metals metallic items can all be marked through consumables like stencils and electrolyte solution. Chemical etching machines are nothing but the substitute for costly metal laser machines. Using metal etching technique we are capable of marking high quality logos, simple text messages, part numbers, dates, serial numbers and other required information, directly onto the product - whether the surface is rounded or flat. The marking process takes a matter of seconds. Different models are available depending on individual metal marking requirements. The result of etching is like a printing on metal parts.

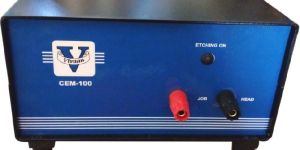

We are well reputed Chemical Etching Machine Manufacturers which is widely used by our clients in different industries. The Chemical Etching Machine is operated on electrochemical process and is capable of etching a large variety of ferrous and non-ferrous metals. Using hand held pad you can remove metals from selective area for number of applications. The etching process does not involve any stress development, no deformation and no molecular disturbance. The process is manual but can be automated as per requirement. Features Simple and light weightOperate on 230 V ACEasy to operateHigh performanceRobust construction Applications Metal removal workUsed by leather goods manufacturer for making metal punchesUsed by steel testing labs for microscopic inspection of metals

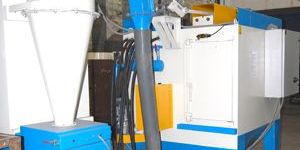

We have Roll Etching Machine for cold rolling industry. The rolls are etched for generating desired surface roughness so that the sheets being rolled out can have inbuilt roughness to facilitate proper bonding of paint. During the rolling process, the roll loses the surface roughness due to friction. Periodically, these rolls are etched for maintaining desired surface roughness. the rolls being of harder nature, pressure type abrasive blasting machine using aluminium oxide, chilled iron grit of 12-25 mesh or steel shots of coarser grade are quite popular. the blasting equipment is featured with motorized workcar with motorized job rotation facility . The roll is loaded outside the blasting cabinet on workcar which moves on track extension. The blasting nozzle reciprocates while job rotates in blasting cabinet. The operator is to simply load and unload the job. The abrasive recovery is automatic and fabric bag type dust collection system is incorporated to keep the dust emission level within permissible limits.
