Evaporative Condensers Dealers

Evaporative condensers provide heat rejection for many types of systems, and the specific application will largely determine which INDUS MAKES Evaporative Condenser is best suited for a project. The information contained within this section is geared towards the use of evaporative condensers in the HVAC and light industrial markets only. Evaporative condensers are used in these markets to provide lower condensing temperatures and compressor horsepower savings of up to 15 percent when compared with traditional systems. For technical support with a refrigeration application, contact your local INDUS MAKES Refrigeration. Principle of OperationThe vapor to be condensed is circulated through a condensing coil, which is continually wetted on the outside by a recirculating water system. Air is pulled over the coil, causing a small portion of the recirculating water to evaporate. The evaporation removes heat from the vapor in the coil, causing it to condense. Configuration INDUS MAKES manufactures two types of evaporative condensers: Combined Flow and Counter Flow. Combined Flow:Combined Flow is the use of both a condensing coil and fill surface for heat transfer in an evaporative condenser. The addition of fill surface to the traditional evaporative condenser design reduces evaporation in the coil section, reducing the potential for scaling and fouling. INDUS MAKES’s combined flow evaporative condensers utilize the parallel flow of air and spray water over the coil, and crossflow air/water flow through the fill surface.In parallel flow, air and water flow over the coil in the same direction. In the fill section of INDUS MAKES’s combined flow evaporative condensers, air and water interact in a crossflow configuration: water flows vertically down the fill as air flows horizontally across it.

We are engaged in offering Evaporative Condenser. Our provided series is available in various specifications that meet on customers demand.

5 TR to 200 TR of induced draught forced draught design suitable for Freon & Ammonia design.Continuous serpentine coil made of seamless tube pneumatically tested to 375 psig, treated & zinc metallised.Tube axial fan with blades in Aluminium casting duly balanced for induced & blower for forced draught unit.

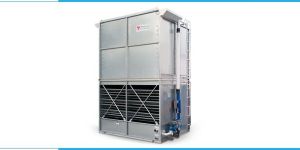

Thermax Evaporative Condenser operates in a manner wherein a condenser is integrated into a cooling tower which rejects the latent heat of condensation of refrigerant (Ammonia/Freon) through a coil to the surroundings by means of evaporation. Water sprayed onto the coil exchanges heat with the refrigerant.A small quantity of water is evaporated into the air thereby cooling the remaining water cascading to the basin at the bottom. Post evaporation the saturated air passes through the drift eliminators and then forced out using a fan.The coil serves to isolate the process fluid from the outside air, keeping it clean and contamination free in a closed loop, thus creating two separate circuits. Primary / Internal circuit in which the process fluid / gas circulates inside the coil Secondary / External circuit where water is sprayed over the coil and mixes with outside air Systems using a Thermax Evaporative Condenser are far simpler when compared with conventional system. The Primary circuit is identical to the conventional system whereas the cooling tower, secondary pumps, PHE / shell & tube heat exchanger and associated piping, valves are eliminated. Thermax Evaporative Condenser has a built in heat exchanger coil, spray pump & exhaust fan, which saves power & installation space while ensuring ease of maintenance. Benefits EFFICIENCY Limited impact of scaling on cooling performance over time. Minimum deterioration of cooling performance due to scaling, overtime Honeycomb PVC Film fill for most optimal air & Water usage Air Flow - Parallel at coil side & cross at fill side for efficient heat transfer with lower static resistance Optimized spray water flow to coil for maximum heat transfer Efficient Wave type Drift eliminator reduces makeup requirement RELIABILITY Continuous coil without welded joints Robust corrosion resistant structural material for long life Optimized diameter interference nozzles for clog free operation Optimized air exit velocity to avoid recirculation MAINTENANCE Side access door for easy online inspection & maintenance Electronic De-scaling device for trouble free operation Direct Drive Axial fan arrangement ensures lowest inventory Operating Principle The refrigerant flows through the coil of the evaporative condenser. Heat from the refrigerant is rejected through the coil tubes. Part of the heat is removed directly by the downward induced air and discharged to the surrounding. Rest of the heat is rejected to the water cascading down over the tubes. Simultaneously, air is drawn in through the air inlet louvers at the base of the evaporative condenser. A small portion of the water is evaporated which removes the heat. The warm saturated air travels through the drift eliminator & discharged by the fan to the surrounding, thereby reducing drift water loss. Post heat exchange, the condensed refrigerant flows to receiver tank Why Thermax Evaporative Condensers Thermax Evaporative Condenser offers unmatched flexibility, providing optimized selections for various refrigeration systems & climatic conditions, utilizing multi flow configuration. Thermax provides the most energy efficient evaporative condenser in the market. Wide Range of Thermal Duties - Ideal for Ammonia / Freon condensation with low approach Retro Fit & Replacement— Single air inlet models are designed and fit into the existing system. Selection Customization — can optimize footprint and least Power requirements to suit project requirements, large product range & Customized Material of Construction like FRP /GI /SS based on application . Largest sales & support network globally

We are termed as the leading Evaporative Condenser Manufacturer, Exporter and Supplier from India. We offer high performing Industrial and Commercial Evaporative Condensers that are specially designed by expert engineers to make them easy to use and operate. The unique design and special heat transfer efficiency have made them ultimate choice available in the market. Specialty Unique Construction DesignSpecially Designed By EngineersUltimate Heat Transfer CapacityHigh PerformanceEnergy Efficient Advantages Reduces the chemical treatment requirements & water pumping associated with cooling tower / refrigerant condenser system.Less fan power compared to air cooled condenserOperates at a lower condensing temperature15% electrical consumption can be saved due to low pressure condensation of refrigerant. Widely Used In Small to medium HVACIndustrial refrigeration applicationsTight enclosures & installations requiring a single air inlet

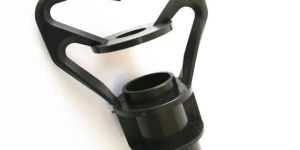

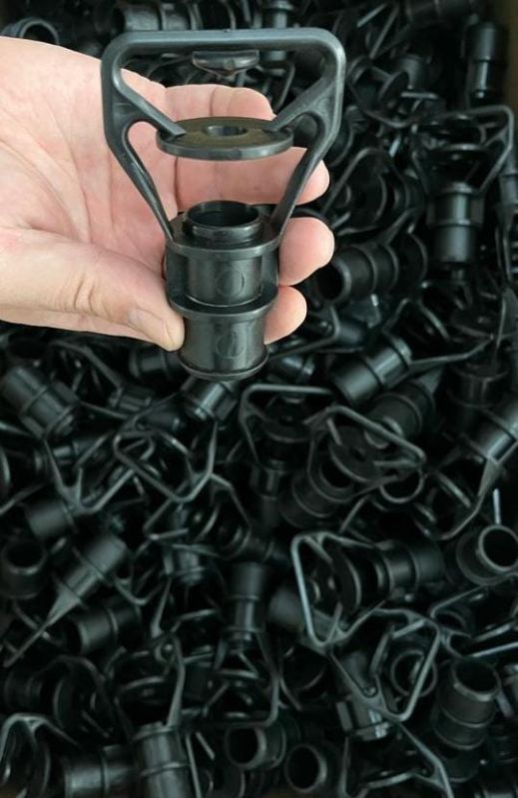

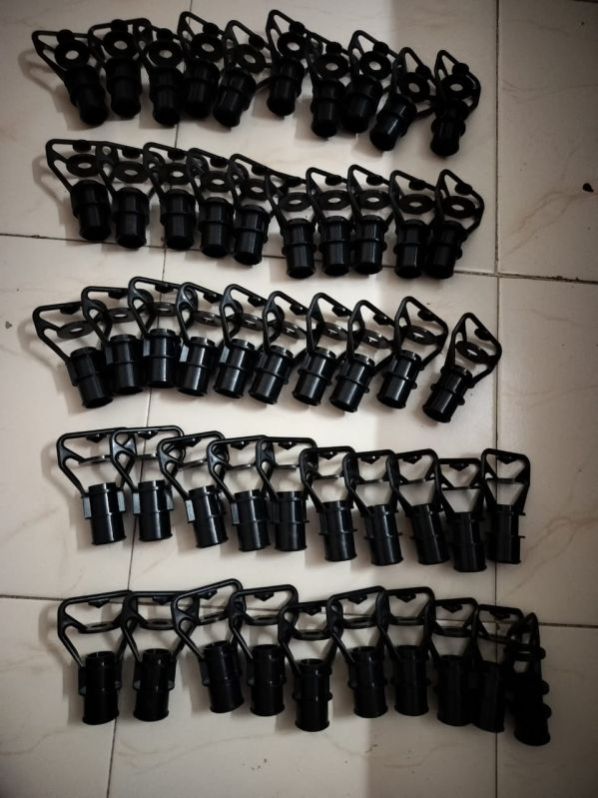

Design Parameter • Condensing temperature 40°c for Ammonia wet bulb temperature 26°c * • We can design for any capacity, rating as per customers requirement. Technical Specification • Body constructed with G .1. Sheet and hot deep galvanising structure. • Condenser unit complete with SS-304, with 025.4,019.05. Tube • Airfans - axial flow fan, motor with IP - 55 insulation.   Salient Features • Compact Design, Space Saving • Chocking Free Spray Nozzle • Design Base - HTRI     Application   • Dairy • Brewery • Chilling Plants • Cold Storage • Food Processing Industry • Industrial refrigeration where ammonia is used as refrigerant.   Advantages • Substantial energy saving as compare PHE & Cooling Tower. • Substantial saving in space, piping as compared to PHE & Cooling Tower.

Our professionals utilize latest technology to manufacture technologically advanced condensing units. By the implementation of cutting edge technology and high quality material & components, we offer a broad range of Condensers.

Frick India offers Evaporative condensers to reject heat from mechanical refrigeration system. The Evaporative condenser is a combination of a water cooled condenser and an air-cooled condenser. Condensing coils are constructed using heavy Stainless Steel pipes to provide maximum efficiency. The condensers use heavy duty variable blade axial flow fans directly driven by motors with IP55 protection. Water pan section with fiber glass coated sheet is available for extra long durability. We also offer stainless sheet casing using stainless steel bolts. Frick India can offer Evaporative condensers ranging from 30 TR to 380 TR. We can also offer hot dip galvanized coils with GI casing.

We manufacture & supply eveporative condensers. These evaporative condensers are specially designed for:  Cold Storages   Ice Plants   Meat / Fish Processing   Dairy Industry   Breweries   Quick Freezing Plants   Food & Vegetable Freezing Plants   Food Processing Plants   Chemical / Petrochemical Plants

General: Evaporative Condenser is a combination of Condenser and Cooling Tower. It substitutes the Shell & Tube Condenser and totally eliminate the Cooling water circuit. Although ancient in concept, evaporative condensers have been drawing attention of all design, development and application engineers and the recent products are the result of combined efforts of those interested in energy saving in refrigeration systems. Energy Saving: Unlike Shell & Tube and Air-cooled condenser, Evaporative condenser performance depends on ambient Wet Bulb Temperature. It is theoretically possible to lower the condensing temperature to a 35°C level from 40°C for a wet bulb temperature of 28°C, by replacing a S & T condenser. Any lowering of condensing temperature results in decreasing of compressor power input. Besides, since large cooling water circulation pumps are eliminated, power consumption on this account is also reduced. Features: Available in normal capacity range of 187 MCals/Hr( 61TR) to 3393 MCals/Hr( 1122TR) Coil bundle is made of SS 304 tubes with buffed surface unlike others which is hot dip galvanised with a rough surface inducing scale formation. FRP side panels for the coil sections and FRP doors and top cover for the fan section to provide corrossion free service thus adding to the life of the unit. The structure for coil bundle is made out of formed GI sheets. The tie-rod support for the coil bundle has PVC/ Neoprene (optional) sleeve to prevent damage to the tubes due to any vibration of the tubes in the coil bundle. Provision of individual coil expanded into the header that can be individually identified for leakage and plugging. Industrial type hollow bladed FRP fans with aluminum hub and adjustable blade angle providing high efficiency with light weight. Generous and uniform water distribution over coil section with PVC spray piping & Polypropylene spray nozzles. Adequate capacity tank section ( FRP lining / SS optional) with monobloc pump set, SS strainer and bleeding line. Compact Design and Easy for maintenance. Applications: Cold storages Dairies & Food Processing Industries Breweries Industrial refrigeration / Process chillers

These evaporative condensers are specially designed for: • Cold Storages• Ice Plants• Meat / Fish Processing• Dairy Industry• Breweries• Quick Freezing Plants• Food & Vegetable Freezing Plants• Food Processing Plants• Chemical / Petrochemical Plants
