Exposing Machine Dealers

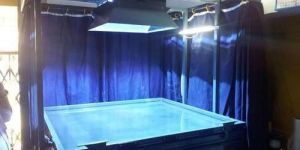

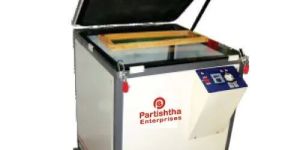

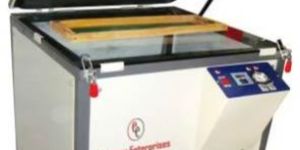

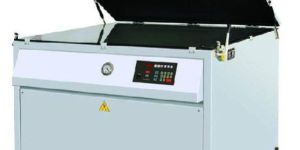

Screen Exposing Machine is referred as screen printing exposing machine. The specification of this printing machine are dimension (L*H*W) (mm): 1000*1200*1200, 1200*1800*1200 etc, voltage (V): 220,380 etc, power (kW): 2.2, 5 etc, current (A): 5, 17 etc and frequency (Hz): 5060. It is an automated machine incorporated with digital timer and light sensor. It is widely used for printing all kinds of rolling material like film, paper and PVC.

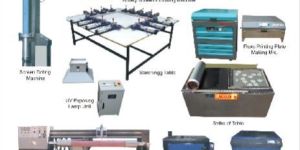

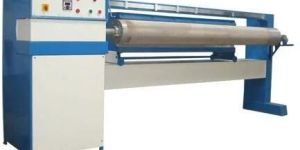

we are one of the leading manufacturer, supplier and exporter of all type Rotary screen printing a wide range of Rotary Screen Exposing machine. Having high experience the machines are manufactured by our experience expert utilizing world-class quality materials and latest advanced technology. The Rotary Screen Exposing machine is available in various screen length like 640mm, 820mm, 914mm, 1018mm, and up to 3500mm according to the customized specification. The UV lamps consolidated in the given machine accomplish the exact exposing through the clever plan of the machine that required for achieving operation. The speed of the screen can also be adjustable. Before dispatching to the client the machine is tested on various parameters by our expert team to ensure trouble-free operation and perfect finish product. These Exposing machine can be available at most competitive prices.   Features Of Rotary Screen Exposing Machine     Efficient and trouble free operation Easy to install Very smooth in running Reduce the labor cost Noise less operation Low power consumption Environment friendly Longer service life Competitive prices

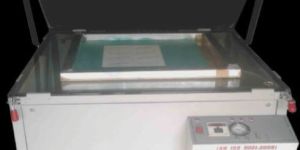

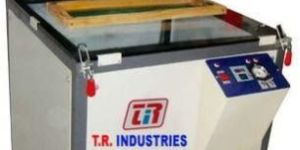

We are a leading manufacturer, supplier, importer and exporter of Screen Exposing Machine. The offered exposing unit is very widely used in industrial applications for exposing the substrates to drying agents. Optimal exposing area provides perfect exposure to ink drying agents. Long functional life is a characteristic of this screen exposing system which is also cost effective. The screen exposing machine is stand mountable as well.

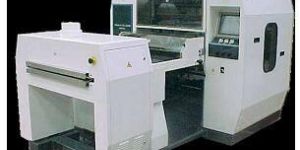

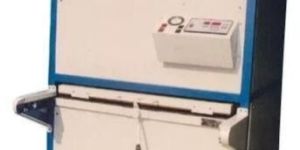

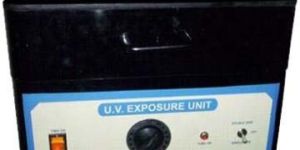

Automated & Semi-automated UV Exposure Machine The fundamental objective of a dry-film laminator is to intimately bond the dry-film resin and the copper surface of the board, avoiding any air entrapment whatsoever. From a physical standpoint, this can only be correctly performed in the moment that the resin reaches the contact point, in a very fluid/gel like status. The high pressure of hot lamination rolls and a sufficient temperature of the board surface, contributes to a successful lamination process. Pits and scratches on the copper surface can then be totally filled with dry-film as shown in below figure. Manual laminators are very close to this ideal lamination condition, since in these machines, the dry-film envelops the hot roll for more than a 1/4 of its circumference, maintaining heat and becoming gel like before coming into contact with the board surface. But generally, in the conventional process, boards are not preheated and therefore, the result is not perfect. Refer below figure FEATURES Very high productivity/quality Tacking and cutting on flight (no stop process) Lamination rolls vibration Very high lamination pressure Adjustable dry-film preheating Excellent board preheating High lamination speed Suitable for inner layer and rigid board

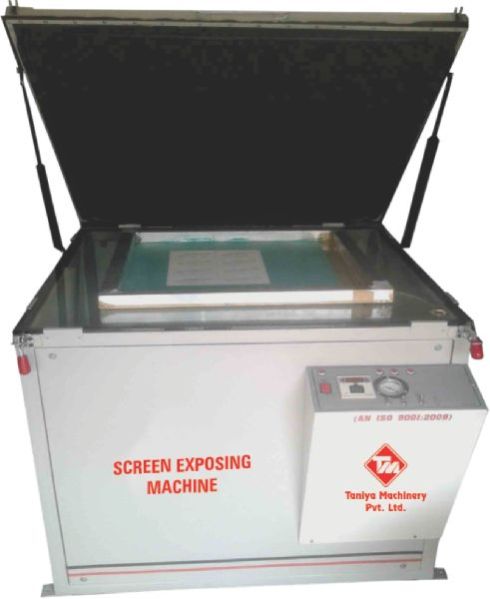

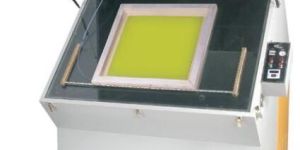

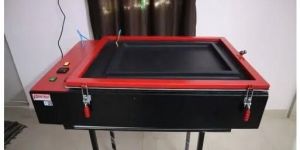

Our Screen Exposing Machine is having a screen exposure unit with 1 to 3 kW, our economical Screen Exposing Machine can be comfortably operated by a single person.   Light Uniformity: Optimum standard reflector on our screen exposing machine perseveres through solid UV and opposes rust by oxidization. It also helps the light to increase equally, so the whole plate is equitably and relentlessly uncovered. Accuracy Integrating Light Meter: Light collecting meter on precisely regulates the exposure and limits its fault to an extent. It wipes out the changeable exposing result generated by lacking or extra exposure on account of step-and-rehash, which is achieved by maturing of the light's glass tube, insecure illuminating or unsteady current. High-Pace Vacuum System: Our is furnished with oil less, dustless, high tensile UV resistant rubber panel and less sound vacuum pump. Makes a vacuum uniformly and quickly. Fast and prompt contact amongst screen and film, extremely smooth contact base. Useful for printing pictures made up of additional fine and high-thickness lines down to immediate, direct or indirect covers in a dustless chamber. Salient Features: Superior quality Very economical only one person required to operate machine. Screen Exposure unit with 1 to 3 kw instant start metal halide lamp for high quality result & increased productivity. Specification : Weight: 150 kg Voltage: 220V Power: 1 to 3 kW Color: Black

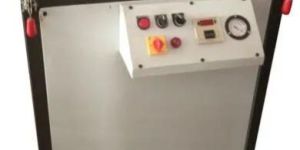

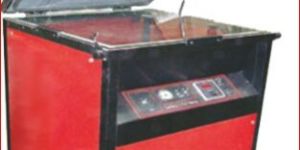

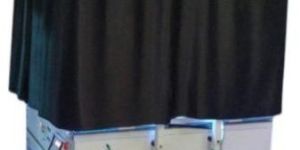

Screen Exposure Machine Special DEEP DRAW High quality blanket for vacuum, Heavy duty vacuum pump, Metal Halide Lamp, Autoshutter with timer, Sizes made as per Specification, Robust and Sturdy Construction

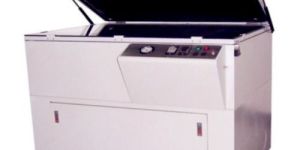

The economy expose unit is specially designed for small scale screen & textile printing industry. Dryer system installed at the bottom is specially designed for quick drying. In built with energy efficient Electronic Choke & Digital Timer. The Dryer contains Thermostat protection to heater Filament. Designed for P.C.B., Membrane Keyboard, Wedding Cards and Stationery Jobs. Expose Area : 16" X 23" Frame Size : 20" X 30" Available in Customized Size as Per Requirement
