Fatigue Testing Machine Dealers

We are ranked among well-reckoned Manufacturers and Exporters of a wide array of Fatigue Testing Machines. We offer Fatigue Testing Machines in varied specifications and make timely delivery of customized orders as well. Buyers can purchase Fatigue Testing Machines from us in bulk.

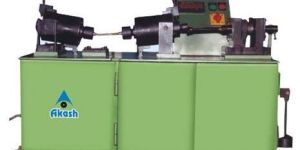

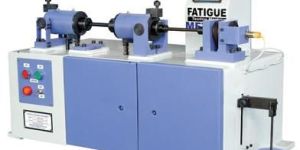

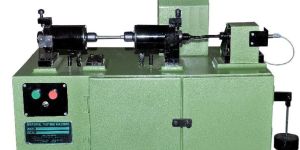

APPLICATION & OPERATIONS This machine is used to test the fatigue strength of materials and to draw S-N diagram by research institute, laboratories, material manufacturers and various industries. This is rotating beam type machine in which load is applied in reversed bending fashion. The standard 8 mm dia specimen is held in special holders at its ends and located such that it experiences a uniform bending moment. The specimen is rotated at 4200 rpm by a motor. A complete cycle of reversed stresses in all fibres of the specimen is produced during each revolution. The bending moment is applied with the lever system and can be easily changed by moving a weight over the lever. Total number of revolution at which the specimen fails are recorded by a mechanical counter. An interlocking system puts off the motor at specimen failure. Machine meets requirement of IS 5075-1969. 6 digit electronic counter instead of mechanical counter can be supplied at additional price. Machine with maximum bending moment upto 400 Kg. cm can be offered on request. Specifications SPECIFICATIONS Mech.CS.FT Max. bending moment (Kg. cm) 200 Bending moment adjustable (Kg.cm) 25 - 200 Ranges : 1 - Kg.cm II - Kg.cm 25- 125 125-200 Gripping dia of specimen (mm) 12 Testing dia of specimen (mm) 8 Rotating speed in RPM 4200 Accuracy of applied bending moment ±1% Mechanical Counter: No. of digits Multiplying factor 6 3 Power required in HP 0.5 Main Supply 3ph 440v 50hz Overall size (mm) 1000LX500WX600 H Weight (Kg) 120   FEATURES Table model, no need of foundation. Simple lever system for changing load. Calibration in Nm available on request. Light weight, Simple design, Compact Size.

Light Wt. Compact Size Table Mode, No Need to foundation Simple Lever System of Changing Load. Accurately Calibration as per IS 5075 Calibration in Nm available on request

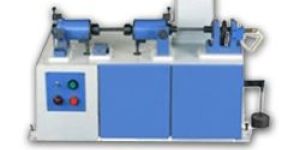

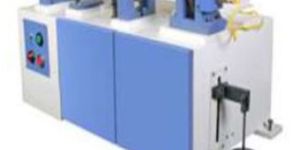

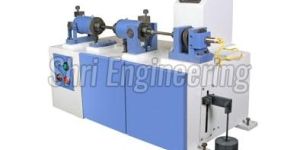

This machine is light, compact & simple in design used to test the fatigue strength of materials & to draw S-N diagram, used for research institutes, laboratories, material manufacturers & various industries. Machine is table model, no need of civil foundation. Rotating beam type machine in which load is applied in reversed bending fashion. Standard 8 mm diameter specimen is held in special holders at its ends & loaded such that it experiences a uniform bending moment. The specimen is rotated at 4200 rpm by a motor. A complete cycle of reversed stresses in all fibres of the specimen is produced during each revolution. The bending moment is applied with a lever system and can be easily changed by moving a weight over the lever. Maximum bending moment of 200 kgcm is applied & adjustable from 25 to 200 kgcm. Total number of revolutions at which the specimen fails is recorded by a digital counter. The total number of digits of digital counter is eight. An interlocking system puts off the motor immediately after specimen fails. Accuracy of applied bending moment ± 1%. Optional - Machine with maximum bending moment upto 400 kgcm can also be offered. Machine meets requirements of IS: 5075-1969.

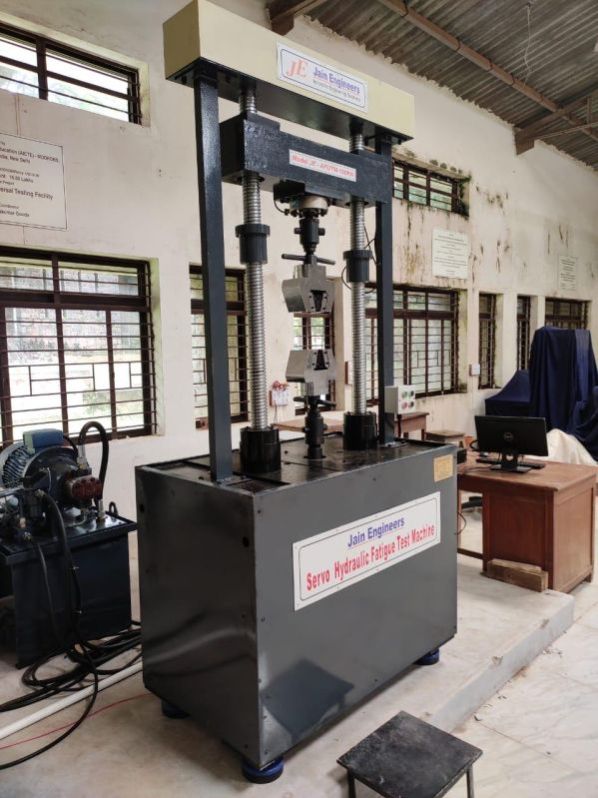

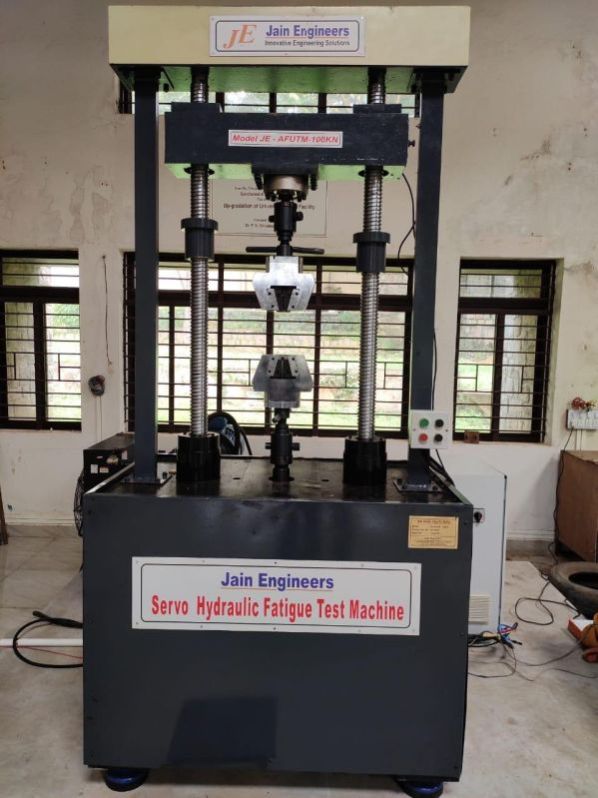

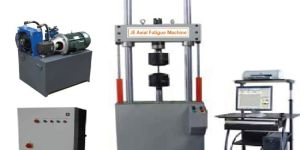

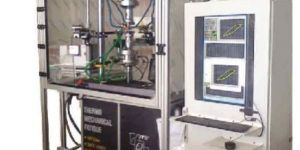

Features 50 to 500 kN force rating systems Integrated digital servo controlled induction heating from 200 to 11000C temperature range Heating rates up to 500C/sec Integrated digital servo controlled compressed air cooling Cooling rates up to 500C/sec Next generation DSP based servo controller with 32 bit data acquisition 24 kHz data acqusition & 24 kHz servo loop control User friendly MTL-32 Windows software with dedicated application software TMF Software designed as per ASTM E 2368 High temperature extensometer Self locking and water cooled hydraulic grips “Green” highly efficient hydraulic power packs Applications Axial low cycle fatigue Thermal cycling Thermo-mechanical cycling with independent phase control (in-phase & out of phase) Optional axial torsion testing Optional axial torsion plus internal pressurization Optional axial/torsion/pressure/thermal cycling with phase control Optional Vacuum chamber to house grips and specimen Non contact temperature measurement (Pyrometer) Spot welding units for thermocouple Thermo Mechanical Fatigue Test Systems simulate combined effects of thermal cycling and mechanical fatigue. These systems are useful for testing specimens subjected to synchronized heating, cooling and temperature compensated strain or force with optional expansion to simultaneous torsion or internal pressurization. These fully integrated test systems are ideally suited for aerospace and power generation industries. The specimen under test is subjected to fast rate heating followed by rapid cooling by means of a digitally controlled induction heater and pneumatic air directed on the specimen through air cooling nozzles.

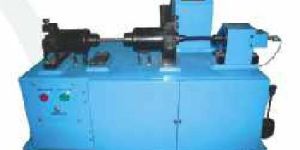

Fatigue Testing Machines are used to test the fatigue strength of materials and to draw S-N diagram by Research Institution Laboratories, Material manufacturers, and various industries.Models : AI-FTM8 Accuracy & Calibration :This machine conforms to requirement of IS : 5075 – 1969 Standards Salient Features :• An interlocking system provided puts off the motorat specimen failure• Light weight, compact size and very simple design• Table model, no need of foundation• Simple lever system of changing load• Calibration is in Nm

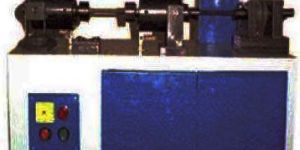

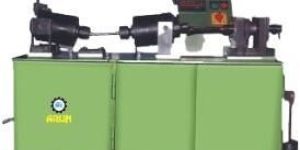

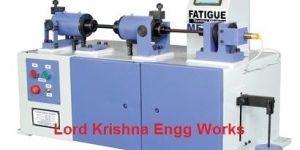

We are a trustworthy Manufacturer, Exporter and Supplier of Fatigue Testing Machine. We manufacture the Fatigue Testing Machine using the most advanced technology equipment and graded parts and components. The Fatigue Testing Machine is precision made, durable and efficient.   This machine is used to test the fatigue strength of materials and to draw S-N diagram by research institutes, laboratories, material manufacturers and various industries. This is a rotating beam type machine in which load is applied in reversed bending fashion. The standard 8 mm dia specimen is held in special holders at its ends and loaded such that it experiences a uniform bending moment. The specimen is rotated at 4200 rpm by a motor. A complete cycle of reversed stresses in all fibres of the specimen is produced during each revolution. The bending moment is applied with a lever system and can be easily changed by moving a weight over the lever. Total number of revolutions at which the specimen fails are recorded by a mechanical counter. An interlocking system puts off the motor at specimen failure. Machine meets requirements of IS 5075-1969.   Features Light weight Compact size Simple design

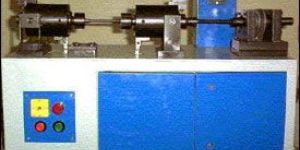

Machine must meet requirement of IS5075 - 1969 Table model for simple lever system at charging load Accessories must be calibrated as per IS 5075 - 1969 Maximum bending moment Kg cm-200 Bending moment adjustable Kg cm - 25 - 125 Ranges 1Kg cm - 25 - 125 & 11 Kgs cm 125 - 200 Gripping Diameter of specimen (in mm) - 08 Accuracy of bending moment 1% Digital counter number of digits-10 Power required, HP - 0.5 Main supply - 3ph, 440, 50 Hz A.C.

We are offering fatigue testing machine. Fatigue testing machine for concrete beams we manufacturer digital universal testing machine, digital controlled universal testing machine that ensure that have double column construction with the maximum capacity load of 100 ton used for like rubber plastic, paper, sutures, textile, adhesive, copper ring, syringe, needle, metals. These digital universal testing machines are offered with over load protection facility.

We offer to our customers a superior quality Fatigue Testing Machine. Fatique Testing Machine can be be used to simulate how a component/material will behave/fail under real life loading/stress conditions. They can incorporate tensile, compressive, bending and/or torsion stresses and are often applied to springs, suspension components and biomedical implants. We customized Fatigue testing machine as per the drawing and requirement of our clients

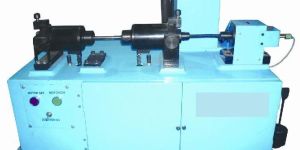

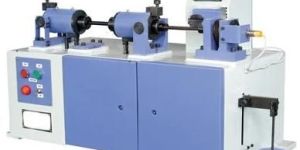

This Fatigue Testing Machine is known for carrying out Fatigue Tests on materials by putting it under exponential stress, tension and compression. We are an acclaimed Manufacturer, Supplier and Exporter of Fatigue Testing Machine. This Fatigue Testing Machine is manufactured in confirmation to the set industrial standards. Application : Used to test the fatigue strength of materials and to draw S-N diagram by Research Institution Laboratories, Material manufacturers, and various industriesModels : AI-FTM8 Accuracy & Calibration : This machine conforms to requirement of IS : 5075 - 1969 Standards Highlights : Light weightCompact size Simple designAn interlocking system provided puts off the motor at specimen failurTable model, no need of foundationCalibration is in NmSimple lever system of changing load

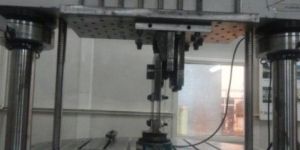

It determines convenience of metal material’s mechanical feature. We use both In-house & outsourced equipment to conduct fatigue tests as per customer requirement. The equipment used to carry out the fatigue test is pulsator & an electrodynamic shaker.
