Fiber Patch Panel Dealers

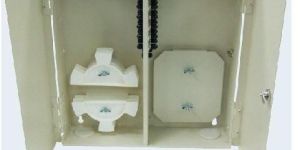

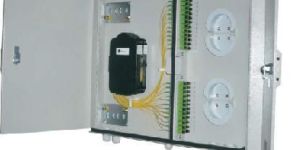

UNISOLTM Wall mount fiber patch panel are designed to support fusion splicing or direct termination of the fibers. This modular enclosure provides cross-connect and interconnect capabilities for splicing and terminating outdoor cables & FTTH drop cables in fiber access network. Our Wall mounts fiber patch panels are made with 16-gauge mild steel with corrosion-resistant seven tank process powder coating to provide excellent protection for the inside fibers. IP rated Fiber enclosure provides an extensive range of fiber management systems (FMS) fully compatible with industry grade fiber adapters. FTTH series wall mount fiber terminal box is designed to provide quick patching, storing fiber terminations. It is also used for IndoorOutdoor application and medium size multi-dwelling units (MDU’s) for FTTx.

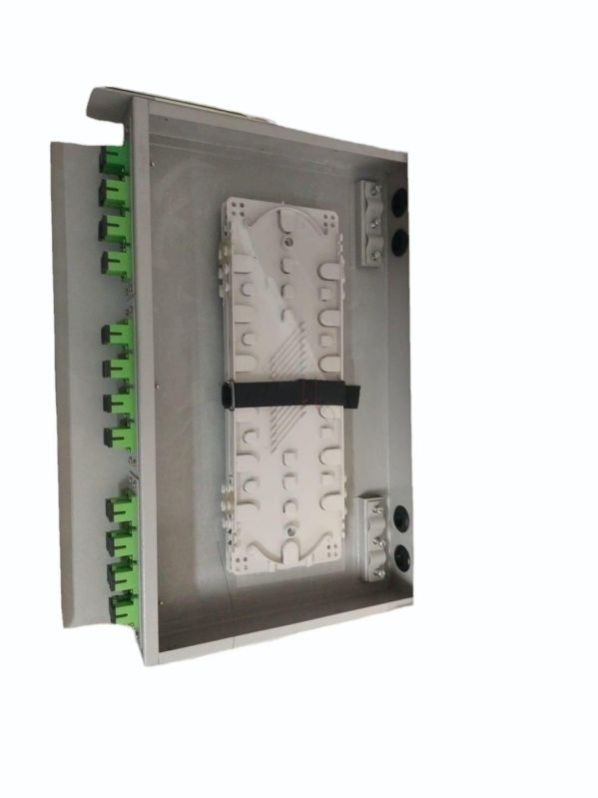

The Optical Fibre Patch Panel is suitable for terminating optical fibre cables coming from the line and connecting the optical fibres to the pigtails by splicing. These pigtails are connected to the pre-installed adaptors at one end and from the other end output can be taken to active devices using patch cords. Patch Panel provides splicing, termination and distribution ina single unit. Features     Compact and robust construction. Available in wall mounting and rack mounting versions Accessibility from the front & top sides for testing and easy handling Main body constructed from internal stress free CRC sheet. Aluminium sheet body also available. Powder coated finish enables operation even in coastal areas Dust and insect ingress resistant Provision to store extra lengths of fibres Provision of two inputs & two output ports Contains Fibre Organizer trays to hold fibre splices, capacity of each tray upto 24 splices Capacity to accommodate upto 6 nos. of Fibre Organizer trays and house upto 144 splices Design ensures bend radius of stored pig tails & patch cords above the critical value Capacity to hold adaptors of FC, Sc & ST type as required Complete Kit with consumables available Applications     Long distance Optical Transmission Networks Termination & Distribution of OF Cables Datacom Networks Specifications     Physical dimensions suitable for installation in 19” rack with multiples of ‘U’ as stand alone system Operating Temperature: -30°C - +70°C

Cable management refers to an important step during the installation of building services (ie electrical services) and the subsequent installation of equipment providing means to tidily secure electrical, data, and other cables. The term is often used interchangeably to refer to products used for the purpose of managing cables or to the workmanship carried out to cables whilst being installed. Cable management is important in many fields, such as IT, communications, power distribution, facility wiring, local area networks, and so on.

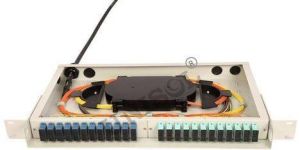

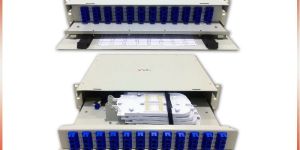

DNC 2U Rack mount fiber patch panel is space saving , generally made for standard 19 inch rack mounting.  The Fiber Panels feature adjustable mounting brackets, cable management, cage nuts, numbered ports, splice management, fiber service loop, label holder and cable tie. This  patch panel system can be supplied with or without adapters & pigtails .   Features Available either loaded or unloaded High quality construction and finish Simplex or Duplex variants Panels with numbered ports Complete with Fiber management kit Available in MM and SM Coupling options: SC –Simplex , LC-Duplex ,MTRJ Available in different sizes 1U, 2U. Smooth and convenient mechanical sliding system Cable glands to secure the incoming fiber, allows min movement

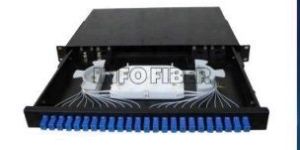

Fiber patch panel, 19" standard size , easy install, Special structure door-key, easy to open and close, Can install 4 NTM-A module, can be distributed freely within 48 fibers, Limited and pointed position of slide track structure, module can be taken out and fixed , Fiber optical patch cord and pigtail can go into the frame from left-right side or top-bottom .

Fiber Optic Patch Panel, Router Table, Signal Transmitte

Optic Fiber Patch Panel, Optic Fiber Connector, Optic Fiber Adapte

Fiber Optic Patch Panel, Digital Distribution Fram

Fiber Optic Patch Panel, Subscriber Home Termination Bo
