Fingerprint Reader Dealers

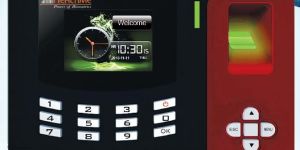

We are offering biometric fingerprint attendance reader. display - 4 lines, 16 characters each lineled indicatorbuzzer 2 led (redgreen) 1 buzzerdisplay language - standard : englishkeypad & button - 16 key numeric & function keypaddimension - 190 x 140 x 57 mmsensor type resolution - optical (500 dpi)fingerprint templates - 3000transaction - 120000rf reader - yescommunications - rs-232485, tcpip, usbpower consumption dc 5v, 2atemperature 0oc - 45ochumidity 20% - 80%verification - 1:1 (time).

We are a well-reckoned Supplier and Exporter of Biometric Fingerprint Reader. The range of Biometric Fingerprint Reader made available by us is manufactured using high quality materials. Our range of Biometric Fingerprint Reader can be availed in different specifications. We offer Biometric Fingerprint Reader at reasonable prices. Smart Card Interface Support ISO 14443 Type A and BMiFareFeliCa4 types of NFC (ISOIEC 18092) tags Fingerprint Sensor Sensor Type : CapacitiveFingerprint Capture Method : Swipe SweepMaximum finger speed : 40cmsGrayscale image depth : full 8-bitSensor strip (image) width : 12.4mmArray size : 192 x 4 pixelPixel : 50 micronsImage resolution : 508 DPISteel Coat : small, black , ruggedBall Grid Array (BGA) 2 @ 4 x 4, 1mm pitchIntegrated bezelPackage type : 6mm x 17.65mm x 1.9mmSecurity FeaturesSupport for DES and AES encryption Hardware based securityAnti SpoofingRSA SecurID Support ComplianceCertifications PCSC, CCID, BioAPI 1.1, Windows Biometric Framework, CE, FCC, RoHS, USB Full SpeedMicrosoft WHQL: XP, Vista, 7 Operating System Support Win 2003, Win XP, Win Vista, Win 2008, Win 7Win 2003 x64, Win XP x64, Win Vista x64, Win 2008 x64, Win 2008 R2 x64, Win 7 x64 Linux (Upon Request)

Fingerprint recognition or fingerprint authentication refers to the automated method of verifying a match between two human fingerprints. Fingerprints are one of many forms of biometrics used to identify individuals and verify their identity. The analysis of fingerprints for matching purposes generally requires the comparison of several features of the print pattern.

We are offering Fingerprint Reader. is a T&A System that record IN and OUT status of the person in the offices, banks, etc. Our range of Fingerprint Reader is appreciated for its good performance among the clients. It can store 1000 fingerprint templates and 50000 transaction records. Applications : Offices, Banks, Warehouses etc.

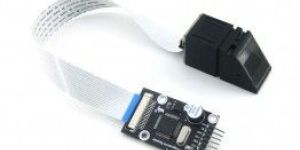

UART Fingerprint Reader PACKAGE CONTENT UART Fingerprint Reader × 1 6-pin custom connector jumper wire × 1 Overview UART Fingerprint Reader is a fingerprinting module designed for secondary development, high-speed for identification, high stability. It is an intelligent module that provides functionalities like fingerprint recording, image processing, feature extraction, template generation, template storage, fingerprint matching and searching, etc.   Features Onboard high-speed processor STM32F205 Commercial fingerprinting algorithm, faster identification High-accuracy optical sensor, standard 16-pin interface, allows users to choose optical/semiconductor sensors Divided structure: fingerprint sensor + processing circuit + algorithm platform Easy for developing, controlled via UART, supports any MCU with UART Open protocol, it's available to freely input/output fingerprint images, fingerprint feature file and other fingerprinting actions Applications Fingerprint lock Fingerprint safe deposit box Access control system Person identification Authority management Specifications Parameter Specification Processor (CPU)  STM32F205 Sensor HD optical Memory Built-in (extensible) Anti-wearing 1 million times Anti-electrostatic 150KV  Fingerprint capacity 1000 False acceptance rate

optical fingerprint and em proximity card based reader, ip65 rating, tamper detection, tri color led and buzzer, 12vdc power supply through adaptor or battery backup, compatible with any cosec door controllers (except cosec door fot)..

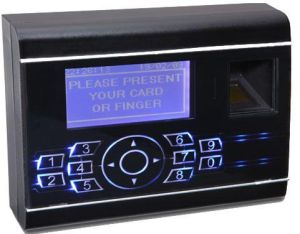

We are offering finger print biometric reader. we offer single-contact relay output connected to an external relay card is used. Maximum current capacity for inter-contacts is 1 a. Relay time can be set or cancelled between 1 and 9 seconds by user. display: with its built-in lighting feature, 128 x 64 graphic display used for the reader provides maximum visibility under illuminated or non-illuminated conditions. Graphic display also supports visual messages and use of logo. All ascii characters defined on your pc can be displayed as an image on lcd. addressing: reader addresses and communication speed (data rate) are adjustable. Up to 250 readers can be connected to each communication port online. with two different input ports available on the device, information concerning the gate status or whether anyone has passed through the turnstile is transferred to the control software. language support: two user-selectable languages are supported as default. With the help of a pc software, user messages can be defined in all languages. logo support: 128 x 64 black and white bmp files prepared by the user can be uploaded onto the device. This feature allows personalization of the device according to the user options. data information: each reader can save up to 180,000 access records. Each record containing personnel card number/fingerprint registration number, card type, time (hh.mm.ss) and date (day/month/year) information can be read on request with the help of a pc. warning message: all user messages can be supported by graphics. This special feature, therefore, considerably shortens perception and consequent reaction times for the appearing messages. 3 optional i/os available on the device can be used for any purpose as needed.

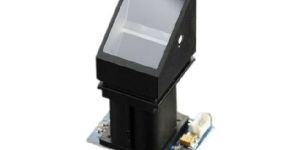

Product ID: 1217 This is a finger print sensor module with TTL UART interface. The user can store the finger print data in the module and can configure it in 1:1 or 1: N mode for identifying the person. The finger print module can directly interface with 3v3 or 5v Microcontroller. A level converter (like MAX232) is required for interfacing with PC. Power DC: 3.6V-6.0V Interface: UART (TTL logical level)/ USB 1.1 Working current: 100mA Peak Current : 150mA Matching Mode: 1:1 and 1: N Baud rate (9600*N) bps, N=1-12 (default N=6 57600bps) Character file size: 256 bytes Image acquiring time :

In order to meet urgent and voluminous requirements of the customers, we have installed all the in-house facility at our premises. Laced with modern facilities, it helps us in securing the product line from factors like, moisture, dust, sunlight, etc. Both of our online and offline payment processing methods are secure for transaction offering you a reliable assistance. We thus accept all kinds of cash payments as well as bank transfers. Our Biometric Fingerprint Reader is largely acclaimed for its high-quality and performance.

We are offering finger print reader with 500 dpi resolution inbuilt proximity reader (optional mifare reader) for 1:1 match non - volatile memory to store 1900 finger print templates (expandable upto 9000 finger print templates) memory management for transaction and database.

Access Control System is used to prevent unauthorized entries into restricted areas. Wide range of permutations & combinations can be achieved according to requirements. Access Control System This system provides access to authorized personnel but prohibit entry of unauthorized persons. An individual combination of terminals, sub terminals, and an access manager provides optimal protection to homes and buildings. Their features include:• Time attendance cum access control function• Support EM technology• Changeable 6 shift operation mode• Provides self test code to detect during system failure• Invalid card alarm• Build-in battery to ensure operation during power failureBiometric Access Control SystemWe have designed biometric system for automatic identification of a person based on his/ her physiological or behavioral characteristics. They can operate either in a verification or an identification code. They have features like:• PVD coating on the surface to prevent color fading-out• Memory up to 120 fingerprint templates/ users• ANSI standard• Passing mode: convenient for meeting and gatheringFingerprint and Proximity Card Based Access Control SystemThis is an Access Control System with both Proximity Card & Fingerprint based technology. The system is flexible for either card or fingerprint operation or fingerprint + card operation. The system uses highly advanced scanner from Digital Persona. Ideal for cash rooms, server rooms, warehouses, arms rooms or any place where controlled access is required.

 High level of security at affordable prices* Most accurate and powerful Fingerprint sensor* Attractive plastic enclosure with compact dimensions* Inbuilt proximity reader for 1:1 match* Supports industry standard configurable weighted output* Compatible with most of the access controllers* Easy and quick installation Specifications * Fingerprint Sensor : Optical Sensor with 500 dpi resolution* Card Reader : Inbuilt proximity reader for 1:1 match* 1:N match :

BioStamp is a Fingerprint Reader for door access control application. It has a sleek design with attractive finish and elegant looks. Powered by industry's most advanced and powerful finger print sensor, it has been seamlessly integrated with in Mifare & RFID technologies. It supports industry standard 26 bit weigand or clock/data output and can be connected with most of the controllers.   Advantages Affordable solution for biometric access security Most accurate and powerful Fingerprint sensor Elegant design with compact dimensions, suitable for installations on a door frame Inbuilt Card reader for 1:1 match (Proximity / Mifare / HID Prox / HID iClass) Industry standard Weigand interface for easy interface to any access controller Easy and quick installation

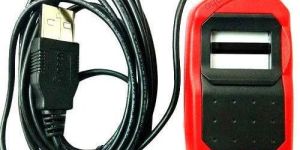

Fingerprint Reader Scanner is very safe and convenient device for security instead of password, that is vulnerable to fraud and is hard to remember. Use USB Fingerprint Scanner Reader with our Biometrics software for authentication, identification and verification functions that let your fingerprints act like digital passwords that cannot be lost, forgotten or stolen.
