Flow Indicators Dealers

A] Sight Flow Indicator       Principle of Operation   The different types are double window full view plain, Flapper, drip tube, rotator type.           Material specification   Customized suiting to the service (fluid) and temperature, Available in SS 304/ SS 316/ pp/ CS etc

Nivz Valves and Automation a eading Manufacturers and Exporters of PTFE / FEP / PFA / Teflon® lined Sight Flow Indicator with Double Window which available from 1”(25NB) to 6”(150NB). We do manufacturing, exporting and Supplying PTFE-FEP-PFA-Teflon Lined® Double Window Type Sigh Glass in various grade of lining to suit temperature application in Flanged End Connection. Our manufacturing range of PFA-FEP-PTFE Lined Sight Flow Indicator used for corrosion & acidic application. FEP-PFA-PTFE Lined Jacketed Sight Flow Indicator can install in either Horizontal or Vertical Line as per requirement. Wide range of Body Material selection available like Grey Cast Iron, S.G. Iron, Malleable Iron, Ductile Iron, Cast Carbon Steel, Cast Stainless Steel 304 & 316 along with PTFE, PFA, FEP, Teflon®lining. Nivz PTFE Lined Sight Flow Indicator face to face (flange to flange distance) dimension is as per ASME B 16.10 standard and flange drilling as per ASME B16.5, 150 Class. Nivz a #1 Quality FEP, FPA, PTFE Lined Sight Flow Indicator Manufacturer, Exporter, Supplier, Stockist. Mostly  PTFE Lined Sight Flow Indicator available in Ready Stock.

Features Compact 1 / 8 DIN size case Two pulse and three control inputs 2 relays (NO) of 5 A and 250 V OR 2 Open Collector Outputs; 100 mA maximum One 4-20 mA analog output RS232 / RS485 port for serial communication and printing Password security for function keys +24 VDC unregulated O/P for AC powered unit NVRAM to retain data on power failure Both inputs can have up-to 16 points linearizing K factor

Sight Flow Indicators find application in various chemical, pharmaceutical, food and beverage industries. Sight Flow Indicators are fabricated from borosilicate glass in accordance with international coefficient of thermal expansion that allows great thermal strength and resistance to thermal shock. Sight Flow Indicators are offered in varied specifications as to meet the varying demands of clients. They are easy to install and maintain.Features : 360ovisual flow indication All wetted parts in borosilicate glass and virgin white PTFE Unrestricted full bore flow Adjustable Removable glass   Available Options: Non wetted parts available in 304/316 stainless steel (S/S), and mild steel bright zinc plated (BZP) Flanges drilled to ASA 150, BS 10 Table D/E/F, or other on request Other bore sizes available Other lengths available Permissible operating temperature provided

Brightech™ Cast Ductile Iron, Fully FEP/PFA Lined, Double Window Type, Two Way, Bolted Cover, Sight Glass, panes of Borosilicate Glass with Integrated Drip Lip, Flanged End Connection.Size Range: 25mm to 200mm   Feature & Benefits Brightech™ Double Window Sight Glass provides clear visual flow indication on any corrosive service as all internal components other than glass have been fully lined with either FEP or PFA depending on application Both the glasses are bolted with the body. Fluids can be viewed from either top or bottom side The Drip Lip feature is integrated with liner provides immediate flow indication even at low velocity Lining Specification OTHER LINING MATERIAL We offer other lining materials like PTFE, ETFE, ECTFE, PVDF, PP, HDPE LINING THICKNESS Min. 3.0mm/4.0mm overall SPARK TEST Body liners & all wetted parts are spark tested at 20,000 Volts

FT 200 series flow meters are extremely versatile flow meters that can be used for a wide variety of applications. These meters offer extreme reliability and low cost for flow measurement. FT 200 series flow meters can be used for water and water like liquids. These meters can also be used for line sizes from 0.5” to 48”. Microprocessor based instrumentation ensures accurate readings for both rate of flow indication and total flow indication. A number of programmable features including In-line calibration are standard. Advanced models can offer relay outputs for signals exceeding rate of flow or total flow set points. Industry standard 4-20mA output is optionally available. These instruments are field programmable and doesn't needs any special instruments for calibration. All variables and program parameters are programmable through key pad provided in the instrument. In addition, these meters have RS485 or RS232 Mode of communication to PC through MODBUS Protocol. All the parameters are saved in a non volatile EEPROM memory which doesn't needs any external battery. There is a advanced power fail feature by which even if there is any power failure the Total Flow reading is automatically saved to memory and resumes with the same value after Power On FT200 is available in a IP65 enclosure with field mount, panel mount, pipe mount as well as wall mount options.

Model no: DOUBLE WINDOW FLOW INDICATOR (SERIES-JB-DWFI-213)vailable in full View, double window, single window, with flapper, rotary wheel and in drip tube design. Suitable for different types of fluids.Type of connection : Screwed or Flanged. Material of construction: C.I., C.S.,SS-316, SS-304 or any other depending upon application.Available Sizes : 6 NB to 250 NB

Pantech Instrument’s Model 845V represents FLOW INDICATORS TOTALIZERS CONTROLLERS for flow applications where single flow signal is available. Based on the flow application and the type of flow data signal, hence this model can be used in VOLUMETRIC and MASS flow measurements, both. The instrument accepts any predefined linear type of signal, and converts it into INSTANTANEOUS FLOW RATE to a resolution of 44.5 digits. TOTALIZED value is displayed through 8 digits red LED and this totalizer value is always protected against power failures through internal memory structures of microprocessor. Optionally the instrument is designed to give two contact relay outputs and a RETRANSMISSION ISOLATED signal on INSTANTANEOUS FLOW RATE. Serial communication outputs for computer system interfaces are also given optionally. All configurations, calibrations and output fine tunings etc. can be performed by front four keys only without opening the instrument. In the core of all the functions lies the latest and highly proven microprocessor based chipsets. The high end softwares ensure the most user friendly interactions by the user. The instrument incorporates low drift operational amplifiers and industrial grade components for long trouble free operation. Burn in of each module ensures long trouble free operations. Model 845V : Is to be used when a single flow signal input is there. Application can be a VOLUMETRIC MASS type, depending upon the system design and type of flow transmitter signal output.

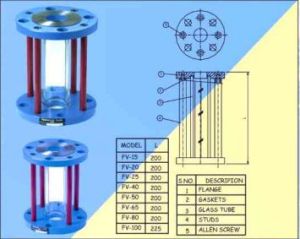

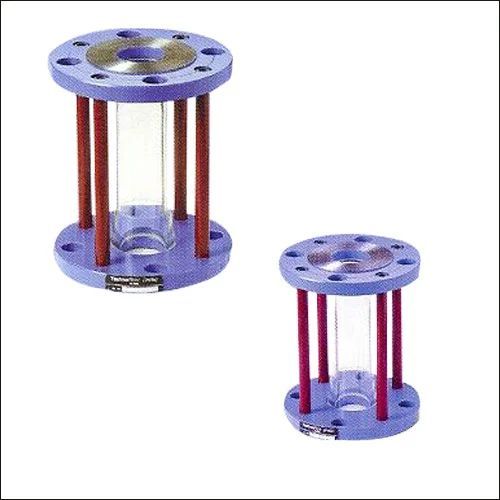

Full view Sight Flow Indicator is recommended where maximum visibility is desired on low pressure applications ( Upto 8 kg/cm2). It can be used in vertical or horizontal lines with a negligible pressure drop. It is ideal for visual check of the presence, colour & condition of liquid, where there is intermittent flow, partially filled lines or entrained air. This Sight Flow Indicator is rugged in construction, comprises of havi walled buttress borosilicate glass cylinder placed between two flanges. Teflon gaskets offer superior protection & better sealing. Available in all types of flanged & threaded process connections. Various material of flanges and linings is available as per applications requirement.     Features : * Blow hole free investment casting body.  * Electo polish finish for better registance to sarface corrosion.
