Flush Bottom Valve Dealers

We are engaged in manufacturing, exporting, distributing and supplying excellent quality Intelligent Double Sear Tank Bottom Valve in Mumbai, Maharashtra, India. A remarkable feature of intelligent flow control valve is reliable operation and easy maintenance. Especially suitable for CIP, SIP requirements. And the features are determinate to quality & healthy products and also the equipment productive forces, maintenance and update costs

Features. : Rugged construction for absolute safetyAvoids chipping of lining during handlingChoice of lining to suit working conditions.Most economical with the proven performanceExtended seat to reduce dead space.

Functioning of Flush Bottom Ball valves:- Flush bottom ball valves are designed so as to completely seal off the outlet nozzle at the inner vessel wall. This prevents solids/liquid from accumulating and solidifying in the outlet nozzle neck and stopping discharge of the vessel contents. It also prevents the collection of un-reacted material in the nozzle. Flush bottom ball valve has special surface designed inlet flange, directly welding and flush mounted at the bottom of reactor, tank, vessel or container, smooth tapered hole and super short distance between the valve ball and bottom can prevent the medium accumulate at the entrance, ensure the medium smoothly discharge. J.D. Flush Bottom Ball Valves are generally supplied with manual hand lever or gear unit operated, depending on valve size. J D also offering Ball Valves with either Pneumatic operated for automation.

Salient Features (1) Square body, Gland Type Body and Actuator Mounted pad type body available (2) Investment Castings Body, Side Piece (3) Pneumatic Actuator operated ball valve available on request .

"r-square” flush bottom valves are designed to provide drainage and dead space free shutoff for reactors, vessels and storage tanks. The dead space free shutoff is accomplished by placing the valve seat flush with the bottom of the vessel. This eliminates any buildup of product within the vessel nozzle itself. Advantage of disc type is short stroke for openclose operation. Design options are open on discharge side for nozzle fitting or flange end. Air cylinder operation is usual for saving labor.

Tecnik’s Flush Bottom Valves are used for process materials discharging applications. These angle-type flush bottom valves are designated for two values and two types of construction. The first value is the inlet flange connection size which is fixed to the tank or vessel’s bottom pad, and the second value is the size of the port and the outlet flange which is connected to the pipe Better flow capacity for line sizeSuitable for drainage systemsTight closing for reliable shut-off even if change in pressure and temperature are sudden and extremeWide selection of actuators to meet most system requirementsFlexible design capabilities allows fitting any vessel configurationMeasurement temperature is available with built-in thermometerJacketed option available (full jacketed & semi-jacketed)Unique packing designs to suit various temperature and fluid needsExcellent shut-off performance Jacketed BodyIntegrated RTD in PlugInlet Flange Contoured to suit Vessel Curvature

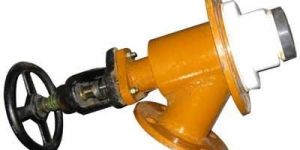

flush bottom valve is ideal for process vessels for landing abrasive, slurry, viscous material or semi solid media. The flush bottom valve we offer has extra long spindle and modified hand-wheel with cylinder arrangements and facilitates the drainage and dead space free shutoff in storage tanks, reactors and vessels. widely used inflush tanks bottom of reactor vessels, autoclaves, etcsupplied withpfa / fep lined coating that is resistant to corrosion and can withstand extreme temperature

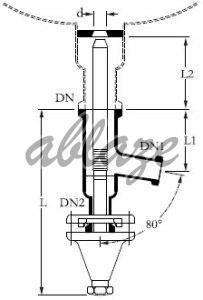

These are vessel valves used mainly in Reaction vessel to completely flash material from the bottom of the vessel. It avoids unreacted material being left in the bottom outlet nozzles. It is specially made as upper opening or down opening depending on the space between the agitator and the bottom of the vessel.

Series 50 manually operated tank bottom valve has a body with attached welding neck and an inlet ports, a diaphragm seal, a bonnet, and a handle.   Key Features: Compact design for space restricted applications Simplified welding with provision of welding neck Optimized flow geometry Hermetical separation of fluids from the operating mechanism by diaphragm Fully machined from SS 316L bar-stock – no welded components CIP/SIP capable and crevice free Zero dead leg and self-draining capabilities Fully Autoclavable Various internal surface finish available each with less than 0.40 Ra.

The MASCOT FlushFlo is used at the bottom of large tanks / digesters and driers to discharge the processed fluid to a further process. The inlet and outlet flange is completely customizable to the customer’s tank and it is available in a varying angles of 90°, 120° & 135°. The Plug can be Quick Opening type or with a Linear, Equal Percentage Characteristic. The Self Aligning seat ring ensures tight shutoff without Lapping even after prolonged use. The plug can be equipped with an RTD for temperature measurement and control
