Gantry Cranes Dealers

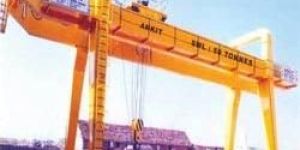

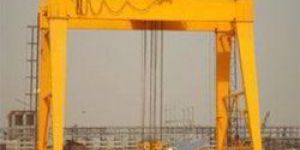

Our top-of-the-line Gantry Cranes Without Crab are made obtainable in different types – single girder and double girder. The cranes are designed in such a thoughtful manner which facilitates quick and easy assembly. They come along with the benefit to relocate things from one area or facility to another in a convenient way. We are enlisted with the most sought-after Manufacturers, Exporters, and Suppliers of Gantry Crane Without Crab from Bangalore, India.   Option Available : Wide flange beam gantry cranes for lifting applications that require supplemental coverage for an overhead crane, the facility floor remaining unaltered

In workshops where part utilization of shop bay is required (as in a tool room attached to a press shop), a Semi-Goliath/Gantry Crane is used. In such a configuration one end-carriage of the crane will travel on the regular gantry rail while the opposite end-carriage will travel on a rail mounted typically on the ground or at a lower elevation.A Goliath/Gantry Crane is typically more expensive than an equivalent EOT Bridge Crane. However in almost all the relevant cases as mentioned above, a cost analysis shows that it is cheaper to go in for a Goliath / Gantry Crane as against a Bridge Crane. The cost analysis can be done by taking into consideration the following -  Cost of Gantry Girders that are required in case of a Bridge Crane Cost of Columns required for supporting the above Gantry Girders Difference in costs of civil foundation for columns (for Bridge Cranes) versus civil foundation for gantry rails (in Goliath / Gantry Cranes) Difference in Down Shop Leads cost of Bridge Crane versus Cable Reeling Drum and Cable Cost for a Goliath / Gantry Crane Goliath / Gantry Cranes can be either of the Single Girder type or Double Girder type. If required, Magco Cranes can advise end users of the type of crane to be installed based on a cost benefit analysis.

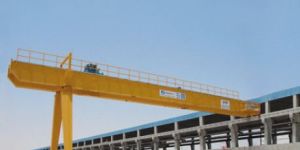

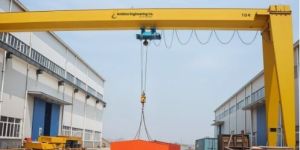

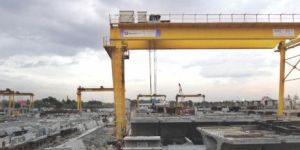

A Semi Gantry Crane is a variation of a Gantry crane in which one end carriage of the crane travels on the regular gantry rail while the opposite end-carriage will travel on a rail mounted typically on the ground or at a lower elevation. A semi Gantry crane is used in applications such as a tool room where part utilization of the bay is required, or in outdoor sites where a gantry rail can be installed on the side of an existing structure.

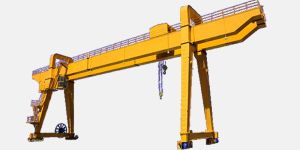

We are offering gantry crane. Bhagwati’s organizational structure and the fact it has always worked respecting quality standards both in its organization and throughout the production phases, allow us to offer our customers a high-quality product and service. We receive the iso 9001:2000 quality certification in 2007.

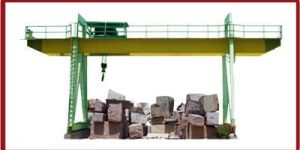

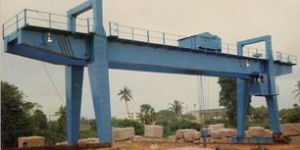

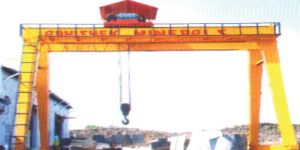

GANTRY CRANE is best suited for handling of material / blocks in an open yard. The crane has fabricated box structure of M.S. Plates. Complete structure moves on Rail lines the winch trolley moves on box type double beam winch is fixed at one end and hinged on bracket at other end to take care of Jerks and Sag in the beam. The crane is operated by pendent switch. The crane is perfectly balanced uniform load distribution has been done on all the four wheel boxes.

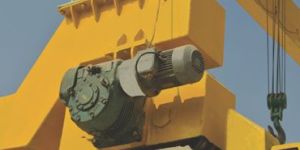

Plate fabrication adequately designed and reinforced by stiffening ribs to take care of all types of loadings. This is connected by cross beams. The complete structre is mounted on four wheel base each having two double rimmed stell wheels provided with flexible bushing to take care of any misalignment. The top beam is firmly fixed on both side to take care of jerks in operations. The crab carriage is in stell section. It is comprised of special creane duty motor connected to heavy duty speed reducers and coupled upto grooved steel drum. Electro magnatic breaks/ hydro thruster breaks are used to control the smooth lifting of weight. The block is equipped with a forged steel forked revolving hook. Wire rope is of 6*37 construction. Access lader leading to inspection walkway which runs along one beam and is made of walking surface with railing and foot guard. Electric operations are controlled with push button control unit independent from the position of winch trolley and sliding in loop through cable carriers. Limit switches for cross to ensure accident free operations.

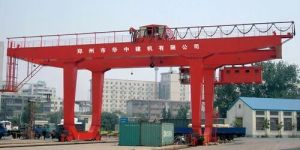

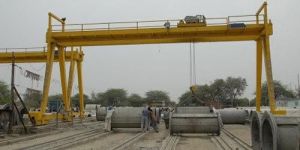

c are also known as Portal Cranes or Goliath Cranes and operate on floor mounted rails rather than a supporting gantry system as used by Bridge Cranes. Standard and special portal cranes are manufactured and used in a wide variety of industrial situations. Gantry Cranes are manufactured in conformance with IS: 3177 and IS: 4137 and comes with a safe working load capacity of 5 ton to 100 ton. The various components and robust built of these cranes are as per the recommendations of IS: 807. These cranes find high applications in handling and conveying equipment in Construction, Industry, Yards, Mines, Harbours and Enterprise stations. These can be customized as per the specific requirements of Factories and Warehouses.   Features Heavy and light duty Application specific design Consistent performance Low maintenance Easy to operate Robust construction Economical solution to bridge cranes Efficient and safe operation Minimum maintenance Outfitted with long legs to gain desired lifting Excellent functionality Limit-switches are easily adjustable Exceptional anti sway performance Smooth gantry operation Improved performance where high in service winds prevail Optimum design for automation Spreader side shift eliminated due to simultaneous motion
