Gauge Valves Dealers

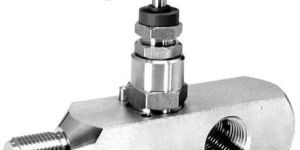

Available in SS316, all wetted parts in accordance with NACE MR01-75 Heat Code Traceable to certified material test report Rolled and plated thread for greater strength and smoother operation Packing below the threads prevents lubricant washout. Bar Stock Body Straight Patterns 12" and 34" Male to 12" Female end connections 12" Female gauge port standard Non rotating self centering stem tips Every valve is factory tested

Body Materials: SS 316, SS 316L. Pressure Rating: 6000psig (413 bar) @ 38°C (100°F). Temperature Rating: -53°C (-65°F) to 232°C (450°F) with standard PTFE packing, up to 648°C (1200°F) with Grafoil packing. Inlet Connection with 1/2″ NPTM or 3/4″ NPTM and Outlet Connection with 1/2″ NPTF. Threads with smooth surface finish avoid galling and help to extend the fitting service life.

Recommended for use with Bliss Anand Liquid Level Gauge Series and is compatible with all armored flat glass Liquid Level Gauges.  Stainless stell ball check located upstream of the seat instantly shuts off flow in case of gauge glass break.Union gauge connection enables gauge removal without removing the gauge valves.Standard unit consist of ASTM A105 forged carbon steel body,316/416SST stem, grafoil packing, 316 SST ball check, steel handle and ½” FNPT vent & drain.

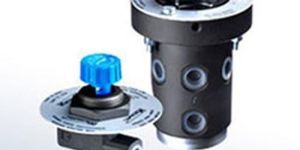

Model-FGI-01 L This is the lockable (detent) type of Push-to-read gauge isolator.In addition to the feature of FGI-01 model,this isolator can be locked in READ position by twist of the knob after pushing.This model finds application wherever pressure reading is required for a considerable period of time. Technical Details Mounting Panel installation Connections 1/4” BSP Weight 0.6 kgs Mounting Position Horizontal or Vertical Operating Fluid Mineral Oils Hydraulic Data Operating Pressure P max. 5075 psi/350 bar Temperature Range 4¼F/-20¼C 176¼F/+80¼C.

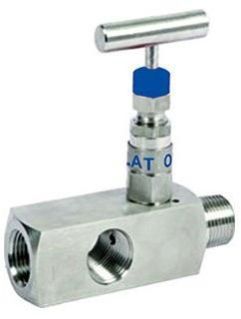

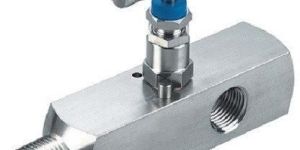

he gauge valve comes in many configurations, ranging from single isolate valves with a bleed port, to block and bleed valves with varying end configurations. Our gauge valves, Block and Bleed type, as standard, are rated to 413bar (6,000 PSI), but can be rated at 689 Bar (10,000 PSI) and are available in a range of different materials. Materials Gauge Valve is Constructed from 316 stainless steel, carbon steel or alloy 400, each single piece manifold is compact and features locking plates, mounting holes and upstream or downstream ports. Thoroughly tested to withstand up to 1200° F, instrument manifolds perform in many of the most demanding environments We offer a variety of different Gauge valves with Multiport, Vent & Manifold which includes the following Two Valve Manifolds Gauge Bleed Needle Valves Gauge Vent Valves Gauge Multiport Valves   Application FAV Gauge Valve are designed for stringent application in Oil & Gas, Chemical, Petrochemical etc. industries. These gauge valve can be used for throttling and straight isolation in process or flow control applications. These metal seated valves are machined from square bar stock and are available in sizes 1/8” to 2” in various connections. 10000 psi valves are rated upto 1” pipe size.

Pioneer offers accessory, “gauge valve” to your pressure gauge to extend the service life of it. Gauge valves are intended to isolate the pressure gauge from the medium in order to enable inspection or replacement of the pressure gauge and also to extend the service life of gauge, where the pressure is continuously pulsating. In off position, the pressure medium is blocked and pressure gauge system is open to the atmosphere. In on position, the pressure gauge is open to the pressure, to the pressure medium. These are available with vent also by which the system c a n be vented a n d the medium c a n escape into the atmosphere.

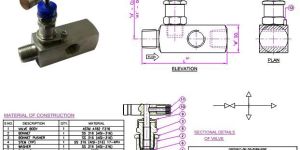

Bonnet Assembly : Screwed bonnet design. Bonnet - back seated blow out proof Spindle - ground and thread rolled. Spindle tip - non rotating tip shut off type - regulting and soft seated. Packing below thread. Bonnet pusher - silver plated for anti galling freezing for increased stem cycle life. Dust cap protects stem threads from externals contamination leak tight seal with low operating torque.   Technical specifications : End Connection : NPT, BSPT , Socket Weld. Working Pressure : 6000 psi (431 bar) Temperature Rating : ptfe 450° f (232 ° c ) grafoil 700 °f (371° c) Material of Construction : SS 304 , Monel , C.S , SS 316 Stem Pcking : PTFE Grafoil Orifice: ø4.7 All valves are 100% factory tested prior to shipment. Optional sour gas service valves are available confirming to nace STD MR - 01 - 75   Application : Pressure   switches,  gauges  &  differential  pressure , pressure  transmeters suitable  for  block  &  bleed  assemblies  to  test  pressure  source  required in  sampling   line   or  plug  valve. Refineries,  liquid  petroleum   gas   processing  plant petro- chemical plants systems difficult to shut of due to solid  contents dust, rust, dirt  etc   Testing : Pneumatic seat test is performed at 1/4 of working pressure hydrostatic shell test is performed at 1.5 times the working pressure optional test are available upon request.   Lubrication : Molybdenum disulphide (mo s2)

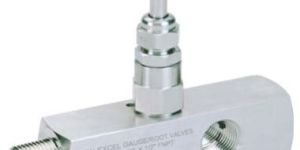

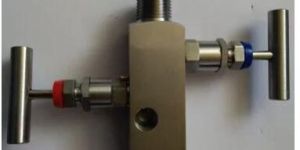

Backed by professional we are offering a Gauge root valves to our customers. We use premium quality raw materials and latest advanced techniques for the manufacturing of the Gauge root valves. This product is broadly appreciated for different characteristics like high strength, excellent design, smooth performance and much more. The gauge root valves can be available in various size and shapes as per the client’s requirement. Our range has experienced finish testing on several of value parameters before being dispatch to our customers. Other than this we are offering this at moderate rates.

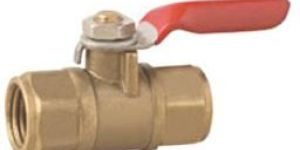

we offer Brass Gauge Isolator Valve. Accessories Of Gauge size:14MNPT X 14MNPT The brass ball valve cock is an ideal isolating valve between a pressure gauge & the medium being measured. The valve is a positive shutoff rated at 600 psi W.O.G., & facilitates the repair or replacement of a gauge without comprising the piped system. CAUTION: A coil syphon should be used between ball valve and steam service.
