Horizontal Boring Machine Dealers

We are one of the prominent high precision Horizontal Boring Machine manufacturers in india. the use of optimum quality materials in the manufacturing of the horizontal boring machine ensures high durability, tensile strength and resistivity to adverse conditions. the unmatched quality and unsurpassable performance has attracted various national as well as international clients to place repeated orders for the horizontal boring machines. additionally, customers are eased with the availability of the horizontal boring machines with latest configurations confirming to the international standards.

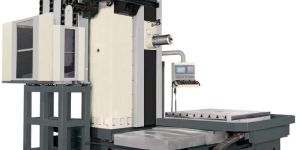

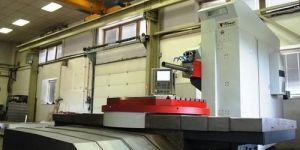

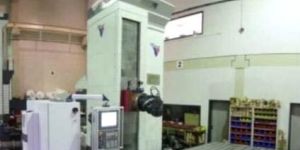

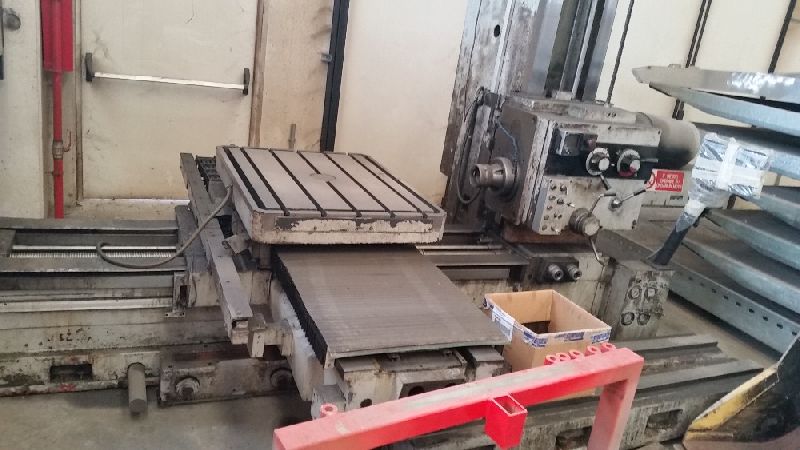

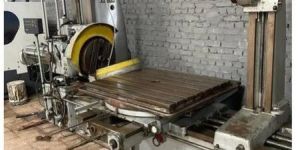

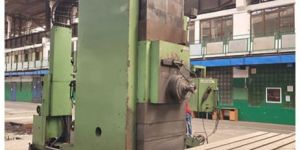

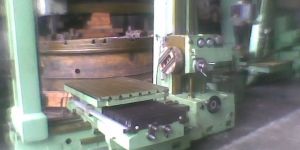

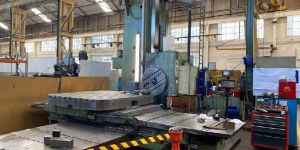

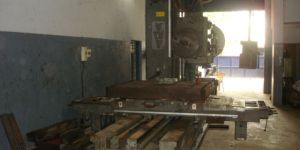

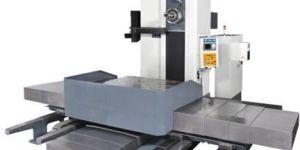

We are offering horizontal boring machine -table type. The machine is in good working condition with warranty, the year of manuf. 2010 and the machine in europe. the technical specifications are below, diameter of working spindle : 130 mm travel x-axis : 3500 mm cross adjustment of table (x) : 3500 mm motion of work head on frame (y) : 2500 mm longitudinal adjustment of table (z) : 1250 mm spindle travel - w axis : 800 mm spindle nose : iso 50 -clamping area of table : 1800 x 2200 mm axis b : 360 °rotation of spindle : 3000 min rapid feed : 10 mmin main motor output : 37 kw dimensions l x w x h : 8000 x 7800 x 4500 mm machine weight : 36000 kg control sytem :heidenhain tnc 426 rotation of spindle: 3000 umin table dimension: 2200 x 1800 mm.

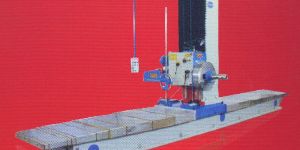

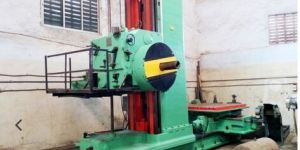

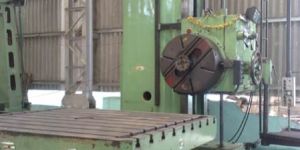

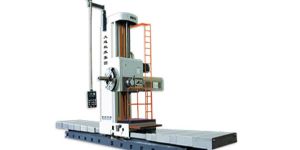

We have developed "KARAM" High Precision Horizontal FLOOR TYPE BORING MACHINE which is most suitable for very heavy & High Volume Jobs which can't be accommodated on the work table of conventional Horizontal Boring Machine. Such jobs can easily be handled with the Floor Boring Machine as the work-piece is kept on the Floor Plate/s provided separately with the machine. Additional ROTARY TABLE Attachment is also supplied as per customer's requirement. The design of machine is unique which ultimately provides stiffness, accuracy, precision and optimum output. The especially designed machine bed is wide enough to provide a very rigid base to the moving column. The geometrical accuracy of the machine conforms to Dr. Schlesinger's Acceptance Test Chart. The special feature of this machine is that a Variable Frequency Drive (AC DRIVE) is used for the Centralized Control of Vertical Movement of Head Stock as well as Horizontal Movement of Saddle carrying column. These infinitely variable speeds are further controlled by a potentiometer duly fitting the same on pendant board of the machine which also eliminates shifting of levers again & again. Centralized Lubrication System ensures proper lubrication to all the moving parts. Special Attachments like Milling Attachment, Threading Attachment and Taper Boring Attachments enable the machine to perform multi-operations. CNC Version of the machine can also be offered as per requirement.

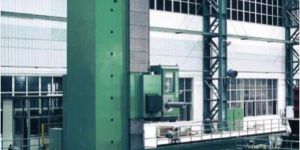

Boring spindle diameter 100 mm Max spindle travel 900mm Head stock vertical travel (Y-axis) 1120 mm Moving column type design Highly rigid construction Automatic clampingunclamping of ISO-60 tooling facility Circulating lubrication system for HS & Feed gear box.

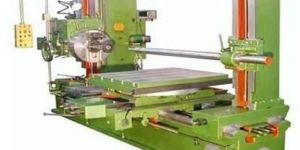

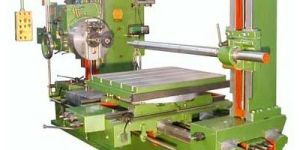

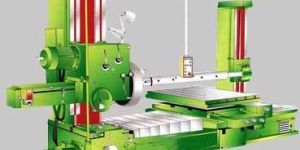

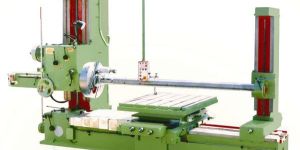

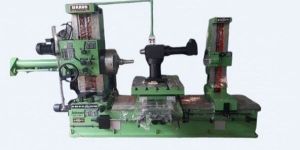

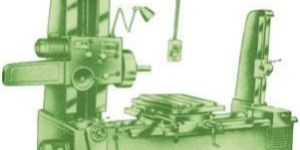

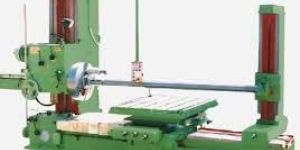

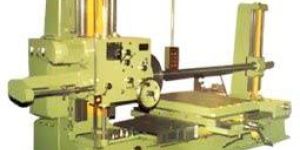

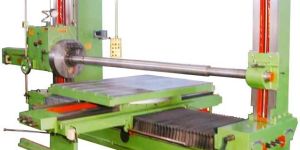

Rajindra all geared Horizontal Boring, Drilling & Facing Machine is a typical machine tool for soughing and finishing operation within the range of Boring, Drilling, Facing & Milling. It is capable of the widest application and is recommended for almost all classes of work. The machine is real achievement, for its leads directly to improve accessibility and simplified maintenance and makes it easy to produce a quality machine tools  matched to the needs of the factory for which it is intended. The various mechanisms are enclosed and all the external surfaces are smooth and easily cleaned. The massive construction is a guarantee to withstand fully all the working stresses. The design of the Boring Machine is a guarantee of stiffness, accuracy and large output. The casting is done with the mixture of 25% steel etc and seasoned for at least six months to have proper Brinnel Hardness. The machine is manufactured to Grade-1 limits of Accuracy. The main Bed ways and Pillars etc. are accurately finished with Grinding Machine. Longitudinal & CrossTable Traverse, Vertical travel of Headstock and Boring Stay Support are provided with Rapid Movements as well as Feeds. All gears are precision cut to ensure smooth and silent running. Headstock and Boring Stay Support both travel simultaneously. The machine is manufactured according to Dr. Schlesinger's acceptance test chart. Special Arrangements : To set Rotary table perfectly at right angle. Safety Clutches : To Disengage :  Facing Mechanism Sliding Mechanism of Cross Slide. Circular Table Movement Spindle Rod Longitudinal Movement. Spindle Rod Support Guide for vibration control. Boring head height setting adjustment by hand operated wheel fitted at the end of feed gear box motor. Hand operated lever attached to Headstock drive motor. Hand operated lever attached to Headstock drive motor and feel gear box for safe engagement of speed & feed respectively. Centralized control for easy operation.

* Specifications of bigger sizes can supplied on request. Note: Since the results of most modern research and development are being constantly applied to our machines, illustrations, constructional details and technical data given here are not binding upon us.

Horizontal boring machines being one of the prominent traders and suppliers, we are engaged in offering qualitative range of horizontal boring machines. These horizontal boring machines are assembled using brands parts to ensure uninterrupted performance. Machines offered by us are extensively acclaimed for their sturdiness and robust design. Besides this, we quality check these machines on various parameters before delivery so as to dispatch error free range to clients.

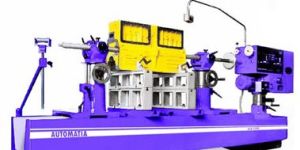

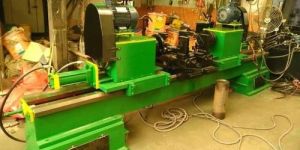

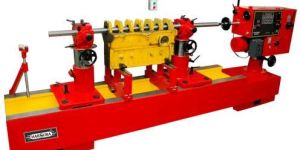

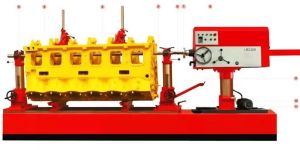

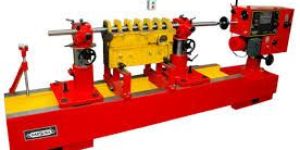

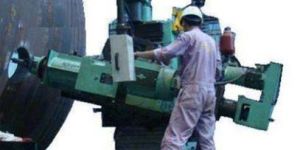

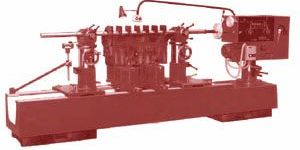

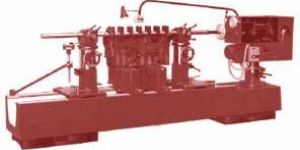

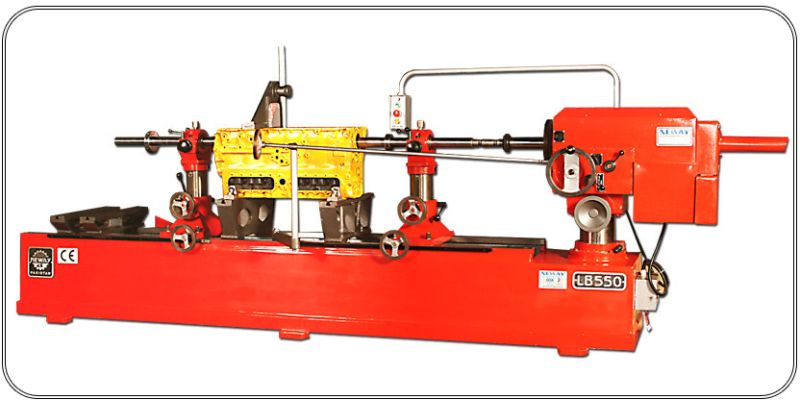

We are engaged in manufacturing and exporting of superior quality multifunctional portable line boring machines. Our range of Boring Machine caters to the requirements of various industries such as engineering, automobile, construction etc. Further, these portable boring machines are manufactured using highest quality raw material which are procured from trusted vendors and are known for their robust design, high performance and low maintenance. Our boring machines are offered in various technical specifications to meet the customer's specific requirements and demands. Our machines are exported to USA, Germany, Italy, Brazil, UK, Canada, Australia, South Africa, UAE, Saudi Arabia, Denmark, Dubai, Kuwait and many other countries across the globe.

We are the Exporter and Supplier of the vast range of Horizontal Auger Boring Machines. Our Horizontal Auger Boring Machine boosts of high quality and reliable performance. These Horizontal Auger Boring Machines are available with diesel engine driven by hydraulic jack and power unit. Features : Horizontal auger boring machines are available with diesel engine driven hydraulic jack & power unit.Available from pipe size 8� to 60� in Different Models.Built with extra heavy duty components for maximum protection and reliability.Each casing size requires : casing clamp liners, matching auger and cutting heads.Easy operating controls.Special rock boring machine available on request.Maximum travelling 1 Meter.Are provided with 5 different speed transmissions.

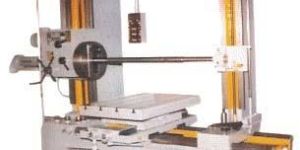

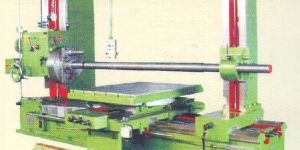

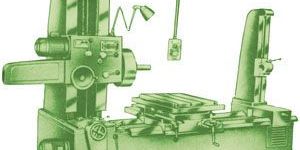

We offer Horizontal Boring Machine to the clients across the countries. Our Horizontal Boring Machine is made from highest grade materials using latest technology. We make the Horizontal Boring Machine as per the industry specified norms. Our Horizontal Boring Machine is appreciated for its high performance and dependability. Owing to this, we are reckoned as the most sought-after Horizontal Boring Machine Manufacturer, Supplier and Exporter from Punjab, India. Features Of Horizontal Boring Machine Sturdy makeEasy to operateLow maintenanceDurable Technical specificationsModel No. NHB80 NHB100 NHB110 NHB125 NHB130 NHB 150Alloy Steel Work Spindle Hardened & Ground-Diameter 80 100 110 125 130 150Morse Taper Number 5 6 6 6 6 6Max. Longitudinal Movements of Working Spindle 510 510 510 600 600 650Number of Spindle Speeds 9 9 9 9 9 9Range of Spindle Speeds � R.P.M. 15 to 300 15 to 250 15 to 250 15 to 250 15 to 250 12 to 250Longitudinal Work Spindle Feeds Nos. 9 9 9 9 9 9Max. Height of the Spindle Axis from Table Surface 925 1000 1100 1200 1300 1500Min. Height of the Spindle Axis from Table Surface 25 30 30 30 30 30Dimensions of the Rotary Table 900*1105 1030*1375 1100*1450 1220*1675 1320*1775 1500*2000Longitudinal table Traverse 1625 1775 1925 2050 2800 2950Long. Table Traverse Feeds (Including one Rapid) 10 10 10 10 10 10Transversal Table Travel Feeds (Including one Rapid) 10 10 10 10 10 10Vertical Head Stock Travel Feeds (Including one Rapid) 4 4 4 10 10 10Rotary Table Automatic Feeds (Including one Rapid) 10 10 10 10 10 10Max. Cross Movement of the Table 1000 1100 1300 1500 2000 2000Max. Distance between Stay Bearing & Facing Head 2400 2690 2800 2950 3600 3950Facing Head Diameter 505 555 600 650 650 700Weight Approx. in Kgs. 8500 9500 11000 16000 17000 19000

Electric Motors Complete with Panel Board & Pendant Control for all operations. One Steel Telescopic Cover, One Boring Bar, Working Spindle Support Guide for Vibration Control, Co-ordinate reading arrangement with Scales & Verniers for X. Y.Z.-Axis and Handles. Facing head, 2No. Lubricating Pumps, 5 No. limit Switches & Automatic Rapid Travel, fitted with the Machine. Revolving Centre with 6"True Chuck Three Nos. Dial Indicators duly fitted in dust proof housings with attachment & Electric Coolant Pump.
