Horizontal Filter Press Dealers

Zero hold up filter press manufactured by J.K. Industries used for wide range of applications by several industries like Pharma, bulk drugs, distilleries, beverages & other industries. The cartridge assembly of zero hold up filter press consists of plates, perforated screens, spacers and fitter media. The plate pack arrangement of zero hold up filter press enables singular as well as combination filtration. The closed system of zero hold up filter press ensures filtration of hazardous materials. The zero hold up filter press also features central feeding facilitating complete recovery of liquids. Zero hold up filter press also provides easy and efficient cleaning. Single pass filtration with no solid bypass is a special characteristic of zero hold up filter press.

Application: We are manufacturer, exporter and supplier horizontal filter press with multiple features. The range of SS Sparkler type Filters ensures precisely the right filtration characteristics for all application in chemical, pharmaceutical, beverages, distilleries & food industries. Horizontal filter press machines are designed and manufactured as per ISO guidelines and international specifications. Working Principle The equipment consists of S.S shell and top cover using bolts to give pressure tight enclosure inside which there is a filter cartridge assembly comprising of several horizontally arranged disc type Filter Plates complete with filter media, with perforated supporting screen and interlocking screens. The entire assembly is complete with pump and pumping connection which is usually mounted on a suitable trolley.

Application: We are manufacturer, exporter and supplier horizontal filter press with multiple features. The range of SS Sparkler type Filters ensures precisely the right filtration characteristics for all application in chemical, pharmaceutical, beverages, distilleries & food industries. Horizontal filter press machines are designed and manufactured as per ISO guidelines and international specifications. Working Principle The equipment consists of S.S shell and top cover using bolts to give pressure tight enclosure inside which there is a filter cartridge assembly comprising of several horizontally arranged disc type Filter Plates complete with filter media, with perforated supporting screen and interlocking screens. The entire assembly is complete with pump and pumping connection which is usually mounted on a suitable trolley.

Complete recovery of filtrate (practically zero hold up) Uniform cake distribution over each plate Complete cake retention on the plates Single pass clear filtration Less exposure to the operator No contamination of the internal surface of the shell For filtration at elevated temperature, jacket can be provided. We have full range of Horizontal Filter Press from 8" to 33" as per below table

Capacity: According to requirements Application: We are manufacturer, exporter and supplier horizontal filter press with multiple features. The range of SS Sparkler type Filters ensures precisely the right filtration characteristics for all application in chemical, pharmaceutical, beverages, distilleries & food industries. Horizontal filter press machines are designed and manufactured as per ISO guidelines and international specifications. Working Principle The equipment consists of S.S shell and top cover using bolts to give pressure tight enclosure inside which there is a filter cartridge assembly comprising of several horizontally arranged disc type Filter Plates complete with filter media, with perforated supporting screen and interlocking screens. The entire assembly is complete with pump and pumping connection which is usually mounted on a suitable trolley.

We are offering sparkler horizontal filter press. the filter comes with inlet, outlet, pressure gauge, bypass, safety valve, sampler, centrifugal pump (with mechanical seal) & ss - trolley max. Working pressure : 5kg/cm2 max. Working temp.: 100 - 200 °c (depending on filter & sealing media).

We offer horizontal filter press to varied clients. horizontal filter press is required in various industries for a number of applications. We fabricate horizontal filter press using the finest material that is procured from the reliable vendors of the market. Our assorted horizontal filter presses are designed by the highly skilled engineers. The horizontal filter press that we offer is appreciated for its compact make and efficient functioning. Owing to this, we are reckoned as a reputed horizontal filter press manufacturer, supplier and exporter from gujarat. about horizontal filter press the unfiltered liquid is fed into the filter under positive pressure, where liquid travels in downwards direction and finds its way through opening on sides of the filter plates. As the liquid pressure increases, the filter media holds the foreign particles and allows only clear filtrate to pass through the central channel formed by interlocking pressure cups to the outlet. Filtration is continued until the cake holding capacity of the unit is reached or until the filtrate rate becomes too slow owing to cake resistance. features of horizontal filter press horizontal plate filter press is enclosed construction, preventing evaporation, oxidation, leakage and fumes escaping from productfilter plates are available in two sizes. Deep plate for large percentage of cake holding capacity and shallow plate for small percentage of cake holding capacity.the horizontal filter plate and even thickness of cake, prevents the cake dropping as well as cracking, thus assuring better filtrate quality the values of flow-rates mentioned in technical specifications have been estimated for the following operating parameters : fluid : waterinsoluble : carbonfilter media : filter papercarbon loading : 5 kg/m2 filtration area.

The horizontal plate filter press is used by several industries for a variety of applications. The main application of the filter press is to filter solids from liquids. The press is available in varying combination of number of plates 8, 14, 18, 24, & 33" dia. This model is offered with suitable pressure pump & other accessories to suit related application. Also available in reverse flow design

The range of stainless steel Horizontal Plate Type Filter Presses are made to special modular design that guarantees precisely the right filtration requirements for each application. Available in a wide range of output capacities, with different number and height of filter plates, as well as a choice of flow pumps, the Filter Presses meet customer’s exact need.

Operation :   The unfiltered liquid is fed into the filter under positive pressure, where liquid travels in downwards direction and finds its way through opening on sides of the Filter Plates.As the liquid pressure increases, the Filter media holds the foreign particles and allows only clear filtrate to pass through the central channel formed by interlocking pressure cups to the outlet. Filtration is continued until the cake holding capacity of the unit is reached or until the filtrate rate becomes too slow owing to cake resistance. Features : Horizontal Plate Filter Press is enclosed construction, preventing evaporation, oxidation, leakage and fumes escaping from product. Filter plates are available in two sizes. Deep plate for large percentage of cake holding capacity and Shallow plate for small percentage of cake holding capacity. The horizontal filter plate and even thickness of cake, prevents the cake dropping as well as cracking, thus assuring better filtrate quality. The Filtration area and cake holding capacity can be increased or decreased according to requirement.

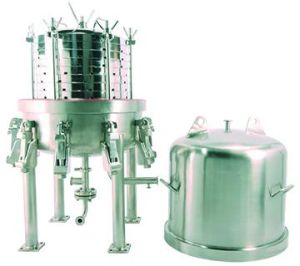

Leistung’s horizontal plate filter press is enclosed construction, preventing evaporation, oxidation, leakage and fumes escaping from products. The Leistung make horizontal plate filter press consist SS shell & top cover to give pressure tight enclosure with Rathmann styled clamp. Plate pack assembly can be removed manually for cake disposal. The plate pack assembly consist plates, perforated screen, filter media & interlocking cups.   Application: Dewatering of mineral mining slurries Blood Plasma purification Food and Beverages Chemical Industries

The unfiltered liquid is fed into the filter under positive pressure, where liquid travels in downwards direction and finds its way through opening on sides of the Filter Plates.As the liquid pressure increases, the Filter media holds the foreign particles and allows only clear filtrate to pass through the central channel formed by interlocking pressure cups to the outlet. Filtration is continued until the cake holding capacity of the unit is reached or until the filtrate rate becomes too slow owing to cake resistance. Features : Horizontal Plate Filter Press is enclosed construction, preventing evaporation, oxidation, leakage and fumes escaping from product. Filter plates are available in two sizes. Deep plate for large percentage of cake holding capacity and Shallow plate for small percentage of cake holding capacity. The horizontal filter plate and even thickness of cake, prevents the cake dropping as well as cracking, thus assuring better filtrate quality. The Filtration area and cake holding capacity can be increased or decreased according to requirement.

TECHNICAL SPECIFICATION:-   Available in varying size of 8”/ 14”/ 18”/ 24” dia of plate with various combination of on of plates. Reverse flow design for practically zero hold-up. Offered on common skid with filter aid dosing system. Shell thickness is suitable to withstand higher pressure for long time. Diaphragm type SS 316 / SS 304 pressure gauge. Suitable pump can be integral part of the assembly.

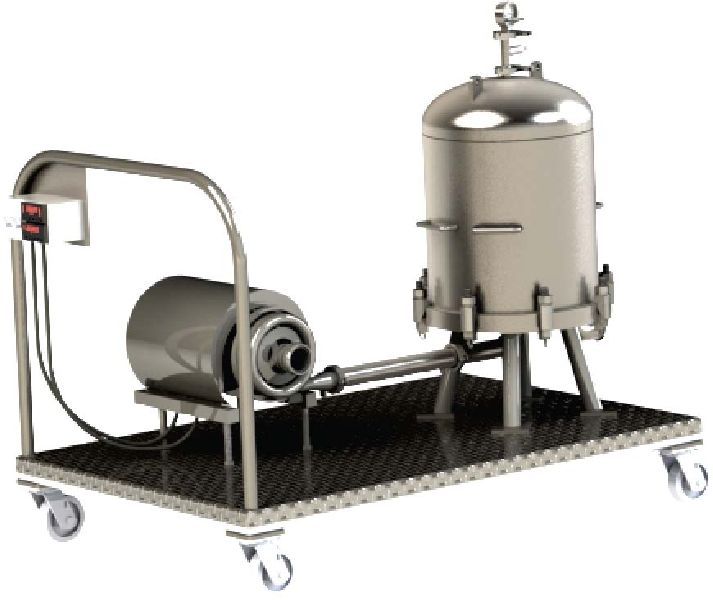

Sparkler type filter press consists of sturdy 304/316/316L quality Stainless Steel Shell with top cover held in place with tightening bolts, a filter plate assembly consisting of several horizontally arranged disc type filter plates with perforated supporting screens, filter media and interlocking cups. The entire assembly complete with pump and piping connections is mounted on a suitable trolley fitted with castors for easy movement. The typical Sparkler Type filter press are available in standard model design as well as Zero hold up design. Zero hold up ensures that the unfiltered liquid hold up is almost nil. Scavenger plate arrangement is not required in case of Zero hold up design. Applications of Zero Hold Up filter press are in following Industries :- Pharmaceuticals, Chemicals, Food & Beverage, Distilleries, Oil Industry, Dairy Industry, Resins & Paint manufacturing etc. Available standard models are 8",14",18",24" and 33" plate diameter. Filter press is fitted with pressure gauge, safety valve & air vent connections.

Liquid is pumped through the central channel of the cartridge from the bottom of the body. Suspended particles are retained on the filter media resting on the filter plate. Clean filtrate emerges out from the peripheral holes of the plate, into the tank and comes out from the bottom outlet. Filter tank wall does not come in contact with the un-filtered liquid, hence remains clean.

The filter cartridge assembly inside the shell consists of several horizontally arranged disc type filter plates with perforated supporting screens, filter media & interlocking cups. The entire assembly complete with pump & piping connection is mounted on a suitable S.S. Trolley.

Our expertise lies in designing and developing the best Horizontal Filter Press having excellent performance. Designed to perfection, Horizontal Filter Press ensures longer service life, low operational cost and efficiency. Owing to its application specific designs Horizontal Filter Press is widely appreciated.   Highlights Low operational cost Efficient performance Longer service life Non-corrosive housing Designed to laboratory applications

We are a prime Manufacturer, Exporter and Supplier of the efficient Horizontal Filter Press. We offer the sparkler type Horizontal Filter Press, which is used for various industrial applications across the globe. Our Horizontal Filter Press is known for its higher durability and superb performance and cost effectiveness.

Zero Hold up types Models in M.O.C. SS-304, 316, 316L. 8", 14", 18" ,24" & 33" sizes with 'n' no. of plates. Complete filtrations of batch without any holdup of unfiltered liquid. GMP model with complete unit mounted on SS trolley. � Back wash facility for cleaning the filter without opening the assembly. � SS 304 Jacket for hot filtration, Flameproof Motor, Sight Glass on outlet offered on request. � Ideal for filtration in sugar, beverage, pharmaceuticals, chemicals, dyes, edible & non-edible, resins, paints, perfumes, activated carbon etc. The cake, filtered &solids remain totally enclosed allowing filtration of toxic, hazardous &explosive liquids. No contamination of internal surface of shell. The top dome structure ensures fast & easy removal of cartridge assembly & cleaning of cake.

The Cartridge assembly consists of plates with inter locking cups, plate rings, perforated screens and filter media arranged one above other, forms single pipeline. The unfiltered liquid is centrally fed under pressure from bottom inlet. The liquid spreads out equally on each plate fitted with filter media. Solids remain on the filter media and clear filtrate flows through Holes on the supporting ring and flows towards the shell, which is led out through outlet pipe line. In the process, solids are evenly distributed on each plate. At the end of cycle the cake can be dried by applying air or N2 or any inherent gas.

Horizontal plate filter press he filter from the bottom into the center channel & goes to the top of each plate. The clear filtrate flows out from openings on side of plates to the shell & then to the outlet. This flow ensure almost 100% filtration of the liquid which is not so with the standard flow type.
