Horizontal Flow Wrap Machine Dealers

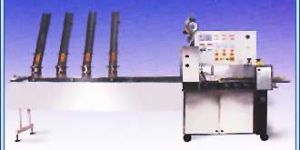

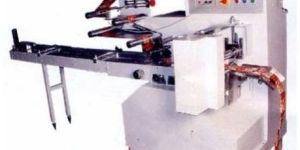

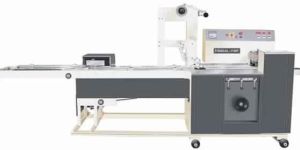

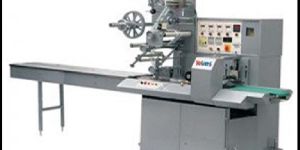

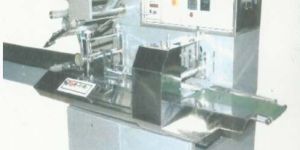

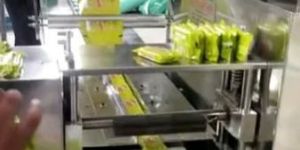

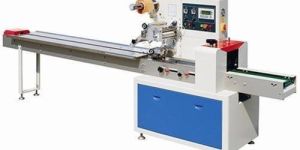

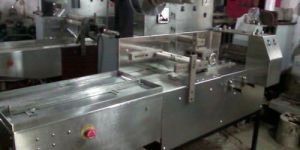

PRINCPLE OF OPERATION: 2 rows of soaps are placed edge ways on flat belt conveyor, either by link up conveyor (not a part of the of the machine) or manually. Autofeeder transfers these soaps to the infeed lug conveyor of the machine. Infeed conveyor then transfers multi soap into wrapping film that has been formed into a tube by means of forming folder. Bottom seal is made by three sets of rollers. Cross sealing and cutting knife separate the packed soaps. Heat sealable material like BOPP or laminates is used. STANDARD FEATURES All surfaces over which soaps are transported are made of stainless steel Flat belt conveyor infeed with Transfer Unit Long seal is formed by means of three pairs of rollers, axes of which can be tilted to get best results Torque slip clutch to prevent damage in case of accidental jams Low voltage heaters for safety Individual temperature controls for heaters rint registration unit for printed wrapper Heavy distortion-free cast structure Highlights » High speed » High productivity » Fool proof size changeability » No parts needed to change soap size Gentle handling of soaps » Servo controlled operation » 3 axes servo controls Optional Features: » Date Printing unit » Variable speed drive (AC frequency control) » Castors for mobility of machine MACHINE SPEED UPTO 120 PPM INFINITELY VARIABLE

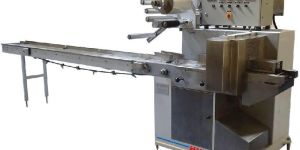

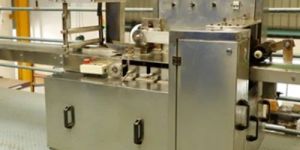

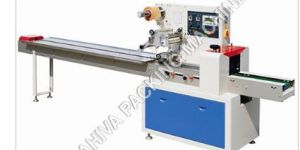

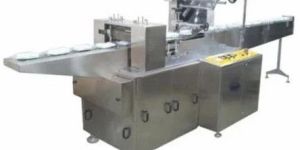

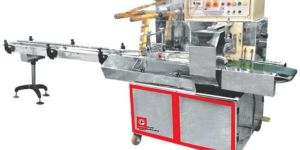

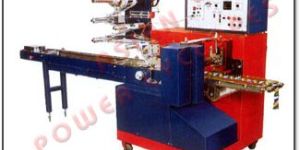

we are instrumental in providing the clients with superior quality horizontal flow wrapping machines. These horizontal flow wrapping machines are made from latest machines and at par with the industry standards. Finding their usage in numerous industries, our horizontal flow wrapping machines are extensively demanded in the domestic market. We provide these horizontal flow wrapping machines at affordable rates and in customized specifications. specialties resistant to corrosion optimum performance low power consumption smooth operation low maintenance highly reliable features unwind easy is motorized system piston & cylinder with ball joint easy to change, o ring easy change over kit with l, type sealer all heaters in the mc are same diameter and length (horizontal and vertical) honeywell make temperature controller mc speed 60-70 upm or depend on the pouch length vertical perforation done by round cutter all instrument used in mc as per international std plc, ac drives & panel view used in mc aillen bradly

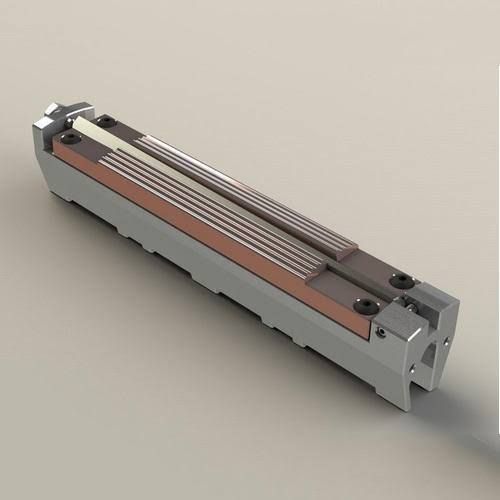

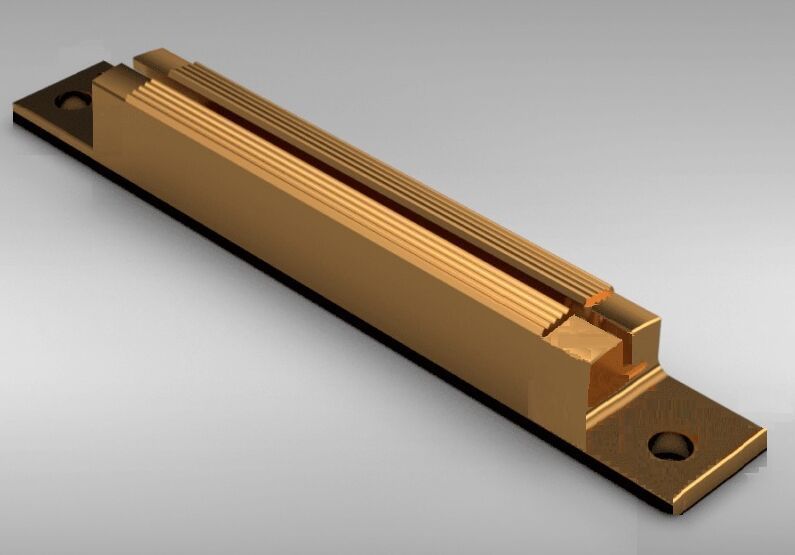

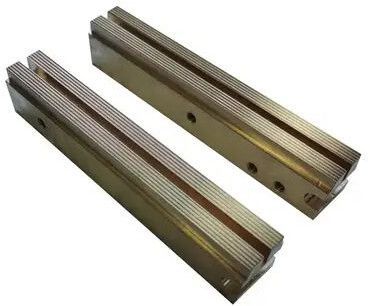

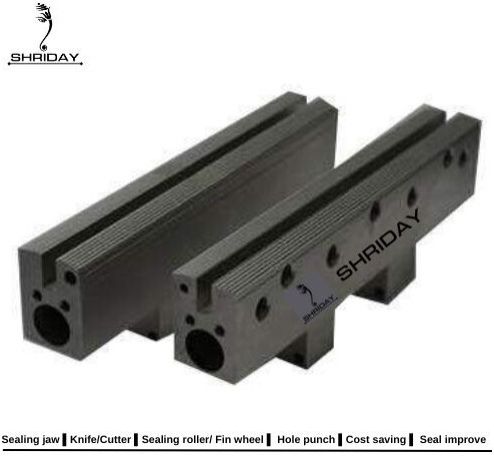

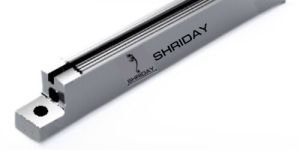

Sealing jaws are heart of packing machine. Shriday offers a diverse selection of sealing jaws designed to achieve optimal seal quality, featuring: Resistance to wear and damage of sealing surfaces. Resistance to rust and corrosion. Exceptional thermal consistency. Uniform and efficient heat transfer. Reduction of end seal fractures and leaks. Quick-change sealing faces.   Materials: Mild steel and Stainless steel Brass, Copper and Aluminium

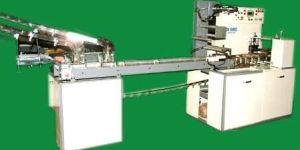

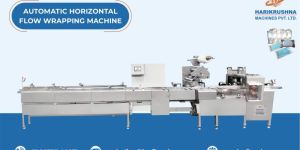

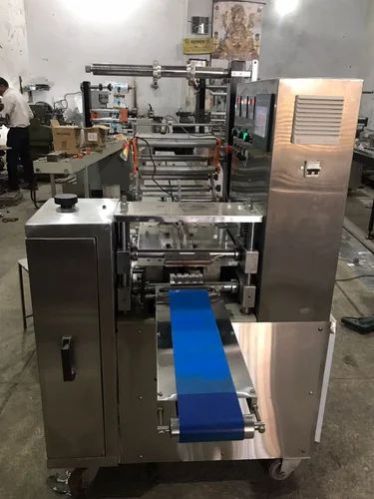

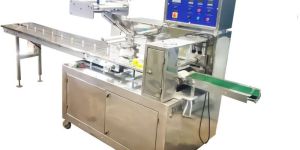

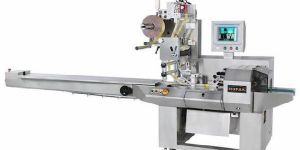

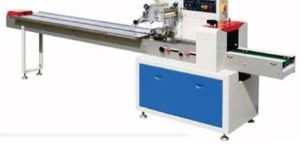

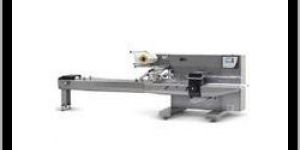

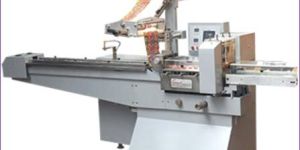

Flow wrap servo model manufacturer   Product to be filled This model is suitable for packing various solid products having fixed shape and carrying edge single or piled together namely cake, bread, biscuits, candies, sweets, maggi, meat and fish pieces, ice candy bars, cheese slabs, fruits, wet wipes, soap, detergent cake, scrubber pads, bearings, hardware items, files, tablet strips, tubes, sachets, small leaflets, tazo, cards, tattoos, mosquito coils,, bars, chikki, deodorant cakes etc Description of MachineThis machine is Horizontal Form Fill Seal Machine suitable to pack single piece or multiple pieces piled fit on each other. Feeding system is pawl chain conveyer where operator will keep product manually. Auto feeding systems can be fitted on this machine.The film is drawn by two pairs of rollers and also seal the film at the bottom same time. Vertical sealing is driven by servo motor and controlled by photo sensor signal. Sealing system is a continuous heating system. Disc type heaters fitted in the desired size metal. At the folding box packing roll formed in a shape of tube and product is inserted in this tube by feeding conveyer. Product is wrapped by the packing material and carried upto the horizontal sealers.A pair of horizontal sealer then seals and cut the pouch. Packed pouches will come out on out feed conveyer. Technical Information About Flow wrap servo model Main features • This Flow wrap Machine Standard model suitable for all packing material and printed or non printed rolls • Sturdy and vibration free construction • Machine framing in heavy duty mild steel, powder coated • Feeding conveyer and all contact parts will be in S S 304 • Designed for easy cleaning and maintenance • Extreme versatile machine design to accommodate variety of products • Adjustable former and collar assembly in height and well as width of the product • User friendly operations and settings • Separate electrical panel, safety for operator • Electrical wiring easily accessible • Safety features and emergency provided for the operator • Longitudinal sealing done by 3 pair of sealing rollers • Longitudinal sealing driven by servo motor synchronized with print mark sensor for correct pouch length • Safety door interlock (optional) • Transparent acrylic guards provided for all hot and moving parts • Touch screen HMI for easy operations • Self diagnostic failure screens shown on HMI • Pouch length setting given in HMI, saves operator’s time for setting • Variable frequency drive for machine speed variation • Product timing setting on hand wheel at front side • Vertical sealing slow fast feeding setting given at front side • Overload clutch facility to avoid product and horizontal sealer damage • Independent PID temperature controllers for sealing and cutting   Flow wrap Machine outputMaximum speed up to 40 to 200 packs per minute depending on product shape, size, weight and carrying edgeHigh speed models up to 400 packs per minute is also available with 3 servo motor drives Film WidthMaximum 450 mm open width Film roll diameterMaximum 300 mm OD, 75 mm core ID Pouch width50 to 150 mm maximum Pouch lengthMinimum 100 mm to maximum 300 mm Product heightMaximum 50 mm Packing MaterialMachine is designed for most types of Heat Sealable Laminate up to maximum of 300 gauge. Machine controlSimple electrical panel with PID type temperature controllers Main driveMechanical machine horizontal sealers and feeding system synchronized by gears and chain drives interlocked with each other Electrical DataPower supply, 440 VAC, 3 phase with neutral and ground connected or Single Phase as per customer requirement Motor Drive1 Hp, 440 VAC, 50 Hz, 3 phase with reduction gear box Heaters200 Watt X 2 heaters for vertical sealing and 300 watt X 2 heaters for horizontal sealing-cutting Temperature controllerOmron or Selectron or Delta make PID controller Machine size3300 mm X 680 mm X 1750 mm Nett Weight of machine550 Kilogram Optional arrangements • Fully S S machine • Online printing, • Online label applicator, • Pouch take off conveyer, • Auto feeding conveyer • No product no pouch setting • Gusseting arrangement • Nitrogen Flushing   We are leading Flow Wrap Servo Model machine manufacturer and supplier in Navi Mumbai, India. Contact us to know the best price of Flow Wrap Servo Model

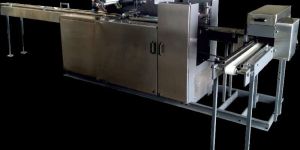

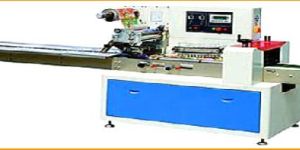

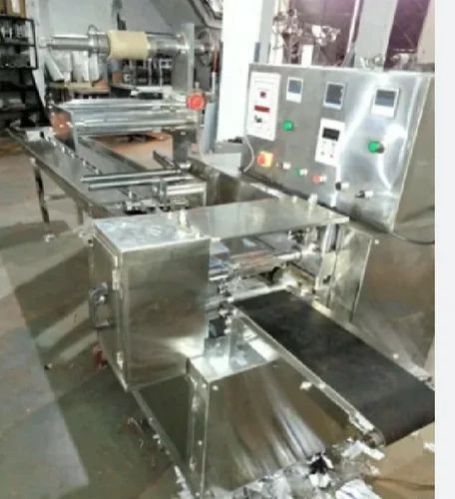

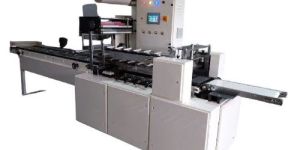

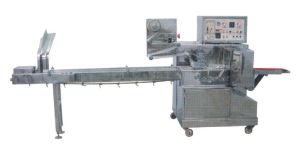

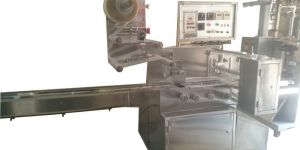

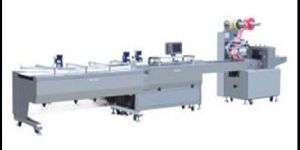

horizontal flow wrapping machine we offer is specifically designed for packing piles of biscuits. The horizontal flow wrapping machine is in high demand for its high speed and lesser production rate time. Customers are pleased with the availability of the horizontal flow wrapping machine at the most economical prices specifications : for packing 3, 4, biscuits the speed of the machine is 200 to 220 ppmfor packing 6, 8 biscuits, cup cakes, sonpapde, cream wafer biscuit, chocolates, jelly bars, etc the speed of the machine is 150 ppm highlights : soundless operationresistant to trouble free functioning cost-efficient machines robust long life types of horizontal flow wrapping machine : standard versionwider version

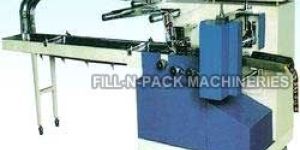

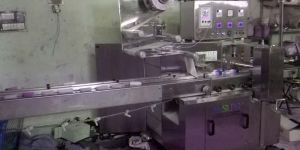

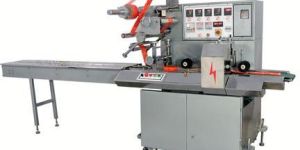

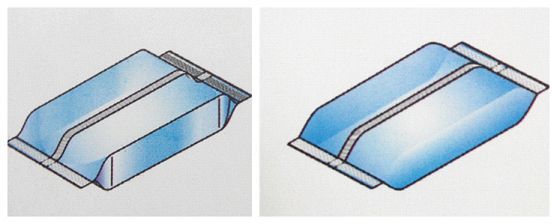

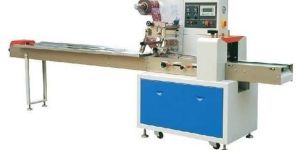

Application: To wrap any kind of solid commodities such as biscuit, soaps, chocolate, cakes, instant noodles & any other rectangular, square, , round or irregular shaped product.   Sealing Type : Pillow type sealing / centre sealing   Packing Size : 40mm - 300mm (film length) 20mm - 125mm (film width) 5mm - 56mm (film height) (Enlarged type can be made upon order)   Packing Range : Depending on specific gravity of material to be packed   Speed : 70 - 130 pouches / min. (Depending on flow rate & volume of the product)   Packing Material : All heat sealable laminate PET/POLY, PET/FOIL/POLY MET, PET/POLY/CPP/OPP etc.

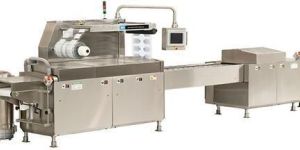

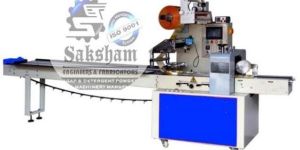

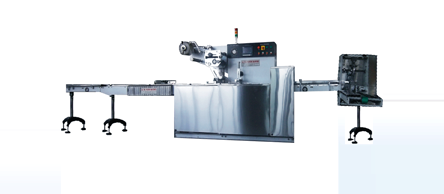

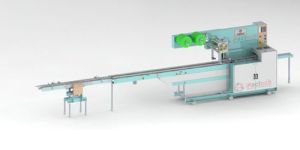

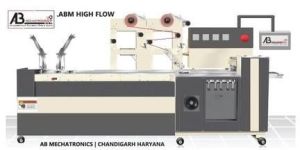

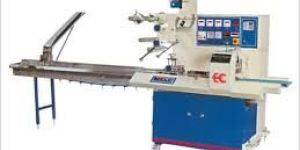

We offer Horizontal Flow Wrap Machine. An inline-infeed system gently indexes the products into the infeed chain of the flow wrapper, where they are packaged and sealed at speeds up to 1,500 bars per minute.

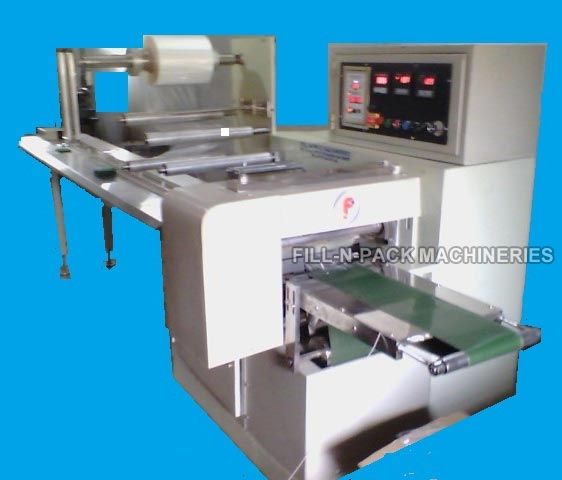

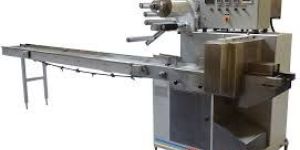

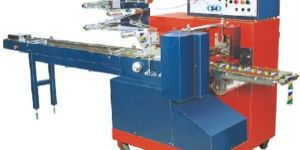

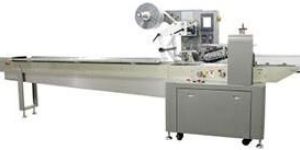

We are one of the authorized representatives and suppliers of high quality horizontal flow wrap machine. These different types of horizontal flow wrap machines are commonly used for counting, weighing, volumetric measuring, filling, packing and sealing of paste items, liquids and other engineering products. Further, this advanced technological horizontal flow wrap machine can also be availed with volume adjustment. We also offer customization for our range of horizontal flow wrap machine as per the specifications of the customers. features low power consumptioncompact designdurable used in packaging of powder like flours, pharmaceutical powders, detergents, talcum, spices,granules like fertilizers, pesticides, germicides, seedsliquids like water, milk, oils, jellies, honey, creams, and lotionscereals like rice, wheat, maize, beans, cashews, almondsengineering products like auto spares, bearings, nuts & bolts, seals, files, handles, tools, springs and steel ballscakes, bearings, electrical switches & sockets, soaps, detergents, tattoos, milk bars, files, and handles

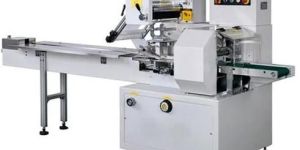

We manufacture horizontal flow wrapping machines. Good quality raw materials and the most up-to-date technology are used for fabrication of horizontal flow wrapping machine. The horizontal flow wrapping machines are of good quality and suitable for irregular, cubical, cylindrical, square, and rectangular shaped solid products. The horizontal flow wrapping machines are fully automatic, compact and use less manpower.
