Hydraulic Operation Table Dealers

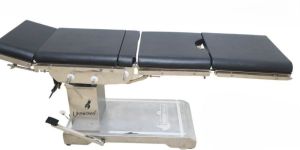

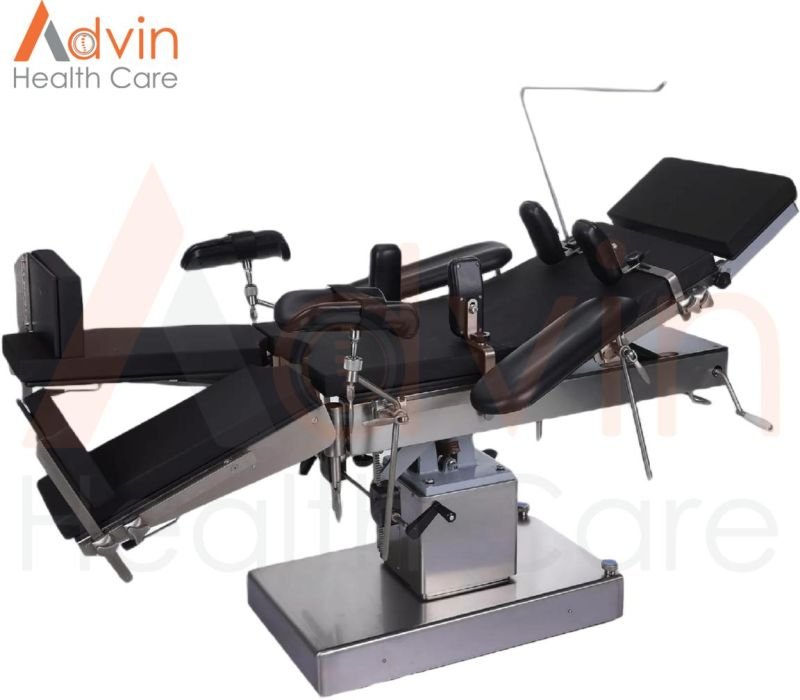

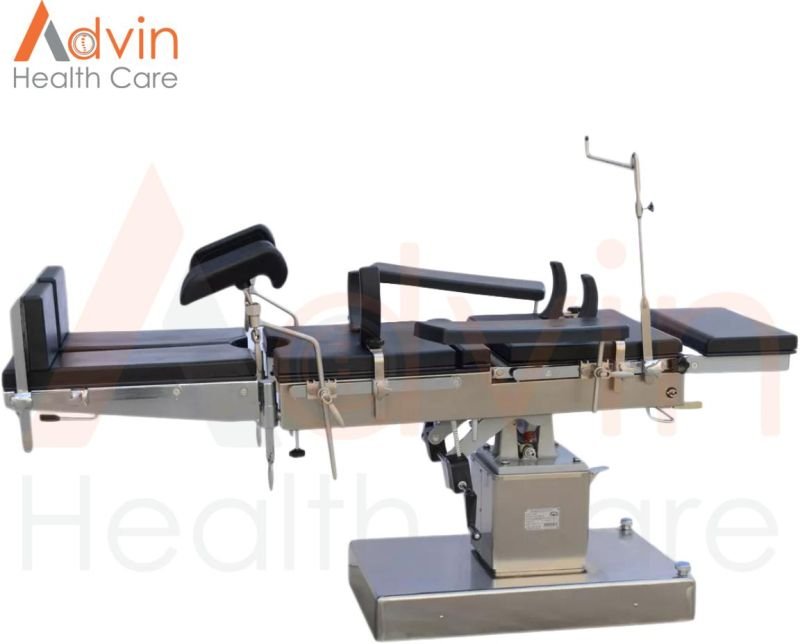

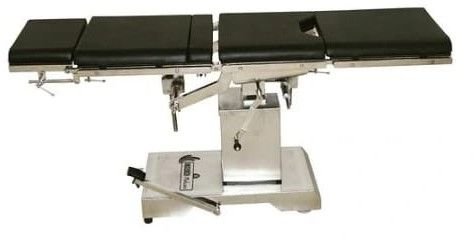

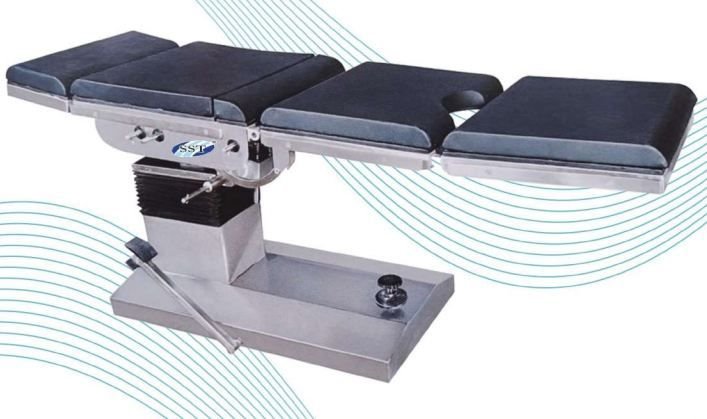

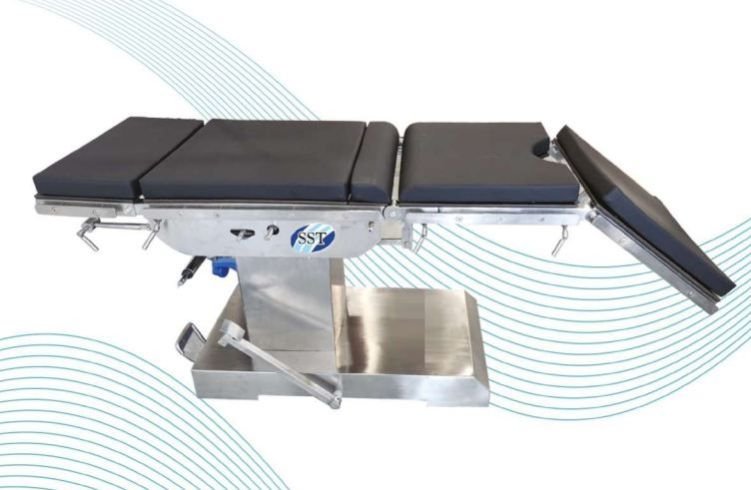

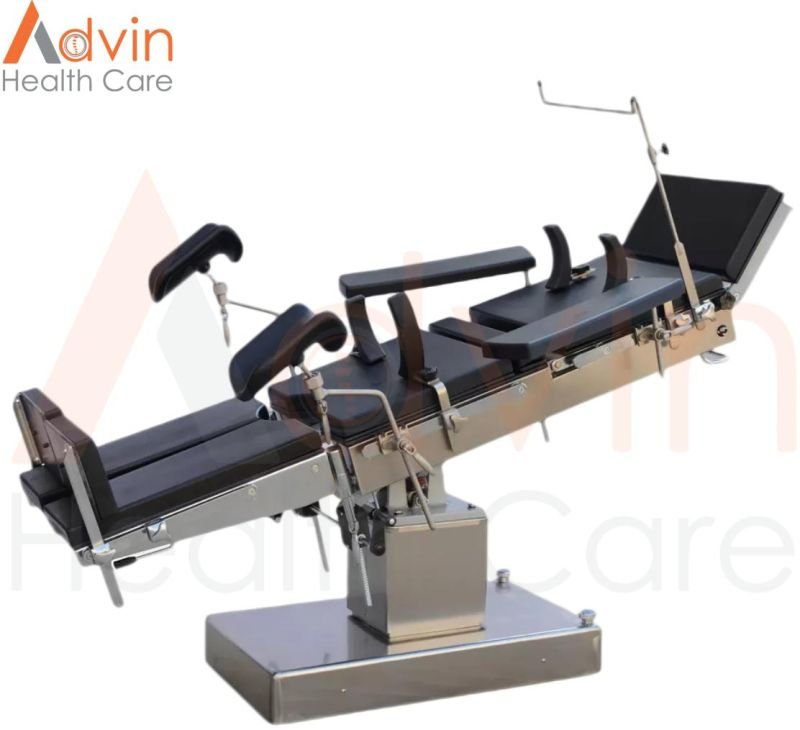

High quality operating table with built in multiple functions making it suitable for general surgery Functional design & easy to use hydraulic adjustment Wide accessory range for specialized procedures 3 section table top frame of Stainless steel Antistatic PU Integral mattress Height around 730 – 1040 mm. Trendelenburg 25 — +25 degree Side tilt +/- 15 deg with gas spring Back section -15 – 70deg with gas spring Leg section – 90 -0 deg with gas spring Headrest -40 –+30 deg gas spring assisted Operational area around 500X1950 Height Capable to rise up to 1.2 meter. supplied with accessory like I.V rod, Lithotomy Legs etc.

Table Top Length 1800 mm, Head Section Drawn-in 1950 mm, Head Section Drawn-out Table Top Width 500 mm Table Height 700 mm - 1000 mm Trendelenberg 30? Reverse Trendelenberg 30? Head Section (UpDown) 60? 90? Lateral Tilt (LeftRight) 20? 25? Back Rest UpDown 90? 35? Leg Section Up 25? Leg Section (Detachable) DOWN Down 100? Kidney Bridge Lift 150 mm lift Table Top Rotation 360?

High quality operating table with built in multiple functions making it suitable for general surgery Functional design & easy to use hydraulic adjustment Wide accessory range for specialized procedures 3 section table top frame of Stainless steel Antistatic PU Integral mattress Height around 730 – 1040 mm. Trendelenburg 25 — +25 degree Side tilt +/- 15 deg with gas spring Back section -15 – 70deg with gas spring Leg section – 90 -0 deg with gas spring Headrest -40 –+30 deg gas spring assisted Operational area around 500X1950 Height Capable to rise up to 1.2 meter. supplied with accessory like I.V rod, Lithotomy Legs etc.

We are offering hydraulic operation theatre tables. This model is designed with inter changeable head and leg sections. It is compatible for orthopedic attachment and is fitted with 50 mm thick electrically sealed mattress. features : ss covered heavy ms base with nylon wheels for easy mobility and stability with hand operated floor lockingdurable leak proof hydraulic pump with three slides in ss covered eccentric chamber for maximum use of c-armradio translucent top in four sections top facilitates use of c-arm image intensifier both side controlfitted with padded single arm rest, radio translucent padded hand board, lithotomic padded crutches (geopal type), and side bars with all standard accessories. (ms chrome plated material) and unbreakable molded side clampsgear mechanism that facilitates movement is all operating positions standard accessories available : shoulder support - 2 pcside support - 2 pcanesthetic screen rod-1pcpadded hand res-1 pcradio translucent hand board-1pcpadded lithotomic crutches-2pcmattress-1 set (perineal cut for drainage and kidney bridge optional)

This highly maneuverable excellent table combines the very best of engineering skills and craftsmanship. Some of the highlights of this table are as follows: The table, base and all accessories are made of high quality stainless steel, and the accessory blocks of gun metal. Height can be adjusted between 75 and 100 cm by a hydraulic pump operated by a foot lever placed at the base of the table. The table top can be rotated 360 degree and can be locked at any desired position with help of special lever provided. Ball bearing castors whose mobility is controlled by levers at the base of the table.

Hydraulic Operation table [Side End Control] Hydraulic Operation table side end control. Facilitates almost all the purposes and requirements of major/ Minor surgical exercise and procedures. Five sectional table top allows the surgeon to occupy and move to all required & desired positions. Single action Hydraulic Mechanism foot operated. Heavy base stainless steel covered with foot locking Detachable head and leg section. Multi functions lithotomy Position, Trendelenburg Position, Flex/ Reflex Position, Lateral Position, Chair Position. Technical Data.:- Length of the table top 185, Width of the table top 50 cm, Mini Ht 75 cm Max Ht 95 cm.Trendelenburg & Reverse 35 deg. Lateral tilt 20 deg, Flex / Reflex 0 deg /220 deg. Standard Accessories:- Anesthetic Frame, Shoulder support with pad, lateral Support with pad Arm Board with ss top, Lithotomy strap, mattress.

We are offering Hydraulic Operation Table, Surgical Table. Hydraulic Ot Table (manual Operation Table) salient Features:- • s.s. Five Sectional Top with Large Cut for Perineal Drainage Tray, Built Kidney Bridge. Both Side Controls. Hydraulic Operation Tables. • heavy Duty Mild Steel Base with Nylon Wheels for Easy Mobility or Stability with Single Action Foot Actuated Floor Locking. • smooth Gear Mechanism to Avail all Operating Positions. • 50, Thick Electrically Sealed Mattress. • provided with all Sporting Accessories. • durable Heavy Duty Leak Proof Hydraulic Pump with Double Cylinder Concealed in Central Chamber. technical Data • length of Table Top: - 1810mm. • width of Table Top: - 500mm. • up-down Movement: - 772-950mm. • trendelenburg:-25o. • reverse Trendelenburg:-25 O. • lateral Tilt:- 20 O . (both Sides) • leg Section: - 90 O (down Manual). standard Accessories • anesthetic Screen. • shoulder Supports with Pads. • arm Boards with Pads. • side Supports with Pads. • black Rubberized Mattress.

Hydraulic Operation Table to suit the requirements of each and every medical profession. These Hydraulic Operation Table are used in most of the Indian hospitals and Dispensaries. D4 Surgicals has also earned a good reputation from the international community as one of the best quality Hydraulic Operation Table Manufacturer from India. While Manufacturing these Hydraulic Operation Table best quality standards are followed.

This hydraulic operation table has been made using superb craftmanship and using prime quality raw materials confirming to I. S. specifications No. 6106 with latest ammendments updated. This sturdily built operation table is suitable for all major and minor operating procedures e.g. General Surgery, Gynaecology - Obstetrics, Urology, Cardio Thoracis, Opthalmic etc.  Detachable Head Rest is easily adjustable to any desired position, above or below table top. Detachable leg section facilitates ORTHO-ATTACHMENT to be assembled at later stage. It is also most convenient to GYNAECOLOGIST & UROLOGIST Table top can be rotated 360° through base Kidney bridge is provided to attain 13 cms height. All corners of base and table top are rounded to avoid any injury
