Hydraulic Thread Rolling Machine Dealers (43 products available)

• Brand Name: IMC

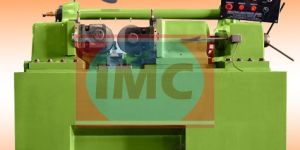

IMC Hydraulic Scaffolding Pipe Thread Rolling Machine is used to produce high quality scaffolding pipe threads. They are ideal for high volume production, are highly economical and ensure excellent dimensional accuracy. Industrial Machinery Corporation is a well known hydraulic machines manufacturer, supplier and exporter of Hydraulic Rolling Machines-Two Roll Types, Hydraulic Rolling Machines-Three Roll Types, etc. These hydraulic machines are ideal for mass production purposes and help in creating the best surface finishes. The 3 rollers IMC-3R Hydraulic Pipe thread rolling machine operates hydraulically. The simultaneously and concentrically of three forces at 120 assure stability of the work piece during the rolling and as a consequence the maximum geometrical precision of the work piece. The elimination of the support blade consents a better finishing of the piece and the execution of particularly delicate profiles. The hydraulic thread rolling machine is suitable for rolling pipes, rolling bolts, lapping work with a high class precision and for mass production of Scaffolding pipe jack and solid jacks screws etc. The maximum values specified above can not be achieved simultaneously Hydraulic Thread Rolling Machine Model    IMC-3R-25  IMC-3R-50 IMC-3R-75 Work Range Out Side DiameterThread Length in FeedThread Length Through Feed (8-25 MM)  (1/2"- 1")(38 MM)  (1.1/2")(Indefinite) (Indefinite) (25-50 MM)   (1"- 2")(50 MM)  (2")(Indefinite) (Indefinite) (32-75 MM)   (1.1/4"- 3")(75 MM)   (3")(Indefinite)(Indefinite) Roll Dies Max. Out Side Dia.Max. Inside DiaSpindle Box 1406040 1406040 1708054 Motor For Roll Spindle 3 H.P. 3 H.P. 7.5 H.P. 3 Phase AC For Hydraulic System 1 H.P. 1 H.P. 3 H.P. Coolant Pump   0.1 H.P. 0.1 H.P. 0.1 H.P.

We are main supplier of this product.

Our quality control strategies are carefully executed. Thus, our whole range of product is amongst the most sought-after in the industry. We are staffed with a team of professionals who hold immense knowledge in this domain. They are capable enough to rendering standard as well as tailored packaging requirements of the clients. Features : Precision engineered Matchless performance Easy to maintain

• Roll Dies (Max. Outside Dia): 80, 140, 160
• Roll Dies (Max. Inside Dia): 28, 40, 54
• Roll Dies (Max. Width): 38, 50, 80

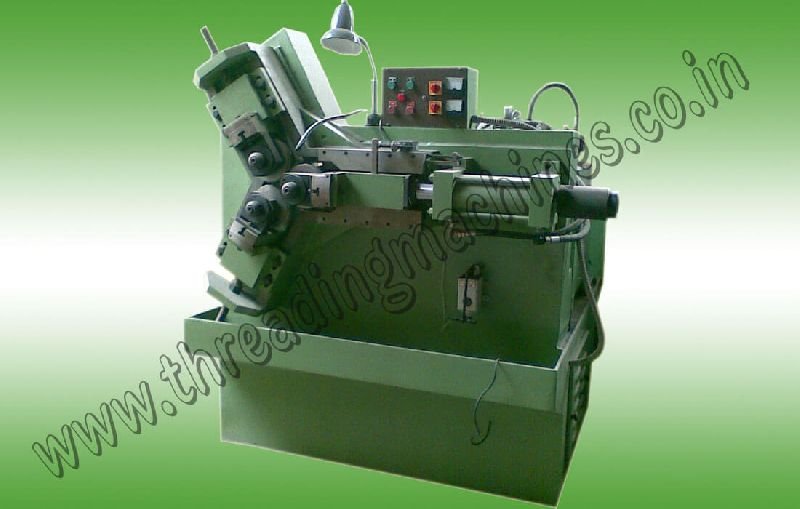

The 3 rollers HH-3R rolling machine operates hydraulically. The simultaneously and concentricity of three forces at 120° assures stability of the work piece during the rolling and as consequences the maximum geometrical precision of the work piece. The elimination of the support blade consents a better finishing of the piece and execution of particularly delicate profiles. The machine is suitable for rolling pipes, lapping work, threading with high class precision and for mass production of Scaffolding pipe jack and solid jacks screws etc.

• red color: off white color
• Robustness: Advanced functionality

We are one of the leading manufacturers and suppliers of hydraulic thread rolling machine, located in rajkot (gujarat). We are known for supplying commendable quality of hydraulic thread rolling machine to our customers. We use finest quality of raw material to manufacture hydraulic thread rolling machine. Our product is not only durable but also very efficient. features : robustness advanced functionality unsurpassed resistance to corrosion

• Warranty: 1year
• Color: Light Green
• Driven Type: Hydraulic
• Application: Thread Rolling
• Automatic Grade: Automatic
• Features: High performance, Low maintenance, Longer service life

Ours is an illustrious organization that is involved in manufacturing and supplying superior grade Automatic Hydraulic Thread Rolling Machine. To ensure zero defects, all our products are thoroughly checked and tested by expert quality controllers on certain well-defined parameters. In addition to this, we provide customization as per the specification laid down by the customers.

Hydraulic Thread Rolling Machine that we offer is fabricated under the supervision of highly experienced technicians to ensure supreme quality and durability. We provide Thread Rolling Machine that is known for its excellent performance and high efficiency. Our Rolling Machine is corrosion and abrasion resistant. We deliver Hydraulic Thread Rolling Machine within the stipulated time frame.  Our Rolling Machine is available at market-leading price.

Standard Equipment: Compact design Fabricated steel frame Versatile for all type of works Manual & Automatic cycles Range of cycle times Extended universal joint provides smooth operation for bib angle of work piece. Over sized coolant tank for superior cooling effects. Low pressure hydraulic power pack to ensure to low heat & minimum maintenance. “T” type and accurately ground slide assures that jumping and vibration will not happen during rolling. Centralized lubrication of all important moving parts.   Thread rolling is a chipless cold forming process. A plain cylindrical blank, with a diameter part way between the major and minor diameters of the finished thread, is rotated and squeezed between cylindrical type hardened steel dies whose working surface are the reverse of the thread form to be produced. The threads of the die penetrate the surface of the black as it rolls between them, displacing material to form the roots of the threads, and forcing the displayed material readily outward to form the crests. Unlike other threading process, no material is wasted. Most threads are rolled by the in-feed method in which the entire thread length is formed simultaneously without axial movement of the part. Threads that is too long to be produced by the in-feed method can, however, be rolled by a thru feed method on these type of machine.

Phoenix Tools has been a intergral part of the indian threading tool industry of a decade. Established in 1987 to Manufacturer Portable Threading Machine, Hydraulic Hydraulic Thread Rolling Machines & thread rolls, lanco type die head, tangential chasers, tap, milling, cutters, tool bits, pipe and pipe sockets. Phoenix Tools has thus truly for itself the name of Phoenix Tools. All our products are Manufacturerd with the utmost precision from high quality steel imported from Japan and west Europe. Our product range includes die head, head treated die head, bolt and Portable Threading Machines, end facing machines, chaser Grinder Machine. Phoenix Tools has always endeavored to acquire a close insight into the requirement of its customers. Our quality assrance cell and R & D wing are always at their foot to serve swiftly while making product development a continuous process. Phoenix Tools never hesitates to do that extra mile to make sure that its products line upto their promises. Growing from strength the Phoenix Toolsimage has reached the zenith of status backed by dynamic and dedicated team of skilled employees and expert engineers, Phoenix Tools is using the advanced international techniques working on its motto of "Quality by choice not by chance"

• Main Motor: 2.2 K.W.
• Hydraulic Motor: 1.5 K.W.
• Standard electrical connection: 415 V, 50 Hz, 3 ph.

The thread rolling is basically a cold-forging process that forms the entire length of an external thread by displacing the bla^E. material. Threads are produced on the blanks of predetermined diameter by a rolling action under pressure and between two rotating cylindrical steel roll dies whose working faces are suitably threaded. This action plastically deforms the blank in such a manner that a portion of the blank metal is displaced to form the root of the thread and raised in unbroken fibw-flow lines to form the crest of the thread. The roll dies rotate synchronously on parallel or slightly tilted horizontal spindle shafts that are adjustable by sliding laterally. The dies are made of special steel alloy with an exceptional hardness and toughness resulting in maximum wear resistance. The blank is placed on a carbide tipped work rest blade or center support disposed between the dies and after a complete cycle v of approach, rolling and release of the hydraulically operated right hand spindle shaft the rolled thread is removed. The blank is placed in the rolling position, either by hand or automatically. A timer built into the machine release the hydraulic pressure on the roll dies when the required diameter is completed and returns the right hand spindle head to its starting position.

• Material: Iron
• Brand Name: Hardev
• Automatic Grade: Automatic
• Power Source: Electric

Phoenix Tools has been a intergral part of the indian threading tool industry of a decade. Established in 1987 to Manufacturer Portable Threading Machine, Hydraulic Hydraulic Thread Rolling Machines & thread rolls, lanco type die head, tangential chasers, tap, milling, cutters, tool bits, pipe and pipe sockets. Phoenix Tools has thus truly for itself the name of Phoenix Tools. All our products are Manufacturerd with the utmost precision from high quality steel imported from Japan and west Europe. Our product range includes die head, head treated die head, bolt and Portable Threading Machines, end facing machines, chaser Grinder Machine. Phoenix Tools has always endeavored to acquire a close insight into the requirement of its customers. Our quality assrance cell and R & D wing are always at their foot to serve swiftly while making product development a continuous process. Phoenix Tools never hesitates to do that extra mile to make sure that its products line upto their promises. Growing from strength the Phoenix Toolsimage has reached the zenith of status backed by dynamic and dedicated team of skilled employees and expert engineers, Phoenix Tools is using the advanced international techniques working on its motto of "Quality by choice not by chance"

• Condition: New
• Brand Name: Bhavya Machine Tools
• Packaging Details: Depend on Customer Requirements.
• Supply Ability: N/A
• Port: India
• Place of Origin: Gujarat, India

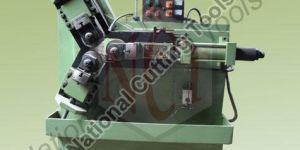

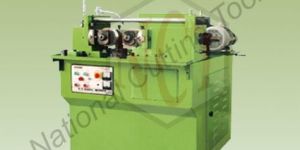

National Cutting Tools are involved in manufacturing and providing Thread Rolling Machine used for generating nails, screws and tools. Thread rolling is a cold-forming function only for exterior nails discussions in an empty. The empty is pushed by line rolling passes away which are connected to the line rolling device. The discussions were established by the pushing improvement.   The discussions created by the device provide fine surface, great manufacturing rate, greater precision.

National Cutting Tools are involved in manufacturing and providing Thread Rolling Machine used for generating nails, screws and tools. Thread rolling is a cold-forming function only for exterior nails discussions in an empty. The empty is pushed by line rolling passes away which are connected to the line rolling device. The discussions were established by the pushing improvement.

  Powerful constructions permits deep forming of thread, warms serrations khurls. Rigidity & simplicity : Grade-1 caste hardened and duly scrapped slide also the easy adjustment of machines as well as tooling enables an unskilled laborer to operate machine. Machine is very much suitable for mass production and best surface finishes.

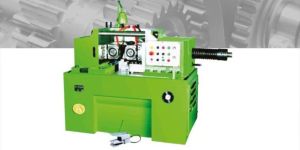

Our hydraulic thread and form rolling equipment is one of the professional ranges of machining device that has been designed to provide optimum support for industries. It has been made from superior range of raw materials and graded components that makes it a versatile apparatus for long usage. It is applicable in diverse industries and remains a compatible device to perform multiple machining works. It is provided with low pressure hydraulic power support that provides low heat at the time of continuous performance. This machine requires minimum maintenance and is available in three different models with various tooling capacities. Find out the suitable one and experience good return on investment through this device.   Features   Compact design Fabricated steel frame Versatile for all type of works Manual & Automatic cycles Range of cycle times Extended universal joint provides smooth operation for bib angle of work piece. Over sized coolant tank for superior cooling effects. Low pressure hydraulic power pack to ensure to low heat & minimum maintenance. “T” type and accurately ground slide assures that jumping and vibration will not happen during rolling Centralized lubrication of all important moving parts.

Powerful Construction Permits deep forming of threads, Worms, Serrations, Knurls, Rigidity & Simplicity :grade castes hardened and duly scrapped slide,also the easy adjustment of machines as well as tooling enables an unskilled labourer to operate the machine. Machine is very much suitable for mass production and best surface finishes

The thread rolling is basically a cold-forging process that forms the entire length of an external thread by displacing the bla^E. material. Threads are produced on the blanks of predetermined diameter by a rolling action under pressure and between two rotating cylindrical steel roll dies whose working faces are suitably threaded. This action plastically deforms the blank in such a manner that a portion of the blank metal is displaced to form the root of the thread and raised in unbroken fibw-flow lines to form the crest of the thread. The roll dies rotate synchronously on parallel or slightly tilted horizontal spindle shafts that are adjustable by sliding laterally. The dies are made of special steel alloy with an exceptional hardness and toughness resulting in maximum wear resistance. The blank is placed on a carbide tipped work rest blade or center support disposed between the dies and after a complete cycle v/ of approach, rolling and release of the hydraulically operated right hand spindle shaft the rolled thread is removed. The blank is placed in the rolling position, either by hand or automatically. A timer built into the machine release the hydraulic pressure on the roll dies when the required diameter is completed and returns the right hand spindle head to its starting position.

This a one of a kind machine in the world with Heavy Duty imported Linear Guids. In this machine the force is acting in line directly behind the Roll Shaft. This machine can roll multi start screws with higher pitches like 11.1125 mm x 4 starts in a single cycle and also 2" valve stems, ball screws etc.

This machine is use for pipe threading machine like scaffolding jack and solid rod also threading.

• Through Feed: 7 mm
• Max. Rolling Length Infeed: 50 mm

Powerful construction permits deep forming of threads, worms, serration knurls.Rigidity & Simplicity : Grade - 1 Casted Hardened and duly scrapped slide also the easy adjustment of machine as well as toolings enables an unskilled labourer to operate the machine.Machine is very much suitable for mass production and best surface finishes.

We are a prominent Manufacturer and Supplier of Hydraulic Thread Rolling Machine that is appreciated for its compact design and sturdy construction. Our range of Hydraulic Thread Rolling Machine caters to the requirements of various industries. The Thread Rolling Machine is suitable for rolling of threads, knurls, cross knurls, worms & spindles etc. Salient Features : Fabricated from steel frameHigh production rateUser friendly setup & running procedureMinimum maintenanceHigh efficiencyHeavy duty gear box for continuous operationVery low running cost Applications : Automobile IndustryProcess IndustryFastners
