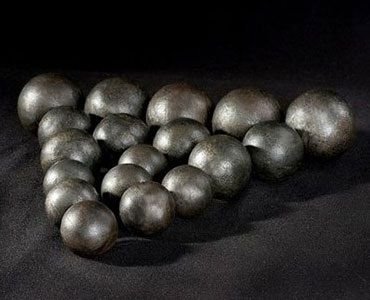

Hyper Steel Grinding Media Balls Dealers

As per the variegated application requirements of clients, they can avail from us a quality range of Hyper steel grinding Media Balls and Cylpebs in various diameters and technical specifications. These grinding media balls and cyplebs are widely utilized in grinding and milling applications. Specifications: Chemical composition: The chemical composition of the grinding media is in accordance with IS 6079-1989 Hardness: When tested in accordance with IS 1500/1983, the hardness is found to be more than 375 BHN Microstructure: Microstructure is free from continuous carbide network Heat treatment: The grinding media is heat treated to obtain the required hardness and microstructure Balls diameter (mm) – 125, 100, 90, 80, 75, 70, 65, 60, 50, 40, 30, 25, 20, 17, 15 Cylpebs (mm) – 35 x 35, 25×25, 22×22, 19×19 Hardness: When tested in accordance with IS 1500/1983 the hardness at any point across the section of the ball is more than 375 BHN. Microstructure: Microstructure shall be free from continuous carbide network. Heat treatment: The grinding media is suitably heat treated to obtain the required hardness and Microstructure. Standard size of grinding media: Balls diameter (mm)-125, 100, 90, 80, 75, 70, 65, 60, 50, 40, 30, 25, 20, 17, 15 Cylpebs (mm)-35 x 35, 25×25, 22×22, 19×19

Melting and Moulding Shop Medium Frequency Dual Track Induction Furnace, fully automatic Sand Moulding Plant with 4 nos. of Jolt Squeeze type Moulding Machine and Overhead Cranes. Heat Treatment Shop Fully automatic continuous pusher type heat treatment plant with temperature graph attachment for Hi Chrome & Hyper steel grinding media balls and liner with oil and Air quenching arrangement & fully automatic 2 nos. of batch type furnace with water quenching arrangement for manganese steel castings.

Hyper steel Grinding Media Balls and Cylpebs as per IS 6079-1980 (a) CHEMICAL COMPOSITION: The chemical composition of the grinding media will be as per IS 6079-1980: as follows: GRADE-1 (For size 60 mm & above) GRADE-2 (For size below 60 mm) Carbon 1.10-1.60 1.50-2.00 Silicon 1.00 Max. 1.00 Max. Manganese 0.90-1.60 0.90-1.60 Chromium 1.20-2.40 1.20-2.40 Sulphur 0.06 Max. 0.06 Max. Phosphorous 0.06 Max. 0.06 Max. (b) HARDNESS: When tested in accordance with IS 15001983 the hardness at any point across the section of the ball is more than 375 BHN. (c) MICROSTRUCTURE: Microstructure shall be free from continuous carbide network. (d) HEAT TREATMENT: The grinding media is suitably heat treated to obtain the required hardness and Microstructure.

Hyper Steel Grinding Media Balls   in different sizes and technical specifications. These grinding medial balls c Balls (mm) - 125, 100, 90, 80, 75, 70, 65, 60, 50, 40, 30, 25, 20, 17, 13 Cylpebs (mm) - 25x25, 22x22, 19x19, 16x16
