Ice Cream Cone Filling Machine Dealers

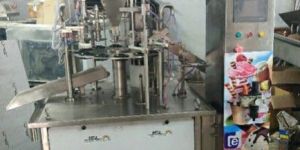

Our filling machine can fill varieties of Ice Cream such as plain or with Ingredients or with Ripple using required attachments offered with the machine. Output Minimum 1500 Cups / Cones per Hour of 100 ml suitable for 150 liter / hour freezer Maximum 2000 Cups / Cones per Hour of 100 ml suitable for 200 liter / hour freezer All contact parts are of SS-304 or food grade material

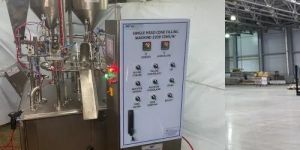

THE MACHINE OFFERED IS SUITABLE FOR FILLING ICE CREAM BEING FEED THRU CONTINUOUS ICE CREAM FREEZER. THE MACHINE SHOULD HAVE FACILITY TO FILL ICE CREAM CUPS & CONE. THE PROVISION SHALL BE MADE FOR AUTO FEEDING OF ICE CREAM CUPS & MANUAL FEEDING OF ICE CREAM CONE, WITH AUTO OPENING OF CONE PAPER TOP, FEEDING CHOCOLATE OR FLAVOR SPRAY, FEEDING ICE CREAM , PROVISION OF CHOCOLATE OR RIPPLE SPRAY AS WELL AS FEEDING DRY FRUITS . THE MACHINE SHALL ALSO HAVE PROVISION TO FEED PAPER LID AND FOLDING OF PAPER CONE IN CASE OF CONE FILLING. THE FILLED CUPS AND CONES SHALL BE AUTOMATICALLY EJECTED ON THE CONVEYOR FOR FURTHER STORAGE PACKING.

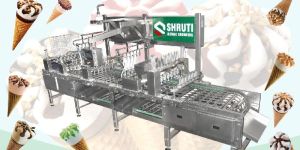

the machines can be made available as per the requirement of customers starting from single lane up to four lanes. the machines are suitable for filling of ice-cream in small / big cup as well as big / small cone.

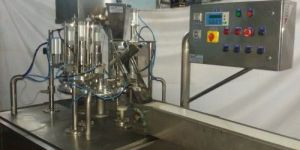

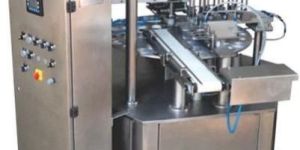

Get complete cup filling machine solution for ice–cream and frozen desserts with our automatic PLC based filling machine. Rugged and robust sanitary design is what makes our Cup and cone filling machine stand apart from other machines in the market today. It is Flexible and compatible for any variety of Ice-cream and Frozen desserts filling.

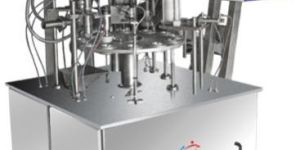

Our filling machine can fill varieties of Ice Creamsuch as plain or with Ingredients or with Ripple using required attachmentsoffered with the machine.OutputMinimum 1500 Cups / Cones per Hour of 100 mlsuitable for150 liter / hour freezerMaximum 2000 Cups / Cones per Hour of 100 mlsuitable for 200 liter / hour freezerAll contact parts are of SS-304 or food gradematerialModel VCFM-200-PLC is fully automatic machine having following operations:Dispensing of cups automatic.(dispensing of conesmanually)Cone expansionChocolate spray in biscuit conesFilling of ice-cream into cups / conesTop filling with chocolate or fruit syrupDry nut sprinklingCard board lid dispenserClosing of conesEjecting of the finished cones or cupsAdvantage of PLC:Important feature of plc is that automatic shiftregister function i.e. no cone no lid, hence we can save raw material &compressed air tooTechnical Data :Filling quantity: 50 ml minimum and up to 200 ml.Speed variator : ac frequency drivePLC make : Siemens make plcMachine output : up to 2000 cups/cones per hourRound cup: max. dia = 80 mm, height = 75 mmRound cone: max. dia = 60 mm, height = 150 mmPower requirement : 0.5 hp motor, cycle : 50 htz,440 volt, 3 phaseAir supply : 1000 liter/minute at 6 kgNote:All the pneumatic components are pneumax/SMC makeonlyAir compressor will not to be supply with machineDry and moisture free air required for machineThe design & specifications of the machineillustrated herein are subject to change without notice.

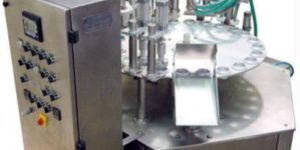

We offer several capacities and sizes of Ice Cream Cone Filling Machine & Milk Coolers for use in several segments of ice cream industry. These are extensively used in processing industries and can be customized in accordance with client requirement. Leveraging on our skilled professionals, we are engaged in offering a wide range of Ice-cream Cone Filling Machines to our clients. Designed and developed using technologically advanced equipments, these machines are widely used for filling chocolate spray in biscuit cones and ice-cream into cups and cones. Apart from this, these machines are also used for top filling chocolate or fruit syrup, dry nut sprinkling. These machines are available with card board lid dispenser, which is used for closing of cones and ejecting of the finished cones or cups.

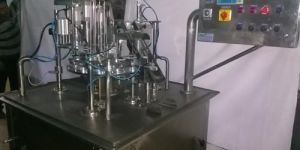

Can fill 3000 number of cups cones per hour All contact parts are of SS 304 Food Grade material PLC Controlled operations Can handle Filling Capacities up to 100 ml. It is a fully automatic machine An optional attachment for chocolate spray can be added to the machine

Manufacturer of Skid mounted Pasteurization system for - Milk - Dahi - Chaach - Cream Hot Water Generation System Steam pipe line with bypass assembly to transfer the steam from the boiler to the hot water PHE. The pipeline consists of auto control steam valve, gun metal valves and pressure guages Hot water PHE to generate hot water from steam. The outlet of the PHE consists of steam trap for effective condensation and creating back pressure for steam The system consists of hot water pump,buffer vessel,safety valve and make up line for water. Milk Pasteurizer PHE plate Pack The Multisection PHE plate pack is used to heat the milk from room temp to pasteurization temperature. Milk gets hold in holding tube and then gets chilled to 4C after pasteurization. Provision for Milk separator and homogenizer Regeneration Efficiency upto 93%

Ice Cream Cone Filling Machine, Chilling Plants, Condensing Unit

Ice Cream Cone Filling Machines, Wafer Cutting Machine

Ice Cream Cone Filling Machine, Ice Cream Cup Filling Machin

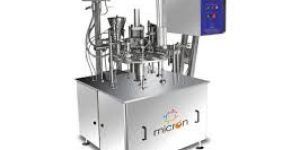

Automatic Cup Cone Filling Machine for Ice Crea

Ice Cream Cone Filling Machine, Ice Cream Cup Filling Machin

Ice Cream Cone Filling Making Machine, Hardening Tunne
