Impregnation Plant Dealers

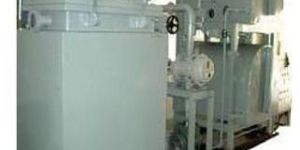

Manufacturer & Supplier of Capacitor Drying and Impregnation Plant. Our product range also comprises of Vacuum Drying Plant, Transformer Oil Filtration Plant and Vapour Phase Drying Plant. It is useful for Power capacitors and fan condensers, It consists of rectangular or cylindrical impregnation chamber, degassing column, processed oil storage tank, Raw oil storage tank, oil treatment plant with filtering unit, with PTFE seat valves.. As a leading business name, we are engrossed in the arena of presenting to our customers an extensive consignment of Capacitor Drying And Impregnation Plant. These are extensively appreciated in the industry owing to their high functionality, reliability and exceptional finish. In addition to this, these could be purchased form us at highly affordable rates that too in bulk orders..

We brings high quality of vacuum impregnation systems. Industrial pressure impregnation systems made by our company have placed an unprecedented demand in the market, as these are designed and developed according to the specific requirements of customers. These pressure impregnation systems are acceptable by a countless number of clients all over India.

VPI is a process in which resins, varnish is forced into integrate parts of its winding to achieve void the insulation. The impregnation vessels are available in different options such as top loading and front loading. This can be offered depending on the application and handling facility available at work station. 1. ResinVarnish Vacuum Pressure Impregnation (for electrical insulation application) 2. CastingMetal Impregnation (for porosity removal and surface finish application) 3. Special Applications viz Silver Nitrate

The principal component of insulation is insulating Pre-Compressed Press Board. The components like rings, duct, dovetailed spacers, blocks etc. are put under compression alongwith the coil assembly for pre-shrinking. Providing additional insulation compensates the slight recovery in dimensions after the pre-shrinking. This reduces the probability of coils getting loose during operation and also minimizes destructive circuit forces.

Motivated by the aim to deliver nothing short of the best, we have grown as a reliable supplier of Vacuum Pressure Impregnation Plant in the market. Obtain the extensive array of products from our well-established inventory located in Maharashtra(India).

Filter paper impregnation coating plant basically produce a complete range of filter paper (Air, Oil, & Fuel).This plant is basically for four section.1. Base paper coating unit.2. Base paper heating section.3. Corrugation and marking section.4. Re-winding section.

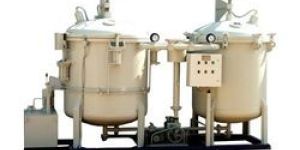

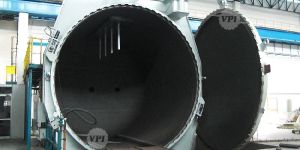

vacuum impregnation plant the vacuum impregnation plants can be designed as per clients’ requirements and is provided with the following specifications.   impregnation cycle:it is designed as per the schematic diagram attached and is used for varnish impregnation to be carried out in following steps: pre-heating the jobs in either impregnation chamber or oven.evacuation of impregnation chamber (after putting the jobs) to make the voids in the jobs       clear and drying of jobs for specific time & required temperature / vacuum.induction of impregnant (varnish) in the impregnation chamber from impregnant tank to        submerge the jobs in it.pressurize the impregnation chamber with dry air or nitrogen to fill the voids with impregnant.return the varnish to impregnant tank.evacuate the impregnation chamber and cure the jobs either in impregnation chamber or in     oven for specific time.   impregnation chamber specifications:working volume: 100 ltrs to 5000 ltrs. Constructed from m.s. Plates, bars, structural etc.working pressure: @ 4 kg/ cm2 & vacuum: as per process requirement.lid opening: screw davit type for quick opening & closing.chamber dimensions: as per job size and quantity.added provisions are oil heating / cooling jacket, quick clamping bolts, stirrer, neoprene     gaskets, sight glass, illuminating lamp, pressure safety valve, vacuum & pressure gauge.

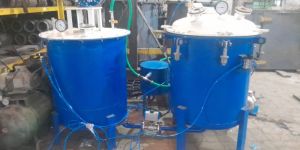

Vacuum Impregnation Plants and Pressure Impregnation Plants is designed for varnish impregnation to be carried out in following steps and will be generally as per the schematic diagram attached. Pre-heating the jobs in either Impregnation Chamber or in Oven if you have a less time available. Evacuation of Impregnation Chamber (after putting the jobs) to make the voids in the jobs clear and drying of jobs for specific time & required temperature vacuum. Induction of impregnant (Varnish) in the Impregnation Chamber from impregnant Tank to submerge the jobs in it. Pressurize the Impregnation Chamber with dry air or nitrogen to fill the voids with Impregnant. Return the varnish to Impregnant Tank. Cure the jobs either in Impregnation Chamber or in Oven for specific time if time available is less

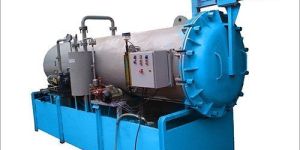

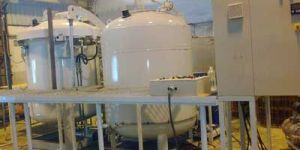

We are offering automatic bayonet clamping vacuum pressure impregnation plant. Which gives optimum performance and is high on demand in the electronics industry. The vacuum pressure impregnation plant is designed to impregnate the windings like armatures stators, porous castings and it assures the deep penetration of varnishing the plant. specifications : maximum vacuum : 0.01 torrmax pressure application : 6 kg/cm2 applications : helpful in varnish coatings on windingsporus casting impregnation on ferrous and non ferrous jobsx-ray machine tube head oil filling under ultra vacuum. salient features : trouble free operationall the joints are properly sealed with the nitrile / vitonbayonet clamping arrangement for the quick operation rather than manual

We offer high quality Capacitor Oil Impregnation Plants. Our Capacitor Oil Impregnation Plants are manufactured from high quality components and other raw materials to ensure high performance. These Capacitor Oil Impregnation Plants facilitate effective drying and impregnation process. Our Capacitor Oil Impregnation Plants are extremely durable. We provide our Capacitor Oil Impregnation Plants at affordable prices. The plant consists of Impregnation chamberThe impregnation chamber can be of Square shape or in a cylindrical shapeVacuum achievement will be upto 0.0001 torrThe leak rate (L.R) of the system will be better then 0.1 torr lit/secHeating to the impregnation chamber by thermic oil heating (external or internal)Individual oil filling by single valveAll valves provided to the system will be of our own make, 100% leak proof having standard leak rateTerminal testing flange will be provided for the purposeR.O.S.T(Raw oil storage tank) & P.O.S.T(Processed oil storage tank)Shape : CylindricalLeak proof level indicators providedAccessible manhole for maintenance purposeEffective oil heating jacket provided surrounding to the R.O.S.T and P.O.S.T.Oil filtration systemThe R.O.S.T (Raw oil storage tank) & P.O.S.T processed oil storage tank are inter-connected with effective de-humidification chamber, Bag type 17 micron rating filter unit, Cartridge type 1 micron rating filter unit and ionic reaction column. The filtering operation works on the principle of pressure differenceVacuum pumping systemA roots rotary combination will be adopted to the impregnation chamber by Indian or imported pumps to achieve the required vacuum levelSeparate vacuum pumping system will be provided to R.O.S.T(Raw oil storage tank) and P.O.S.T(Processed oil storage tank) as per customer needHigh quality effective condenser in copper coiled / strip type given in vacuum line

Vacuum impregnation plant It is not just a plywood which is made with PF resin but it is more than that. Manufacturing of marine grade ply need more attention and honesty than BWR grade plywood. MODAK EUREKA is a real definition of Marine grade plywood.

We at KERONE are helping the industries across verticals with the highly customized and efficient impregnation plants, the advantages of the KERONE’s products that, they are manufactured to provide true solution for the coating requirements of advanced or technology. Impregnation process plants are used for applying a coating of decorative & protective layers on the substrate, the impregnation plants are most commonly used for coating of chemically balanced liquids to protect the components and materials from damage of problems by filling the micropores (very narrow space or hole in a material left in material due to various processes) from causing serious issues. The impregnation process is most commonly used in the increasing capacity/protecting the Film paper, Press Board, Paper, Wood, Asbestos board, Mica, Micanite, Cotton or silk, Rubber, Insulating fabrics, PLASTICS, motor winding, electrical and mechanical machine components and etc. The process of Impregnation helps Preventing leakage in insulating materials To reduce moisture defense To advance reliability of welds To varnish the motor windings To prevent accumulation of undesired elements like dust, dirt, chemicals or water To improve overall parameters of the equipment/component

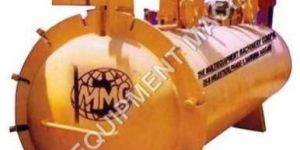

Avail from us, Vacuum Impregnation Plant that is manufactured in compliance with set industrial standards. These Vacuum Impregnation Plants consists of a pressure cylinder provided with a seal door, a vacuum pump, a pump for pumping preservative solution into the pressure vessel and measuring instruments. Features Resistant against termitesLonger working lifeSuperior performanceLow maintenance cost

Our state of the art manufacturing facility has the capacity to produce superior quality plants and equipments which contribute towards better performance and increased efficiency of various engineering industries. The configurations of the plants can be tailor made to suit the preferences and requirements of our clients. Varying capacities can be supplied to accommodate varying volumes of oil circulation.

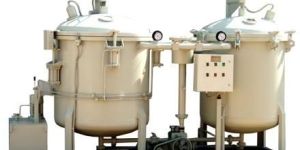

Vacuum Impregnation Plant The Vacuum Impregnation Plants can be designed as per clients’ requirements and is provided with the following specifications.   IMPREGNATION CYCLE:It is designed as per the schematic diagram attached and is used for varnish impregnation to be carried out in following steps: Pre-heating the jobs in either Impregnation Chamber or Oven.Evacuation of Impregnation Chamber (after putting the jobs) to make the voids in the jobs       clear and drying of jobs for specific time & required temperature / vacuum.Induction of impregnant (Varnish) in the Impregnation Chamber from impregnant Tank to        submerge the jobs in it.Pressurize the Impregnation Chamber with dry air or nitrogen to fill the voids with impregnant.Return the varnish to impregnant Tank.Evacuate the Impregnation Chamber and cure the jobs either in impregnation Chamber or in     Oven for specific time.   Impregnation chamber specifications:Working Volume: 100 Ltrs to 5000 Ltrs. constructed from M.S. plates, bars, structural etc.Working Pressure: @ 4 kg/ cm2 & Vacuum: As per process requirement.Lid Opening: Screw Davit type for quick opening & closing.Chamber Dimensions: as per job Size and Quantity.Added provisions are Oil Heating / cooling Jacket, Quick Clamping bolts, Stirrer, Neoprene     Gaskets, Sight glass, Illuminating Lamp, Pressure Safety Valve, Vacuum & Pressure gauge.

The Vacuum Impregnation Systems have an Impregnation chamber which has a vacuum sealed MS vessel with both top and bottom as dished ends. The top dished end is removable for the purpose of loading and unloading of the components meant for impregnation. There is also a viewing window, air admittance valve, vacuum dial gauges and a light port. The top lid can be moved in and swiveled out through an arm. The chamber is filled with oil and immersed with heaters. Glass wool insulation is provided for the oil heating chamber and cladded with sheet metal to provide insulation and reduce heat dissipation.We customise the design adn construction of Vacuum Impregnation systems to suit our specific customer specific requirements.
