Intermediate Transom Dealers

Features This unit has been carefully designed to provide a safe mid-bay support Scaffold Boards. The fabricated jaw sections at each end are turned downwards to prevent dislocations. One end is provided with integral locking device to prevent movement along the ledger during use.

These give additional support to the structure by placing them at different levels horizontally from one ledger to another. Sizes available are same of ledgers. Available in various standard lengths to suit your requirements.

Intermediate Transom offeredfeatures quality construction finish and as cuplock scaffolding system it perfectly match up to the specific working requirements of the customers. These intermediate transoms for cuplocks also come with superior bearing capacity as well as provide for stable usage that offers lasting usage value. Some of its features include allows for easy assembling/disassembling support, can be offered in standard/OEM specifications, choice from extensive available stock or custom sizes, different surface finishing like galvanized, painted, standard choices of EN74, BS; available in different standard and customized finish lengths among others.

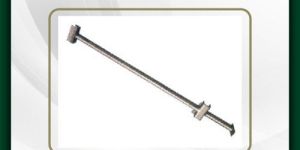

For use with Hop-up brackets where distance between standards exceeds the span of scaffold boards Cuplock intermediate transoms are available for 2 boards and 3 boards. Size Size (Meter) Weight(kg)1.05.001.36.301.57.001.88.002.08.602.39.602.410.003.012.00 Specifications Pipe : 48.3 mm O.D. , 3.00 to 3.10 mm Wall Thickness Plates : 6 MM Code No. : 1078 Centres of Standards : 1.25M The Transom has a T section with wedge lock fittings at each end. It is used for locating the timber battens or steel frame as platform.

It gives additional support to the structure by fitting them at different levels horizontally from one ledger to another. Sizes available are same of the ledgers. They enhance the load baring capacity of the system.
