Laser Metal Cutting Machine Dealers

Long lasting life time(1000,000 hours) of laser module. Very specialize for thin sheet Precision cutting. Supreme Precision motion control by the linear motor. Auto focusing cutting head. Automatic assist gas pressure control. Easy to adjust the focus lens. Easy to replace the focus lens. Granit planet is mounted for batter flatness ans prevention of vibration. Low maintenance cost & energy- efficient. minimize burrs and roughness.   Application Sheet metal Cutting , Wafer cutting , Stencil ,Gasket , Solar Cell. Materials MS,SS,Copper,Alloy,Solar cell,PCB,Flim,Ceramic,Silicon wafer,Fuel cell.

HistoryIn 1965, the first Laser cutting machine was manufactured by M/s. Western Electric Engineering Research Center, It used to drill holls in diamond dies.In 1967, the British harnessed the Laser with the help of Co2 for Metal cutting. In early 1970 this process was used to cut Titanium for aerospace application.ProcessLaser beam is generated by simulating a lasing material by electric discharge or lamps within a closed container. As the lasing material is stimulated, the beam is reflected internally by means of partial mirror, until it archives sufficient energy to escape as a stream of coherent light.The parallel rays of coherent light from the Laser source often fall in the range between (1.5-2.0 mm) in diameter. This beam is focused and intensified by a lense or a mirror to a very small spot (0.025 mm) to create a very intense Laser beam.Mirror or fibre optics are used to direct the coherent light to lense, which focuses the light at work zone will the help of different lenses and finally to output Mirror.Solid State YAG LaserA Laser is a device that creates and amplifies a narrow intense beam from coherent Light. This light beam is very intense to vaporize the hardest and the most resistant material. In solid state Laser the active medium is a solid material instead of gas or liquid. The Laser medium is a rod of Yttrium Aluminium Garnet (YAG).Features of YAG Laser Cutting Machine* Solid YAG laser medium is one of the most stable product in Laser field.* It has the features of better Laser mode and thin Cutting Gap.* It is very stable machine with very little periodical maintaince, except changing of Mirror, lenses and Cutting nozzle.* It gives high accuracy and high quality of cutting.* The Servo motors, ball screws, and linear guide rails which are imported not only ensure the good cutting speed, better edge effect, and higher accuracy than similar products, but also ensure the stability and reliability of the machine’s working.* No distortion, negligible thermal input, no secondary operation required.Application of YAG Laser Cutting MachineUsed for precision cutting of Mild Steel, Stainless Steel, Alloy Steel, Spring Steel, Copper and other metals.Widely used for Aerospace, Steamships, Railways, Wagon, Automobile, Textile machinery parts, Elevators, Kitchenware machinery, Electrical parts, Hardware etc.Comparison with Co2 Laser* YAG is specially designed for Metal cutting, where as Co2 is for Metal as well as for non metal like Acrylic, MDF, Wood etc* Operation cost of YAG Laser is just 1/5 to 1/7 times, compare to Co2 Laser cutting machine.*Maintenance cost of YAG Laser is 1/10 to 1/15 times, compare to Co2 Laser cutting machine.Advantages of Laser Cutting Over CNC Plasma Cutting* No Warping even on lower thickness.* Cutting is very precised, as minium line width of Laser beam is 0.2 mm.* No Contamination on the cutting edge.* No heat effect zone.* Laser cutting require less energy for sheet metal cutting.* It can cut hole of as low as 2 mm in diameter

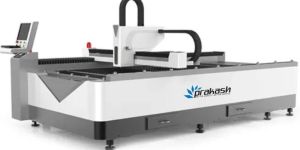

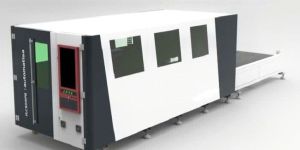

Fiber laser cutting machine is a laser cutting machine which Uses fiber laser generator as light source for metal materials cutting. Fiber laser cutting machine can do plane cutting or bevel cutting, and the edge is neat and smooth, which is suitable for high-precision cutting such as metal plate. At the same time, the mechanical arm can do 3d cutting instead of the original imported five-axis laser machine. Excellent beam quality : smaller focusing spot, more fine cutting line, higher working efficiency and better processing quality. High cutting speed : twice as higher as the same power CO2 laser cutting machine. High stability : the world's top imported fibre laser has stable performance and the service life of key components can reach 100,000 hours. High electro-optical conversion efficiency : the photoelectric conversion efficiency of optical fibre laser cutting machine is about 30%, which is three times higher than CO2 laser cutting machine. Extremely low use cost : the power consumption of the whole machine is only 20- 30% of that of similar CO2 laser cutting machine. Extremely low maintenance cost : no laser gas; Optical fibre transmission without reflecting lens, Can save a lot of maintenance cost. Easy operation and maintenance : optical fibre transmission, no need to adjust optical path. Super flexible light effect : small size, compact structure, easy to flexible manufacturing requirements.

We have hired proficient quality analysts having rich domain experience who make sure that only defect-free range will be delivered to buyers. Maintaining high standards of our extensive array of products, we focus on the quality of raw inputs and material used at the initial stages. With this, the final product comes out to be the finest. Applications : Primarily suited for cutting stainless, carbon, aluminum, titanium, and most non-ferrous metals Tubes and plates fiber laser cutting machine power source options from 300W to 3KW Fiber offers reduced maintenance requirements and operating costs compared to CO2 Position accuracy

Laser Metal Cutting Machine, Plastic Moulded Component

Laser metal cutting machine is most suitable and the preferred choice of equipments in industries such as advertisement, gifts, shoes, toys, and etc.

Laser Metal Cutting Machine, Laser Drilling Machin
