LCR Meter Dealers

The U1731C/32C/33C LCR meters allow you to measure frequencies as high as 100 kHz, a capability typically found only in benchtop meters. Each of the models come with a 3-year warranty which is backed by Keysight’s outstanding service and support.  Gain better noise immunity and save money with Option-SMD. Each of the order comes with an Option-SMD that consists of a handy soft carrying case and SMD tweezer for better value of your money. The SMD tweezer is suitable for making measurements on SMD components and is used with the guard terminals on meter for better noise immunity

We have in store for our customers a quality range of S-96 LCR Meter. Designed with the assistance of our engineering excellence, these electronic test equipment are used to measure the impedance (inductance, capacitance, resistance) of a component.

Features of LCR 916   20,000/2,000 Counts Dual Display   Test Frequency : 100/120Hz/1/10/100kHz   Auto LCR Mode for DUT Measuring   0.2% Basic Accuracy   Measurement Parameter : L,C,R,D,Q,ESR,θ,DCR   Parallel/Series Testing Mode   Sorting Mode for Quality Control   2Wire or 5Wire Measurement Available Specifications Of GDS 1102 U   Main Display : 20,000/2,000 counts selectable   Sub Display : 2,000 counts   Range : 20uH ~ 20kH depends on the selected test frequency   Best Accuracy : +(0.2% rdg + 2 digits)   Resolution : 0.001uH ~ 0.001kH depends on selected range   Range : 20pF ~ 20mF depends on the selected test frequency   Best Accuracy : +(0.2% rdg + 2 digits)

4-wire measurement Automatic L-C-R selection Selectable test model: series or parallel Backlit, 20,000/2,000 count display Low-battery indicator USB interface

Frequency: 20 Hz to 300 kHz500 kHz1 MHz +- 0.05 % basic accuracy 100 uV to 2 Vrms, 1 uA to 20 mA variable test signal DC bias 1.52 V Rdc measurements

Overview Accuracy and versatility makes the 6500P Series HF LCR Meters the ideal choice for many different tasks and applications in manufacturing and test. The wide range of frequency specifications means that a model can be selected that best meets application requirements and within budget. High measurement accuracy Capacitance, inductance and impedance basic accuracy is an excellent ±0.05%. Dissipation factor accuracy is ±0.0005 and the quality factor accuracy is ±0.05%. Variable drive and bias levels AC drive levels up to 1V or 20mA can be selected to evaluate components in realistic operating environments. The /D1 DC bias option provides 0 to +40V dc bias voltage and 0 to +100mA dc bias current while the /D2 option provides -40V to +40V dc bias voltage. External control The GPIB interface is used to control the instrument and read back measured values for applications such as quality control or for archiving purposes. An Ethernet interface similarly allows the instrument to be controlled and to send out data – allowing it to be integrated into many test environments. Wide range of interfaces An external monitor or projector may be connected to the instrument. The ability to provide a large screen display is invaluable in production environments or for teaching and training. Instrument control from both a keyboard and mouse is available. Any keyboard or mouse, with either PS/2 or USB interfaces, can be simply connected to provide an alternative method of instrument control and operation. Data storage and retrieval All measurement and setup data can be stored using the Ethernet interface or a USB flash memory (supplied as standard). Setup data Up to 20 instrument setups may be stored locally for each mode. Bin handling The /B1 option (non-isolated 5V) or /B2 option (isolated 24V) signals are available through a 25-way D-type connector. 10 bins can be set using absolute or percentage limits. Printer outputs Hard copy printouts can be obtained in a number of ways including direct to an HP-PCL compatible graphics printer or Epson compatible text/ticket printer. A networked HP-PCL compatible printer may also be used via Ethernet connection. Component connections Four front panel BNC connectors permit three or four terminal connections with the screens at ground potential. The 1J1011 component fixture, supplied as standard, ensures optimum performance when measuring a wide range of components of leaded components and devices. 1J1012 (2 Terminal) and 1J1014 (4 Terminal) fixtures allow connection to surface mount devices. Protection against charged capacitors High precision measuring instruments can be damaged by charged capacitors which can cause costly repairs and unacceptable downtime. All the models in the range incorporate protection against charged capacitors. Comprehensive and precise component tests at higher frequencies The 6500P series capabilities are best summarised by “Comprehensive and precise component tests at higher frequencies”. The instruments are the perfect solution for those who have demanding component measurement needs.   Key Features Precise high frequency impedance measurements Characterize components from 20 to 120 MHz Wide range of models with maximum frequencies from 5MHz (6505P) to 120MHz (65120P) 0.05% basic measurement accuracy Comprehensive measurement functions 0 to +40V DC bias voltage and 0 to 100mA DC bias Current (Option) ±40V DC bias voltage (Option) Easy to use with large TFT touch screen Clear graphic displays aids measurements Resonance Search Intuitive user interface Fully programmable over GPIB Keyboard and mouse optional control Competitively priced

Purchasers can place wholesale or retail orders with any time of the year and expect timely arrival of deliveries. Buy the best quality Lcr Meter at rock-bottom prices from us. We are a reckoned name in the town

We are an eminent entity engaged in offering an extensive range of quality assured LCR Meter. we are leading bulk supplier of LCR Meter in Vadodara, Gujarat, India.

Manufacturer & Exporter of LCR Meters & Economic LCR Meter. Our product range also comprises of Test Work Benches, Temperature Bath Dry Block Calibrators and Pressure Calibrators.   Economic LCR Meters We are engaged in offering our clients a wide range ofEconomic LCR Meter to our most valued clients'. These meters are highly demanded in the market for their compact design and easy operation.   Offered at the leading market prices, the specifications of these meters are listed below: • 0.1% Basic measurement accuracy• 200kHz continuous frequency range• Simple straightforward operation• Comprehensive range of measurement functions• RS-232, GPIB interfaces• Wide AC drive level• Small physical size

Our LCR Meter range includes two main series, the LCR-8000G & LCR-800 series. Depending on the model, these series feature frequencies of 2kHz to 10MHz, and accuracies as high as 0.05% ~ 0.1%.

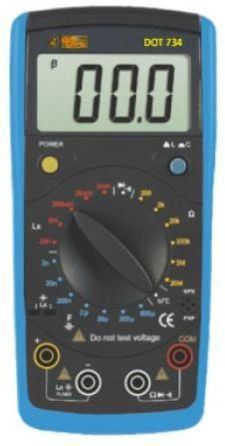

This is a Digital LCR Meter With Inductance, Resistance,  Capacitance & Continuity  Measurement Features:   Display :LCD Display with Backlight Zero Adjustment Key. Low battery indication Fuse Protection. Backlight Shut down after 7 Sec. Power: 9V X 1 battery Operation Temperature & Humidity: 25 °C, RH.

We offer Lcr Meter Im3533, Im3533-01 • ±0.05% accuracy with wide measurement range • Wide band 1mHz to 200kHz LCR Tester for R&D Applications to Windings, Coil and Transformer Manufacturing • Frequency sweep testing (IM3533-01 only) • 2m4m cable setting in addition to the standard 0m1m.

13 FUNCTIONS 29 RANGES3½ DIGIT 1999 COUNTS LARGE DISPLAY DIGITAL LCR METER  1 Year All India Warranty  Certified Product Quality  SKU: KM954MK-2 Category: L-C-R MetersTags: KM 954MKII, kusam meco, LCR METERS

We are offering digital lcr meter features: • 3 1/2 digit lcd display • 2000 counts • large lcd display • full protection function, capacitor with the function of self dishcarge • auto power off standard accessories: soft carrying case, test leads, holster, manual dimension: 185(h) x 93(w) x 35(d)mm.

Features: Displaying: LCD Displaying Max. Displaying: 1999 (3 ½ Digit) Auto Polarity indication. Low battery indication Operation environment: (0~40) °C, RH.
