Lever Limit Switch Dealers

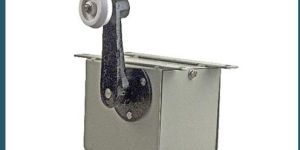

Lever Limit Switches are used for Heavy duty E.O.T. Cranes, Hoists to prevent over travel of hoisting motion on power and control circuit up to 500 V and 40 Amps. continuous current. The limit switch normally remains closed and cuts off power to stop the motor of the crane. The Lever limit switch operates when it reaches a predetermined position when the lever is moved over a projecting member fixed on the girder. The series limit switch is fitted with four sets of contacts which cuts off two phases of the motor in either direction and is suitable for 500 V supply system. The limit switch contacts are automatically reset when the lever returns to zero position due to spring action.  The base and cover have machined surface to protect against dirt and dust. Supplier of Lever limit Switch and manufacturer of Lever Limit Switch. Pethe Industrial Marketing Company Pvt. Ltd. is the leading manufacturer of Lever Limit Switch in India. Pethe Industrial is the leading supplier of Lever Limit Switch in Mumbai, Maharashtra, Gujarat, Delhi, and all over India.     Salient Features • Body material is made of Aluminium / CI casting. • Enclosure is of IP-44 / IP-55 degree of protection. • Mounting position is Vertical. • Cable entry is of ¾” conduit • Rated voltage is 500 V • Thermal test current is 10 Amps • No. of contacts is 2 / 3 / 4 • Mode of operation is 2 way self resetting. • Contact material is of silver cadmium. • Any other specification can be manufactured upon request.             Application   • All Material Handling and Lifting Equipments   • Hoisting : electric wire rope Hoists and Crabs   • Cross travel and Long travel : EOT / Gantry / Goliath / Derrick Cranes   • Winches and Conveyors   • Rolling mills   • Sugar, Mining, Cement, Textile industries to name a few.   • Brake motors

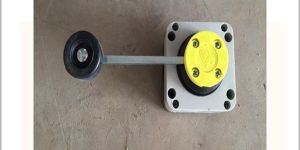

When the snatch block of the crane reaches its top position the snatch block pushes a plate which is hanging from one end of the lever of the limit switch. Due to the weight placed on the other end of the lever this lever is pushed up. When the lever is pushed up the shaft to which this lever is connected rotates there by rotating the cams which eventually open the contacts and disconnect the motor. The electronic limit switch contacts are automatically reset when the lever returns to zero position due to gravitational force

We are offering a wide assortment of quality Lever Limit Switches. The Lever Limit Switches are used to prevent over travel of hoisting motion on power. The limit switches generally remain closed and cut off power to stop the motor of the crane. They operate when on reaching a pre-determined position when the lever is moved over a projecting member fixed on the grid. We are a prominent Lever Limit Switch Manufacturer and Supplier from Delhi (India). We can make them available in standard and customized dimensions as per the buyer’s requirements.   Specifications Control circuit up to 500 V 40 Amps continuous current

Following are the Features of Lever Limit Switch Made from premium quality materialsAdvance technologyUnique designE

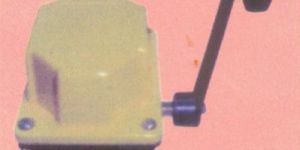

We are regarded as one of the Safety Roller Limit Switch Exporters in Maharashtra, India. The Roller Lever Limit Switch that we manufacture is used to prevent over travel or traverse in E.O.T. Cranes, wagon, shunting devices, elevators, travel mechanism, etc. We have been able to earn ourselves a prominent position as the Wholesale Roller Lever Switch manufacturer because of its supreme quality. Applications Cranes, Long Travel, Cross Travel, Lifts, Furnace Doors, etc

Lever Limit Switches are used for Heavy duty E.O.T. Cranes, Hoists to prevent over Travel of hoisting motion on power and control circuit up to 500 V and 40 Amps. continuous current. The limit switch normally remains closed and cuts off power to stop the motor of the crane. The Lever limit switch operates when it reaches a Predetermined position when the lever is moved over a projecting member fixed on the girder.

Lever Type Limit Switch is used for heavy duty E.O.T. Cranes, Wagon shunting devices etc., to prevent over traveling or over traversing on power and control circuit up to 500 volts A.C. 50 Hz and 40 amps current rating

We are the manufacturer of the EOT crane Control Equipments.We are also Importing from Italy make; Giovenzana. Current Rating (In Amps) 40 AMP Application It is used in crane manufacturing for excellent controlling of hoisting motion

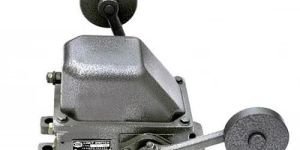

Lever Operated Limit Switch, Control Systems, Crane Control Gea

Lever Limit Switch Switch Angular Roller Lever, Roller Lever Limit Switch and Schmersal Magnetic Limit Switch from Coimbatore,

Lever Limit Switch, Electro Hydraulic Thruster, Anti Collision Devic

Lever Limit Switch, A.C. Electromagnetic Brake, Wire Wound Resistance Bo

Lever Type Limit Switches IP-44, Festoon Trolle
