Lined Carton Packing Machine Dealers

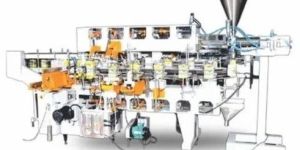

C Pack 3000, C Pack 1500, C Pack 800 are different range of automatic lined carton packing machines tailor made to suit customer requirements. Carton erection, sealing, filling and flap gluing are done automatically at an output speed of 12 to 50 packets per minute depending on the pack size and machine model. Change over from one size to another size is possible in all models with standard change parts, which extends the machine utility and enhance productivity.   Attachments : Volumetric / Gravimetric filling system depending on the Product Characteristics Take out Pressure Conveyor for cold glue setting used for flap gluing Online Mechanical embossing device for coding MRP,Batch,Date of Packing etc. on the outer major flap of the carton   Optional : Hot melt Application Systems Bulk hopper and material handling accessories Leaflet insertion devices Lid applicator Vacuum, Vacuum/Gas flushing Attachments

DISTINCT FEATURES SPM 12 is an operator friendly and a low maintenance machine It is an intermittent machine and can be used for packing a wide range of products such as Ghee, Refined Oil, Coffee, Tea, Spices and other Liquids and Dry Products The basic machine is extremely robust and all operations are driven mechanically All Contact Parts are of Stainless Steel A variety of filling devices are available for virtually any type of product Includes a double track conveyer at carton exit

We are occupied in offering bigger quality craggy Carton Packing Machine. These craggy Carton Packing Machines are paradigm quality goods that are highly stipulate in the market.

We are engaged in supplying of Automatic lined carton packing machine

Automatic Liner Cartons Machine Window patching machine of Kohmann does have the liner carton attachment. The liner carton production can be accomplished at high speeds. The solution is reliable and versatile for different types of liner materials.

• Brand Name: Shubham Pack
• Product to be packed: Liquid/Granules: Automatic Machine
• Speed: Accuracy

We are engaged in providing an exclusive range of lined carton packaging machines to the esteemed customers. These machines are manufactured by employing latest technology and advanced machinery. We make sure to timely deliver these products to our custmoers in different parts of the world, via our wide distribution network. following are the specifications of these products: model: spm 12 mc mechanism: intermittent rated speed: 12-15 cartonmin. (depend upon product and pack) power consumption: 5kw (depending upon equipment) electric supply: 3 phase, 415v, 50hz carton dimension: min-max length: 60 mm-200 mm width: 22 mm-108 mm length + width: 94 mm-285 mm height: 85 mm-250 mm main motor: 1.5kw, 415v 3 phase: 1440 rpm weight: 1300 kg packing limit: 50-1000 ml : 50-1000 gm (depend upon products) air consumption: 4cfm at 6 kgcm temp. Controller: pid based machine colour: off whitegrey product to be packed: powderliquidgranules coding unit: embossing provided with mc (digit to be purchased) packing material: duplex carton with heat saleable linear attached inside floor space: 5000x2000 mm.

• Power: 10 KW
• Automatic Grade: Automatic
• Voltage: 440V

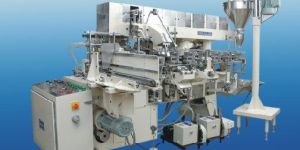

• Model Name/Number: GE-22MH
• No. Of Station: 22
• Cartons Per Minutes: 30- 35 Cartons Per Min
• Phase: single phase
• Frequency: 50 hz
• Packing Range: 50 gm to 250 gm
• Electrical Motors: Crompton Greaves make

We are remarkable entity, engaged in offering superior range of Lined Carton Packing Machine. The offered machine is manufactured using basic components and ultra-modern machines under the surveillance of trained professionals. It is suitable for packing liquid and semi liquid material in different food packaging industries. Our offered machine is made available in different specifications for our clients to choose from.

• OUTPUT: Upto 60 cartons per minute depending on product charatersitics and carton size.
• MANPOWER: One operator for running the machine loading of cartons in the magazine and for filling glue units.
• CARTONS OUT FEED: Height to carton base, 1050mm
• SIZE CHANGE: All carton dimension can be charged within given range.
• ELECTRIC SUPPLY: Standard 440/220 volt. 3-phase, 50Hz.
• POWER REQUIRED: 6-8 KW depending on equipment.
• FLOOR SPACE: 2.2*3.4 (Without pressure converyor) weight, Approx. 1700 kg
• FILLING: Filling can be done only at 12 or more stations. All typr of filler can be used.
• LINED MATERIAL: Liner material is specifically selected form a wide range of lamination depending on the product protection required.

• Brand Name: AB Packk
• Weight: 2400 KG
• Automatic Grade: Fully Automatic
• I Deal In: New Only
• Phase: 3 Phase
• Production Capacity:  40-48 carton/ min
