Magnetic Clutch Dealers

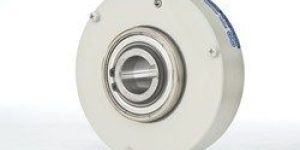

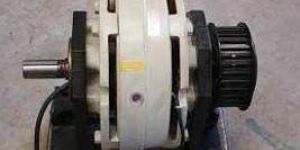

We are offering magnetic particle brakes & clutches are popularly known as powder brakes & clutches powder brakes clutches are proportional torque devices. Torque is controlled by varying the excitation current. Torque is strictly proportional to excitation. these devices has minimal drag torque, i.e. At zero excitation, torque is minimal and near to zero. this devices are for high-torque, low power applications. powder brake & clutches are manufactured by us in wide range torque rating starting from tiny 0.2 kgm (2nm) to massive 1000 kgm (0000nm) & comes in self cooled, forced cooled and water cooled models. These devices come with matching electronics to meet your most exacting applications. powder brakes & clutches are real torque control device, meaning braking or clutching torque is strictly proportional to excitation current. the magnetic powder clutch and brake achieves high braking or clutching torque at low control power. Torque controlled is independent of slip speed. features: wide torque rating range: from tiny 0.1 kgm (1 nm) to massive 1000 kgm (10000) nm wide range of torque control - 1:50 accurate torque setting & control: stable torque: independent of slip speed fast response due to low inertia to output torque ratio high power dissipation compact in size. cooling: natural, forced air by external fan, water, coolant long life low maintenance application: tension control at unwind, rewind & between intermittent section: · papermaking, · printing, · plastics, · wire and cable, · rubber, · textile, · tablet machines torque control: · test equipment, - gear boxes gear transmissions, motors torque limiter.

Clutch is used to transmit the power only & Brake is used to stop machine only. When starting & stopping both are to be controlled, Clutch and Brake both are to be controlled; Clutch and Brake both are required. Clutch will engage drive to machine and when brake is applied clutch will only disconnect drive from machine and brake will stop machine only. The drive will keep rotating. This is ideal for inching operation. These are in two parts: 1) Magnet Body & 2) Armature Plate. These Clutches / Brakes engage when current is supplied to them. Slip rings are fitted to clutch only. The liner wear can be adjusted and wearing parts are replaceable. A sproket, gear or pulley can be mounted if desired.

Magnetic clutch, EK type clutches & brakes are used to control starting and stopping of machines. There are many designs in electromagnetic clutches & brakes, such as, single disc, multiple disc, stationary field, with slipring, dry wet etc.

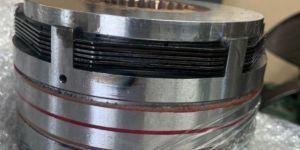

'ELEKTROMAG' Electro Magnetic Clutches are used where frequent load cycling takes place. Where a motor must be accelerated and decelerated, there is motor heating which reduces the motor life. By installing a Clutch the motor can be operated at its normal speed and the load can be cycled by engaging and disengaging the clutch. 'ELEKTROMAG' Clutches have been designed for installations where a smooth take-up of drive is essential. Such applications include wire drawing, textile machines, rolling mills, welding plants, machine tools, shearing machine, etc.

Magnetic clutch are widely used in the industry to convert dc voltage to ac Voltage. The VSIs have some major problems such as inability to increase the voltage and causing damage to the converters when the switches of a leg are turned ON at the same time. In order to solve these problems, inverters with impedance network can be used. The conventional Z-source inverter (ZSI) increases the level of output voltage and can also withstand short-circuit condition in the legs of inverter that is called shoot through (ST).

Introduction Clutch is used to transmit the power only & Brake is used to stop machine only. When starting & stopping both are to be controlled, Clutch and Brake both are to be controlled; Clutch and Brake both are required. Clutch will engage drive to machine and when brake is applied clutch will only disconnect drive from machine and brake will stop machine only. The drive will keep rotating. This is ideal for inching operation. These are in two parts: 1) Magnet Body & 2) Armature Plate. These Clutches / Brakes engage when current is supplied to them. Slip rings are fitted to clutch only. The liner wear can be adjusted and wearing parts are replaceable. A sprocket, gear or pulley can be mounted if desired.

Emco Simplatroll DC Electro Magnetic clutches are available with Shaft Mounted & Flange Mounted design. With torque range 7.5-2500Nm.Shaft mounted clutches are available with 3 different design to connect drive side shaft, pulley, sprocket. Clutches can be engaged at high speed. Flange mounted. Flange mounted design suit where axial space is limited or where the clutch can be effectively built into mc design. These are maintenance free & provided with unique pre-stressed spring made of German Spring Steel & coil with F insulation to give million of operations without fatigue. With asbestos free friction materials& long life.

The fancy multicolor piece showcases an exceptionally admirable pattern. It has been encrusted with flawless beads. The clutch is suitable for festive occasions.

We are the Leading stockiest for Electro Magnetic clutches & brakes. We can supply the brakes & clutches as per LMW’s Drawing number. We also manufacture the customized Brakes and Clutches as per sample. We undertake servicing of Running Brakes and clutches.

We offer Magnetic Clutches. Magnetic clutches use electric magnets produced to lock or unlock the engine and the transmission input shaft, facilitating or terminating the flow of power. Magnetic brakes use electric magnets to accelerate, decelerate or stop rotation.

Emco Simplatroll DC Electro Magnetic clutches are available with Shaft Mounted & Flange Mounted design. With torque range 7.5-2500Nm.Shaft mounted clutches are available with 3 different design to connect drive side shaft, pulley, sprocket. Clutches can be engaged at high speed. Flange mounted. Flange mounted design suit where axial space is limited or where the clutch can be effectively built into m/c design. These are maintenance free & provided with unique pre-stressed spring made of German Spring Steel & coil with F insulation to give million of operations without fatigue. With asbestos free friction materials& long life.

Magnetic Clutc

Magnetic Clutch, Horizontal Borer Machine Parts, Plano Miller Machine Part

Magnetic Clutch, Charging Ports, Shaft, Rotor, Piston, Hose Assemblie

Electro Magnetic Clutch, Cutting Tools, Low Pressure Pip

DC24V Magnetic Clutch, China PCB Card(Without Pot), Industrial PCB Boar

Electro Magnetic Multi Disc Clutch, Funnel Type Ferro Filte

Magnetic Clutch, Electro Hydraulic Thruste

Magnetic Clutches, Slewing Rings, SRP Rotary Ball Splin

Magnetic Servo Clutches, Precision Balls and Rollers, Manual Brak

Electro Magnetic Clutches, Pillow Blocks, Teflon Components, XY Table
