Magnetic Pickups Dealers

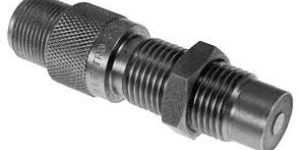

Magnetic pickups (MPUs) are speed sensors that detect the speed of a prime mover, typically an engine or turbine. They are the communication link between your engine and a Woodward electronic governor control. The MPU is installed next to a drive shaft gear made of a material that reacts to a magnetic field. As each gear tooth passes the MPU, the gear interrupts the MPU's magnetic field, and an alternating voltage is developed. The frequency of this voltage is translated by the speed control into a signal that accurately depicts the speed of the prime mover.

Used for separation of media  and ferrous components when screening is not possible .  It can be drum type or can be belt type. If necessary demagnetiser can be provided.

Magnetic pick-up generates its own output. Magnetic pick-up senses motion of ferous (magnetic) material like geared wheel, bolt heads, keyways. In sine wave OP pick-ups, the output voltage is directly proporational to speed of passing target. And in square wave OP pick-up, the output is in form of square wave having amplitude equal to supply voltage. Magnetic pick up consists of permanent magnet, a pole piece and a sensing coil and electronic circuit. Anobject of iron, steel or other magnetic material passing closely by its pole face causes distortion of its magnetic flux field passing through sensing coil and pole piece, which in turn generate a signal voltage Application : Magnetic pick ups are most widely used to sense teeth of a gear, timing belt wheel even bolt head, key-ways

Speed Measurement Using Magnetic Pick up, C - 410 Bunsen Burne

Magnetic Pickup

Magnetic Pick UPS for All Gense

Magnetic Pickup

Magnetic Pickup, Sheet Metal Laser Cutting, Precision Centerless Grindin

Magnetic Pick up, Engine Bearings, Glow Plu
