Metal Core PCB Dealers

As Metal Core PCB means the base material for PCB is metal, but not normal FR4CEM1-3, etc, and currently what the metal used are Aluminum, Copper alloy. MCPCBs are used instead of traditional FR4 or CEM3 PCBs because of the ability to efficiently dissipate heat away from the components. This is achieved by using a Thermally Conductive Dielectric Layer. The main difference between a FR4 board and MCPCB is the thermally conductive dielectric material in the MCPCB. This acts as a thermal bridge between the IC components and metal backing plate. Heat is conducted from the package through the metal core to an additional heat sink. On the FR4 board the heat remains stagnant if not transferred by a topical heatsink. According to Avago’s white paper a MCPCB with a 1W LED remained near an ambient of 25C, while the same 1W LED on a FR4 board reached 12C over ambient.

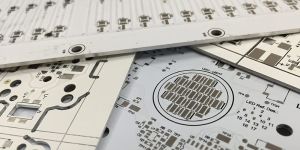

The metal core of the thermal PCB can be aluminum (aluminum core PCB), copper (copper core PCB or a heavy copper PCB) or a mixture of special alloys. The most common is an aluminum core PCB. The thickness of metal cores in PCB base plates is typically 30 mil - 125 mil, but thicker and thinner plates are possible. MCPCB, Metal Core PCB, thermal PCB - whichever name you prefer, they are all boards which use a base metal material as the heat spreader portion of the circuit board. Base metals in the MCPCB are used as an alternative to FR4 or CEM3 boards for the ability to dissipate heat away from critical board components and to less crucial areas such as the metal heatsink backing or metallic core.

We are an iso certified co, manufacturing pcbs with the state of art technology. Currently, we have 8 mil technology to produce pcbs upto 10 layers including mcpcb for led lighting.

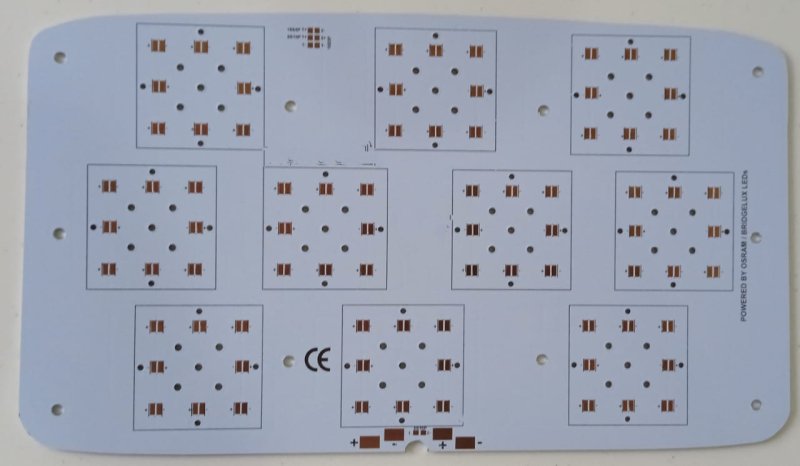

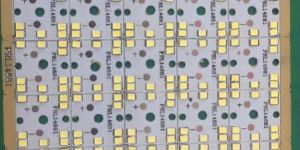

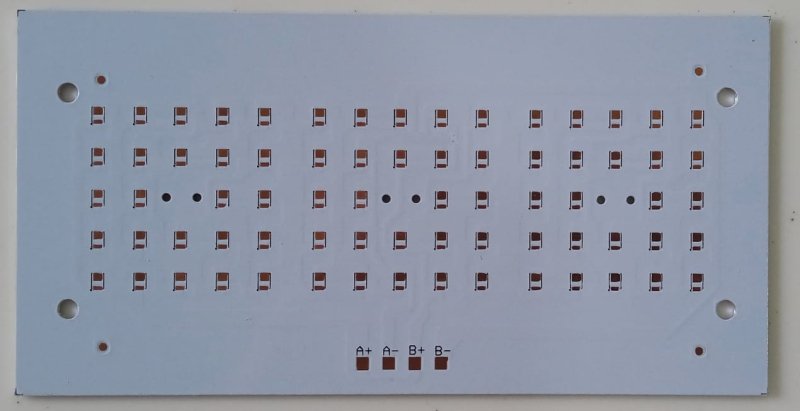

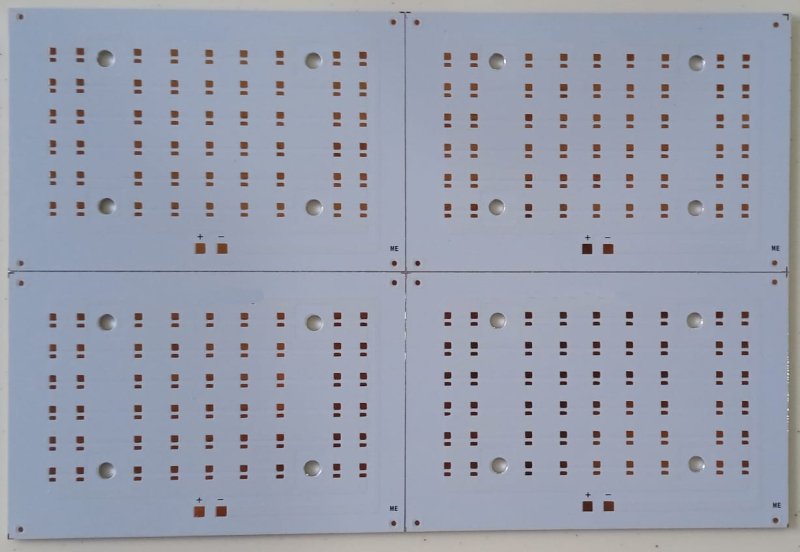

We are a leading Manufacturer of Metal Core PCB such as Single Layer Metal Core PCB, MCPCB, LED Bulb PCB, Street Light PCB, Flood Light PCB, and Back light PCB. The thickness of PCB's varies from 0.4 to 1.6mm and copper thickness 35 and 70 microns. These products are necessary for high power LED applications due to the amount of heat the Light Emitting Diodes are capable of generating. Offered products are manufactured with optimum quality material and advance techniques as per the standards of market. The offered products can be availed in several specifications at market leading rates. Metal core thermal PCB (MCPCBs, MCB, IMPCB or IMS) are widely used in applications where a dense wattage calls for a good thermal heat dissipation. Thermal efficiency gained by a metal based board allows for downsizing designs and removal of hardware. To avoid short circuits, there is an electrical insulation between the copper tracespads and the base metal using a tailored dielectric layers with high thermal conductivity.

Over 5 years of experience in PCB designing and manufacturing services, we are one of the best PCB Designer and Manufacturer in Delhi, India. * Low Cost Single Sided PCB Prototype * PCB Layout Design Service ( Single Layer & Double Layer ) Reverse Engineering ( Up to 4 Layer ) Pre Engineering ( Gerber Editing , Multiple, Fiducial, DRC Etc ) SS Prototype SS Production DS Prototype

MCPCB is demand of market. We provide solution for design as well as proto support for new customers who are not famillier of the design part and specifications of different metalcore material. We are bound to give quality service. India has a huge potential for growth in the future LED Lighting. The material specification will be given to our customer to educate them so that they will know their product well.

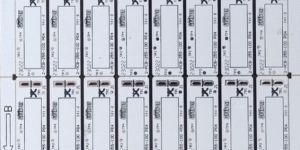

Accurate Circuits & System is offers Metal Core PCB with fine quality for various demands from our customers. In order to stick to the principal of printed circuit board, we offer standard base metal core to help you disperse heat through the components of the board, and at the same time, lower the core temperature of high heat applications effectively. The metal we offer for the base is mainly quality aluminum with HAL finished, and the MCPCB is overall 1.6mm for the thickness.Metal Core PCB is also known MCPCB, Thermal PCB and these are used a base metal material as the heat spreader portion of the circuit board. Metal core PCB’s base metals are used as an alternative to FR4 or CEM3 boards for the ability to dissipate heat away from critical board components and to less crucial areas such as the metal heat sink backing or metallic core. We provide metal core PCB prototype fabrication and Metal Core PCB fabrication quantities for both aluminum core and heavy copper PCBs.MCPCBs are most widely found in LED technologies, as they reduce the number of LEDs required to produce a specific illumination. Light emitting diodes release a great amount of heat in applications such as: Back light unit applications Street safety applications General lighting applications System automotive LED applications Power converters:  telecom, industrial, high voltage regulator, power supplies Hybrid/electric motor control applications Photovoltaic

Backed by a diligent team of professionals, we have been able to provide a wide range of quality assured Metal Core PCB. These PCBs are provided in various sizes and lead free design to cater to the varied needs of the clients. Manufactured using high grade raw material and cutting edge technology, these PCBs are highly appreciated among the client. we offer these PCBs at market leading prices.

tem Description 1.Layer 1- 2 Layers 2.Material Aluminum Copper Based Manufacturer Ximai (China) ; Bergquist (USA) 3.Final Thickness 0.02" - 0.18" (0.5mm- 4.6mm) tg130° - tg170°

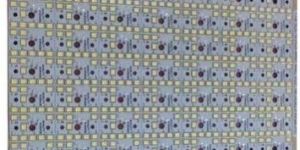

We are a well- renowned Manufacturer and Supplier of Metal Core PCB. The Metal Core PCB we deliver is user friendly as well as eco-friendly in nature. The Metal Core PCB is manufactured by using quality raw material and delivered within the stipulated time frame. Product Specifications : Metal core PCBs (aluminum PCBs) for LED lightsMetal core PCBs (aluminum base) available for all LED light applicationsMaterial thickness is1.6 mm and 1.0mmHigh thermal conductivity

Our team of quality examiners conducts stringent tests for ensuring the product quality. Safe, reliable and genuine, we make all the transactions using cutting-edge technologies. Not just on the transactions, we keep a vigil eye on the transactions made by you and other parties and ensure that no other party is involved while making payments.   Features : Highly durable Optimum strength Non corrosive

Single Sided Metal Core PCB Boards, Flex PTH PCB Boards, Rigid Flex PCB Board
