in single shot centralised lubrication system, amount of oil at each lubrication point is controlled by using the element known as ‘metering cartridge’. for each lubrication point at least one metering cartridge shall be used. the metering cartridge is a kind of mini-cylinder with a check valve, where stroke of piston determines the amount of ejected oil. It is designed such that every time when pump is operated, it ejects out predetermined amount of oil. When pressure is released, the cartridge gets recharged. For proper recharging of metering cartridges there shall be a small time gap in between subsequent operations of pumps (min. 1 minute). maximum permissible pressure for metering cartridge is 40 kg/cm2. Minimum working pressure is 8 kg/cm2 and pressure shall drop to less than 1 kg/cm2 in between successive operations. guide lines for dose selection 1) dose of metering cartridge to a particular point shall be determined as per following procedure. calculate equivalent area as per below :– a) plain bearings : a = π d l d = shaft diameter l = length of bearing b) gears : a = π d x w d = pitch diameter of gear w = width of gear c) large bull gears : a = 2 π d x w d = pitch diameter of pinion w = width of pinion gear d) worm gears : a = π (d1 + d2) w d1 = pitch diameter of worm d2 = pitch diameter of worm gear w = width of worm gear 2) select metering cartridge as per the following table: common applications     metering cartridges are used in single shot oil lubrication system on various machines such as machine tools, textile machines, die casting machines, sheet metal working machines, shearing and press brakes, metal forming machines, rubber mixing machines, printing machines, injection/blow moulding machines, presses and hammers, packaging equipment, pharmaceuticals machines, food processing equipment etc.

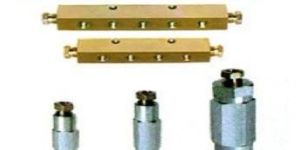

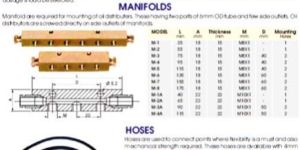

We are one of the front runners among the Manufacturer, Exporter and Supplier of Metering Cartridges in Faridabad. The quality and variety of the Metering Cartridges, offered by us, is widely appreciated by the clients all across the globe. The Metering Cartridges are demanded and used by various industrial sectors. Range Of Metering Cartridges D-1 : Dosage 0.01/0.03/0.05/0.10/0.16 per cycleD-2 : Dosage 0.25/0.40 cc per cycleD-3 : Dosage 1.0/1.6 cc per cycle

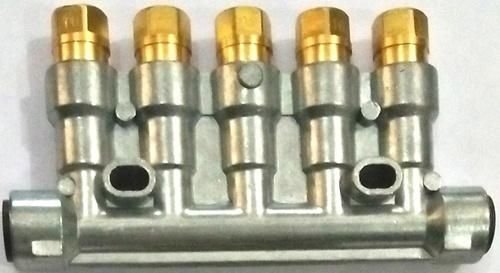

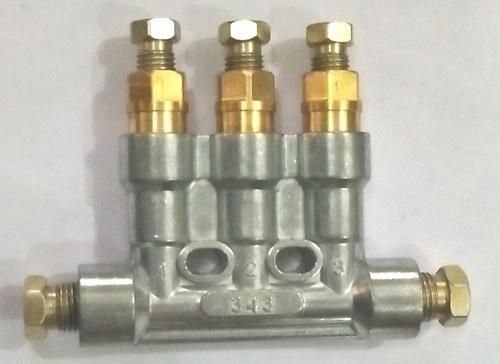

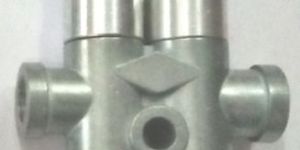

Approx Price: Rs 3,500 /Set Minimum Order Quantity: 1 Set Metering Cartridges 2 Points, 3 Points & 5 Points for Imported Machine   Additional Information: Pay Mode Terms: L/C (Letter of Credit),T/T (Bank Transfer),D/P,D/A,Other Production Capacity: Full Delivery Time: 2 Days Packaging Details: Standard Packing

The element is a valve which ejects out metered amount of oil to lubrication point. It is a sort of mini cylinder with a special check valve where stroke of piston determines the dosage of oil. The complete design of metering cartridge does not allow it to leak at low as well as at high pressure of oil. The ejected oil will not return back to the cartridge due to in-built check valve. The metering cartridges are supplied along with copper seal ring (washer).

In Single Shot Centralised Lubrication System, amount of oil at each lubrication point is controlled by the element known as Metering Cartridge. For each lubrication point, at least one metering cartridge has to be used. The metering cartridges are Metering Valves where stroke of the Piston determines the amount of oil to be ejected. The Cartridges operate as soon as pressure builds up in lubrication line. When the pump is off and the pressure in the lubrication line drops, Cartridges get recharged for the next cycle. Small time gap(minimum 1 minute) is allowed between the subsequent operations of the Pump for proper recharging of the Metering Cartridges.

These valves have been designed for discharge the oil continuously drop by drop under low pressure of 2-4 kg/cm2. The efficiency of these valves are depend upon the purity of oil and viscosity of oil. The viscosity of oil should not be more than 68 cst. These valves can be operated with motorised / pneumatic / manual pump. These valves are available in different input thread size i.e.1/8"B.S.P.,1/8"N.P.T.,M8x1 taperetc.and outlet is suitable for4mmOD tube.

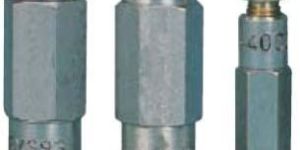

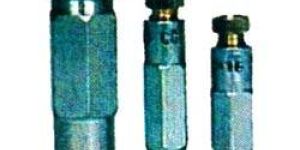

TDMI-1 with Dosage 0.01 cc, 0.03 cc, 0.05 cc, 0.10 cc, 0.16 cc Per Stroke TDMI -2 With Dosage 0.25 cc, 0.40 cc Per Stroke. TDMI -3 With Dosage 1.00 cc, 1.60 Per Stroke Note : Above metering injectors are available in M.S. as well as brass with honed bore Nitrile rubber parts & accurate dosage.

In Single Shot Centralized Lubrication System, amount of oil at each lubrication point is controlled by the element known as Metering Cartridge. For each lubrication point, at least one metering cartridge has to be used. The metering cartridges are Metering Valves where stroke of the Piston determines the amount of oil to be ejected. The Cartridges operate as soon as pressure builds up in lubrication line. When the pump is off and the pressure in the lubrication line drops, Cartridges get recharged for the next cycle. Small time gap (minimum 1 minute) is allowed between the subsequent operations of the Pump for proper recharging of the Metering Cartridges.

Metering Cartridges precisely control the quantity of lubricating Oil going to the lubrication point. These are suitable for intermittent operation. They operate on the principal of a positive displacement piston pump. The design is such that each time the pump is put on they discharge fixed predetermined quantity of oil. The pressure relief valve allows the oil pressure in the system to drop to around 1 Kg/cm2 each times the pump is put off. This allows the piston in the cartridges to retract. Thus charging the cartridges for the next dosage. During the next ON time the oil pressure in the line forces the piston thus discharging the previously charged oil. A minimum pressure of around 8 Kg/cm2 is required for operating the piston in the metering cartridge. A metering cartridge should cater to only one lubricating point. Cartridge can be selected from the following sizes :     Pneumatic Grease And Oil Pump The Lubomatic Pneumatic Grease / Oil Pump is a piston type pump, which is used for automatic lubrication with the help of pneumatic power. The pump offers an advantage, wherein the operation can be controlled in both modes, electrically or manually. These are technically accurate pumps tested on real time performance post manufacturing. The pumps are quality assessed and approved prior before being dispatched for market.

In single shot centralised lubrication system, amount of oil at each lubrication point is controlled by using the element known as ‘METERING CARTRIDGE’. For each lubrication point at least one metering cartridge shall be used. The metering cartridge is a kind of mini-cylinder with a check valve, where stroke of piston determines the amount of ejected oil. It is designed such that every time when pump is operated, it ejects out predetermined amount of oil. When pressure is released, the cartridge gets recharged. For proper recharging of metering cartridges there shall be a small time gap in between subsequent operations of pumps (min. 1 minute). Maximum permissible pressure for metering cartridge is 40 Kg/cm2. Minimum working pressure is 8 Kg/cm2 and pressure shall drop to less than 1 Kg/cm2 in between successive operations.
