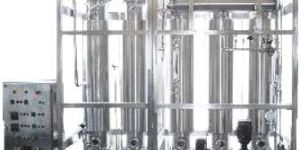

Legend Multi Column Distillation Unit consists of specially designed columns which make optimum use of the principles of inter-stage heat exchange to produce pure Pyrogen free sterile distilled water for Injectables as per IPBP specification. Advanced construction and ultra-modern design prevents any stagnation of water within the unit while Contamination Seal prevents cross-flow of air between the clean and un-clean area. Unit Capacity is available in 80 litres. , 150 litres. , 300 litres. , 500 litres. , 1000 litres range.

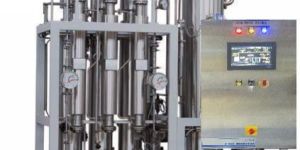

RaviKiran is a renowned Multicolumn Distillation Plant Manufacturers in India that is designed to produce sterile, pyrogen free distilled water conforming to I.P.B.P.USP & LAL test specifications with conductivity of 0.2 - 0.3 microsemenscm² suitable for the use in preparation of injections and I.V. Fluids. It is provided with an electronicPLC based fully automatic panel board and is available in various output capacities from 50 ltrshr to 3000 ltrshr. Injectable Section:-Manufacturer and Supplier of Multicolumn Distillation Plant that is designed to produce sterile, pyrogen free distilled water conforming to I.P.B.P.USP & LAL test specifications with conductivity of 0.2 - 0.3 microsemenscm² suitable for the use in preparation of injections and I.V. Fluids.

Pure Sterile, Pyrogen free distilled water conforming to IPBP Standards, Energy Saving-Low Operating Cost, Fully Automatic Operation,M Compact Design-Saving Space.installation, All contact parts are S.S. 316 and all joints are sealed with Teflon gasket.

Multi Column Distillation Plant is a process of water treatment in which water is forced through a membrane which has tiny holes known as "pores". Clean water passes through and impurities that are too big to pass through the membrane are left behind and flushed away.

This translates to having a WFI generation system that is built to high sophistication level and strict process control to maintain WFI chemical parameters within the permissible limits. At POWERTECH our WFI GENERATION SYTEM meets all of these demands with simplicity and style. Our team of technical experts with proven r&d capabilities have designed the MEDS to meet all quality requirements in terms of equipment construction as well as WFI QUALITY. WE ensure careful construction to prevent any stagnation of water within the unit in terms of dead leg areas and accurate instrumentation system that controls the parameters of the generated WFI within permissible limits. With this our system meets all specifications as laid down by USFDA&. UKMCA.

        APPLICATIONS : Pharmaceuticals Pharma Foods   SALIENT FEATURES : Pure, sterile and pyrogen free distilled water. Compact space saving design. High operational reliability. Meets GMP and FDA norms. Easy and silent operation. Excellent energy efficiency. Easy to maintain and operate. Fully automatic operation. High degree of finish. Auto dumping of sub-standard distillate. Special sanitary fittings.

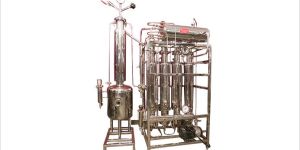

Multicolumn distillation plant which make optimum use of the principles of interstage heat exchange (Multi effect distillation method) to produce pure pyrogen free sterile distilled water for injectables as per IPBP specification. The vapour with high velocity and under pressure passes over a SPECIALLY DESIGNED SPIRAL BAFFLE system which develops tremendous centrifugal force and thus eliminates any chances of pyrogens carry over in the vapours. The unit is mounted on sturdy m.s. tubular stand and duly painted by epoxy paint.

The multi column water distillation plant is used for the sterile preparations in various industries. The Multi column distillation plant finds a wide range of application in the pharmaceutical industry. The water distillation plane is capable of meeting the needs of the customers and the standards of the Pharma industry. The machine has a water for injection system to maintain the WFI parameters of the industry within the acceptable limit. The water for injection process plant works in a way to meet the industry standards and demands of the users. The departed leg region and the high accuracy of the system ensures the control of the produced water for injection parameters under the allowable limits. The water for injection plant meets the requirement and standards of the cGMP, WHO & USFDA.

RaviKiran is a renowned Multicolumn Distillation Plant Manufacturers in India that  is designed to produce sterile, pyrogen free distilled water conforming to I.P./B.P./USP & LAL test specifications with conductivity of 0.2 - 0.3 microsemens/cm² suitable for the use in preparation of injections and I.V. Fluids. It is provided with an electronic/PLC based fully automatic panel board and is available in various output capacities from 50 ltrs/hr to 3000 ltrs/hr. Injectable Section:-Manufacturer and Supplier of Multicolumn Distillation Plant that is designed to produce sterile, pyrogen free distilled water conforming to I.P./B.P./USP & LAL test specifications with conductivity of 0.2 - 0.3 microsemens/cm² suitable for the use in preparation of injections and I.V. Fluids. Features It is designed to produce sterile, pyrogen free distilled water conforming to I.P./B.P./USP & LAL test specifications with conductivity of 0.2 - 0.3 microsemens/cm² suitable for the use in preparation of injections, I.V. Fluids, etc. The still is manufactured under stringent conditions to conform to GMP standards. It works on interstage heat exchange principle & thus saving 70 % energy compared to conventional stills. Provided with an electronic/PLC based fully automatic panel board, it is available in various output capacities from 50 ltrs/hr to 3000 ltrs/hr.

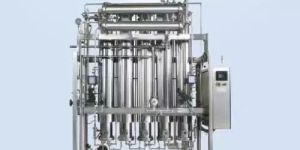

Our company is widely appreciated as the Manufacturer and Supplier of Multi Column Distillation Water Plant based in Chennai, Tamil Nadu. We are backed by a team of skilled professionals who fabricate the Water Plant in adherence to the norms set by regulatory bodies. We meticulously package the Plant in durable materials to ensure its high quality is maintained. We are offering Distillation Water Plant at affordable rates.   Multi Column Distillation plant produces Pyrogen free sterile water for injection (W. F. I.). The Water for Injection (WFI) produced by these plants is quite economical due to low maintenance and low operational cost. Multi Column Distillation plant consists of specially designed columns which make optimum use of the principles of inter-stage heat exchange to produce pure Pyrogen free sterile distilled water for Injectables as per IP/BP specification. Specification : The complete unit is made up of SS 316 / 316 L with active surface being electro polished Distillate temperature 95°C which meets IP/BP/USP specifications. Double tube sheet for first heat exchanger where boiler steam is used. Insulation is done by Resin bonded glass wool All contact parts are S. S 316/316L and all joints are sealed with Teflon Gasket. PLC based fully automatic panel board provided with printer. Orbital welding for tube-to-tube sheet joints Pyrogens are removed by centrifugal force developed and specially designed spiral baffle. Features : Total energy saving is 75% as less heating energy and less cooling water is required. Maintenance cost is low as there are no moving parts except pump. Sanitary triclover fittings for quick and easy preventive maintenance. Provided with compact control panel board made up of SS304 Conductivity meter for feed water and final distillate. Feed water pump is a positive displacement piston type-reciprocating pump. User-friendly operator interface to allow the easy visual inspection of the cycle monitoring and control. Models :  Capacity 50 ltrs/hr.  -  5000 ltrs/hr

multicolumn distilled water plant designed to produce 100% pyrogen free sterile distillate & chemically pure confirms to IPBPUSP standard. Multicolumn distilled water plant works on the principle of interstate heat exchanger, dramatically reduce the consumption of heating energy and cooling water. Thus enable to produce a large volume of pyrogen free distillate at a fraction of the cost than conventional systems. All documents related to factory acceptance test(FAT), Installation Qualifications(IQ), Operation Qualification(OQ), PQ are provided as part of the operational manual.

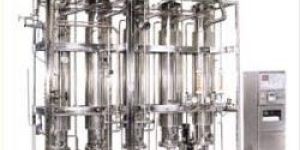

J.K.INDUSTRIES Multi Column Distillation Plant is based on FINN-AQUA design. It consist of specially designed columns which make optimum use of the principles of interstage heat exchange (Multi effect distillation method) to produce pure pyrogen free sterile distilled water for injectables as per IP/BP specification. The vapour with high velocity and under pressure passes over a SPECIALLY DESIGNED SPIRAL BAFFLE system which develops tremendous centrifugal force and thus eliminates any chances of pyrogens carry over in the vapours. By Multi Effect Distillation method significant energy (75% approx) is saved when compared to the conventional method. All contact parts are made out of AISI 316 quality stainless steel and mirror polished. All pipes and tubes are essentially seamless. The unit is mounted on sturdy m.s. tubular stand and duly painted by epoxy paint.  Operation : The pre-heated feed water (through condensor) is fed into the first column where 33% of feed water is converted into steam under pressure by outside boiler steam. The pure steam produced in the first column having temperature of 135'c and the remaining feed water goes to the 2nd column. The pure steam is used as a heating media in the 2nd column and converts part of remaining feed water into steam. In the process the steam itself condenses back into water. This process is repeated till the last coulms each working at low temperature & pressure as compared to the one before it. The steam produced in the last column is condensed in the condensor by feed water as well as cooling water. As external heat is required only to convert the 33% of feed water, the heating energy required is reduced by 67%.  Salient Features : Compact unit, easy to maintain and operate.  Total energy saving is 75% as less heating energy and less cooling water is required.  Pyrogens are removed by centrifugal force developed & specially designed spiral baffle.  Maintenance cost is low as there are no moving parts.  Trouble free performance of multi-stage pump(horizontal)  Provided with Compact control panel board.  All contact parts are s.s.316 quality. All pipes and tubes are seamless and gaskets made form teflon.  Distillate Temperature is quite high.( 90-95')  Distilled water as per IP/BP standards and conductivity less than 1 micromhos/cm.  Scope of supply Includes : A S.S..316 quality surge tank with float valve to maintain water level.  Feed Water Pump s.s 316  GRUNDFOS pump.  Control panel board with indicating Lamps.

The WFI Still work on the distillation principle. The first column is heated by the external Plant steam. The generated vapor by the feed water rises up the column where it is subjected to the entrainment separation system. Multidirectional baffles deliver the first punch. The steam generated from the first column is made to pass a torturous path through multidirectional baffles. Here the pyrogen particles and droplets separate and are guided to the end of the column. A centrifugal type cyclone separator high up in the column delivers the second punch. Here the vapor is guided through a narrow circular channel where it begins to rotate. The vapor flow subjects the pyrogenic impurities and droplets to a high centrifugal force thereby dislodging them from the vapor steam. The distillation units are connected in series into a multiple effect system and external energy is required only at the first column. The steam generated in each column is supplied to the subsequent column. The generated steam vapor of the last column and the almost condensed steam distillate (2nd column onward) is led to the over head cooling heat exchanger, where it is cooled by the cooling water & incoming feed water to generate WFI. Features Komal’s Multi-Column Distillation Plants (MCDP) are designed to produce pyrogen/endotoxin free water conforming to IP/BP/EP/USP standard. These individual columns are designed , constructed and tested per the American Society of Mechanical Engineers (ASME, Section VIII, Division 1- Unfired Pressure Vessels) since they operate at pressures as high as 6 to 10 bar All Evaporator (columns) sheets and tubes as well as all surfaces in contact with Pure Steam or distillate are constructed of 316L stainless steel with inside electropolish and Teflon gaskets. All tubes joints are Orbital welded and qualified with videoscopy. Full-Automatic PLC based Control Panel System with auto sanitization and printing facility. First column equipped with Double tube sheet as a provision to avoid boiler steam mixing with Purified water. Komals WFI-Combo design optimizes the Control Panel by combining the panel for WFI Generation and Distribution system Plants are available from 50 Liters/hour to 10000 Liters/hour. Complete documentation to meet and exceed international audit requirements.

Our company is a proficient Manufacturer, Supplier and Exporter of Multi Column Distillation Plant. Low on maintenance, our Distillation Plants are manufacture using advanced technology. Strict quality-tests based on different parameters ensure that only defect-free plants reach the buyers. Bulk orders of these are processed by us as per the specific requirements of the buyers. The entire range of the plants is reasonably priced by us.

The multicolumn distillation plant is based on FINNAQUA design. The multicolumn distillation plant consists of specially designed columns which produce sterile distill water. The multicolumn distillation plant is compact and easy to operate and maintain. All contact parts in the multicolumn distillation plant are of S.S.316 quality. Maintenance cost of in the multicolumn distillation plant is low as there are no moving parts. Distilled water as per IPBP standards is produced in the multicolumn distillation plant. Total energy saving in the multicolumn distillation plant is 75% as less heating energy and less cooling water is required.

Pure Sterile Pyrogen free distilled water conforming to USP standards. Compact in design. Electro polished creviceless inner contact surfaces. PLC based system for automated operation. Sanitary triclover fittings for quick and easy preventive maintenance.Double tube Sheet construction for the first column, where boiler steam is present. Synoptic panel board with facility for logging the data can also be given.
