Optical Transceiver Dealers

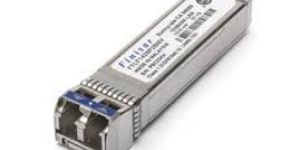

Optical transceiver, Based on the SNMP managed system which support the version of SNMP V1 V2C, Support the port configuration of RS232, It can save the message although it is power off and resume all original configuration automatically when re-start the power. The safe message including:message of Fiber Configuration module, The address of TRAP.

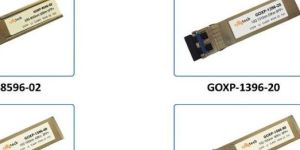

These pluggable Optical transceiver modules are used in high-speed optical communication systems that require high performance, compact package, and low power consumption and ranges even to more than 100Gbps.

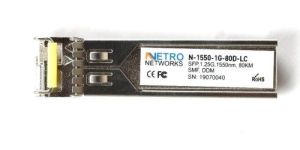

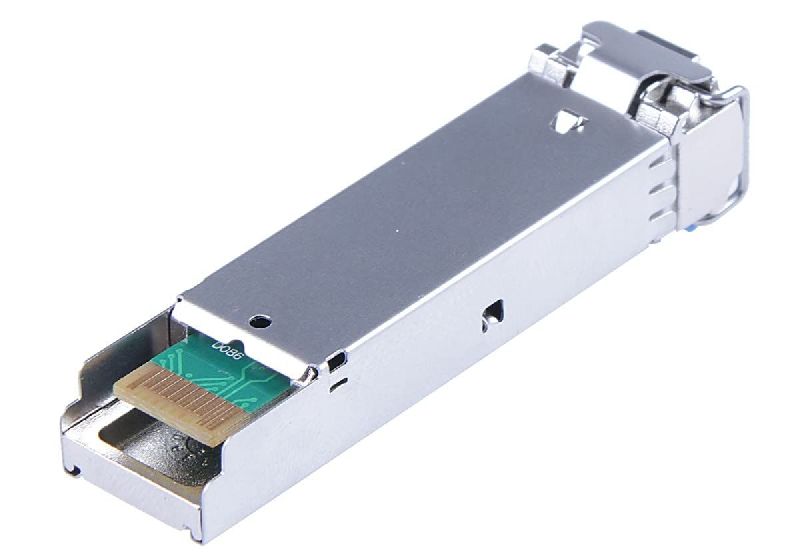

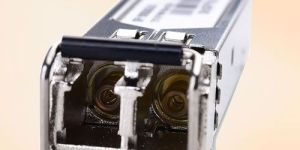

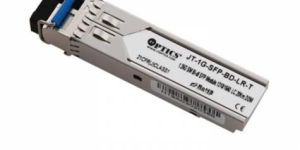

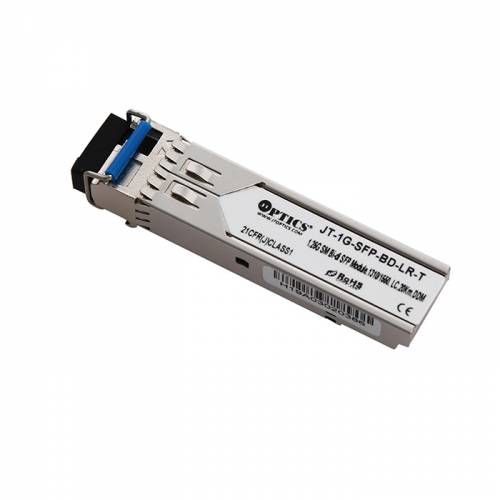

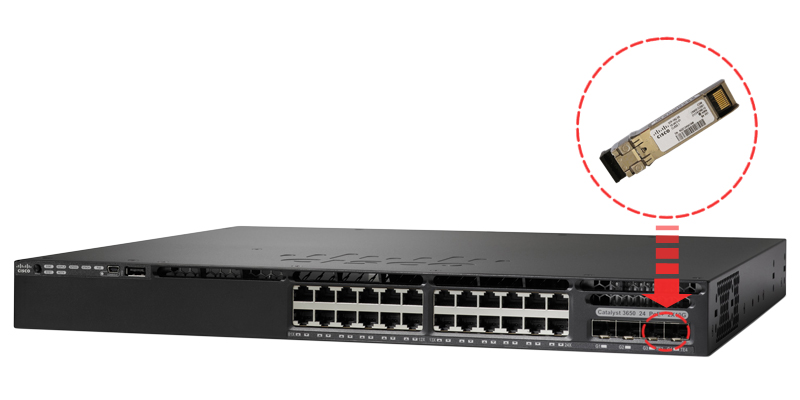

Small form-factor pluggable (SFP) is a specification for a new generation of optical modular transceivers. The devices are designed for use with small form factor (SFF) connectors, and offer high speed and physical compactness. It interfaces a network device motherboard (for a switch, router, media converter or similar device) to a fiber optic or copper networking cable. Because SFP modules can be optical or fiber optic networks can be upgraded and maintained more conveniently than has been the case with traditional soldered—in modules. Rather than replacing an entire circuit board containing several soldered-in modules, a single module can be removed and replaced for repair or upgrading. This can result in a substantial cost savings, both in maintenance and in upgrading efforts. SFP SERIES Data Rates: 155M, 622M, 1.25G, 2.5GTransmission: Distances: 500m, 20km, 40km, 80km, 120kmIndustrial (-40~45 °C) versions available BIDI SFP SERIES Data Rates: 155M, 1.25G, 2.5GTransmission: Distances: 3km, 20km, 40km, 80km, 120kmSL/LC Interfaces CWDM SFP SERIES Data Rates: 1.25G, 2.5GTransmission: Distances: 40km, 60km, 80km, 120kmWavelengths: 1470nm, 1490nm, 1510nm, 1530nm, 1550nm, 1570nm, 1590nm, 1610nm 40GBASE OSFP+FEATURfSLaserClass 1Electrical interface compliant to SFP+ MSA Optical Interface compliant to IEEE802 3ae 12C Management InterfaceLow Power Consumption SR 300m, LR 10km, ER 40km, ZR 80km APPLICATIONSRack to RackData CenterHigh-speed Storage Area NetworkSwitch and RouterWireless Repeater 40GBASE QSFP+FEATURESHot PluggableAggregate Bandwidth of upto 40GIEEE 802.3ba CompliantQSFP+ MSA CompliantOperating Temperarure: 0-70″CSingle 3.3V Power SupplySR4 up to 150 meters, LR4 up to 10km

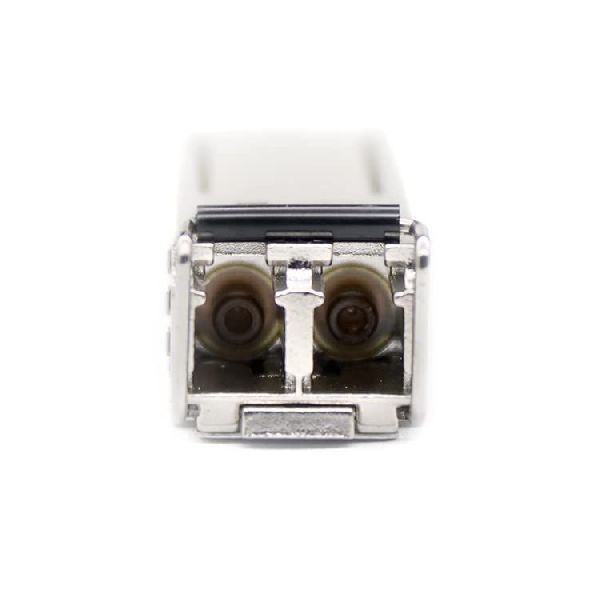

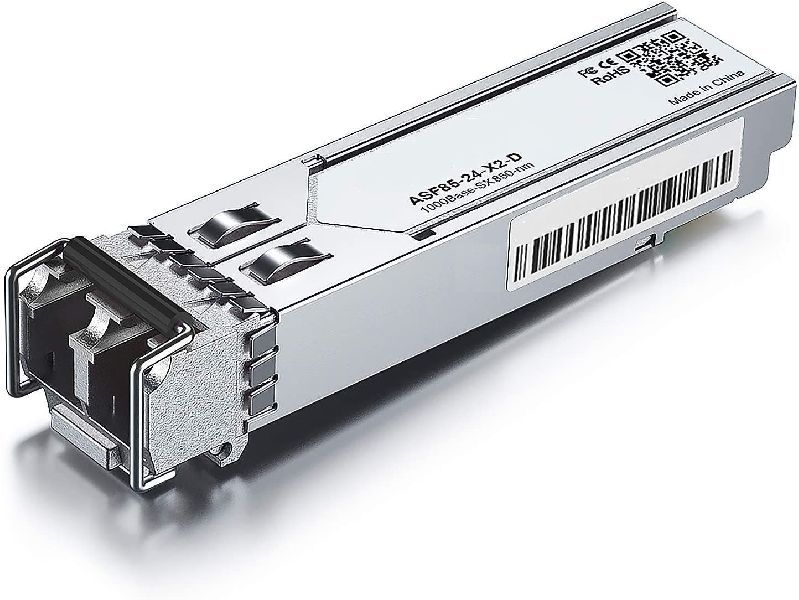

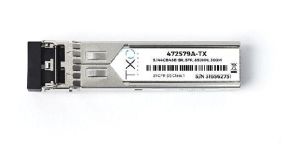

SFP can be regarded as the upgrade version GBIC, SFP is short for Small Form-factor Pluggables, unlike GBIC with SC fiber optic interfaces is with LC interface and the main body size of SFP is only about half of GBIC, which makes SFP space saving. Signal transmitting rate of these modules range from 100Mbps up to 4Gbps or more, working distance of these SFP transceiver modules can be from 500 meters to 100 kilo meters, working wavelength of different SFP modules are typically 850nm, 1310nm and 1550nm, there are also CWDM type SFP transceivers available. 100Base-FX SFP Transceiver The MFB SFP transceivers using a long wavelength (1310nm) FP LD enable data transmission up to 2km on a multimode optical fiber and up to 60km on a single mode optical fiber. 1000Base-SX/LX SFP Transceiver The MGB family SFP Mini-GBIC Gigabit Ethernet module can install into Switch products with SFP Mini-GBIC interface. The distance can be extended from 100 meters (TP), 550 meters (Multi-mode, LC), up to 120 kilometers (Single-mode, LC).

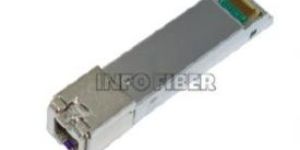

SFP (GEPON-i) are optical transceiver (Transmitter cum Receiver) with built in 1GEPON ONU. They are pluggable into EPON slots of Sharp VisionEdge Optical Line Terminal for interface with Ethernet switches, routers & ONU in the network. FEATURES 1G EPON ONU 1G EPON optical interface Built in WDM of 1490/1310nm Single mode Single fiber bi-directional SC receptable Data rate: 1.25 GBPS Distance: 20Km+ Wavelength: TX : 1490nm, RX : 1310nm Receiver sensitivity: -28 dBm (IEEE8023ah standard)
