    Model No : MV V12 LBS   Rated Voltage & Rated Current:12kV, 630A Up to 2000A   Frequency : 50Hz   Short Time Withstand Current And Duration: 26.3kA/3Sec   Insulation Level: 28kV / 75kV Peak   Breaker Standard: IEC 60265/ IS 9920   Degree of Protection: IP4X & 5X

General Specification Current Rating : 2 AMPS. Voltage Rating : 250 V.AC Temperature Range : -30 ℃ to 75 ℃ Dielectric Strength : 2500 Vrms between the conductors. Insulation Resistance : 20MW (Min) at 500 VDC Material Specification :  Insulator :Phenolic Black / Anti - Tracking Melomine Connector : Brass with .0001" thick Nickel over it. Screw : Combination Head, over .0001" thick Zinc over Steel.

Real Time Switches are the timers which are capable to perform on off actions at real time, they are used to switch electrical appliances like corridor lights, garden lights, street lamps, neon signs etc at preproraamed time of the day. User need not programme the unit from time to time, since the timer has built in almanac timings fixed in nonvolatile RAM. This has added advantage in Real time switch over daily dial or weekly timers. RTS has two outputs, with which user can drive contractors of different ratings. Desired output can be achieved using different combinations. Timer is provided with manual override facility. To avoid unauthorized access, optional detachable external keyboard can be provided.

Load break switch panel is used to Switch ON/OFF the 11KV supply to the consumer. The panel is installed in indoor. This is installed in between the incoming Board supply and distribution transformer provided at the customer’s premises. Load Break Switch Panels are available with and without metering facilities. 1. LOAD BREAK SWITCH PANEL (LBSP) without metering facility consists of.. » 11KV Air break switch with HT Fuse and earthing facility & interlocking. » Completely segregated incoming and outgoing cable compartments with Epoxy resin cast seal off bushings. 2. LOAD BREAK SWITCH PANEL (LBSP) WITH METERING facility (LBSMP) consists of » 11KV Air break switch with HT Fuse and earthing facility & interlocking. » Resin cast Current Transformers of suitable ratios » Separate PT Chamber with fixed/withdrawable type resin cast Potential Transformers. » Completely segregated incoming and outgoing cable compartments with Epoxy Resin Cast seal off bushings. » Separate TOD meter compartment with provision for approved make of Electronic TOD Meter. » Test terminal block. » LT Fuses etc. Special Features INTRANS Load break switch panel for indoor use have the following Special Features : » Load break switch and accessories are housed in a vermin and weather proof welded panel. These panels are pretreated with 7 tank phosphating process and stove enamelled. » Earthing switch and earthing interlocks are provided. » Cable gland plate is provided at the top/bottom of the panel for entry/exit as required. » Provisions for sealing by the Electricity Board Authority » Complete conformation to all the relevant Indian Standard Specifications. » Electronic Meter with TOD (Time-of-Day) metering facility : The meter is versatile enough to register the maximum demand in separate preset periods of the day. With the present control measures this eliminates the need for additional meters for day and for night demand. This can help in planning operations to increase load and reduce average KWH costs. Similar facility regarding active energy consumption at various times of the day is also provided.

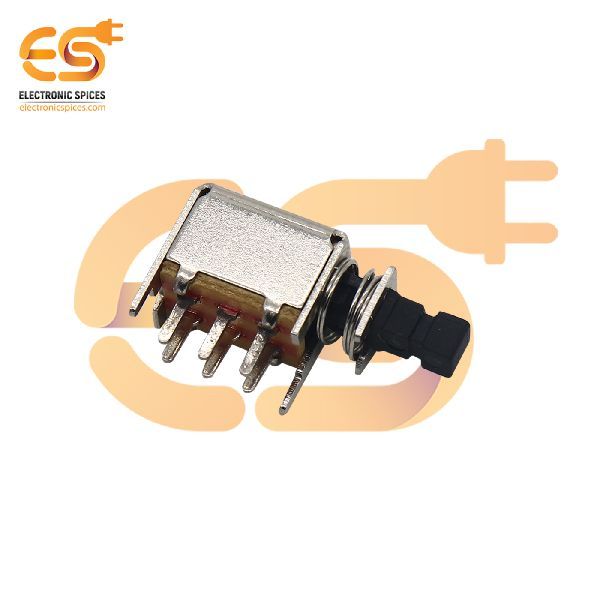

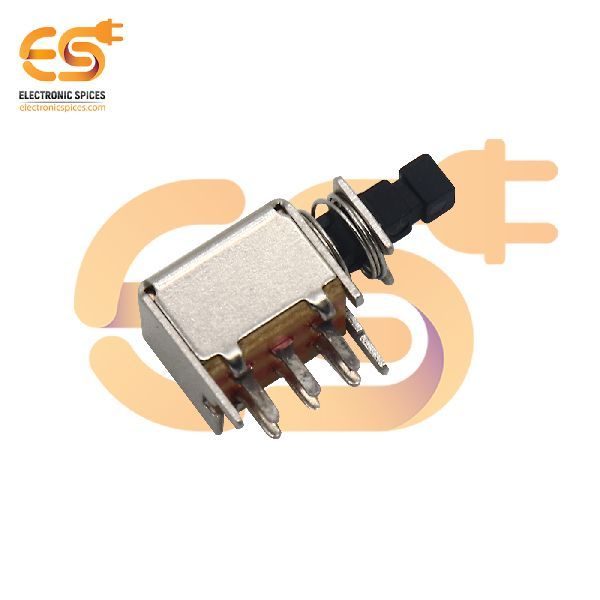

Cherry Panel Mount Pushbutton E/F switches are double-pole switches with a long-life coil spring,          snap-action mechanism.Widely used in application of Panel Doors , Vending Machines , Oven Doors ect. Single-pole panel mount pushbutton switch Momentary, Push-Pull (reset) and Cheat Interlock versions Long-life coil spring, snap-action mechanism Agency approved extended-life versions available VDE approval available on select models (F Series) Snap-in panel mounting Electrical Ratings     Switch Series UL 1054 Rating   E65 16amp, 125/250VAC; 1/3HP, 125/250VAC     E/F68 0.1amp, 125VAC     E/F69 10amp, 125/250VAC; 1/3HP, 125/250VAC Small Server Rack Ticketing Window

Load break switch panel is used to Switch ONOFF the 11KV supply to the consumer. The panel is installed in indoor. This is installed in between the incoming Board supply and distribution transformer provided at the customer’s premises.
