PH Controllers Dealers

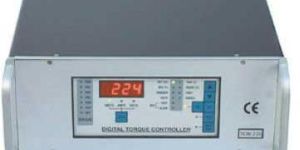

Our Ph-2000 Series Torque Controller is Designed with Microprocessor Control, Built in Printer, and Computer Connectivity to Download and Study Expansion Values. Moreover, the Ph-2000 Series Torque Controller Has Ability to Generate 10 Report Formats for Quality Control of Expanded Joints and It Operates with a Remote Control.

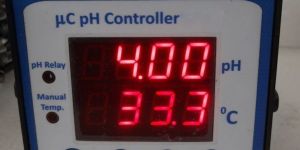

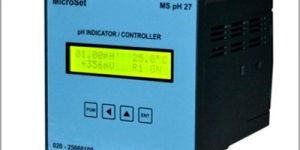

Multi parameter display Simultaneously shows – pH, Temp, mV & Relay Status on Single screen, Advanced Embedded Microcontroller based design, Isolated 4 to 20 mA retransmission output, Two Programmable isolated relay outputs.

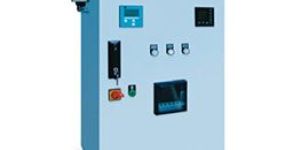

Chemocon obtains an extract from the squeezed online material after exiting the wash bath. The extract is derived in such a manner as to include not only the surface water adhering to the material but also water from the inner fibres. Threshold range regulation of the washing process is facilitated using the information regarding the internal condition of the material. pH and conductivity measurements are carried out on this extract. Acid/base and salt content of the material can be determined from these two values using mathematical models. This results in material of a constant standard accompanied by reduced costs incurred for water, energy and chemicals Keeps a continuous record of pH and conductivity values for online material

Widely used for online pH monitoring in environmental protection water treatment, pure water treatment, industrial process, agricultural industry etc. Range : pH: 0.00~14.00, temp 0.0~99.9 (temp compensation NTC10K) Buffer solution 10.00; 9.18; 7.00; 6.86; 4.00; 4.01 Temp compensation range 0~50°C (with 25°C as standard) manual and automatic temperature compensation. 4-20mA isolated, fully adjustable, reversible 4-20mA output, instrument transmitter mode. Control contact: electrical contact double relay SPST-NO, return mode; load capacity AC220V110V 2A(MAX); DC24V 2A(MAX). Power consumption ＜3w Power supply AC220v (AC110V, DC24V can be selected) Working environment Temperature：0 ~ 50°C ；Humidity：≤85% RH (none condensation) Outline dimension: 48mm × 96mm × 80mm (H×W×D)

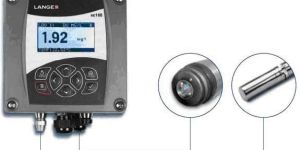

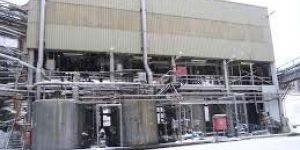

We are offering automatic ph controllers. The removal of excess acidity or alkalinity by a chemical agent is called neutralization. Industrial waters that were exposed to extremely high or low ph values require a neutralization process before they can be sent to a biological treatment or the environment. The equipments used for the ph correction are the ph meter and the dosing pumps. Depends on the inflow ph it will pump acid/lime to neutralize the ph.

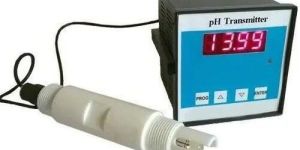

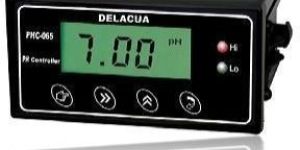

We are offering ph controller.we are involved in offering our clients ph controller. The phc-065 is an industrial on-line analysis and monitoring instrument with a relay output to act as a “controller”. The instrument is supplied with various software functions. Ph controller is a compact and accurate instrument with strong anti-interference capability, automatic temperature compensation and ph operation compensation. The instrument is characteristic of its easy installation and low maintenance. The ph controller is provided with the ph sensor, having a measurement range of 0-14ph. functions • back ground lcd digital display. • direct reading and accurate control with micro chip for data processing • automatic or manual three-point calibration, which improves the measurement accuracy of the instrument. • strong anti-interference capability and automatically reset in case of power off. technical specifications:- 1. Ph measurement range: 0 to 14ph 2. Resolution: 0.01 ph 3. Accuracy : ±0.1 ph 4. Electrode pressure resistance: 0 to 0.6mpa 5. Power supply: ac 220v±10% 50hz 6. Distance limit of measurement:

Approx. Price: Rs 14,000 Unit Specifications: Precision: 0.05pH, ± 0.3ºC Automatic temperature compensation: 0~100 ºC(pH) Measuring Range: 0-14pH

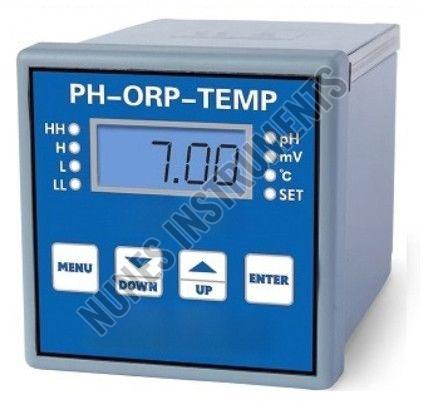

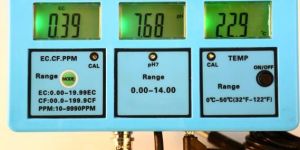

Avail from us a wide assortment of PH ORP Controller that is marketed under the brand name of ABB. Thesecontrollers include 2 and 4-wire analyzers and single or dual-input devices. The integral advanced functions of these controllers consist of a sensor wash utility, PID control, automatic buffer recognition and in-line sensor diagnostics. Our products are microprocessor-controlled panel-mount analyzer used for accurate and reliable measurement and transmission pH / Redox (ORP). These are extensively used in applications like water treatment plants, boiler water and effluent. The water-wash facility of these controllers forces water through the system at user-configurable intervals for preventing fouling of the pH electrodes. The analyzer of the products provides high performance and advanced functionality in a compact and cost-effective package.   These controllers have rugged construction and are reliable for safe operation in harsh environments. Moreover, these are also simple in terms of installation and require low maintenance.

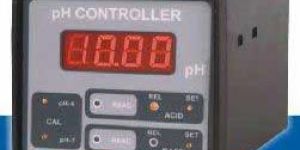

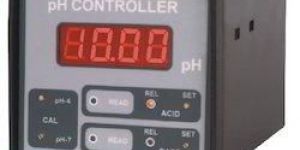

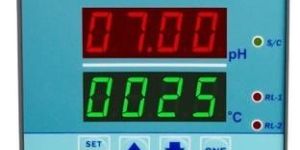

Our company is recognized as one of the preeminent Exporters and Suppliers of Digital pH Controller. We are associated with certified manufacturers who make use of optimum quality components such as metal, plastics, wire etc. with adherence to set industrial standards and norms. It is provided in quality assured packaging material that prevents any kind of damage at the time of delivery. We can process retail as well as bulk orders. Features : Accurate pH display with calibration facility on front panel Independent 2 Set Point controller LED display Isolated Tx. Output for remote monitoring Pleasing aesthetics with membrane selector switches Auto Temp Compensation using PT100 Low power consuming LED display. Precision indication of pH (0-14.00). Auto Temperature Compensation. Front Panel Calibration. Available with 4-20 mA ISOLATED Output.

Libratherm offers PID Controller for ON LINE monitoring and controlling of pH or ORP or Conductivity value in the continuous process. The controller can be interfaced with the pH / ORP / Conductivity sensor to display the pH value in the range of 0.00 pH to 14.00 pH or ORP /Conductivity value in mV.Since the signal given by the pH electrode varies with the temperature, automatic temperature compensation (ATC) facility is in-built in the instrument to read pH value more accurately without manual adjustments. This feature is available in model PD-5000. The controller gives direct / reverse dc pulse PID output with settable dead band for the metering or dosing pump to control quantity of both acid and base levels in the chemical process, water purification or effluent treatment plants. The normal pulse rate is 100 pulses per minute. The dual direct / reverse 4 � 20 mA is also available for actuator accepting direct analog signals. The retransmission output of (4-20)mA proportional to pH/ORP level is also made available for the recording purpose. The controller is available in both standard and weather proof enclosure.For interfacing low level signals from ORP/pH/Conductivity sensors, Libratherm offers signal convertor/isolator module for generating proportional (4-20)mA signal for long distance transmission of the measured value.
