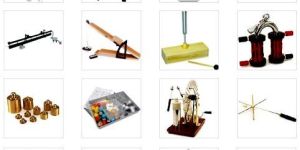

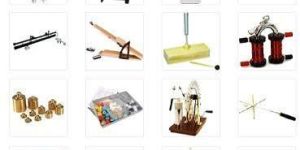

Physics Instruments
Get Price Quote
We are Reckoned as a Distinguished Laboratory Instruments Manufacturer, Located in India. Our Physics Lab Instruments are Manufactured from the Optimum Quality Raw Material. the Physics Lab Instruments that We Manufacture Give You An Errorless Measurement or Result. We Proffer Various Types of Physics Instruments like Electromagnetic Kit, Friction Rod Ebonite, Bicycle Dynamo, Electroscope Gold Leaf Etc. We Provide Various Physics Instruments At the Affordable Prices.
electromagnetic Kit: Comprises 8 Anisotropic Alloy Magnets, 8 Anisotropic Ceramic Ferrite Magnets, 4 Steel Magnet-yokes, 6 Plotting Compasses,4 Hardboard Formers for Compasses, 1 Bottle Iron Filings, 4 Iron Filing Dispensers, 4 Each Double C-cores, Clip for C-cores, Aluminium Rings, Split Aluminum Rings, 4 Each Support Bases, Armatures with Axle-tubes, Aluminium Axle-rods, 8 Split Pins, 16 Rivets, 1 Length Latex Rubber Tubing, 4 Each Formers for Coils, Reels Cellulose Tape, Reels Copper Wire, 4 Each Sheets White Pasteboard, Plain Postcards, Reels White Cotton, 4 Each Carbon Resistors 100 Ohms, 10 Ohms, 10 Flash Lamp Bulbs, 5 Neon Bulbs, 8 Mes Bulb Holder, Wood Clamp and Wood Block.
bicycle Dynamo: a Cycle Dynamo Mounted On a Wooden Base 200 X 115 X 12mm. and Provided with Two Sets of Gears Driven By a Hand Crank for Fast or Slow Rotation. Two 4mm Socket Terminals are Provided for the Dynamo Output, Connected in Parallel with An M.e.s. Lamp Holder and 2.5v Bulb.
electric Motor Kit: It is Based On Arts from the Westminster Electromagnetic Kit. Kit Comprises: 6 Wood Support Base 100 X 45 X 10mm, Length X Width X Height, 6 Wood Armatures, 6 Aluminium Shafts, 6 Mild Steel Yokes, 12 Magnets, 24 Split Pins, 125 Rivets, 1 Reel Plastic Covered Copper Wire, 3 X 1m Lengths Rubber Tubing.
friction Rod Ebonite: Length Approx. 300mm and Dia L2mm.
friction Rod Glass: Length Approx. 300mm and Dia L2mm.
polythene Rod: Dimensions: 300 X 12.5mm Length X Dia.
perspex Rod: Polished Finish. Dimensions: 300 X 12.5mm Length X Dia.
silk Rubbing Cloth: Dimensions: 300 Mm Square.
woollen Rubbing Cloth: Very Suitable for Use with Polythene, Cellulose and Perspex.
dimensions: 300mm Square.
flannel Rubbing Cloth: for Producing Charges On the Insulating Rods and Strips.
dimensions : 300 Mm Square.
pith Balls: a Pack of 12 in Plastic Case.
electroscope Gold Leaf: Rectangular Metal Casted Case and Polythene Insulated Lid Provided with Finger Flaps to Facilitate Removal, Case Fitted with 4mm Earthing Socket. Front Glass Window Slides Up to Allow Insertion of Ionising Material Into Chamber. Size 85 X 70 X 135mm Complete with a Brass Plated Top Disc.
electrophorus: a Plastic Disc 16 Cms Dia On Wooden Base, a Brass Nickel Plated L00mm Dia Plate with Ebonite Handle and a Small Brass Contact Sphere.
sphere Conductor: Made of Brass Nickel Plated, Mounted On Insulated Stand with Metal Tripod Base, with An Opening 5 Cms Dia At Top.
conical Conductor: Made of Brass Nickel Plated L00 X 50mm Length X Dia in Size, Mounted On Insulated Metal Stand with Tripod Base.
cylindrical Conductor: Made of Brass Nickel Plated 125 X 50mm Length X Dia in Size, Mounted On Insulated Metal Stand with Tripod Base.
electric Field Apparatus: Comprises a Shallow Glass Dish 100 X 10 Mm; Dia X Depth, Placed On a Transparent Acrylic 150 X 150 Plate with Four Pillars to Hold the Dish and a Pair of Socket Terminalselectrode Holders Which Clip On to Its Rim. a Compliment of Six Electrodes is Supplied, Two Point Source, Two Line Source and Two Circular Rings of 70 and 35mm Dia Respectively.
electrostatics Kit: a Comprehensive Kit of Apparatus to Enable Students to Investigate Many Aspects of Electrostatic Forces. the Kit Comprises: 1 Electroscope, 1 Rubber (polishing Cloth), 4 Metallised Polystyrene Spheres, 1 Plated Wire Hook, 1 Reel Nylon Monofilament, 1 Electrophorus Plate On Insulating Handle, 1 Cellulose Acetate Strip, 1 Polythene Strip, 1 Proof Plane On Insulating Handle, 1 Wire Stirrup to Support Above Two Items, 2 Polythene Tiles and 2 Aluminium Cans.
aepinus Condenser: Comprising Two Metal Discs, Each 75mm with Variable Separation, Supported On Insulating Pillars and Provided with Insulating Handles On the Ends of the Adjustment Slide Rods, 4mm Sockets are Drilled in the End of the Adjustment Rods. a Rectangular Glass Plate is Supplied Which Mounts in Clips Between the Two Discs and May Be Easily Replaced By a Plate of Some other Material to Show the Effect of Different Dielectrics. the Whole is Mounted On a Polished Wooden Base. Overall Dimensions: 225 X 150 X 175 Mm.
electric Whirl: for Demonstrating the Effect of Electric Discharge from Points. the Apparatus Has 60mm Dia Six Pointed Star Wheel with all the Points Curved in One Direction. the Wheel Rotates Freely On a Pivot Point Mounted On a Short Stand and the Stand is Provided with a 4mm Connection Socket On the Round Base.
wimshurst Machine: Comprises Two Perspex Sheet Plates of Dia 300mm Rotating in Opposite Directions By Two Wheels Operated By a Handle Provided On One Wheel. Plates and Wheels are Supported On Cast Alloy Metal Stands Fitted On a Polished Wooden Base. Phospher Bronze Brushes On Friction with Pure Tin Foils Pasted On Plates Generate the Static Electricity Which is Stored in Two Glass Leyden Jars Supported By An Insulated Bar. the Static Electreicity Produce a Spark of L0mm Length Between Two Metal Bobs Supported On Two Metal Rods with Ebonite Handles. the Distance of the Metal Bobs Can Be Adjusted.
lead Accumulator: Storage Type Steady Discharge of Current Not Exceeding 0.75a, in Polystyrene Containers with Terminals. Supplied Uncharged Without Acid.
(a) 2v20ah
(b) 2v45ah.
worcester Current Balance Kit (12 Nuffield Kit): for Use with Worcester Circuit Board to Provide a Simple Method of Teaching Students How to Build and Calibrate a Current Measuring Device. Each Current Balance Consists, When Assembled, of a Coil Which When Conducting Acts On a Small Magnet Attached to the End of a Drinking Straw Pointer with a Needle Pivot On An Aluminium Channel Support. Indication is Made On a Vertical Wood Strip Positioned By a Wood Block and An Elastic Band and Zeroing is Effected Using Wire Riders.
kit Comprises:-
100 Drinking Straws
8 Alcomax Magnets
4 Wood Bases Carrying Coil, Channel and Terminals
1 Pack 18 Needles
4 Wood Blocks
10 Wood Strips
supply of Elastic Bands
55g Reel of Tinned Copper Wire
4m Reel of L6mm Self Adhesive Cellulose Tape
1 Set Instructions
van De Graff Generator (hand Driven): Hand Driven and Self-exciting, Mounted On a Wood Base. the Discharge Sphere is Supported On a Pivoted Arm with a Handle, and is Attached to the Top of the Driving-wheel Pillar. for Connecting Accessories, a 4mm Socket is Provided At the Top of the Large Sphere, and a 4mm Earth Socket is Drilled in the Handwheel Pillar Base. Sparks in Excess of 50mm in Length are Easily Obtained At a Slow Rate of Turning (200 Revmin) and the Apparatus is Tolerant of Moisture and Dust.
specification
diameter of Dome 175mm
diameter of Discharge Sphere 75mm
overall Dimensions 50 X 190 X 480mm
supplied Complete with Instructions But Without Accessories.
van De Graff Generator (motor Driven): Intended for all the Usual Electrostatics Experiments, But Especially Where Continuous Production of a High Voltage is Required. They have Perspex Insulating Components, Rubber Belt, Polished Metal Dome and a Separate Discharging Sphere. the Low Voltage Powered Model is Designed for Operation On a 3 to 5v D.c. Supply Capable of Providing a Current of 1.5a. Power Input is Via a Pair of Colour Coded 4mm Sockets. Mains Operated Versions are Provided with 1.5m of Three Core Mains Cable, the Earth Core of the Mains Lead Being Connected to the Metal Structure of the Apparatus. Both Low Voltage and Mains Versions also have Independent 4mm Earth Sockets.
general Specification
charge Collecting Belt Flexible Rubber
charge Collecting Combs Aluminium Mesh
sphere Aluminium, 175mm Diameter, Removeable
connections 4mm Sockets in Dome and Base
voltage Developed Up to 200kv, Depending Upon Ambient Conditions, with a Spark Length of Up to 75mm
discharger Spherical, 75mm Diameter, Mounted On a Rod for Holding in the Hand or Support By a Laboratory Stand and Boss.
the End of the Rod is Drilled to Take a 4mm Plug.
dimensions : 350 X 190 X 480mm High
lead Aceumulator: Multiplate Type. 2 Volts 120amps. Hard Rubber Container with Plastict Lid and Screw Terminals. Supplied Uncharged Without Acid.
