Piezometer Dealers

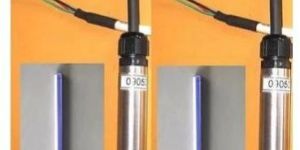

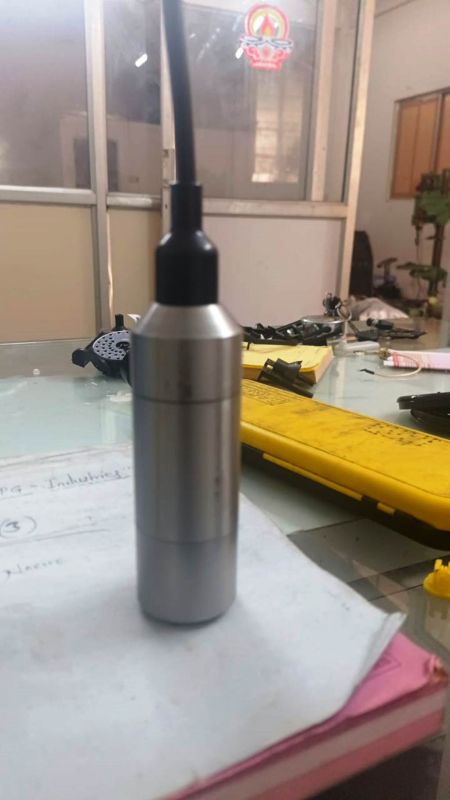

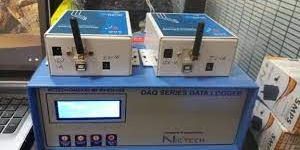

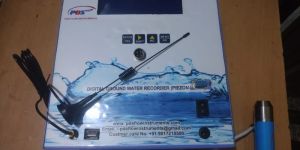

automatic digital water level recorder pizeometer. bore hole water level sensor .(dwlr) with data transfer facility to laptop / mobile.

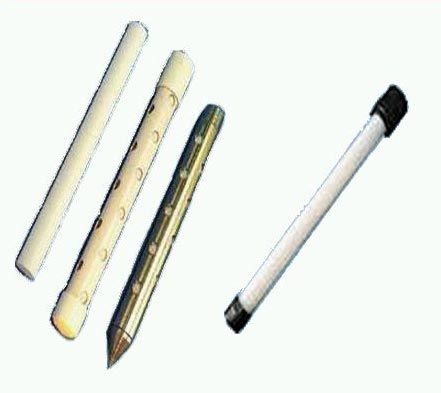

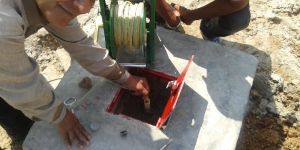

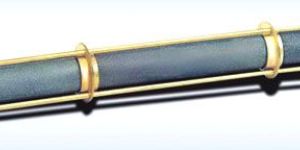

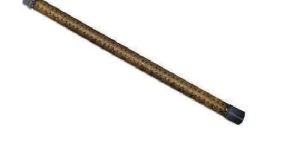

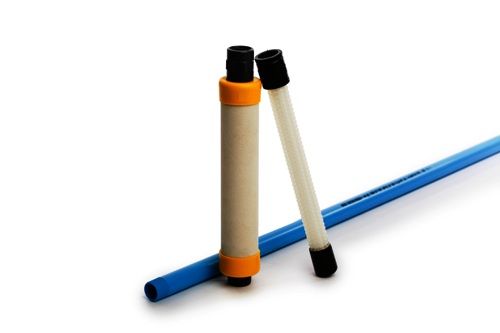

Casagrande type Porous Tube Piezometers are used for measuring and controlling pore water pressure in soil, rock and to monitor the construction control and stability in embankments, dams and reservoirs. A standpipe, with a porous piezometer tip connected at its lower end, is installed in a borehole. Bentonite andOR grout are used to seal the borehle above the "tip". The water level inside the "standpipe" is measured with the help of a Electronic water level Indicator, and corrosponds to the water pressure at the piezometer elevation. Permeability of soil in the vicinity of the tip can be determind, when required, by increasing the water head in the standpipe, and observing it's dissipation rate. Advantages:- (a) Ideal fordermining the piezometric level during routine site investigation. (b) Can also be installed after the completion of construction & theefore suitable for use in existing damsembankments.

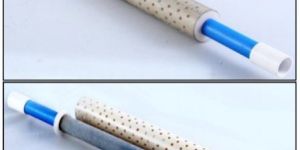

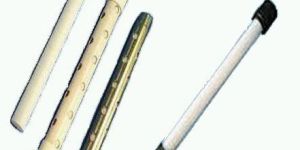

Casagrande porous tube piezometers are used to monitor piezometric water levels. Observation wells are used to monitor ground water levels. Water level readings are typically obtained with a water level indicator. Typical applications include: Monitoring pore-water pressure to determine the stability of slopes, embankments, and landfill dykes. Monitoring of ground improvement techniques such as vertical drains, sand drains, and dynamic compaction. Monitoring dewatering schemes for excavations and underground openings. Monitoring seepage and ground water movement in embankments, landfill dykes, and dams. Monitoring water drawdown during pumping tests. Specification Porous Tube Piezometer is made of carborundum tube of length 200mm, 38mm OD, 6mm wall thickness, total length 600mm with tie rods and brass mesh. Stand Pipe : 25mm Od, 17mm Id, 3m long Protective Pipe : 100mm dia, 1m long with protective lock.

Hitech Enviro Engineers & Consultants is a leader in piezometer manufacturers and suppliers in Delhi, India. We are established in 2004 in Ghaziabad. We uses advanced technology in sector of accurate data analysing and wireless communication in our piezometer instruments. Our technical team provide you consultancy to our customer. We have experience of 100 plus projects complete execution. A lot of piezometer manufacturers in Indian market, but no one serve services like us because we believe into get trust of our customer by providing our reliable and cost effective services. CGWA highly recommend to all industries that follow complete guidelines to maintain ground water. We are the only one piezometer manufacturers and suppliers in Delhi, India which handover the piezometer to our customer after complete the installation in a proper manner. Piezometer used to measure pressure in ground of pore water. Pore pressure used to know the ground behaviour. Essential information to provide:

A range of equipment for direct testing of piezoelectric materials and devices Piezometer System is useful for measuring d33 coefficient of Piezoelectric material.This is also applicable to piezo-ceramics, PVDF polymers, composites and thin film. In this instrument options are available for testing of capacitance, dh coefficient and dielectric loss tan δ for high-sensitivity testing of low-output materials.Adapters are available for testing of d31 and d15 in the same way.

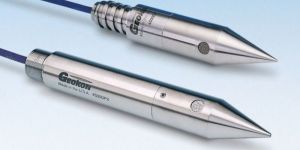

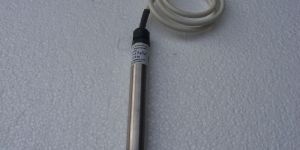

Drive Point Piezometer has the transducer located inside a housing with an EW drill rod thread and removable pointed nose cone. This model is ideally suited for use in peat and soft clays. The piezometer may be recovered at the end of the job. Models are also available which use metric threads allowing for installation using conventional cone penetrometer or other drill rods with adapters.

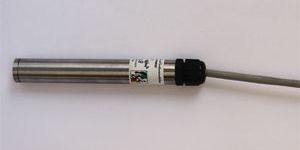

Piezometers Model IG-1401 are used to measure ground water elevations and pore water pressures in bore holes, embankments, concrete structures, pipe- lines, wells, mines, tunnels etc.Controlling water pressure during consolidation by continuous monitoring.Design for uplift pressures and buoyancy.Monitor seepage, determine phreatic line and verify models of flow.

Piezometer for Electroceramics, Piezoelectric materials & polymers Complete range of micro-processor based equipment for testing piezoelectric materials.

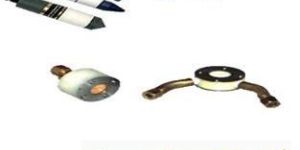

We are agog to tell you that we have specialist in the Earthen Dam Testing and Safety Instrumentation.We manufacture high quality instruments under the Guidance of exeprts and Installation goes through proper testing phase.We are giving all kind of piezometer which are needful for Earthen and Concerte Dam following as Embedment type Piezometer , Pneumatic Twin Tube Piezometer , Bishop type Piezometer , Porous Tube (Cassagrand) Stand pipe Piezometer, Bronze Pushing Type , Open Pipe Piezometer.

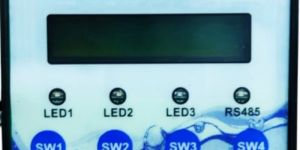

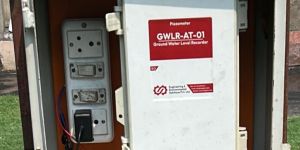

Drilling of Piezometers with proper designing as per CGWB-Central Ground Water Board norms and guidelines to know ground water behavior & aquifer characteristic of an area for better design of hydrological structure so that ground water can be recharged or withdraw without disturbing aquifer system & hydrological balance. (Pore Pressure Meter) is extensively used in groundwater monitoring to determine the level and flow pattern of groundwater. As per customer requirements, We can extend it to telemetry and nontelemetry.
