Pin Gauges Dealers

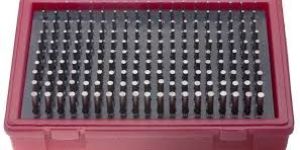

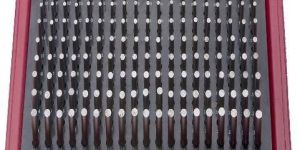

The dedicated focus of our well versed team of engineers on the quality and precision is what has enabled to come out with a range of the pin gauge that promotes us to experience triumph in the market. Every pin gauge manufactured from our manufacturing unit undergoes strict quality control processes following severe quality testing, thanks to the cutting edge facilities enable us to obtain the best quality range of the pin gauge in accordance to the set quality standards. The extreme accuracy and precision of our pin gauge is what you can experience by availing our pin gauge, made available at the most moderates in the market. The standard pin gauge sizes are available in the ready stock for the observance of ferrules and sleeves, whilst custom configuration and size of the pin gauge can be availed on the request, manufactured with the same dedication at accuracy and precision at submicron levels in order to deliver you nothing but the superlative experience in return for the investment and trust you make with us.

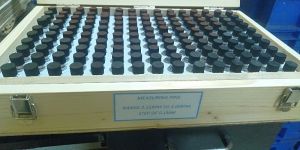

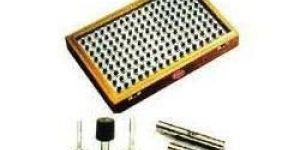

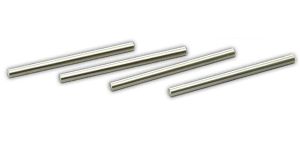

The Measuring Pin Set we deal in is highly appreciated among the customers owing to the durability, precise construction and affordable prices. We are renowned Manufacturer and Supplier of Measuring Pin Set that is obtainable from us at market-leading prices. The offered Measuring Pin Set is fabricated as per the requirements of the customers and is in compliance with the International Standards.Details : Cyclo instruments manufactures hardened; ground & lapped measuring pins made out of alloy steel; in steps of 0.01, 0.02 & 0.05 mm; in the range of 0.5 to 20mm. Having many useful usages such as; measuring small holes; checking locations; checking center distance between two holes; checking slot widths etc. The tolerance on the diameter is + 0.002 mm. material of the pins up to 1.5mm diameter is H.S.S. & that of pins above diameter 1.5mm; it is en31. Pins are wrapped in an anticorrosive wrap paper & are housed in holes carved out in eye pleasing instrument grade wooden box for handling & preservation. The size of the pin is etched chemically on the diameter for pins above 3mm nominal diameter. All the pins come in plastic capsules to prevent corrosion.  Salient Features : Made from Alloy Steel and Hardened to 60 HRC Mfg range 0.5mm to 20.00 mm Length- 40mm up to Ø 1.5mm and 50mm above Ø 1.5mm Material- Up to 1.5 mm H.S.S. & Above 1.5mm -SAE52100. Nicely packed in attractive Wooden Case for easy handling & preserving. In 0.01mm, 0.02mm & 0.05mm steps Manufacturing Tolerance +0.002mm on diameter or as per Customer's Requirement

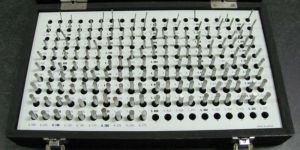

We design and manufacture a range of measuring pins that come in ex-stock in wooden box. These pins are available in a variety of metal like steel and carbide. Conforming to the IS standards, our products are widely used for checking of bores, center distances, groove dimensions, inspection of micrometers, gear measurements, etc. We also offer as per the clients' specifications. Technical Specifications: * Loose measuring pins in nominal range of 0.1 to 30 mm in step of 0.01, 0.02, 0.05 mm as per customer's requirements.

Our arrays of inspection tools such as Go and Not Go Plain Pin Type are manufactured by us. This product is made by using the premium grade raw materials to ensure the well performance and long life. Go & Not Go Plain Pin Types are used to check a work piece against its allowed tolerances. The name of these gauges are so derived because of its usage in two ways; involving the work piece having to pass one test (Go) and fail the other (No Go). These gauges ensure the smooth interchangeably of the parts between the processes in the manufacturing industries.

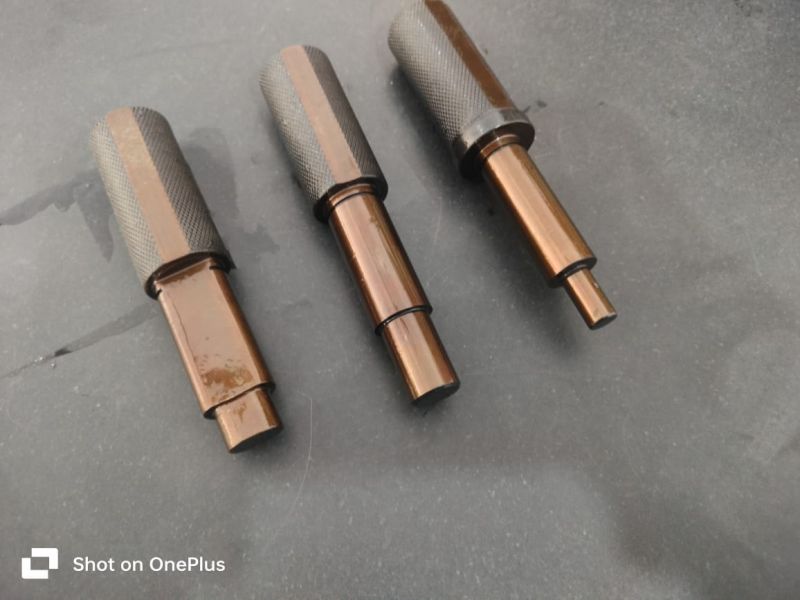

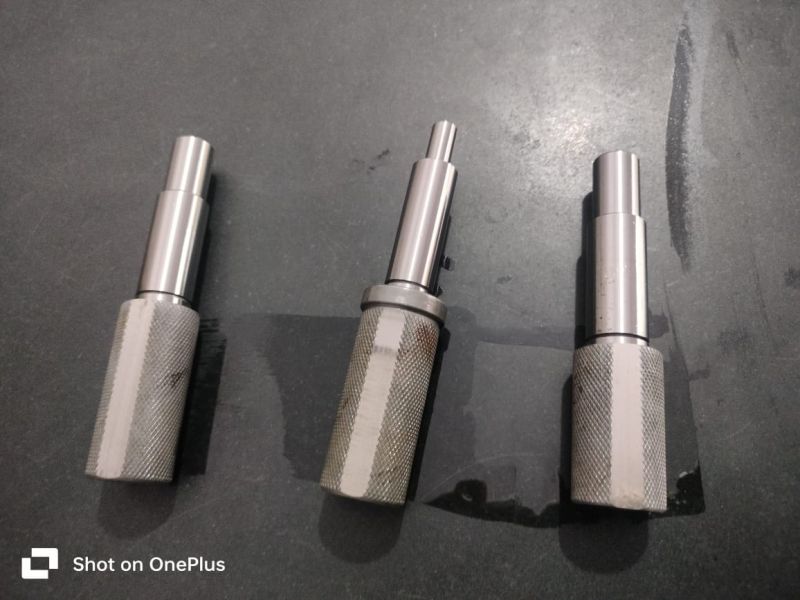

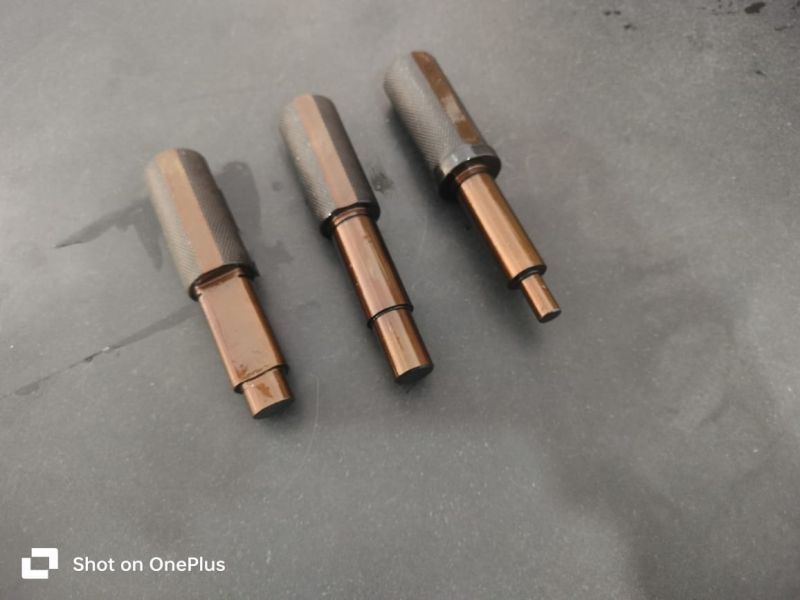

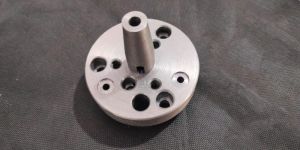

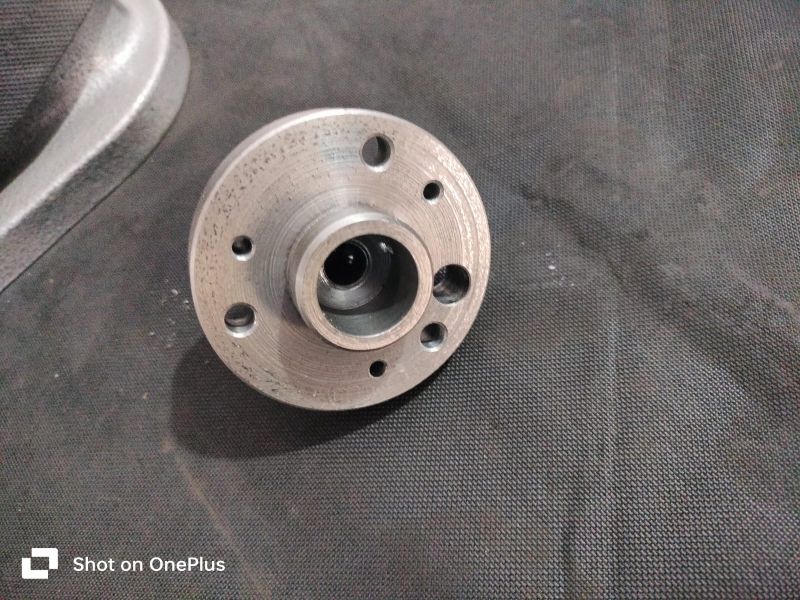

We are a leading manufacturer of Gauges for the Industry with experience of over nine years. Our gauges include Thread Gauges, Pneumatic Gauges, Plain Plug Gauges, Snap Gauges, Measuring Pins (Loose & Set), Setting Master, Precision Taper Mandrills & Other Special Gauges in CARBIDE & STEEL material as per theclients requirement since last 9years. Application To check required depth/distance from required surface.Manufactured as per drawing or designed as per component drawing.

Measuring Pin Gauges are precision tools used to check hole diameters, distances, and alignment in manufacturing and engineering. Made with high accuracy, they ensure quality control and precise measurements in machining and inspection processes

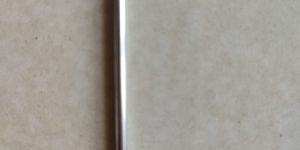

Cylindrical Measuring Pins are used for checking bores, tapers, distances, teeth, threads and for general gauging purposes.Loose measuring pins in nominal range of 0.3 to 20 mm in step of 0.01, 0.02, 0.05 mm as per customer's requirements.

By making use of premium packaging material, we can guarantee zero damage during transit. Moreover, our packaging experts stringently check the entire lot prior to final dispatch. Development of modular control inside our warehouse helps in proper organization of the products and ensure complete safety while storage. The entire system is properly managed by our warehousing experts.
