Power Control Centers Dealers

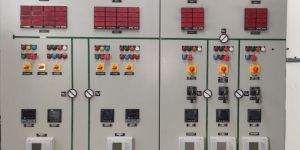

Leveraging on our immense understanding and ability in this domain, we are reckoned as a valuable manufacturer and supplier of Power Control Center. These are used as power distribution board to control the power supplied to motors, panels and transformers. We manufacture these centers under the strict supervision of the expert professionals using the superior grade materials and components. Our Power Control Center is available in different customized specifications as per the requirements of the clients. Features: Robust design Hassle free operation Maintenance free   Further Details: Main PCC panel is again a power distribution board to control the power supplied to HT motors, MCC panels and transformers who play vital role in any electrical control system. Main PCC panels are widely used in refineries, chemical plants, dairies, refrigeration plant, pharmaceuticals and plastic industry. Usually Main PCC panel is having modular construction with cable inlet is on either top or bottom of the structure. We manufacture and distribute Main PCC panels which are used for attaining maximum and efficient electric power utilization. Our range of Main PCC panels is widely used in power distribution in various process and production industries. Main PCC panels supplied by us come with a facility to be extended in future to meet the requirement. Features of our Main PCC panels are: Our panels are fabricated using high quality raw materials and are fitted with reliable controls procured from reliable vendors in the market. The outer structure of the panels are coated using high graded powder coating which makes it long lasting and can withstand any climatic condition. We can make customized Main PCC panels to meet the custom requirement of our client in accordance with industry standard.

We manufacture Power Control Centers upto 6300A rating, suitable for operational Voltage of 415V in a 3 phase 4 wire system. Our PCC's are made to IS 8623 & Short Circuit withstanding capacity of 80 KA for 1 Sec. We can provide degree of protection of IP:54 / IP:55, both of these parameters are type tested. The switchboards offered are in Fixed and semi draw-out type configuration with single front / Double Front design.

Construction: Welded, Semi Welded (Bolted)   Application: Power Plant & Process Plant   Features Power Control center [PCCs] normally comprise of either breaker panels only or breaker and MCC Panel coupled together [PMCCs]. Breaker panels can be offered in single or two tier configuration. Breaker panels are suitable either for cable or bus duct entry from top or bottom.   Protection: IP-53/54/55

Power Control Centers are being designed and manufactured upto 4000A rating, suitable for operational Voltage of 415V in a 3 phase 4 wire distribution system with an insulation voltage upto 660V at an ambient Temperature of 40 degree Celsius. The form of separation as IS 8623 is FORM IV. Short circuit withstand capacity is 50 kA and degree of protection IP:52, both of these parameters are type tested. The switchboards offered are in Fixed and semi draw-out type configuration with single front design.

With the continuous support and sincere efforts put by our experienced professionals, we have been able to provide our clients a qualitative range of MCC Panel. Offered panel is well manufactured under the guidance of our experienced professionals using premium quality raw material, components and high-end technology. Our provided panel is highly demanded among our clients owing to its suitable usage in various industries. Moreover, this panel can be availed by our clients at industry leading price.

Power Control Centers are being designed and manufactured upto 4000A rating, suitable for operational voltage of 415V in a 3 phase 4 wire distribution system with an insulation voltage upto 660V at an ambient temperature of 40 degree Celsius. The form of separation as IS 8623 is FORM IV. Short circuit withstand capacity is 50 kA and degree of protection IP:52, both of these parameters are type tested. The switchboards offered are in Fixed and Semi draw-out type configuration with single front design.

PMCC Technical specification: Rated Service Voltage: 415 V Rated Frequency: 50h Rated Insulation Voltage: 660 V Busbar System: TP-E or TPN-E   (with isolable neutral) Max.Rating Of Busbars: 6000 A Fault Level Withstand: 50 ka /  65 ka FOR 1 SEC Degree Of Protection: ip 41/ 54 Proven interleaved busbar system for PCC / PMCC Concept: In conventional busbar system, conductors of each phase are grouped together. At higher current ratings in each phase, more than one flat of busbars placed quite close to each other are used. Skin effect & Proximity effect, causes uneven current distribution in each flat of the same phase which also results in unequal temperature rise in different phases. At higher currents increase in cross-sectional area of conductors does not yield proportionate increase in the current carrying capacity of the busbars. The interleaved busbar system offers a cost effective solution. Cable termination:     Cable Termination is at the rear of the panel. Elecmech Standard PCC / PMCC panel dimensions are more than sufficient, However Panels can be custom designed for adequate space for termination of increased number aluminium cables for special cases such as for Material Handling Applications Stacker Reclaimer, etc. Though Bottom Cable Entry is Standard, TOP cable entries are possible, and in some non-standard cases with bottom busbar chamber Wide cable alley facilitates comfortable termination of a large number of cables. Shrouded link work for multi-tier configurations ensures complete safety in the cable alley. Standard panels are provided with captive screws / Quarter turn knobs. However customized Panels can be provided with Alphabetical Key lockable doors to prevent un-authorized access to the cable alley. Cabling Space (mm) Power Cables:  600 X 500 (depth 1200)  600 X 600 (depth 1300)  600 X 700 (depth 1400) Control Cables: Control Cables Terminals are provided vertically at the rear side panel on the left. So there is ample space for control cabling. Add on chamber: The cabling area can be extended further by providing an ADD ON CHAMBER to accommodate more cables if needed. Compartmentalised Design For ease of Maintenance and trouble free operation, Elecmech offers standard Single Tier ACB panels upto minimum 550 width, However Multitier designs are also offered for switchgear rooms with space limitations and for cost effectiveness.   Standard Single Tier: for ACBs 630 to 6300A. Multi-Tier Arrangement: 2 tier arrangement for ACBs upto 1600A. PMCC:  8 feeders (fuse switches) in a panel. Flexibility in Compartment sizes. Compartment sizes can be 225 to 900 mm. Auxiliary Equipment Mounted by the side of ACB. Effective utilisation of space. Separate Chambers for Busbars, Droppers Auxiliary Busbars. Panels can be offered confirming to Form 2 / 3 / 4. Other PCC features  The Power Control Centre (PCC) is a free standing and floor mounting type switchboard, suitable for indoor installation. To facilitate transportation, each PCC is split into shipping sections. Each shipping section is wrapped in an HDPE cover and packed in a wooden crate case. To arrive at the approximate overall dimensions of the packing cases, add 300 mm to the dimensions of the respective section. Each vertical panel is divided into distinct compartments Viz busbar chamber, Vertical droppers, Control busbar chamber, d/o feeders / fixed feeders, power cabling chamber at rear with control terminals. The compartments house main equipment like Air Circuit Breakers, Fuse Switches, Moulded Case Circuit Breakers and associated auxiliary equipment. Compartment doors are provided with Sprin Loaded Quarter Turn door fasteners, Which pressurises the door towards the panel frame, ensuring dust-proofness by the compression of gasket between door and panel frame. The cable alley doors are removable type. They are provided with Spring Loaded Quarter-turn locks or can be provided with door locks operable by a special key. Overall Dimensions Weight: 2475. Width : 550, 600, 700, 800, 900, 1000, 1100, 1200, 1300 mm. Depth : 1000 mm (base frame), 1200 mm, 1400mm 1600mm w/o front door. Depth : 1044 mm (base frame), 1244 mm,1444, 1644 with front door and rear door /cover. To increase cabling area, Add-on-chambers with a depth of 300 mm may be provided on rear. Add-on-chambers may also be used for bus duct entry. Relays are accommodated, usually below ACB compartment. usually it is of 450mm / 500 mm Height. Safety interlocks: All PCC feeders incorporate Safety interlock, Unless the ACB is racked out to isolated position, its compartment door cannot be opened. Conversely, the ACB cannot be operated unless the compartment door is closed. However, to facilitate maintenance and inspection, a defeat feature is provided for both these interlocks. Only QUALIFIED PERSONNEL are permitted to use the interlock defeat mechanism. Copper Busbars can also be provided on request. Aluminum Busbar used are of electrolytic E91E grade with manufacturer’s test certificate Busbars are punched using Multihole punching hydraulic press. The Multihole punch and die is specially deisgned for punching upto 4 Holes in one stroke with minimal burrs and no distortion of busbars. Punched Joints are then buffed smooth with special buffing tools to remove Aluminum oxide Layer. The Buffed aluminum busbar is then immediately coated with abrasive antioxidation paste. Excess paste squeezes out of the joints when the al bus joint is tightened removing aluminum oxide and also prevents the aluminum from being oxidized. Aluminum busbars are fastened using High Tensile Hardware High Tensile Fastners are tightened using adjustable and calibrated Torque wrench for optimum tightening torques. Thus optimum pressures are applied to Aluminum at fishplates and Joints ensuring minimal joint resistance and thus reducing heat loss and temperature rise. Non compromising Quality & Reliability Elecmech Panels are built to last for 20-25 year design life. Panels are Powder coated in our recently installed 11 Tank Hot process pretreatment powder coating plant which provides best possible degreasing derusting, phosphatising treatment for ms fabricated panels. Uniform powder coating quality is ensured by our stringent QC process. Standard interlocking schemes are available in our wide database for 2-Incomer, 1-Buscoupler and 3-Incomer with 2-buscouplers, also with standby generators. Standard protection schemes are available in our wide database for transformer incomers, outgoing feeeders with numerical relays from various manufacturers and also conventional relays. ERDA / CPRI Type Tested Panels with valid certification

Only quality-tested material is used for preparing the offered lot. As a result of which, we our offerings stand high on the expectations of the clients. We assure you to deliver goods to the desired place, as we have strong distribution network and shipping facilities.

Power Control Centers(PCCs) normally comprise of either Breaker Panels Only or Breaker and MCC panels coupled together(9PMCCs.) These confirm to IS 8623 and IEC 439. Breaker panels can be offered either in single to two tier configurations. Busbars are designed for rating upto 3200 A and 65kA fault level for 1 sec. Higher ratings and fault levels can be offered. Breaker panels are suitable either for cable or busduct entry from top to bottom and can be coupled with either Single front or double Front MCC panels. The Breaker panels are provided with segregated compartments for safety. Bus bars designed for upto 4000A at 50kA(rms) for 1 sec, fault Level.

We offer the POWER CONTROL CENTERS for easy distribution of High Voltage, Medium Voltage, Low voltage systems as per the customer requirements. Load Break Switch( LBS) Vacuum Circuit Breakers (VCB) POWER CONTROL CENTER (PCC) (433V AC) Medium Voltage Panels (MV Panel) DC Distribution Panel (Solar Application) Sub switch Boards (SSB) Distribution Boards(DB) Fuse Distribution Boards MCB Distribution Boards MCCB Distribution Boards Lighting Distribution Boards MV PANELS Aatithyaa Techno India Private Limited MV Panels applications span operation and protection of networks from 3.3 kV in public, industrial distribution. They are used in either new or renovation installations. The Circuit-breakers are available in fixed, MDO, EDO type with microprocessor trip unit(ACB) and Switch disconnected Fuse Unit (SDF) in double Break Type and in current ratings of 32A to 6300 A and short-circuit current from 25 to 95 kA. Here again the specialty of Aatithyaa Techno India Private Limited MV Panels is the Modular feature which makes the compartmentalization of Incomer with CT Chamber, Outgoing with bus bar Extension facility, separate compartment for Control& Metering Chamber.

We specialize in the manufacture of an impressive range of Power control centers. Our entire range is fabricated in accordance with the industry standards. They are being designed and manufactured upto 4000A rating. These are suitable in operating in a voltage of 415 V in a 3 phase 4 wire distribution systems with an insulation voltage upto 660V at an ambient Temperature of 40 degree Celsius.

We manufacture and distribute pcc panels which are used for attaining maximum and efficient electric power utilization. Our range of pcc panels is widely used in power distribution in various process and production industries. These pcc panels are used in refineries, chemical industries, pharmaceuticals and many others.send enquiry.

Application : Protection and Control of Power Distribution Operational Current : 6300 A Operational Voltage : 433 V Rated Insulation Voltage : 690 V Temp. Rise : Upto 35°C rise over 50°C ambient Degree of Protection : IP 65 Configuration : Based on customer requirement Type Test Performed : Short Circuit with stand, Temp. rise with stand, Degree of Protection

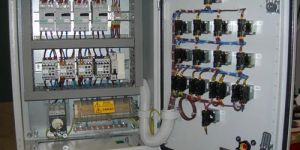

We design our Panels keeping in mind the experience gained from installation contracts resulting in increased safety of personnel and equipment, ease of maintenance, installation and commissioning. The design incorporates a host of safety and convenience features. We meet the requirements of International Standards along with compliance to local standards and regulations. We have type tested our Power panels for Short circuit withstand capacity of 50KA RMS for 1 second. We manufacture and offer PCC panels (power control center panel) which are used for diverse industrial applications and provide reliable and effective service. These panels are manufactured as client's specifications and requirements which very well meet with the industry demands. The Power Control Centre we offer is used in various industries. Providing reliable and effective services for a long time to come the PCC Panels offer high controllability and distribution of power. Made from fine quality raw materials PCC Panels are extremely sturdy and we offer them in various sizes at competitive prices. This range of products are offered in fixed and draw out type configurations of ACBs. Key Features: 1) Strongest design available in Enclosures. 2) Perfect Strength to weight ratio. 3) Operational Current - 6300A. 4) Operational Voltage - 415V. 5) Insulation Voltage- 690V. 6) Ambient Temperature – 45 Deg. C. 7) Better Ingress Protection (Up to IP-55). 8) Multi color powder coating is possible. 9) Auto Source Changeover. 10) PLC logic for Source changeover. 11) Distribution Panels suitable for outdoor installations.

Up to 4000 Amp. Incoming power distribution, with single/multiple incomings with Copper/aluminum bus bar with insulation of PVC Shrinkage sleeve, Single/Double door (Dust & Water free with degree of protection IP55/IP65) As per IS: 8623.Salient Features : Proper selection of Bus bar & wires Available with Single / Double door design Connection details fixing at panel's Door Cable entry up/down as per requirement Tinning to bus bar for prevent corrosion Made from 14 / 16 gauge MS sheet MS Sheet with PU Paint / Powedercoat Easy to Cable laying & Termination design Copper Bus bar with P.V.C shrinkage sleeve Available protection IP54,IP55 / IP64,IP65

We are one of the leading manufacturers, exporters and suppliers of electrical control panels and other power distribution products. These are appreciated for international quality standards and low power consumption. Our entire range of electrical control panels includes Power Control Center, Motor Control Center, Relay Control Panels and many more. We are offering our clients, highly efficient and user-friendly power control center (PCC). These power control center are useful for water gardeners or industries that are engaged in installing ponds or greenhouse. The structures are installedwhere there is no facility of electricity near the proposed site.We offer our power control center in standard as well as in customized specifications to suit the varying the demands of our clients.

We are offering lv power control centers. A power control centre (pcc) is a power and control panel which consists of incomer circuit breaker(s), feeder circuit breakers, monitoring devices, control devices etc. Pcc consists of different vertical sections from where the different electric parameters are monitored and controlled.

We have specialization in manufacturing and exporting premium quality Power Control Centers (PCC Panel). These are efficiently used to distribute the power to the different parts of the plant / building / industry / township and controls the whole power supply from one single place. These have their tremendous impact on our clients for their assured service with lesser maintenance. Made by high quality raw material, these are capable enough to control various industrial operation with guaranteed performance. Their complete set up are available for our clients in well customized form as per their requirement in very competitive price range

PCC's meet the requirements of the core sector industries viz. power / infrastructure projects etc. Main BusBar ratings upto 3200A.

It is of high reliability, manufactured to reduce up to 70% of untimely shutdowns, efficient energy consumption, up to 30% reduction in cost, up to 90% fewer motor burns-out and up to 50% reduction in maintenance costs. This is only possible, because we manufacture PCC using quality raw materials and innovative technologies.  PCC Features High endurance Easy to maintain Efficient power utilization Robust structure Hassle-free operation Available in different technical specifications Designed with main panels that are either of draw out or non-draw out type Made in single front design Integration of all necessary protections to meet safety standards

We feel proud to introduce ourselves as one of the famous Power Control Centre Manufacturers. Our Power Control Centre is also known as power control panels. Power control centres manufactured by us are generally used with integrated temperature controls and over temperature controls. Our Power Control Centres are used for variety of applications such as Safety, Alarm, Lighting Plants and are available in many different specifications.
