Power Hacksaw Machine Dealers

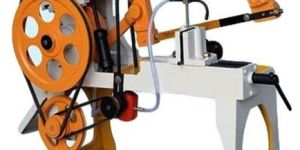

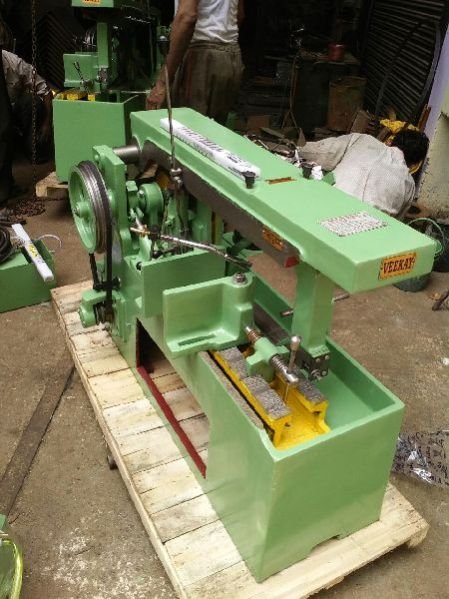

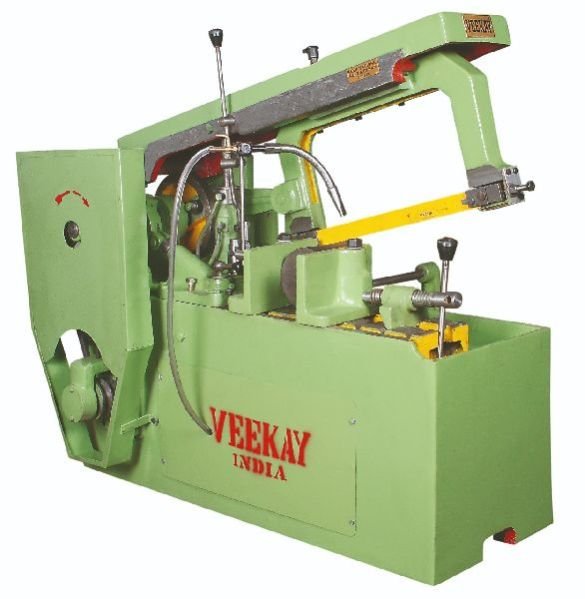

We are engaged in manufacturing and supplying Hydraulic Power Hacksaw Machine. Our Hydraulic Power Hacksaw Machines are supplied to various clients across the countries. We manufacture the Hydraulic Power Hacksaw Machines by using the latest techniques. Our Hydraulic Power Hacksaw Machines are admired by the clients for their precise make and advanced functioning. We offer Hydraulic Power Hacksaw Machine at reasonably market leading price. Why Our Hydraulic Power Hacksaw Machine? Easy operationHighly advanced featuresCorrosion resistantServe for a longer duration Standard Accessories Mechanical Coolant PumpMotor PulleyStarter PlateLength Gauge Belts GuardsFlexible Coolant pipe Extra Accessories V - belts, BladeHydraulic OilBar StandMotorStarterElectrical WiringThree Speed Gear Box Technical SpecificationsModelM-175M-200M-250M-300M-350M-400M-500M-600Cap. of Round Bar175200250300350400500600Cap. of Square Bar125150200250275352350425Strocke135135140140140135150150Strocke per min. (approx)100-200100-20085-10085-10085-10070-8570-8570-85Blade Size12"-14"14"-16"16"-18"18"-20"20"-22"18"-24"24"-32"30"-36"Electric Motor1.H.P.1.H.P.2.H.P.2.H.P.2.H.P.3.H.P.5.H.P.5.H.P.RPM of Motor144014401440144014401440960960Length10001000115012501300150016501750Width6006006256506506757500725Height800800100010001000120013001400Weight (approx.)325 Kg.325 Kg.450 Kg.550 Kg.650 Kg.750 Kg.1100 Kg.1200 Kg.Weight with Packing400 Kg.450 Kg.500 Kg.650 Kg.775 Kg.900 Kg.1300 Kg.1400 Kg.V - Belts Required 4 Pcs.4 Pcs.4 Pcs.4 Pcs.4 Pcs.5 Pcs.6 Pcs.6 Pcs. Note : All Specifications are subjected to change without prior notice

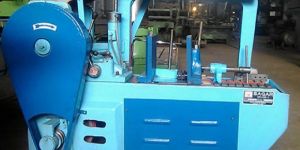

We are one of the trusted names in the Indian Engineering Sector, when it comes to high performing Power Hacksaw Machine. Designed using the latest technology and anti-abrasive spares, our Power Hacksaw Machine has helped us to carve niche in markets in different parts of the country. Preferred by our clients for free loaded running, energy efficient nature and guaranteed output. Why our power Hacksaw Machine ? Designed using latest technologyEquipped with anti-abrasive sparesEnergy efficient natureFree loaded runningGuaranteed outputEquipped with inter changeable spares Working Principle : Double Ball Bearings are fitted in Disc arm and the Crank shaft runs in Heavy Duty Taper Roller Bearings Capacity : 7" to 24"

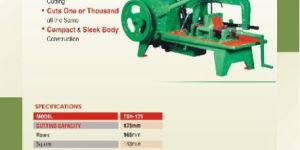

Creative Engineers Expertised in Cutting Technology Since Last 33 year. ( 1984-2016).We have supplied to many Reputed Companies throughout India. & Have exported to many countries Of the World. We have great pleasure To give details of our hydraulic Hacksaw & Bandsaw machines that we manufacture. We are renowned Manufactures of New Generation Machines. Kindly go through it &Favor us with your valuable order & oblige.

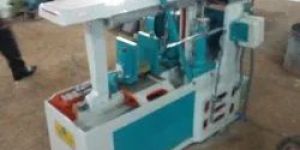

Counted among the prominent manufacturers, exporters & suppliers of power hacksaw machines, we use only hi-grade raw material in the manufacturing process. These power hacksaw machines are manufactured using advanced technologies. The components of power hacksaw machines are absolutely corrosion-resistant and anti friction. The power hacksaw machines are very energy efficient.

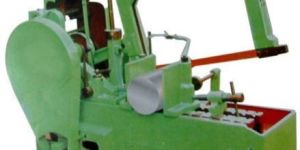

Max. Diameter 200 300 Max. Square 175 250 Stroke length (non adjustable) 140 160 No. of speed strokes 3 3 Range of speed strokes (per minute) 80 - 100 - 125 80 - 100 - 125 Blade Size 400 x 32 x 1.6 525 X 45 X 2.25

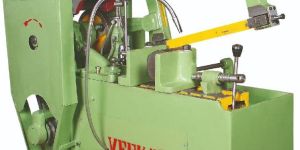

Hacksaw Machine has been designed to cut quickly & accurately all material from nickel chrome steel to plastic. Controls are simple and easy. An automatic cut out operates at the completion of the operation and the bow slide returns to the top position. The machines has attractive appearance.The saw Frame is of rigid construction and runs in Prismatic guide ensuring a square and parallel cut and this cut takes place on the backward (pull) stroke. The blade is hydraulically lifted out of contact with the work piece on the forward stroke to prevent wear of the blade.Two Speeds has been provided in order to make it suitable for all metals. High Speed for metals like mild street, brass, copper etc. and Low Speed for cast iron etc.

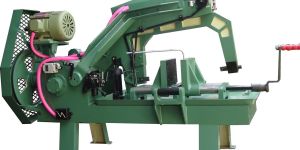

BRIEF SPECIFICATIONS     THE BED is of heavy dimension provided with guide way for the vice of clamp the work pice. One jaw of the vice is fixed while the other is adjusted according to the material diameter.     SAW FRAME   is of rigid construction and runs in prismatic guide insuring a squareand parallel cut. The cut takes place on draw stroke, and the blade is hydraulically lifted out of contact with forward stroke to prevent wear of the blade, and can cut all types of metal which are machinable of all strength.     FEED Two levers are provided at the dash-pot. The small lever regulates the rate of feed, while the other big one enables the slide to start cutting or to be raised the slide automatically, on completion of the cutting cycle and the motor switched off automatically.     SPEED A two speed drive mechanism are incorporated for the selection of the most suitable speed for the material being cut. Cooling the machine comes with a very reailable and efficient centrifugal pump, for quick cooling the Blade. It comes with connection pipes from water tank to stay put on the work pice. The pump is driven by a intermediate drive.     STANDARD All machines are supplied with centrifugal water pump.     ACCESSORIES Motor-pully, Motor-plate, but without ‘V’ belts Electricals.     EXTRA ACCESSORIES Angular vice simple, Angular vice with Graduation, Electric-motor and Starter, ‘V’ belts, Blade. A direct on line push-button, Starter can be incorporated which sets into motor an adjustable trip mechanism which stops the machine as soon as the blade is clear from work. The non-productive time is reduced to minimum.

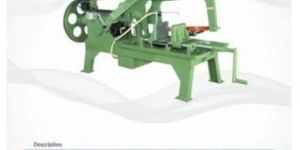

Technik series semi hydraulic hacksaw machine size : 7" for accurate & precise cutting of bars & rods.

We are offering hydraulic power hacksaw machine. There are two types of power hacksaw machine, semi hacksaw machine and fully hacksaw machine
