Power Cords Dealers

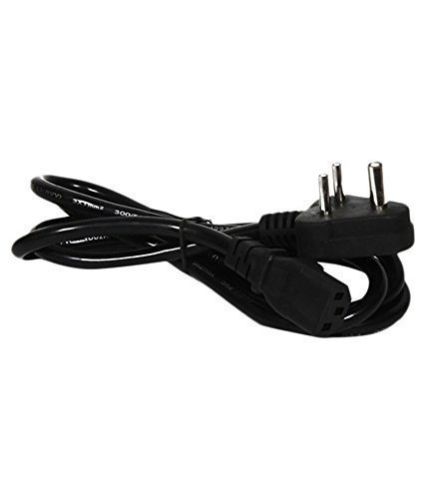

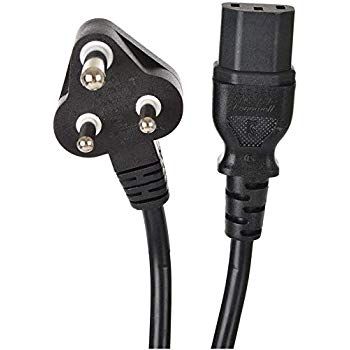

Power cord we are manufacturing 2 pin & 3 pin moulded power cords. Designing the cables & moulds as per the customers specifications for household appliances computers, refrigerators, mixer-grinder and other electronic equipments. 1. Range covered • 6 amps / 16 amps. • 2 pin and 3 pin. • 0.25 to 1.5 mm2 cables used. • any length as required by customers. • voltage – 220 volts. 2. Reference specification • is 694 1977 • is 6538-1971 with latest amendments. • or any other national / international specification. 3. Application • molded power plugs are widely used in all the type of household equipment, machine and appliances and application electronics. • power cord for appliances used in fire prone area flameproof pvc is used for machines in critical location and heat zone. multi core flexible cables generally used for moulded power cord conductor area construction no./dia cont. Dia. In mm max. Dc resistance mm 0.50 16/0.20 0.94 39.0 0.75 24/0.20 1.20 26.0 1.0 32/0.20 1.34 19.5 1.5 48/0.20 1.64 13.30 2.5 80/0.20 2.10 7.98 4.0 128/0.20 2.61 4.95 6 85/0.30 3.50 3.30 10 140/0.30 4.60 1.91 insulation nominal thickness mm 0.6 0.6 0.6 0.6 0.7 0.8 0.8 1.0 core dia mm 2.20 2.50 2.60 2.90 3.50 4.30 5.1 6.6 sheath thickness in mm nominal. 2 core 3 core 4 core 0.90 0.90 0.90 0.90 0.90 0.90 0.90 0.90 0.90 0.90 0.90 1.00 1.00 1.00 1.00 1.00 1.00 1.00 1.15 1.15 1.40 1.40 1.40 1.40 overall thickness in mm nominal. 2 core 3 core 4 core 6.20 6.60 7.20 7.00 7.20 7.90 7.00 7.50 8.10 7.60 8.10 9.00 9.00 9.60 10.50 10.60 11.30 12.40 12.60 13.40 15.20 16.00 17.00 18.80 approx. Current rating. Amps. 4 7 11 14 19 26 33 45
