PVC Insulated Copper Wires Dealers

PVC Cables Insulated electrical wires are used for transmission of low-voltage signals, electric motors, DC power transformers, panel boards, battery cables, etc. The characteristics of the flexible single core cable manufactured by us include good flexibility, adequate voltage resistance and manufacturing as per ISO standards. The flexible single core wire is available as Poly Flex brand PVC insulated wires, insulated electrical wires, unsheathed with bright annealed plain copper conductor, bunched and or stranded

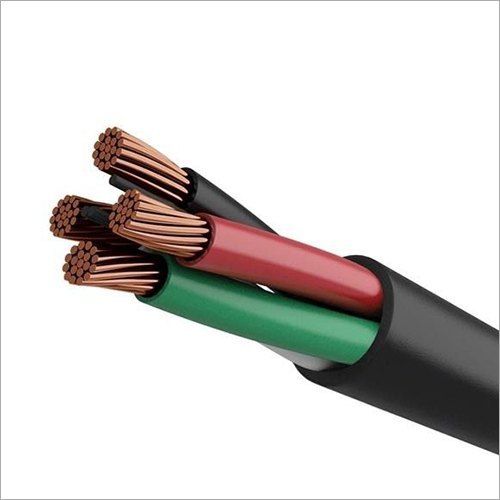

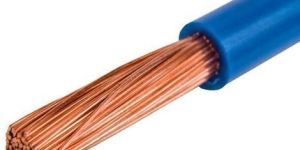

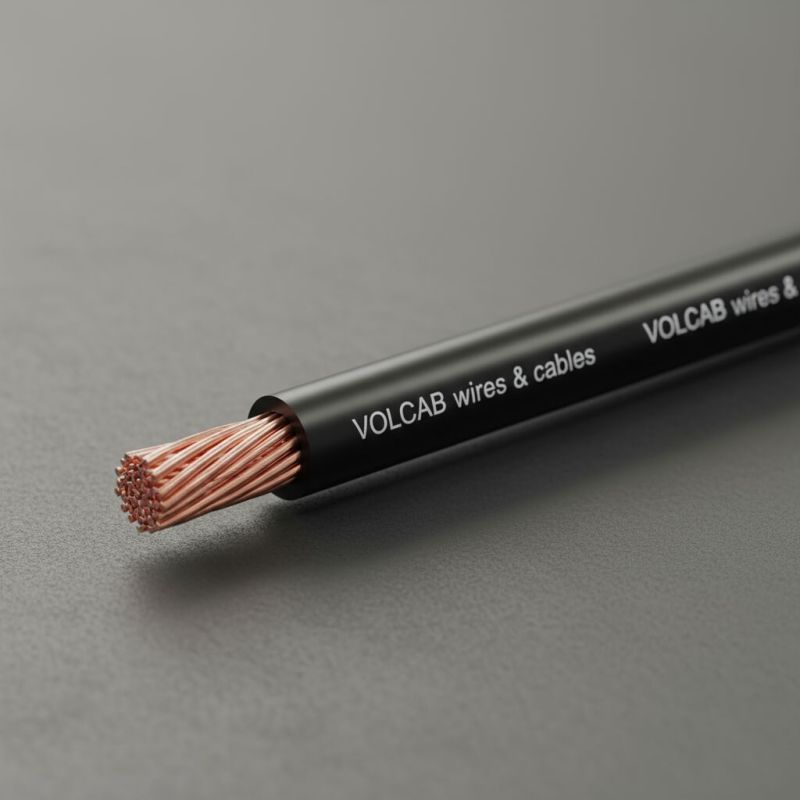

We manufacture and export PVC coated Stranded Copper Conductor. PVC Covered Soft Drawn Cu Conductor to BS - 6004   Single-strand copper wire, also called solid wire or solid-core wire, consists of one piece of copper metal wire surrounded by an insulator. Single-strand copper conductors are typically used as magnet wire in motors and transformers. They are relatively rigid, do not bend easily, and are typically installed in permanent, infrequently handled, and low flex applications. Single strand copper wires also provide mechanical ruggedness and good protection against the environment. A stranded copper wire refers to a group of copper wires that are braided or twisted together. A stranded copper wire is more flexible and easier to install than a single-strand copper wire of the same cross section. Stranding also improves wire longevity for applications with moderate to high vibration. A particular cross-section of a stranded conductor gives it essentially the same resistance characteristics as a single-strand conductor, but with added flexibility.

Capital Cables has also developed a special range of PVC insulated winding wires with stranded copper conductor for higher HP submersible pump motors. These are manufactured to individual customer specifications. The standard range of these winding wires is given in Table. For heavy duty applications such as submersible pumps used in mines, winding wires with double insulation can also be made available.

Typical Applications Hotels Factories Offices Multistories complex Automobile Industry etc. Housing Hospitals Panel Board Wiring Telecommunication   Single Core Flexible Cables ConfirmingTo IS 694-1990 Voltage Grade up to 1100 Volts. Conductors: The process involves drawing of thin conductors from bright electrolytic grade copper rods (99.9% pure) and annealed conductors are bunched together. Insulations: Specially formulated grade of FRPVC compound is capable of with standing higher conductor temperatures. Continuous rating of 105°C and intermittent rating of 125°C enables the cable to be overload without endangering safety. The insulation is resistant to boiling water , stream and vapours to prevent aging and cracking in practical usage in kitchens, bathrooms, damp walls, chemical industries etc. Quality Control: FRPVC insulated copper conductor (unheated) wire and cables are manufactured in sizes from 0.50 to 16 sq.mm. in single core. High quality standards are in-built in Minimax Cables. Strict quality control at every stage from raw material, production and finely at finish products ensure that the Minimax cables meet National & International standards. The cables are confirm to ISI standards which offers complete safety and protection against electrical shocks, short circuits and fires.
