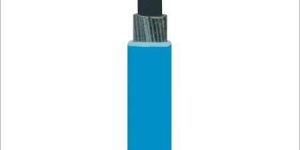

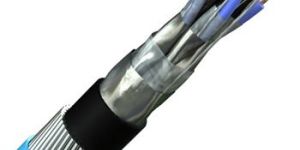

PCM Screened Cable
40 Per Meter
500 Kilometer (MOQ)
Screened Cables
500 - 520 Per Kilogram
CONDUCTOR:POWER-FLEX® Screened cables are manufactured using Electrolytic Grade 99.97% purity copper with more than 100% conductivity. The conductors drawn and bunched according to class 2 or class5 of IS:8130/1984.INSULATION:The bunched conductors are insulated with specially formulated PVC compound. The compound confirms to IS:5831 Type AOnline spark testers ensure fail proof high voltage test by employing non destructive form of testing at six times the rated voltage.SCREEN:The insulated cores are laid up and shielded with polyester tape, overall braided with annealed tinned copper with minimum 65% however generally 85% coverage. Overall shielded with polyester tape.SHEATH:The screened cable is overall sheathed with PVC Type ST1 of IS:5831.OPTIONS: Multi Core screened together. Multi Pair screened together. Multi Pair individually and collectively screened.
Best Deals from Screened Cables

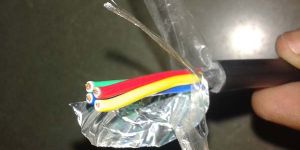

screen shielded cable
Get Price Quote

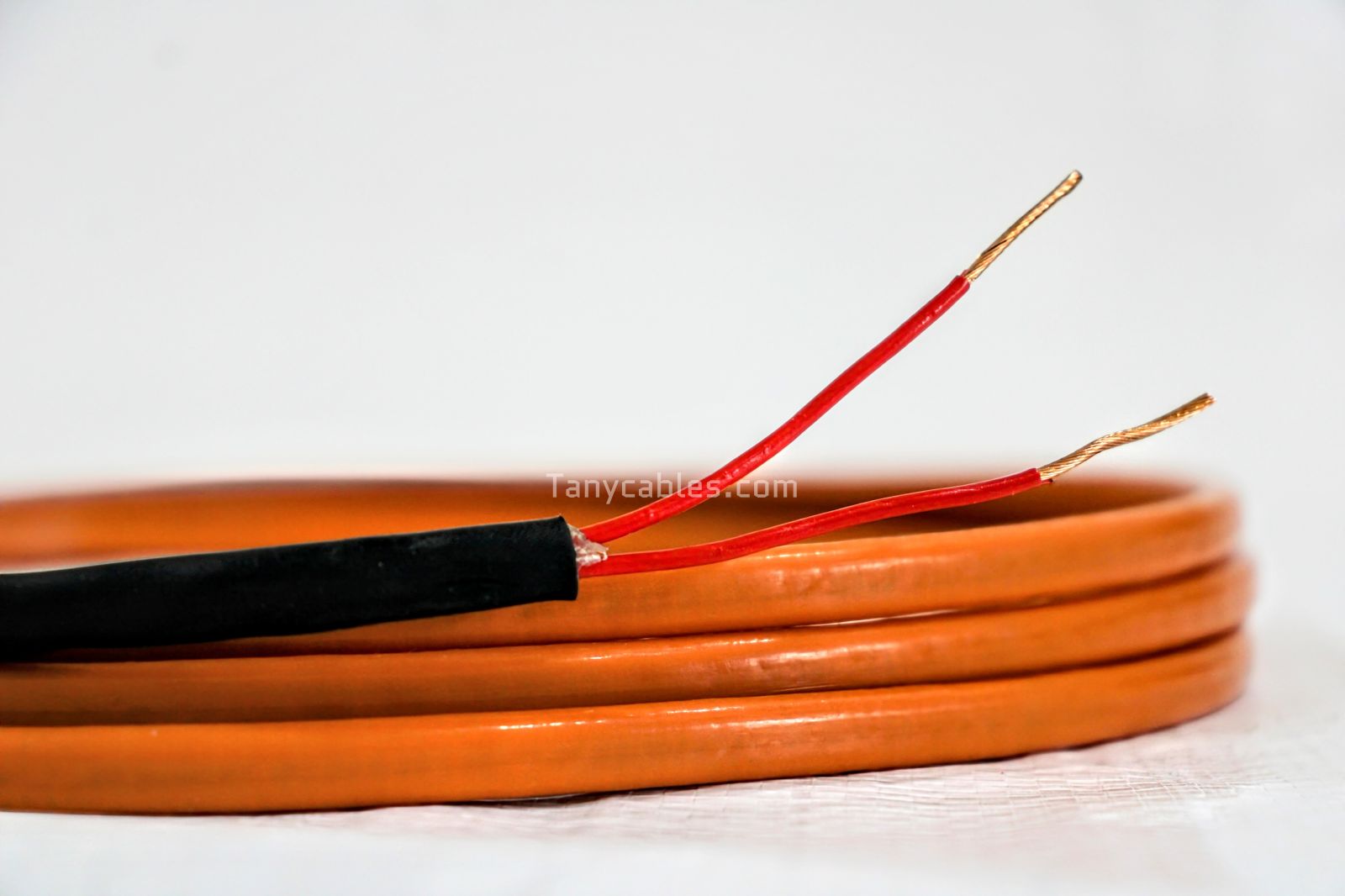

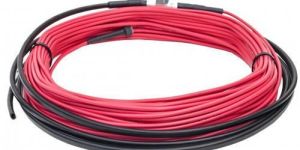

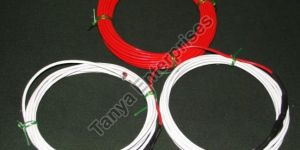

Single Conductor Screened Heating Cable
Get Price Quote
500 Meter (MOQ)

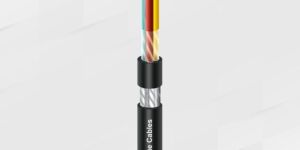

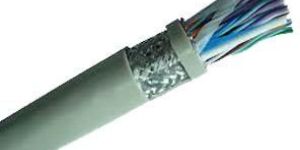

Screened & Braided Flexible Cable
10 Per Meter
50 Meter (MOQ)
Description The annealed tinned/bare Electrolytic high conductivity copper multi strand flexible conductor as per IS: 8130/1984 of class-5, PVC insulated as per IS: 5831/1984, cores twisted together, Melinex taped. Shielded with aluminium mylar taped and screened with tinned copper braiding, taped again & overall PVC sheathed as per BS 5308 Part-2 multi core instrumentation Shielded Flexible cable. The shield acts as a Faraday cage to reduce electrical noise from affecting the signals, and to reduce electromagnetic radiation that may interfere with other devices (see electromagnetic interference).The shield minimizes capacitive coupled noise from other electrical sources. The shield must be applied across cable splices. In shielded signal cables the shield may act as the return path for the signal, or may act as screening only. Range: 0.2 sq.mm to 150 sq.mm (single core & multicore) Application A shielded cable is an electrical cable of one or more insulated conductors enclosed by a common conductive layer. The shield may be composed of braided strands of copper or aluminium mylar tape, or a layer of conducting polymer. Usually, this shield is covered with a jacket. The shield acts as a Faraday cage to reduce electrical noise from affecting the signals, and to reduce electromagnetic radiation that may interface with other devices (see electromagnetic interference). The shield minimizes capacitively coupled noise from other electrical sources. The shield must be applied across cable splices. In shielded signal cables the shield may act as the return path for the signal, or may act as screening only.
Screen (Briaded) Cables
Get Price Quote
Screen cables are available in both Annealed Tinned Bare copper braided. We can supply copper screened with tinned coated copper wire and bare copper screened wires as well as per customers requirements. Application For : Automations Access Control Panel Sensor Communications etc..

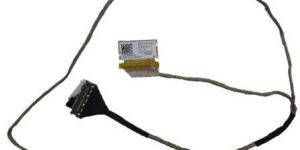

LCD Screen Cable
620 Per Piece
1 Piece (MOQ)

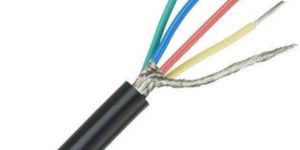

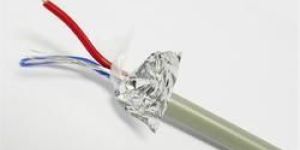

Shielded Screened Unrmoured Copper Cable
Get Price Quote
51308097-200 Universal TOuch Screen control cable.
Get Price Quote
1 Piece(s) (MOQ)
model no : 51308097-200manufacture : honeywell product type : universal touch screen control cable.weight : 0.40mlbs.  origin : united states of america  usage :industrial automation  warranty: 1year    condion : good in working condition
Multi Core Flexible Screen Cables
Get Price Quote
Industrial Cables required for power without EM interference.

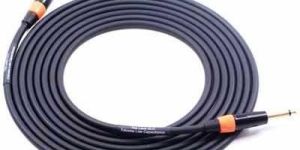

Screen Shielded Instrumentation Cables
Get Price Quote
Leveraging on our industrial experience, we are engaged in manufacturing, exporting, and supplying Screen Shielded Instrumentation Cables. These cables are skillfully designed in order to transmit signals without any external interference. Our Screen Shielded Instrumentation Cables are available in various conductor sizes conforming to BS: 5308 - I & II, IEC-189, IS: 1554 - I: 88, VDE 0815. the clients can avail these Screen Shielded Instrumentation Cables at market leading prices. Conductor Sizes : 0.25/0.5/0.75/1.0/1.5/2.5/4.0 sq. mm Core : From Single core/ single pair to 100core or 50 pair. Applications : Data Acquisition Systems Computer networking PA systems Digital Control/measuring and communication systems Specifications : Conductor : Solid / Stranded / Flexible copper (bare / tinned) Insulation : PVC � HR; PE, LSZH Shielding : individual & overall or overall screen only by Al-mylar tape / copper tape / copper wire braid Inner sheath : PVC � HR / FR / FRLS; PE, LSZH Armour (for Armoured cables) : Galvanized steel round wire / strip Outer sheath : PVC � HR / FR / FRLS; PE, LSZH Click Here For More Details

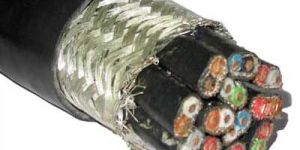

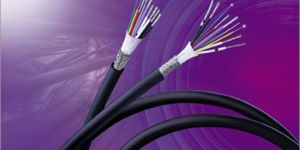

Screened Instrumentation Cables
10 Per 10 Meter
Cable type :instrumentation cable standard : bs 5308(1720 iec 189 1 &2) conductor : bare copper or tinned copper sizes : 0.25sqmm to 2.50sqmm or higher insulation & sheath : pvc 70 c 85c105c elements : corespairstraids colour coated or number printing ring construction: pvc insulated corespairstraids are laid together with wrapping of polyster and aluminium mylor tape and shielded with tinned copper drain wire. Type : individual shielded overall shielded armoured unarmoured

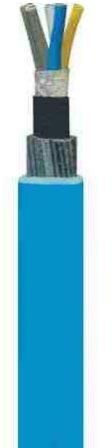

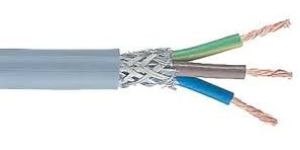

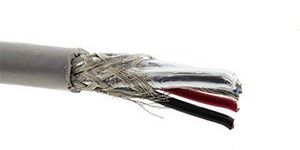

Screened Cables
110 - 330 Per Meter
200 Meter (MOQ)
Buyers can rely on our products, as they conform to international quality norms and are trustworthy. Guaranteed Services and despatch facilities, efficient workforce, on time delivery of the products make us stand out from the crowd.
BRIMPLAST SCREENED CABLES
Get Price Quote
We provide a large assortment of high performance Screened Cables that is highly appreciated for optimum designing and accuracy in dimension. Our range of Screened Cables is developed from the superior quality raw materials under the strict vigil of talented quality control executives. Features: Affordable Prices. High grade material Easy to install

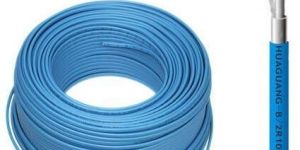

Single Conductor Screened Heating Cable
10 Per Meter
100 Meter (MOQ)

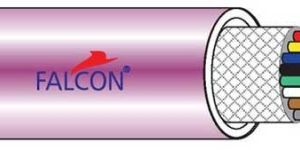

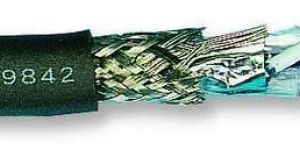

Multicore Screened Cable
Get Price Quote

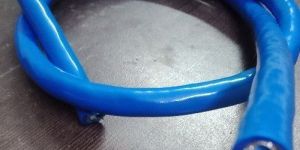

PVC Screened Cable
45 Per Meter
500 Meter (MOQ)

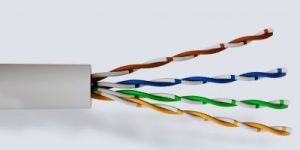

Data Screened Cable
Get Price Quote
The company is a famous Manufacturer, Exporter, and Supplier of Overall Screened Cables or Data Screened Cable from New Delhi, India. The Data Screened Cable or Screened Ethernet Cable is known for its higher quality standards, reliability, and excellent performance. Our Data Screened Cable can be availed in varied specifications as per the clients’ demands. Also, these Screened Control Cables meet the set industry standards. The Screened Power Cable has conductor resistance of max. 73.6 ohm/km (0.5 mm2) and max. 36.8 ohm/km (1.0 mm2). Further, these Screened Instrumentation Cables have bending radius of approx. 7.5x cable ø. The clients can avail the Data Communication Cables from us at the most competitive prices in bulk quantities.We are reliable Data Communication Cables and Screened Power Cable Manufacturers In India. Details Halogen-free data transmission cable adapted to din vde 0815Conductor resistance max. 73.6 ohm/km (0.5 mm2)max. 36.8 ohm/km (1.0 mm2)Temperature rangeFlexing : -5oc to +50oc (+23of to +122of)Fixed installation to +70oc/+158ofNominal voltage max. 225 vTest voltageconductor/conductor 500 conductor/shield 2000 vInsulation resistance : min. 100 mohm x kmMutual capacitance at 800 hz max. 100 nf/km (this value may be exceeded by 20% with a make-up up to 4 pairsImpedance at 1 khz (nominal values)450 ohm (0.5 mm2)320 ohm (1.0 mm2)Capacity unbalanceat 800 hz max. 200 pf/100 m (20% of the values, but one value up to 200 pf is allowed)Cross-talk attenuation at min. 10 khz, 60 db/500 mline attenuation at 1 khz (nominal values)1.2 db/km (0.5 mm2)0.9 db/km (1.0 mm2)Bending radius approx. 7.5x cable ø.
Screened Cables
Get Price Quote
We are widely reckoned as a prime Manufacturer, Exporter and Supplier of superior quality Screened Cables. Screened Cables, offered by us, work for reducing electrical noise and electromagnetic radiation that affect signals. Screened Cables have a sturdy construction and have a wide range of applications. We offer Screened Cables at highly competitive prices. Attributes Durable Offer high quality signal High strength Quality assured

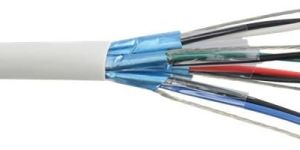

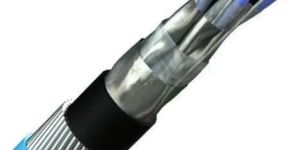

screened cable
20 - 500 Per Per mtr
100 Meter (MOQ)
Shielded, instrumentation, screened , communication, signal cable
screened cable
Get Price Quote
pecial Feature of dc deepcab Shielded Cable High flexible data cable for low frequency transmission application. Protection from external electromagnetic field ensuring excellent data transmission realiability. Coverage of copper screen braiding is more than 80%. Overall myler tape wrapping over cores improves Dielectric strength of the cable. Significant reduction in crosstalk and interference between the cores within the pair cable due to twisted pair in the instrumentation cable. Â Cable Make-Up of dc deepcab Shielded Cable Fine strands of ATC copper wire, PVC based core insulation, twisted in layers, overall myler tape wrapping, then screen braid of anneled tinned copper wire, outer PVC of speacial compound. In 0.5 sq mm and above additional Al - Myler tape screen provides additional EMI protection. Cores are coded with different colours, without colour repetition ensures easy identification as per dc deepcab Colour codeing standard chart. All Cores may be coded with different numbers & grey in colours. Outer sheath of speacial based PVC compound. Â Application Range of dc deepcab Shielded Cable Control and signal cable in speacial purpose machines and measurement equipment Electronics and computer systems. Electronics scales/electronic weighing machines. Many data transmission applictions and instrumentation applications. These control and signal cables are used in the milliampere range for computer systems, electronic control equipment, office machines, scales etc. and wherever the thinnest possible control cables are required. Electronic systems normally have little space available for cable installation. Cable is made especially for short distances and small bending radiuses.

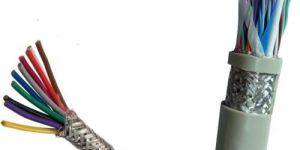

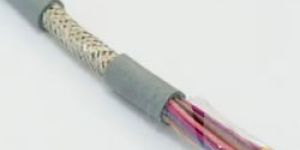

screen cables
Get Price Quote
Applications - Screened Cables are used for underground as well as over head transmission of power in power plants, industries, projects and all other electrical installations Conductor - 0.25 mm 2.5 mm. Insulation - PVC / polyethylene / polypropylene extruded cores identified by colors / number printing. Armoring - Galvanized steel wire / strips are used. Sheathing - An extruded layer of PVC is applied in different colors as required. Color - Black & Blue Voltage - 660/1100 volt Temperature Range - 70/90 Screen - A SERVING OF STEEL WIRE/ TIN COPPER SCREENING WITH MINIMUM 95 % OF COVERAGE
Screened Cables
Get Price Quote
The Screen acts as a Faraday cage to reduce electrical noise from affecting the signals, and to reduce electrostatic radiation that may interfere with other devices (see electrostatic interference). The screen minimizes capacitive coupled noise from other electrical sources. The screen must be applied across cable splices. In screened signal cables the screen may act as the return path for the signal, or may act as screening only. Application:-Â Â A Screen Cable is an electrical cable of one or more insulated conductors enclosed by a common conductive layer. The Screen may be composed of braided strands of copper or aluminum mylar tape, or a layer of conducting polymer. Usually, this screen is covered with a jacket. Description:-Â Â The annealed tinned/bare Electrolytic high conductivity copper multi strand flexible conductor as per IS: 8130/1984 of class-5, PVC insulated as per IS: 5831/1984, cores twisted together, Melinex taped. Screen with aluminium mylar taped and ATC drain wire or screened with tinned copper braiding, overall PVC sheathed as per BS : 5308 (Part-2).
Screened Cables
Get Price Quote
We offer and supply Screened Cables that have excellent electrical, thermal, mechanical and outdoor properties and are packed with superior surface finish. These are also available in various diameters, thickness, colors and dimensions. Â
Single Conductor Screened Heating Cable
Get Price Quote
Screen Cables, Shielded Cables
Get Price Quote
SUPERCAB" is a very reputed brand in the market for screen / shielded cables. Both types of screening. i.e. copper braiding as well as aluminium mylar with continuously running drain wire of 0.5sqmm tinned copper. A very huge stock is kept at our godown of such cable. Copper braided cables are more effective at low frequency i.e. For EMI Whereas Aluminium foil shielding are more effective at high frequencies i.e. For RFI Why use "SUPERCAB" screen cables?1) Improved Attenuation2) Improved Power scum crosstalk3) Less Noise Interference
Screened and Shielded Cables
Get Price Quote
screen cables
Get Price Quote
Elcab manufactures wide range of building wires as per customer needs. Wires are made with co-extrusion technology. The copper used is 99.97% pure, bright annealed bare which gives conductivity more than 100 IACS (%). A shielded cable is a type of electrical cable designed to have either one or more insulated conductors that are enclosed by a common conductive layer. The shield may be composed of the metal like aluminium or raided strands of copper. In terms of braided screens of Tin Plated Copper (TPC) wires and Aluminium/Polyester (Al/Pr), both the foils and braided are considered to offer safety from electrical interference either from other sources within the cable like data and power cores in the same cable or from external sources. Braided screens provide a great amount of copper. It’s beneficial at lesser frequencies. Foil screens offer hundred per cent coverage, which is more efficient and effective at higher frequencies. A mixture of both braid and foil thus let you get the best screening over an array of frequencies. Shielded and Screen Cables are applied for electrical, mechanical, and magnetic protection. From a well-positioned stand screening on existing cable designs to the best possible screening for high performance applications, we at Elacabewires provide you with the best cabling solutions to ensure value balanced against desired performance.  We at Elcabwires provide excellent products and services, focusing on customer centric approach rather than profit making marketing strategies in such fast-paced market. We are established in Pune,(western) India and manufacture and deliver quality and guaranteed shielded and screen quality. Our products are of utmost qualities, leading to last-long and give proper support.

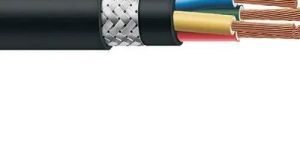

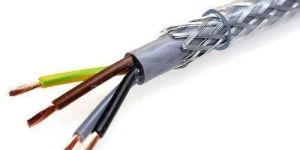

Braided Screened Cable
25 Per Meter
3 core screened PILC Cables
Get Price Quote
Heat Shrinkable Straight Through Joints suitable for 3 core screened PILC Cables Upto 36 kV (Umax-24kV & 36kV). The design has been focused to provide the basic important functions required for medium voltage power cable accessories including the electric performance, stress relief measure, environmental seal, mechanical fatigues and other related performance parameters laid down in different countries for various service conditions. Permanent radial pressure equally distributed on cable profiles.
