Screw Capping Machine Dealers

Automatic Screw Capping Machine is versatile, self-supported on stainless steel leg with height adjustable adjustment system. The screw capper machine is precision built on sturdy welded steel frame completely enclose in stainless steel sheet and doors are providing to facilitate the servicing of screw capper machine.

  Automatic Ropp Cap Sealing Machine / Screw Capping Machine   1) 1/2/4/6/8 head Model, The machine is fitted with S.S. Slat chain conveyor.2) The machine is fitted with A.C. drive for the conveyor.3) Bottle indexing mechanism for smooth movement4) No container No CAP arrangement5) SS 304/316 GMP model

We have automatic screw capping machine. Model cptsc - 60 150 200 head : 1 4 6 bottle dia : 24 to 90mm bottle height : 50 to 250mm cap die : 20,25,28mm through change part output : 30 to 50 bpm depend upt on bottle & cap size : 50 to 150 bpm : 100 to 180 bpm depend up on bottle & cap size power require:1 hp, 50 hz. 1400 rpm0.125hp.3 phase :1 hp, 50 hz. 1400 rpm0.125hp.3 phase :1 hp, 415 volts, 50 hz. 4 wire system net weight : 450 kg. Approx. :750 kg. Approx. :750 kg. Approx. Gross weight :600 kg. Approx. :950 kg. Approx. :950 kg. Approx.

Automatic Multi Head Bottle Screw Capping Machine - Rotary Models ASCB-100/150/200 are suitable for Plastic Screw Caps. Machine is suitable for Glass/Plastic/PET/HDPE or LDPE Bottles in Round or other shape. The machine has maximum speed of 100/150/200 Bottles (Respectively for Models ASCB 100/150/200) per minute depending on Bottle Diameter, Bottle Height, Bottle Shape and Cap Size. Machine construction is in S. S. finish as well as machine M. S. frame structure is also S. S. Cladding/Enclosures. The Screw Capping Machine is ideal for application in Pharmaceutical, Food, Chemicals, Cosmetics, Pesticides & Other Industries.The Machine is provided with Orientations type Cap Feeder or Vibratory type Bowl Feeder depending on cap shape and size for continuous feeding of Caps for online operation on any liquid or powder filling line. The Machine is also suitable for various sizes of Bottles and ROPP Cap with the help of change parts. Capping Machine is suitable in Pharmaceutical and other industries where higher production speed is required on automatic online operation.   SPECIAL/OPTIONAL* FEATURES : Single Drive synchronizing operation of Conveyor and Star Wheel In-feeder and Exit Star Wheels with Overload Clutch System to avoid Bottle breakage No Bottle - No Capping System No Cap - Machine Stop System - Interlock system for convenience Machine construction in Stainless Steel Finish Cap Feeder with Variable Speed System to control feeding of caps Minimum Change Over and Setting time Hopper can be completely dismantled for easy cleaning

We hold expertise in offering a wide range of Screw Capping Machines that are developed as per the set industrial standards. Offered product range is acclaimed for high performance, sturdy construction and accurate dimensions. Screw Capping Machines are available in different sizes, specifications and dimensions as per the exact requirements of our clients.   Features: • Output: 40 - 6We hold expertise in offering a wide range of Screw Capping Machines that are developed as per the set industrial standards. Offered product range is acclaimed for high performance, sturdy construction and accurate dimensions. Screw Capping Machines are available in different sizes, specifications and dimensions as per the exact requirements of our clients.   Features: • Output: 40 - 60 Bottles/Min• Size of Cap: 22/25/28/31.5 mm• Also an ROPP Capping Machine • Fully automatic0 Bottles/Min• Size of Cap: 22/25/28/31.5 mm• Also an ROPP Capping Machine• Fully automatic

We offer motorized operated fully automatic rotary screw capping machines. We have models starting from single head followed by four head, six head and eight head. In automatic machines, the bottles are loaded on conveyor manually at entry and all other process of filling will be done automatically. If needed, conveyors of both filling and capping machine can be merged so bottles after filling will be transferred automatically from filling conveyor to capping conveyor. The speed of capping machine can be synchronized as per the speed of filling machine with the help of Variable Speed drive. Some bottles are given worm feed entry with the help of which the bottles are loaded into star plate with timing at high speed. We can also Synchronize Turn Tables and Collection tables at start and end of the capping machines if needed.

Salient Features: No container no cap arrangement. Single motor synchronizes conveyor, star wheel, & platform turret. Adjustable height of conveyor belt. All contact parts are made out of stainless steel. Pick & Place arrangement. Torque adjustable Low noise level, low power consumptions.

We offer a wide range of high performing Screw Capping Machine that is perfect for tightening screw caps on to bottles. The Screw Capping Machine works to give consistent closures, ensured by matching cap chucks to the caps and comes with adjustable closing torque, apt for both delicate handling and constant closing torque. Extra bottle grip and capping head sets are available on request. Models Offered FC10Screw caps handled : up to Ø mmBottle capacity : 10 ml to 500 mlFC32Screw caps handled : up to Ø mmBottle capacity : 30 ml to 1,000 ml Working Mechanism Bottle is pressed against the bottle grip by the operatorScrewdriver and the cap chuck are lowered to the bottlePressure activates screwdriver and it spins to reach preset closing torqueMachine returns to original position after capping the bottle Details Air supplyClean and dry air at 6 bar 85 l/minFree air by capping : 1,200 units/hourTorqueVariable 1-4 NmStandard black springCaseAnodised aluminiumAccessoriesCap chuckBottle toolService parts kit Why our Screw Capping Machine ? Closing capacity : 1,200 units/hrEasier and flexible operationQuick set up for new cap sizesMaximum productivity for closing processOperator is protected from repetitive strain injury Finds Application in Pharmaceutical industryCosmetic industryFood processing industry

We are a renowned organization involved in providing a premium quality collection of Automatic Screw Capping Machine to our clients. The offered machines are specially designed to increase the storage capacity of a bowl. Apart from this, customers can avail these machines in several specifications and in bulk quantities, as per their requirements. Features :  No container no cap arrangement  Single motor synchronizes conveyor, star wheel, & platform turret  Adjustable height of conveyor belt  Pick & Place arrangement  Torque adjustable  Low noise level, low power consumptions Optional Features :  Motorized Height Adjustments  Acrylic cabinet  Safety guard for operation and protection  Specially designed hopper is to increase storage capacity of bowl Technical Specifications :  Container Size: Round Shap: Ø 22 mm to Ø 100 mm, Respectively Height 40 mm to 240 mm  Flat / Square: 15mm to 100 mm (Length)  Respectively 10mm to 50 mm (Width)  Respectively Height 40 mm to 240 mm  Model: SVSCM-100, SVSCM-150, SVSCM-200  Output/Hour: 3600 to 6000, 3600 to 9000,5000 to 12000

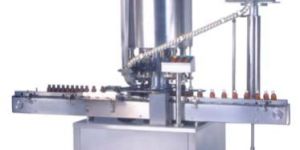

AUTOMATIC  ROPP  or SCREW CAP SEALING MACHINE Automatic Ropp cap sealing machine is versatile, self supported on stainless steel leg with height adjustable adjustment system. The machine is precision built on sturdy welded steel frame completely enclose in stainless steel sheet and doors are providing to facilitate the servicing of machine.  OPERATION The feed container moving on conveyor belt are feed into an in feed star wheel, bringing the container below the sealing head in the subsequent indexing part, mean while the bottle pickup a cap from the delivery chute of cap feeling bowl, where the body and the neck of the container are positioned below the rotating head, where the sealing head is performing perfect operation of threading & sealing. Specially designed hopper is provided for more storage capacity, deliver cap to delivery chute with correct position that ensures the perfect position of the cap at the end of delivery chute. The capping head rotate along with the main turrent and perform the capping operation.   Output per Hour as per your requirement                         1) 3600 to 6000 bottles.           2) 3600 to 9000 bottles.        3) 4000 to 12000 bottles.   SALIENT FEATURES No container no cap arrangement Single motor synchronises conveyor, star wheel & platform turret. Adjustable height of conveyor belt. All contact parts are made out of stainless steel. Sealing pressure can be varied to suit different gauges and size of caps. Specially designed hopper is provided to increase storage capacity of bowl. Low noise level, low power consumptions. No cap No container arrangement (optional) Self lubrication UHMW-PE guide profile for SS slat chain provides low friction wear surface, smooth Andnoiseless conveying. Drain tray around machine platform. SS cladding or hard chrome palting of all exposed parts to ensure long life and resistance against cprrosion. SyncronizedA/c drive to synchronize, conveyor, star wheel and platform turret & capping bowl. Universal coupling for quick and easy setting of In-feed worm. Adjustable bottle height gauge for easy and quick setting     OPTIONAL FEATURE No cap no container arrangement. Motorized height adjustments system. Acrylic cabinate.     UTILITY REQUIRMENT   Electrical Supply               :     3 Phase+Neutral+Earthing   Electrical load                   :     1.5 KW

We are offering screw capping machine. The semi automatic cap sealing machine is precision built on sturdy welded steel frame completely enclose in stainless steel sheet and doors are provided to facilitate the servicing of machine. Machine is having motorized rotating head mechanism, which ensures proper cap sealing with uniform torque. Application this machine is used in scre capping of bottles and jars. Features the unit is made compact & versatile. S.s. Elegantly matt finished body. Built in front control panel.quick setting.motorized head movement. No change parts require for different container diameter.low noise level, low power consumptions.adjustable bottle height gauge for easy and quick setting. Ss cladding or hard chrome plating of all exposed parts to ensure long life and resistance against corrosion. Sealing pressure can be varied to suit different gauges and size of caps. Specification output 40 to 60 bott min power characteristics 440 volts, 3 phase ( 4 wire system ), 50 hz. Input specifications container dia 22 to 65 mm container height 38 to 120 mm cap dia 22 mm, 25 mm, 28 mm and 38 mm

The filled bottles moving on conveyor belt and feed into an in feed star wheel. While moving in feed bottles need to be feed with the suitable caps MANUALLY.

We are counted amongst the leading Single Head Screw Capping Machine Manufacturers, Exporters and Suppliers in overseas market. We use optimum quality raw material for fabricating this leading Single Head Screw Capping Machine. These leading Single Head Screw Capping Machines are capable of tightening most of the caps and bottles and are also used for glass packaging purposes. Used For : Plastic caps LDPE capsHDPE capsPET capsGlass packaging Specifications : Machine Head with Adjustable tightening torque 1 Hp drive motor with gear box Clutch type starwheel Output of 50 bottles per minute

We are known as one of the eminent Screw Capping Machine Manufacturers, Exporters and Suppliers, based in India. The Screw Capping Machine, which we provide, is acclaimed amidst the clients for its superb performance and longer working life. The Screw Capping Machine is offered by us at the most reasonable prices. Features :Screw Capping Machines are suitable for tightening PP Caps on containersCapping Tools are designed in different ways depending on the Cap designBowl Feeder is used for feeding caps automatically on to the containers in proper positionPressure feeding/Screw feeding of containers is done depending on the container shapeMachines are fully automaticCapacity up to 100 containers/ minMachine has a variable speed over a continuous rangeMachines require very less maintenance
