Sealed Keyboard Dealers

(7 products available)

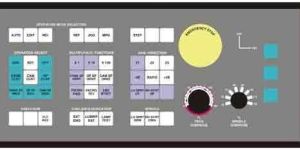

Sealed Keyboards

Get Price Quote

FeaturesGold plated contacts for superior switch performance,Can accommodate LEDs / Components thus saving space inside the equipment,Polyester Overlay used to withstand even Industrial solvents.
Thickness ranging0.4 mm to 3.2 mm
SR Graphics

Shivane, Pune

8 yrs

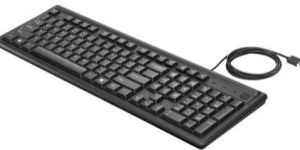

Sealed Keyboard

175 / Piece

MOQ100 Piece
Country of OriginMade in India
Total CarbohydrateOne Year
Key Numbers104
Keyboard TypeWith Wire
SizeRegular

...more
JAIN INFO - SOLUTION

Guwahati

5 yrs
PC Compatible Sealed Industrial Keyboards

Get Price Quote

Features: These keyboards offer better option for normal computer keyboards which can’t used at Industrial shop floor for data entry due to its sealed nature. Front Overlay legends design and color combination can be made as per customers' requirements. Light in weight hence easily portable. Additional function keys option possible. Function Keys can be programmed as per Customer's requirements. Just plug play and it's ready to use! Multi code output with single key possible. Common Features: Pcb : Glass Epoxy PCB FR4 Grade in thickness ranging from 0.4 mm to 3.2 mm ( Tin & Gold Plating ). Overlays: Polycarbonate - Lexan; Polyester - Autotex Led’s: All kind of Led’s with various colors and shapes i.e. Through hole (Dia 3mm to 10 mm) & SMD (1206, 0805, and 0603). Interface : PS2 & USB etc. Adhesives: Industrial Grade from 3M, Avery Dennision. ESD & EMI protection. IP Protection: IP 54 & IP 67. Specification: Key type : SPST normally open. Key Life : 1 - 3 Million. Operating current & voltage : 20mA/ 24V. Operating Temperature : -10 to 70 deg centigrade. Interface : PS2 & USB interface. Application : CNC machine. In Bio-medical equipments. Elevator Buttons. Defense.
...more

GANRAJ KEYBOARD TECHNOLOGY INDIA

Parvati, Pune

11 yrs
PC Compatible Sealed Keyboard Panels

Get Price Quote

Contact ArrangementSPST, Normally Open.
Current/Voltage Rating10 mA at 24 VDC (Max) in to resistive load only
Contact ResistanceCompatible with MOS, TTL & DTL Circuits.
Contact BounceLess than 10 milliseconds at make & 20 milliseconds at break.
Key Travel380 microns.
Life ExpectancyOne million to 3 million operations per switch.
Operating Temperature-20oC to + 65oC.
Humidity95% RH at 40oC.
BaseGlass Epoxy PCB FR4 Grade in thicknesses ranging from 0.4 mm to 3.2 mm.
PlatingGold Over Nickel; Bright Acid Tin.
AdhesivesIndustrial Grade from 3M..
OverlaysDifferent types of Polyesters from Autotype

These are Industrial Sealed Keyboards which can be connected to a computer directly as the switches are programmed to give an ASCII code through a PS2/USB output. The Industrial Sealed Keyboards can be customized as per requirement not only by way of size, shape, number of switches, etc., but by even programming each switch to give a customized code. SBL has tied up with Sprintek USA who offer different type of ICs/EEPROMs that can offer various types of configurable PC based keyboards. Industry : Industrial Electronics, Process Controls, Defense Equipment, etc. Applications: PLCs, CNC based Machine Tools, Special Purpose Machines (SPMs), Defense Applications, etc. Technology : PC based keyboards are programmed to offer ASCII codes by using special ICs/EEPROMs. These ICs/EEPROMs are programmed to offer the code as per customers’ requirements. These Chips can configure up to 256 switches and can also control 128 LEDs. SBL offers both the Hardware (interface cards) and the software programming required in customized versions. Besides offering the PC based keyboard switches, Sealed Touchpads are also offered to make an integrated PC based Sealed Keyboards with Touchpad. Overview Industrial processes are now controlled more and more by computer systems. All such computers used are usually located in Shop Floor environments, which by any standards tend to be unclean. Normal switch keyboards used to operate such systems are always affected by the harsh environments in the Shop Floor area. SBL therefore offers a Industrial Sealed PC compatible keyboard which can with stand these harsh conditions prevailing on Shop Floors or other areas. The Keyboard is similar in construction to the Snap Dome Sealed Keyboard. It is housed in an IP55 grade enclosure and can be used as a desktop device. Keyboards with out enclosures can also be provided for direct assembly on the Panels. Besides the standard 104 switch keyboard (with Trackpad) SBL can also customize the layouts and size of such keyboards. SBL also offers the freedom of using customized ASCII codes to suit every requirement. Features Replaces the normal ASCII Keyboard with respect to the software, dimensions, circuits, legends, etc. No complicated fitments or programming is required. Just plug in the PS2/USB socket into the Keyboard port and it's ready to use! Industrial grade components used to withstand harsh environments. Multiple data entry protection provided. Auto reset facility offered. IP55 Grade Enclosures offered. Function Keys can be programmed as per Customer's requirements. Additional function keys can be offered.

...more
Solar Biotronic Laboratories Private Limited

Prabhat Road, Pune

15 yrs
PC Compatible Sealed Keyboard Panels

Get Price Quote

These are Industrial Sealed Keyboards which can be connected to a computer directly as the switches are programmed to give an ASCII code through a PS2USB output. The Industrial Sealed Keyboards can be customized as per requirement not only by way of size, shape, number of switches, etc., but by even programming each switch to give a customized code.
...more

SOLAR BIOTRONIC LABS. PVT. LTD.

Prabhat Road, Pune

16 yrs
Sealed Keyboard

Get Price Quote

Sealed Keyboard, Computer Microphone, DVD Rom Drives, Scroll Mous

Krishtech Computers

R S Puram, Coimbatore

9 yrs
Sealed Keyboard

Get Price Quote

Sealed Keyboard, VGA LCD Monitor, DVD Combo Drive, USB Microphon

Sai Computers

Sada, Gwalior

9 yrs
