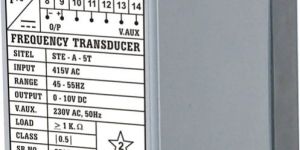

We are offering frequency transducer ste-a_5t converts a frequency into an output signal that can serve several receiving instruments such as indicators recorders, alarm units etc. The input voltage signal is stepped down and galvanically isolated by a transformer t. The zero crossing of the signal is detected to triger a precision quartz controlled monostable circuit q. For each cycle of the input signal, the monostable switches a highly stabilized d.c.voltage to an amplifier a. The output of the amplifier, a constant voltage with fixed pulse width is filtered and averaged. The average signal is proportional to the frequency of the input signal. To suppress the initial range, for instance up to 45hz a fixed voltage is subtracted. The difference is fed to a current converter c to provide a load independent d.c. Current output, which can be either bipolar or unipolar

The Type 5000 PI Transducers is a compact, rugged and reliable two-wire pressure transmitter, expressly designed for industrial field service. This precision unit converts a signal pressure input into a precise 4-20 mA or 10-50 mA output. The lightweight housing includes a 1/4 NPT pressure port and 1/2 NPT conduit port for field wiring. Connections are easily accessible via top cover removal. Zero and span adjustments are available within the field wiring compartment for fine, on-site calibration adjustment. The Type 5000 pressure transmitter uses a unique, temperature compensated piezoresistive transducer, suitable for gauge pressure measurement of non-corrosive liquids and gases. The sensor has excellent dynamic response and is virtually insensitive to mounting orientation and ordinary industrial vibration. Mounting holes on the transmitter housing are arranged to permit direct pipe (2″) mounting for minimum installed cost.

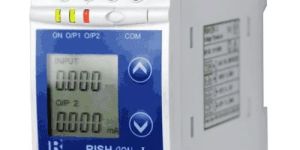

Rishcon-VI measures and convert AC V or I of RMS input signal to proportional 1or2 analog output load dependent Vdc or independent Idc. Universal Aux with accuracy ±0.2% & TRMS measurement. Onsite input output configurable, 7Segment LCD Display, RS485 communication.

Available versions: Standard; ATEX; CSA; Schiff & Offshore; with front-flush diaphragm The The pressure transducer series HDA 4300 is equipped with a ceramic pressure measurement cell with thick-layer DMS, which was specially developed for relative pressure measurement in the low-pressure range. The 4 ... 20 mA or 0 ... 10V enable the connection to all measurement and control devices of HYDAC ELECTRONIC GmbH and the linkage to commercially available control and regulation units. The variant with the front-flush diaphragm was specially developed for applications in which the media used could lead to a blockage, gumming-up or freezing of a standard pressure connection. The main areas of application lie in the low-pressure ranges of hydraulics and pneumatics, particularly in refrigeration and air-conditioning, food and pharmaceutical industry applications. Further applications include processes where the medium changes frequently and any residues could cause mixing or contamination of the media.

We are a prominent Manufacturer and Supplier of D.P. Pressure Transducer. Our D.P. Pressure Transducer is manufactured using the quality materials thus ensure high durability. The D.P. Pressure Transducer offered by us, conforms to industrial quality standards. Further, we provide D.P. Pressure Transducer at affordable prices.

We are one of the eminent names of the business to engage in offering AC Voltage Transducers. Characterized by user adjustable zero and span control, these efficient transducers are applauded for their excellent quality. Manufactured in adherence to the set industry guidelines, these devices are efficient in performance and require minimal maintenance. Models available on request with different Aux and Input range. Features: Tough in construction Supreme functionality Easy to maintain   Other Details Isolated output (3.0 KV) Excellent linearity Enclosures suitable for DIN RAIL mounting /Flush mounting Ex-Stock delivery or within 2 weeks Models available on request with different Aux and Input range User adjustable Zero and Span control Enclosure size : 42 x 75 x 175mm Power ON LED Indication for all models 12 months Warranty (Extended warranty for bulk/regular buyers) Operating Temp : 0-60 deg C
