Servo Systems Dealers

Product Name AC Servo System Part No MUMA012P1U Brand Name Panasonic Description Ultra compact servo for low stiffness machines Brand Name :Panasonic Output (W) :100 Application Driver Standard Type :MKDET1505P Application Positioning Type :NA Input Power Supply :Single phase3-phase 200V Rated Speed (RPM) :3000 Rated Torque(Nm) :0.32 Frame Size :K Inertia Ratio (x 10-4 kg � m2) :0.032 Encoder Resolution :20-BIT Incremental Brake :X Software Download :Acservo-panasonic

As the technology of microprocessor unit becomes more advanced and much further, the development and cost effectivity of permanent magnet manufacturing technology for servo motor and high power and high performance semiconductor power devices is improved continuously. Therefore, AC servo motor and AC servo control system have become the basic techniques for accomplishing automation control technology in current industry field. Delta servo system is an omnibearing integrated servo system which is based on Delta’s strength in industrial and electronic technology and developed for different customers’ requirements of various application machine tools. All ASDA series servo drives are provided with a superior digital signal processor (DSP) which represents a high-speed performance of the control circuit loop. Besides, the other features of Delta ASDA series, including gain tuning, smooth motor operation and software analysis / monitor function, also provide high-speed and high-precision motion control for a wide range of industrial automation applications.

Product Name AC Servo System Part No MUMA5AZP1U Brand Name Panasonic Description Ultra compact servo for low stiffness machines Brand Name :Panasonic Output (W) :50 Application Driver Standard Type :MKDET1505P Application Positioning Type :NA Input Power Supply :Single phase3-phase 200V Rated Speed (RPM) :3000 Rated Torque(Nm) :0.16 Frame Size :K Inertia Ratio (x 10-4 kg � m2) :0.021 Encoder Resolution :20-BIT Incremental Brake :X Software Download :Acservo-panasonic

KuSaBa Engineers Private Limited offers a range of servo products in the field of BLDC (Brushless DC) Servo Motors, DC Servo Motors, Disk Armature Motors etc. These motors are available starting from fractional wattage to 50 kilowatts. The range includes Standard Motors, Explosion Proof Motors, Extremely Flat Motors etc

DA200 Series AC Servo System is a new generation star product made by INVT, which  is greatly improved in performance.It can satisfy needs in many different fields with its easy use, high reliability and good adaptability to the environment. DA200 Series AC Servo System achieves the first level in servo control field in China. Application： DA200 series servo system is widely applicable to CNC industry, electronic equipment, printing equipment, packaging equipment and woodworking machinery, etc. The features of the DA 200 AC Servo System are as follows：   1 Rapid speed response Speed response frequency is more than 2.0 kHz，reducing the adjusting time and ranking the top in the circle.   2 Excellent positioning accuracy 2500-wire incremental, 17/20-bit absolute and 16-bit rotating transformer encoders are applied to increase the positioning accuracy and enhance the stability.   3 Close-loop control Support the external encoder or grating ruler for full closed loop control and the gap shadow reduction and higher positioning accuracy.   4 Internal position control 128-step internal position control and simple programming through terminals combination for less PLC units and cost.   5 Various communication interface Modbus, CANopen, PROFIBUS-DP,  EtherCAT, MotionNet and other bus communication, long-distance, high-speed multi-axis synchronous control through networking.   6 CAM function Embedded CAM function for the flying shear, paper printing, textile sending and so on. The user can make or modify the internal cam curve automatically or manually through PC software.   7 Input and output signal distribution channels of digital and 6 channels of analog input and output signal can be distributed by parameters. ServoPlorer software can be modified by special interface.

CD-Series We are engaged in rendering a wide gamut of Ac Servo Systems that is designed by certified vendors of the market using high grade material and latest technology with the set universal standards. Offered systems are checked against various parameters under the strict supervision of quality controllers at vendors’ end to ensure flawless deliveries. In addition to this, these are made available in various specifications of our prestigious clients. Features: •  Precision-designed •  Reliable performance •  Enhanced functioning life Specifications: •  100W ~ 2KW (1Ø/3Ø, 220V) •  Built in Position Mode, Velocity mode, Torque mode and Internal position mode •  CD drives have fast response frequency, high accuracy and high overload capacity because of advance controlling algorithm inside •  Very easy to control 7 Digital Inputs and 4 Digital outputs •  Parameter can be programmed by manually and PC based software •  Built In RS-232/RS-485 •  CD drives can be used for the application of Circular interpolation, Cut to length, Machine tools etc

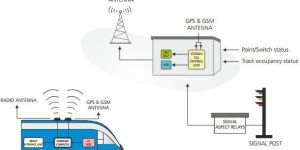

Station TCS is the network of control unit, radio unit, and an array of passive radio frequency identifier (RFID) tags positioned at all the crucial location s of the station and block section placed in the vicinity of the station. Loco TCS is an onboard control unit connected to a speed sensor, RFID reader, radio unit, and display unit. Loco TCS RFID reader is mounted under frame of the locomotive such that it can read the RFID tags fitted between the rails and collect data like unique tag id, direction of travel, unique track identification number (TIN). This data is communicated to the station TCS through the radio link. Station TCS locates the train in its database, based on the RFID tag ID and sends the information like approaching signal aspect, distance to the locomotive TCS. Loco TCS uses the information provided by the station TCS like approaching signal aspect, movement authority (MA), and collects the speed of the train through sensors mounted on loco axle to determine whether the loco is traveling in safe speed limits. In case, the locomotive is running beyond safe speed an alert is sounded to the loco pilot for 5 seconds before initiating the brakes and bringing the train to a complete stop.

we are we are one of the leading organization manufacturing, supplying and exporting a quality range of Variac System for Servo Stabilizer. Highly used for most of the Electronics application for the regulation of the voltage. This Servo Stabilizer is highly appreciated by our client due to its key features less power consumption, low maintenance cost, advanced design, compact size etc. and many more. Available in the range from 2 Amp. To 25 Amp. accordingto customer specification. The offered Variac system for servo Stabilizer is manufactured in confirmation with Indian standards. Additionally, we offer this variac system for servo stabilizer at a most affordable rate to our valuable customers. Key Features Easy to use Less power Consumption Low maintenance cost Long life Trouble free operation Advanced design Compact size

Combining the knowledge of Chinese and German engineers, Kinco servo and stepper drive products inherit the typical German symbols: high quality, high reliability and stability. Servo System comprises CD series, JD series, FD Series, and ED series.

Description : The integration of servomotor and electronic drive unit in the same housing makes this drive system predestined for applications requiring high flexibility and dynamics, such as those in the food & beverage and packaging industries. The decentralisation of the drive unit offers benefits in mounting, installation and operation. Depending on the application, up to 60 drives can be integrated into the servo drive system.

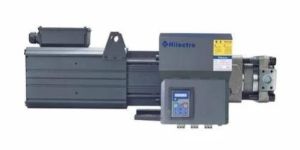

Hydraulic Servo System is mostly used in technical educational institutes, universities, engineering colleges and designed to provide the ease to the students. Moreover the assortment of the Electro Hydraulic Servo System is accessible within the various specifications. The stringent quality norms have been always followed by us to cater the best of the best product range to our prestigious clients. In addition, we stand as the eminent Hydraulic Servo Control System Manufacturer and Exporter from India. CON-02 INTRODUCTION Feed back control systems are commonly used in controlling various system parameters like temperatures, speed, level, position etc. Those control systems normally include set point input actuating signal controlled variable and feed back. In the practical Hydraulic System, it is always observed that the prediction made by using electrical counterparts in mathematics do not hold in practice. Besides due to inherent non liniarities of Hydraulic System, it is also difficult to predict their behavior. Because of this drawback, students get confused and it is having its effect on the thinking process of the students, hence ' EEE' has developed Hydraulic Servo System. This equipment is able to give the feel and the judgement of actual performance of the system. It can be possible by varying the values of various parameters and anyone can understand, performance, inter-relationship between parameters. Initial part of the equipment is the basic servo system. This includes a power-pack, a four way spool valve used as a servo valve, the output cylinder, input and feedback linkages. A sliding spool type servo-valve supplies fluid to a piston whose motion is feed back through mechanical linkages to actuate the servo-valve and closed the loop. The translational output is converted into rotational output. The input and output displacements are transferred to recording pens through flexible linkages. A synchronous motor is used to feed paper strip at a constant speed on which input and output curve are obtained simultaneously. To simulate inertia load on the output side, a load disc is mounted of which weights are clamped and the inertia can be varied. A damper is attached to the output jack, to study the effect of damping on the output curve. Damping is varied and its effect on output is observed. RANGE OF EXPERIMENTS Response at various pressures by 1. Step Input & cams at no load. 2. Response with Intertia load, and 3. Response with Viscous damping. FEATURES Totally open construction for easy understanding of functions. Incompressible working fluid. Working pressure changeable from 0.5 to 25 kg/cm , single phase electric operation Ordinary ball pen recorder. SPECIFICATIONS 1. Potentiometer for input and output movement recording over recorder. 2. ADC card to transfer variables like input output movements / pressure etc. to PC. 3. Air compressor 2 HP with control circuits for air supply. 4. Windows based software for servo system analysis. 5. Computer P4 / 40GB HDD / 128MB RAM / Keyboard / mouse / 15"Monitor color monitor / 52xCD Rom Drive. INSTRUCTION MANUAL A copy of an instruction Manual accompanies the equipment. This details the equipment and describes procedure of operation. SERVICES REQUIRED 2.0 m X 1.5 m floor space area. Approx. 60 lit. SAE 20 lubricant Oil. Single phase supply. CON-04 INTRODUCTION The EEE Oil Hydraulic Trainer is designed to give the clear understanding of capabilities of hydraulic components for automated production to students of mechanical and production engineering. It is versatile. Portable equipment based on the present needs of engineering college curriculum. Through the operation manual describes about 15 different hydraulic circuits for building, users can increase this number. For reliable performance all the components used are reputed manufactures. For quick building circuits and avoiding leakages quick couplings with double shut of are is used. Besides different hydraulic circuits. It is possible to study individual components for its characteristics about which guidelines are given in instruction manual. FEATURES 1) Mounted on caster wheels for portability. 2) Quick connections. Double shut off couplings for building circuits without any tools. 3) Special sub plates for all components for front connection. Enabling observation of circuits and ease of understanding of role of each components in circuits. 4) Loading arrangement to cylinder gives added value to the equipment. SPECIFICATIONS SCOPE OF SUPPLY :- 1. Power pack :- Sump 20 Liter capacity. / Pump: vane for gear type / Maximum flow: 10 L.P.M. at working pressure 35kg/cm / Driver Motor: 1 HP. single phase. / Induction motor 1440 rpm.Pressure relief valve for safety & pressure adjustment. 2. Vane / Gear Pump. 3. Relief Valve. 4. Return Line Filter. 5. Reservoir. 6. Pressure Gauge for pump. 7. Direction Control valves. 8. Flow Control valve. 9. Sequencing valve. 10. Pressure reducing valve. 11. Hydraulic cylinder. Double Acting ( 1No.). 12. Two numbers of pressure Gauge will be provided for measuring pressures. 13. Solenoid operated directional control valve. 14. Non return Valve. HYDRAULIC CIRCUITS :- 1. Extend, Retract and Stop ( Linear Actuator ) 2. Regenerative Circuits, 3. Direction control of Rotary Actuator ( Hydraulic Motor ) 4. Speed Control Of linear Actuator. 5. Meter In and Meter Our Circuits . 6. Sequencing of two Actuators. 7. Deceleration Circuit. 8. Counter balancing circuits. 9. Sequencing with speed control. 10. Electrical Circuits. ( Travers, Feed, Retract ) SERVICES REQUIRED 20 Lit. SAE 10 Oil. 440 V.AC. 15 AMP. Three phase 50 Hz. Supply Space Required:- Floor space 3 m. X 2 m. INSTRUCTION MANUAL A detailed instruction Manual wherein a procedure of performing circuits & maintenance is provided.

Product Description Pneumatic Servo System RANGE OF EXPERIMENTS 1. Open Loop Test: For the measurement of piston velocity for various settings of again. 2. Dual channel oscilloscope if linear potentiometer system of response figures and precautionary measures.

We provide heavy-duty connectors that are used wherever there is a need for a secure, simple and time-saving assembly of machinery and facilities. Special modular connectors make it possible to integrate signals, power supply, pneumatics, and data connections into a single connector. Connectors which we provide define new standards with its comprehensive depth and width of its features.  These connectors have following advantage: Inserts A heavy-duty connector consists of a connector insert and its protective enclosure. The insert is therefore the heart of the heavy-duty connector. It is responsible for electrical functioning. Our inserts are made from high-quality insulation materials, which allow secure transmission of high voltages in a tight space. Moreover, we use only a single type of plastic in our entire product line.  Modular Inserts Modular system consists of modules and frames. Together they form a complete insert that integrates without difficulty into housing. The system allows you to choose combinations of different modules yourself and insert them in a frame.  Housings A heavy-duty connector consists of a connector insert and its protective enclosure. They are impact-and corrosion-resistant, compact and lightweight. Servo System: High Energy Saving Rate, High Stability, High Durability As we know, nowadays power saving concept using servo systems on Injection Molding Machines have made machines more economic and user friendly. Consequently old machines are becoming burden on user. We are committed to promotion of the energy conservation technology of the injection molding machine, strives to help customers promote efficiency and create value, explores the current and future demands of customers, and customizes the servo system with high cost performance by virtue of the professional skills. Change from high flow to small flow Meet needs and reduce flow and resource waste of special machines Change from common machine to high speed machine Consider growth, promote machine performance, and enhance competitiveness Change from common machine to special machine Meet production needs, improve efficiency or promote machine performance such as change from common machine to special machine for mobile phone

Features and Functions Specially designed cylinders, including telescopic cylinders to lift multi-stage antenna platform, and hold with near zero creep and hydraulically powered retraction

DB100 is the latest Universal AC servo system produced by Invt KINWAY in 2012. Power range: 200W ~ 5.5Kw, through pulse and analog quantity signal to control and through technology to break continuously to significantly enhance the performance of the products, that can meet the functional requirements of the universal industrial machine.Features Strong overload: the instantaneous torque up to three times overload, effectively overcome inertia moment of inertia loads at the moment of starting. Built-in mechanical resonance suppression function can effectively suppress the resonance phenomenon of mechanical structure . Excellent high-speed reflect performance: speed response bandwidth is more than 650Hz, the speed is from -3000r/min to 3000r/min. The acceleration time is just 6ms. A full range of models are built-in braking unit and braking resistor. 1kw servo drive can be directly 380v power supply to save into line transformer, reduce program costs. With automatic gain adjustment function that can be load inertia identification. The debugging is more convenient.

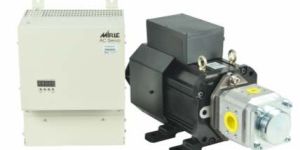

Servo System: High Energy Saving Rate, High Stability, High Durability As we know, nowadays power saving concept using servo systems on Injection Molding Machines have made machines more economic and user friendly. Consequently old machines are becoming burden on user. We are committed to promotion of the energy conservation technology of the injection molding machine, strives to help customers promote efficiency and create value, explores the current and future demands of customers, and customizes the servo system with high cost performance by virtue of the professional skills. Change from high flow to small flow Meet needs and reduce flow and resource waste of special machines Change from common machine to high speed machine Consider growth, promote machine performance, and enhance competitiveness Change from common machine to special machine Meet production needs, improve efficiency or promote machine performance such as change from common machine to special machine for mobile phone

MELSERVO introduces the latest servo amplifiers to the market based on the concept of Human (User friendly and Safety function), Machine (High performance) and Environment (Energy saving).

As per the varied needs of our customers, we are engrossed in presenting a broad collection of AC Servo System. Checked on a number of grounds before prior shipment of the order, these offered products are highly demanded. Additionally, these are developed in precision with the standards pre-set in the industry using finest quality inputs. Main Circuit/ Control Circuit Power Separation: Effective protection function, Simple to check Built-in Brake Unit: To meet the requirement of high inertia load changes Simple Gain tuning: Built-in 10 levels of system stiffness and ON-Line / OFF-Line auto gain tuning. Notch Filter: Effective suppression of mechanical resonance to provide a stable control system. Flexible Gain Control Switching: Speed loop PI(Proportional-Integral)control and P(Proportional) control switching can suppress overshoot and undershoot while motor speeds up or down. Built-in 16 Stored and programmable position settings, which enable point to point position control. PC operating software on Servo: With Chinese regular font/Chinese simple font/English version on SERVO for parameter read/write, gain adjustment, status indication and digital scope simulating for monitoring internal signals through RS-232 interface.

Yaskawa Electric Corporation Japan The new Sigma-V Servo-Drive Series Highest accuracy, easiest set-up and unlimited connectivity Servopack Type: SGDV 50W – 15kW Servomotor Type: SGMAV, SGMGV, SGMJV, SGMSV Sigma-5 is a servo pack, consisting of servo motors, servo amplifiers and a powerful set-up tool. Sigma-5 series offers rotary, direct drive and linear motors. They cover all market demands with regard to compact size, high dynamics, high efficiency, low maintenance and outstanding reliability. The most impressive feature of the Sigma-5 series is its positioning accuracy of up to 10 nm with standard products, while offering shortest positioning times. In addition, the well known autotuning function was optimised for the most sophisticated applications.  Applications Printing Machine tools Injection molding & Plastic processing Metal forming industries Textile machines Electronics & semiconductors Special purpose machines
