Shortwave Diathermy Equipment Dealers

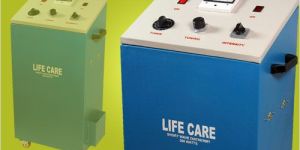

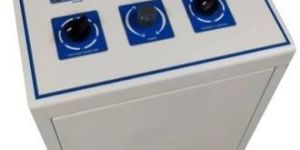

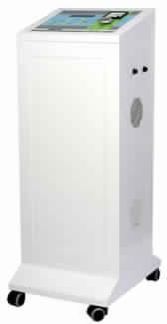

We are offering shortwave diathermy. Indotherm 500w is a heavy duty shortwave diathermy equipment to use in hospitals and busy clinics .it is mounted in castors to move place to place. It has plastic molded multi position arms set for setting the treatment place without disturbing the patient. Digital timer for setting the treatment time. application * rapid reduction of wounds * rapid re absorption of haematomas and oedemas * powerful stimulation of the peripheral circulation * post-traumatic and post operative disorders such as arthropathy, confusion, distortion, haematom. * other disorders such as ankylopoietic ,spondylosis , bursitis, coccygodinia, myalagia(acute ) and chronic sinusitis. specification * general frequency 27.12 mhz * power output 500 w (adjustable in 5 steps * timer digital timer 0-99 min. With acoustic signal and automatic cut-off. technical data * mains voltage 220v/50 hz * dimensions lx b x h 35 x 48 x 75cms.

JOHARI DIGITAL HEALTHCARE LTD is one of the leading Manufacturers, Exporters, and Suppliers of Shortwave Diathermy Equipment. Our Shortwave Diathermy Equipment has solid state generator and advanced configuration with special induction field circuitry to generate short-wave frequency of 27.12 MHz. This penetrates deeply into the muscle to impart heat through capacitive (larger surface effect) or inductive electrodes (larger deeper tissue effect). The device generates even frequency for treating tissues and joints with less interference to nearby devices. We Offer SWD RegularSWD Deluxe Details Frequency : 27.12 MHzWavelength : 11 metersPad electrodes and disc electrodes Features High-performance multi-jointed armsEasy-to-use controls and readoutsTreatment timer with automatic shutoffSafety circuitryContinuous and pulsed shortwave diathermyAutomatic tuning Benefits of SWD therapeutic heat VasodilatationImproved circulationImproved out-flow of lymphIncreased removal of waste productsRelaxation of spastic musclesOverall reduction of pain Indications Disorders of the muscloskeletal system, e.g. degenerative joint diseaseCapsule lesionsInflammatory conditions (chronic or acute)Carbuncles SinusitisPelvis conditionsInfected surgical incisionChronic rheumatoid arthritis and osteoarthritisSprains & StrainsHematomaMuscle and tendon tears Technical Specifications Outputs OneWaveform Symmetrical Biphasic Square WaveMode Continuous and PulsedOutput Power Continuous Mode : 250 Watt Pulsed mode: 400 WattTreatment Time Selectable from 1 to 30 minutesPower Selection Selectable in 4 stepsPulse Width Selectable from 1 to 4 millisecond (in pulse mode only)Rate of pulse Selectable 100,150,200 and 225 Hz (in pulse mode only)Frequency 27.12 MHzWave Length 11 MetersOperating Voltage 220VAC/50 Hz Accessories Pad ElectrodesDisc Electrodes (Optional)

SHORTWAVE DIATHERMY 500 W WITH DIGITAL TIMER(MODEL CRG 802)   Oscillating Frequency 27.12 MHz. Output power 500 watts. Elegant digital Timer with finger touch control switches. Slim & eye-catching unit on castor wheel with latest Disc electrodes. HT discountinues with buzzer beep sound after preset time. High-speed cooling fan inside to cool valve tube & cabinet. Guaranteed result – Oriented equipment. Latest silicon Heating pad electrodes. Special lock type pad cables.

This valve IS USED for diatheramy 500 watts, pvc welding machines, pre- HEATING purpose, AND for medical purpose the 833a IS A power triode INTENDED FOR USE in rf amplifier, oscillator, or class b modulator service. The 833A features rugged construction for high power rf transmitter applications. The envelope is fabricated from hard glass intended specifically for the high-temperature operation of transmitting tubes. The internal tube parts are supported by low loss ceramic insulators for high-temperature operation and high voltage hold-off. The rugged grid structure is particularly well suited for industrial heating applications. Technical specifications Electrical Filament Thoriated-tungsten Voltage (ac or dc) 10. 0 ±0. 5 vCurrent 10 a Amplification factor (average) 35 Direct interelectrode capacitances (grounded filament) grid to plate 6. 3 pf grid to filament 12. 3 pf plate to filament 8. 5 pf Maximum frequency for full ratings 30 mhz Mechanical Cooling Forced air Socket None. Post terminals Operating position Axis vertical, with filament posts up or down; horizontal with plate in vertical plane (on edge) Nominal dimensions diameter overall height 116. 8 mm (4. 60 in. ) 219. 2 mm (8. 63 in. )

LCS SHORT WAVE DIATHERMY UNIT (500W) - Its unique induction field circuitry provides a short wave frequency of 27.12 MHz that penetrates deep into muscle tissues with negligible heating in the fatty layer or bone. APPLICATION: Effective in Inflammation of Sholder Joint, Elbow Joint, Cervical Spondylosis, Osteoarthritis, Ligament Sprains in Knee Joints, Low Back Ache, Heel Pain, Sinusitis etc

EATURES : Manual Treatment Timer Most Common and globally used modality designed to run constantly to complete the rush of patient Variable power selection in 5 steps High speed cooling fan inside to cool valve tube Available poket for pads TECHNICAL DETAIL : Input Voltage : 230VAC, 50HZ Dimension : (L x W x H) : 520mm X 320mm X 900mm Weight : 40kg Approx Output Power : 500w of R.F Frequency : 27.12 MHz (Approx)

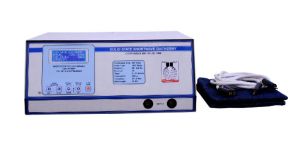

This new elegant high power SSD-500 with solid state generator present Shortwave Diathermy in its most advanced configuration to date. The unique induction field circuitry provides a short-wave frequency of 27.12 MHz that penetrates deep into muscle tissues with negligible heating in the fatty layer or bone. The solid state generator ensures a uniform frequency during treatment and longer life for the device. Plus you can work with much lesser interference to the other devices. Used in thousand of professionals or trained personnel in physiotherapy, rehabilitation or any type of Hospital setup.

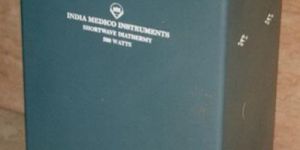

Shortwave Medical Diathermy 500 Watts : The unit has been specially designed for hospital and large physiotherapy centers where the machine is required to fun constantly for may hours to cope with the rush of patients. The unit can be easily used continuously for many hours due to its heavy components. Salient Features : Timer Switch 0 to 30 Minutes. Intensity Control in 5 steps forms 0 500 watts Endless tuning System Cooling fan to keep the Vacuum Tube cool.   Standard Accessories : Main cord 1 Pc Pad Electrode 1 Pair Electrode Wire 1 Pc Machine Cover 1 Pc Spare Fuse 10 Pcs Instruction Manual 1 Pc   Technical Details : Power Output 500 Watts (Approx) Operating Frequency 27.12 Mhz Wave Length 11 Meters Main Supply 220 volts 50 Cycles Fuse 5 Amp H.F. Power Source Vacuum Generating Value

We are offering shortwave diathermy equipment. oscillating frequency 27.12 mhz output power 500 watts elegant digital timer with finger touch control switches slim & eye-catching unit on castor wheel with latest disc electrodes ht discountinues with buzzer beep sound after preset time high-speed cooling fan inside to cool valve tube & cabinet guaranteed result - oriented equipment.

We manufacture and supply shortwave diathermy 500 watt. Technical Specification: Input Voltage: 500 watts RF Operating frequency: 27.12 Wave Length: 11 meters RF Power Source: Triode Valve Fuse: 6Amp. Main Supply: 220V. 50 Hz Weight: 45 kg. DImenssions: HxWxL 900x460x405(mm)

Product Description: Shortwave Medical Diathermy 250 Watts Portable The unit has been specially designed keeping in view the various needs of the profession for induction heating of the tissues using condenser pads. Being a portable units it can be used by the beside in Hospitals and Nursing Homes and can easily be taken to patient's home by Orthopedic surgeons and Physiotherapists. A treatment Time Switch is provided to start the machine. This timer switch automatically disconnects the circuit at the completion of predetermined dosage time. The intensity of heat can be adjusted by output control Rotary Switch in 5 steps. The machine is provided with a wide tunning range to work with all types of condenser pads. The output can be adjusted as per requirement cooling fan is fitted inside the machine to keep the circuit and Vacuum Valve cool during the treatment. The Unit has a Maximum output of 250 Watts. The operating Frequency is 27.12 MHZ. Technical DetailPower Output: 250 wattsOperating frequency: 27.12 MHz.Wave length: 11 MetersMain supply: 220-240 Volts 50 cyclesFuse: 5 Amp.H.F. Power source: Vacuum generating Valve.Standard AccessoriesMain cord: 1 Pc.Pad Electrode with cable, cloth & cover felt: 1 Pair.Machine cover: 1 Pc.Spar fuse: 5 Pc. Additional Information: Pay Mode Terms: LC (Letter of Credit),Other

Salient Features of Shortwave Medical Diathermy 250 Watts : This has been specially designed keeping in view the various needs of the profession of induction heating of the tissues using condenser pads. Being a portable units it can be used by the beside in Hospitals and Nursing Homes and can easily be taken to patient’s home by Orthopedic surgeons and Physiotherapists. This simple to use and highly efficient unit utilizes high frequency mode in five stage to maximum 250 Watts. The resonance can be controlled by a tunning knob, the completion of dosage time. The unit is housed in a sturdy and attractive cabinet.   Standard Accessories: Main cord : 1 Pc. Pad Electrode with cable jack pin : 1 Pair Machine cover : 1 Pc Spare fuse : 5 Pc Felts : 2 Pc   Technical Details: Power Output : 250 watts (High Frequency approx.) Operating frequency : 27.12 Mhz. Wave length : 11 Meters Main Supply : 220-240 Volts 50 cycles Fuse : 5 Amp. H.F. Power Source : Vaccum generating Valve

We manufacture and supply shortwave diathermy 500 watt. Technical Specification: Input Voltage: 500 watts RF Operating frequency: 27.12 Wave Length: 11 meters RF Power Source: Triode Valve Fuse: 6Amp. Main Supply: 220V. 50 Hz Weight: 45 kg. DImenssions: HxWxL 900x460x405(mm) Available Models: Manual & Semi Digital

Shortwave 500 W is a heavy duty equipment to use in hospitals and busy clinics. It is mounted in castors to move place to place. Digital timer for setting the treatment time.
