Slack Adjusters Dealers

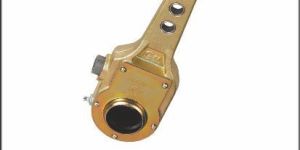

In a S-cam type foundation brake, the final link between the pneumatic system and the foundation brake is the brake adjuster. The arm of the brake adjuster is fastened to the push rod of the chamber with a clevis and the spline end is installed on the brake camshaft. Primarily, the brake adjuster is a lever that converts the linear force of the air chamber push rod into a torque which turns the brake camshaft and applies the brake. Two types of brake adjusters are in use; manual type brake adjusters, which periodically require a manual adjustment; and self-adjusting brake adjusters, which automatically adjust during normal service braking applications. All brake adjusters use the worm and gear principle and fundamentally differ only in their torque limit specification

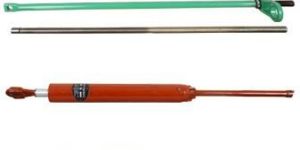

The Slack Adjuster DRV 2A 450 600 is a Brake Slack Adjuster i.e. a device for automatic adjustment of the clearance between brake blocks and wheels. It is built into the brake rigging as a part of a pull rod. This slack adjuster is double acting and rapid working i.e. it quickly adjusts too large or too small clearances to the predetermined value, it has been set to maintain.

The process of adjusting the shoe clearance manually is cumbersome and time consuming, as we will be seeing now. The brake adjustments need several steps. Jack up the wheels and keep rotating the wheel. Then press the worm shaft clock completely and rotate worm shaft until the wheel locks. After this, rotate the worm shaft in the reverse direction until the wheel starts rotating freely. Then turn the worm shaft slightly and release the lock. Repeat this process for all the wheels. As it is difficult to maintain uniform clearance on all wheels and this can result in vehicle pulling to one side while braking.

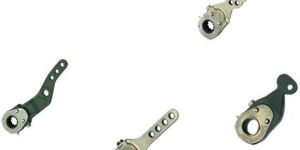

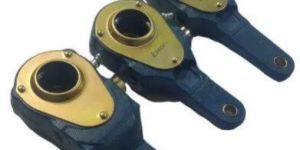

The b>Manual Slack Adjuster of our company is one of the best in the market. The Auto Manual Slack Adjuster of our company is an efficient one since it is manufactured using the latest technology. The Truck Manual Slack Adjuster lasts for a long period as it is manufactured using the best quality material. These are manufactured keeping in view the requirements of all kinds of vehicles. Besides a manufacturer, we are among the leading Exporters of Manual Slack Adjuster.

We are offering slack adjuster a device meant for automatic adjustment of the clearance between brake blocks and wheels. It is fitted in the brake rigging circuit under the frame as part of pull rod. Specifications § application capacity “j” (300,450,600 mm)§ plain end i.e. Without coupling § h1 spindle coupling § h2 spindle coupling § width of the adjuster ear “p” (either 30 mm or 40mm) § inner diameter of the bushing “d” (30, 37 and 40 mm or as per customer requirement) § normal steel spindle example: drv2a-450h2p-40d-37 design the slack adjuster is composed essentially of following parts: · adjuster spindle provided with screw threads of quick pitch · traction unit containing adjuster nut, adjuster tube and adjuster ear · the leader nut unit containing leader nut and barrel · control rod unit with head product range for rolling stocks · edrv 2a 450: with control rod and without hex socket for coaches · edrv 2a 450h: with hex socket and without control rod for coaches · edrv 2a 600: with control rod and without hex socket for wagons · edrv 2a 600h: with hex socket and without control rod for wagons references · european railways · new zealand railways · malaysia, thailand and indonesian railways

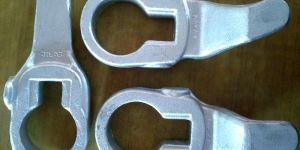

Established as a Partnership Firm in the year 2010, we “Dynamic Steel Forge” are a leading Manufacturer,Service Provider of a wide range of Casting Products

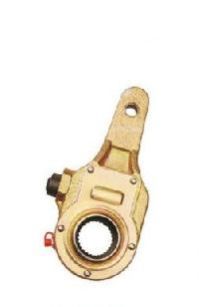

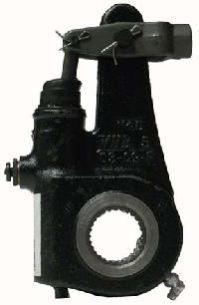

The Manual Brake or Slack Adjuster Assembly is used on commercial vehicles having Air Brakes with 'S' cam shaft. The purpose of this product is to transmit the braking torque to the 'S' cam and facilitate adjustment of the clearance between brake lining and the brake drum, which is primarily caused due to the wearing of brake lining. The slack adjuster assembly is mounted on the 'S' cam shaft and one end is connected to the push rod of the brake chamber. When the brake pedal is pressed, the air is let into the brake chamber and thrusts the push rod out. This in turn moves the slack adjuster assembly. As slack adjuster assembly is mounted on the 'S' cam shaft, the shaft rotates and forces the brake shoes away from the other and presses against the brake drum. Thus, the brake is applied.

The Manual Brake or Slack Adjuster Assembly is used on commercial vehicles having Air Brakes with 'S' cam shaft. The purpose of this product is to transmit the braking torque to the 'S' cam and facilitate adjustment of the clearance between brake lining and the brake drum, which is primarily caused due to the wearing of brake lining. The slack adjuster assembly is mounted on the 'S' cam shaft and one end is connected to the push rod of the brake chamber. When the brake pedal is pressed, the air is let into the brake chamber and thrusts the push rod out. This in turn moves the slack adjuster assembly. As slack adjuster assembly is mounted on the 'S' cam shaft, the shaft rotates and forces the brake shoes away from the other and presses against the brake drum. Thus, the brake is applied.

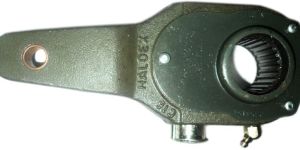

aldex India is a manufacturer of vehicle automatic slack adjusters and manual slack adjusters. The company also produces air brakes for commercial vehicles, automatic brake adjusters for air brakes of commercial vehicles, lining wear indicators, integrated lift axle system, and air treatment products such as ‘ConSep’ (Condenser cum Oil Separators – Electric and Pneumatic) and ‘ADV’ (Automotive Drain Valves). The company's well equipped manufacturing infrastructure includes two modern plants; and a full flash application and engineering development facility.

The organization is indulged in offering secured payment procedure including both online and offline methods. To maintain more clarity of the transaction, we offer an invoice as well. We are hailing from Faridabad(India) and make sure to reach buyer's specific destination within the promised time frame.

Two types of brake adjusters are in use; manual type brake adjusters, which periodically require a manual adjustment; and self-adjusting brake adjusters, which automatically adjust during normal service braking applications. All brake adjusters use the worm and gear principle and fundamentally differ only in their torque limit specification.

The Slack Adjuster is a device for automatic adjustment of the clearance between Brake Block and Wheal tread. Stone India made Slack Adjusters are double acting i.e. it can either increase or decrease the slack depending upon the requirement. Both DRV2 and DRV2A Slack Adjusters are manufactured as per SAB Sweden design in models DRV2-600, DRV2-450, DRV2-300 as well as DRV2A-600 and DRV2A-600 and DRV2A-450 for both Coach and Wagon application. In addition IRSA-600, IRSA-600J as well as IRSA-450 Slack Adjusters are also manufactured as per Indian Railway's standard design.

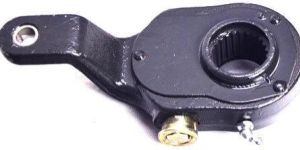

We provide Slack Adjuster that is used in all heavy vehicles such as truck, bus, crane, and other transportation vehicles� in break system. Slack Adjuster is very vital part for the break system and is counted amongst highly risky automotive parts. We are a well-known Slack Adjuster Manufacturer and Supplier in Gujarat, India. We make available Slack Adjusters in different sizes and shapes for several types of vehicles. Minimum Order Quantity : 500gm - 18kg

Slack Adjusters, Pneumatic Air Fitting, Cast Iron Shock Absorbe

Slack Adjuster, Connecting Rods, Links, Solid Forged Balls, Crank Shaft

TVS King Brake Shoe Adjuster, Bajaj Compact Brake Shoe Adjuste

Slack Adjuster, Close Die Forge Parts, Forging Auto Parts, Connecting Rod

Slack Adjusters, Auto Parts, Knuckles, Levers, Nonferrous Forgings, Pinio

Manual Slack Adjusters, Clutch Booster Assembly, Brake Chambe

Auto Slack Adjusters, Sheet Metal Stamping, Automotive Sheet Metal Component

Slack Adjuster, Railway Parts, Rail, Railway Component

Auto Slack Adjusters, Manual Slack Adjuster

Slack Adjuster, Slack Adjuster for Fuwa and York, Auto Brakes Part
