Slat Expander Roll Dealers

We bring forth our qualitative range of Slat Expander Roller, precisely engineered in our production plant. We check the Slat Expander Roller on various parameters and standards during production stages to ensure customers obtain a trustworthy product. More about Slat Expander Roller : We manufacture Aluminum Slat Expanders that are used for wrinkle removing on coating machines which are available in any length and standard diameter 6�. Bigger diameter can be made in Extruded Aluminum Slat Expander as per specific requirements. Normally plain surface is provided but for some applications, serration is required on surface for gripping. While ordering, one should provide the application temperature, web material, plain or serration required on surface, maximum speed of web material to meet all your requirements. For soundless working the rolls are also available with ball bearing type cam mechanism also. Normal expansion is 25mm. We are one of the most reliable Aluminum Slat Roll Expander Exporters based in India. Slat Expander Rolls are available also in wooden slat (Wooden Slat Expander Rolls) with felt covering and available in 6� diameter, 8� diameter & 12� diameter in any working width. Slat Expander rolls are particularly suitable for slow speed machines like coating, cloth coating machines, Flat Bed Printing machine, artificial leather cloth before batching machine etc. The Roll is fitted with cam mechanism fitted with bearings with left & right slats from center. For longer width three slats are fitted and middle slats are fixed to avoid V shaped wrinkle-removing action. These are available with foot mounting pedestals.

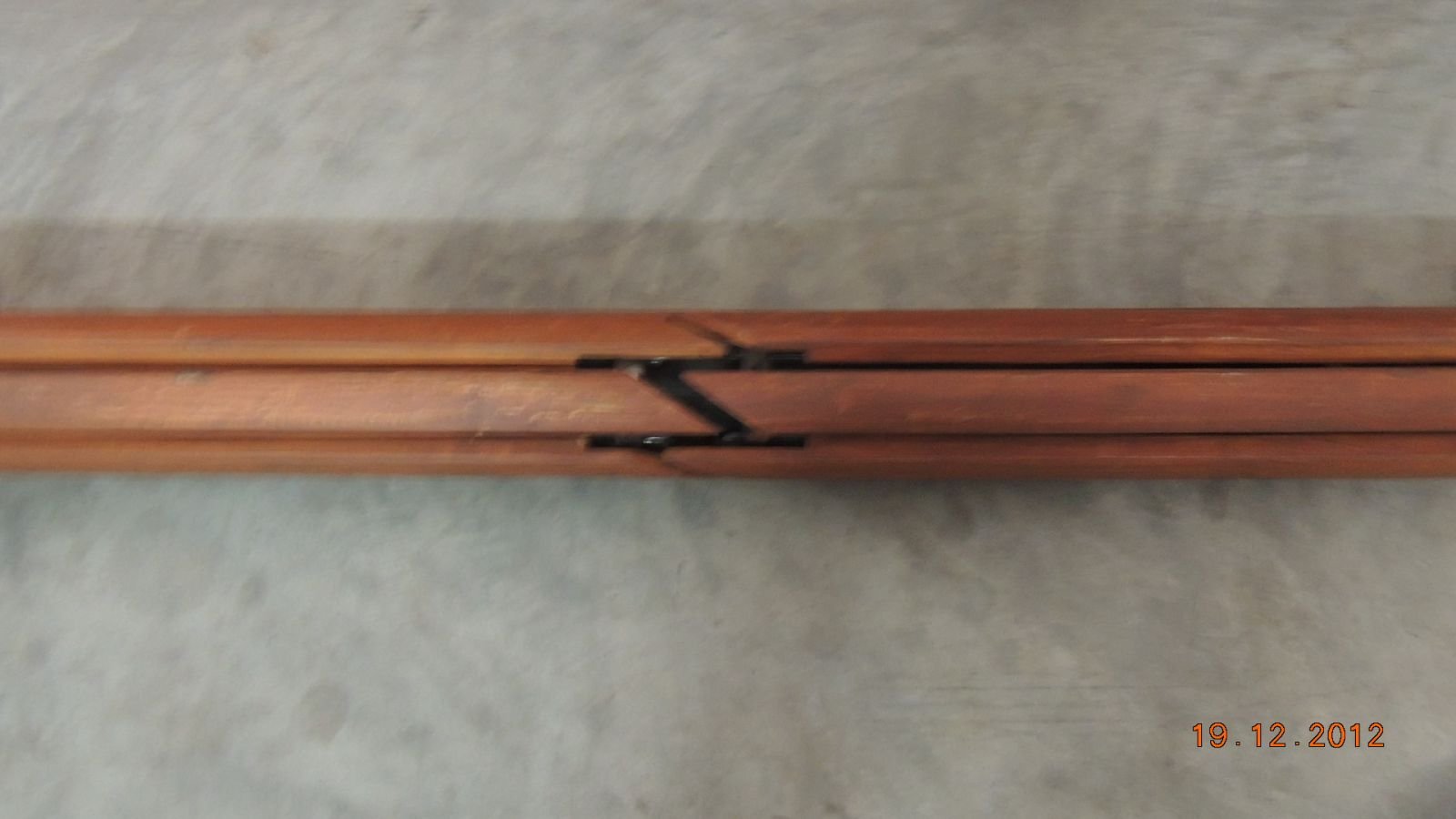

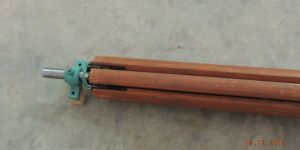

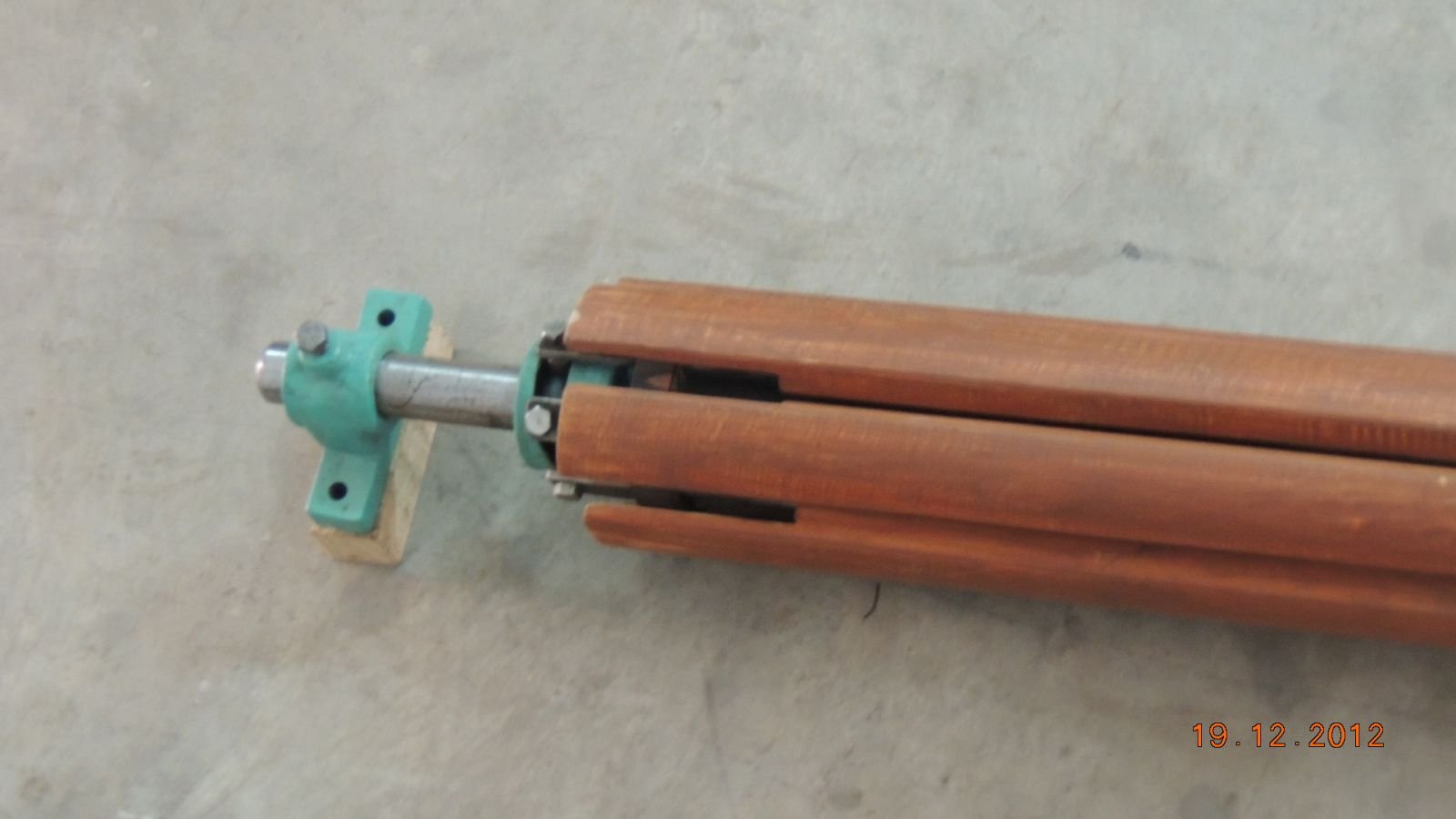

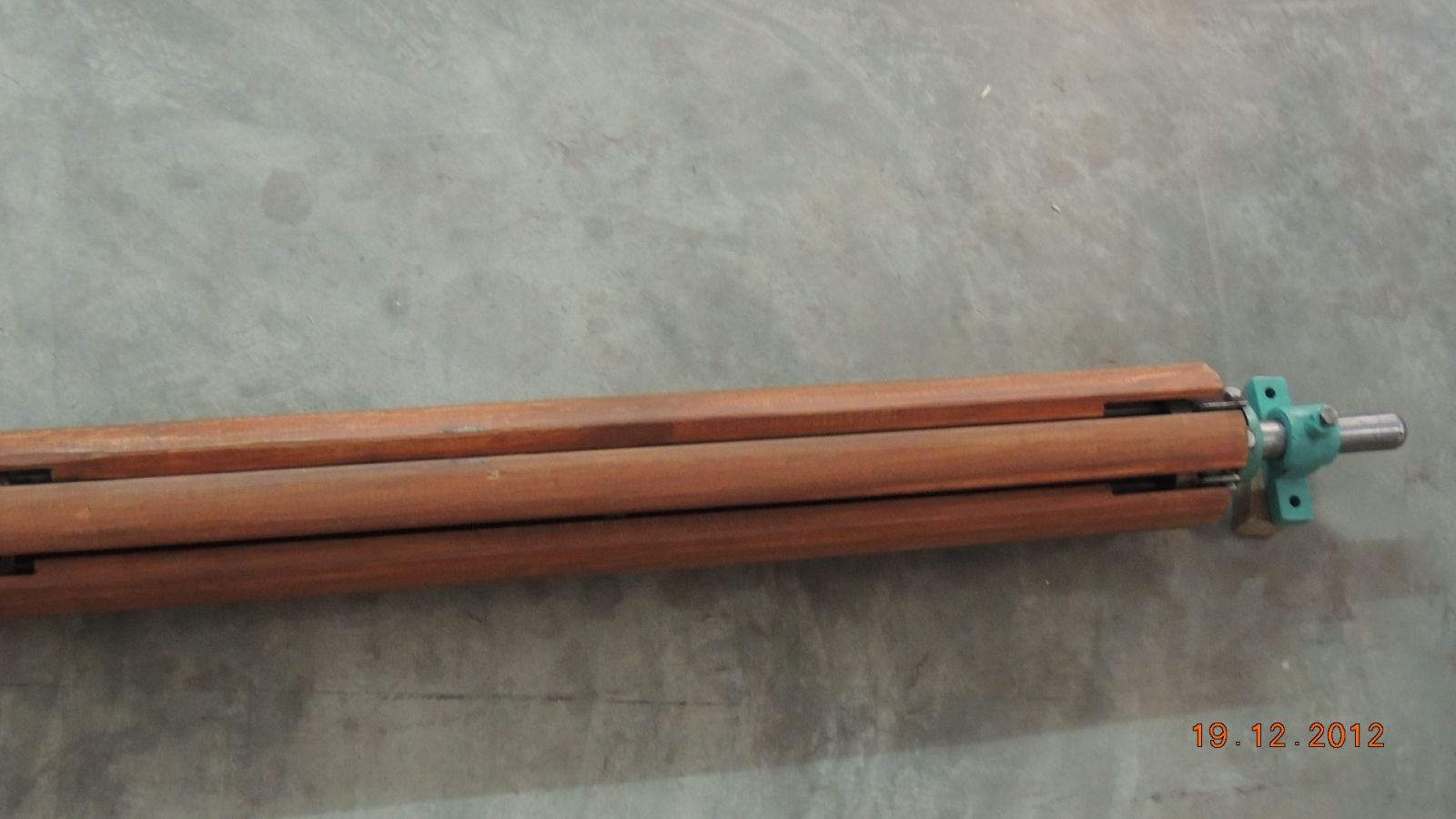

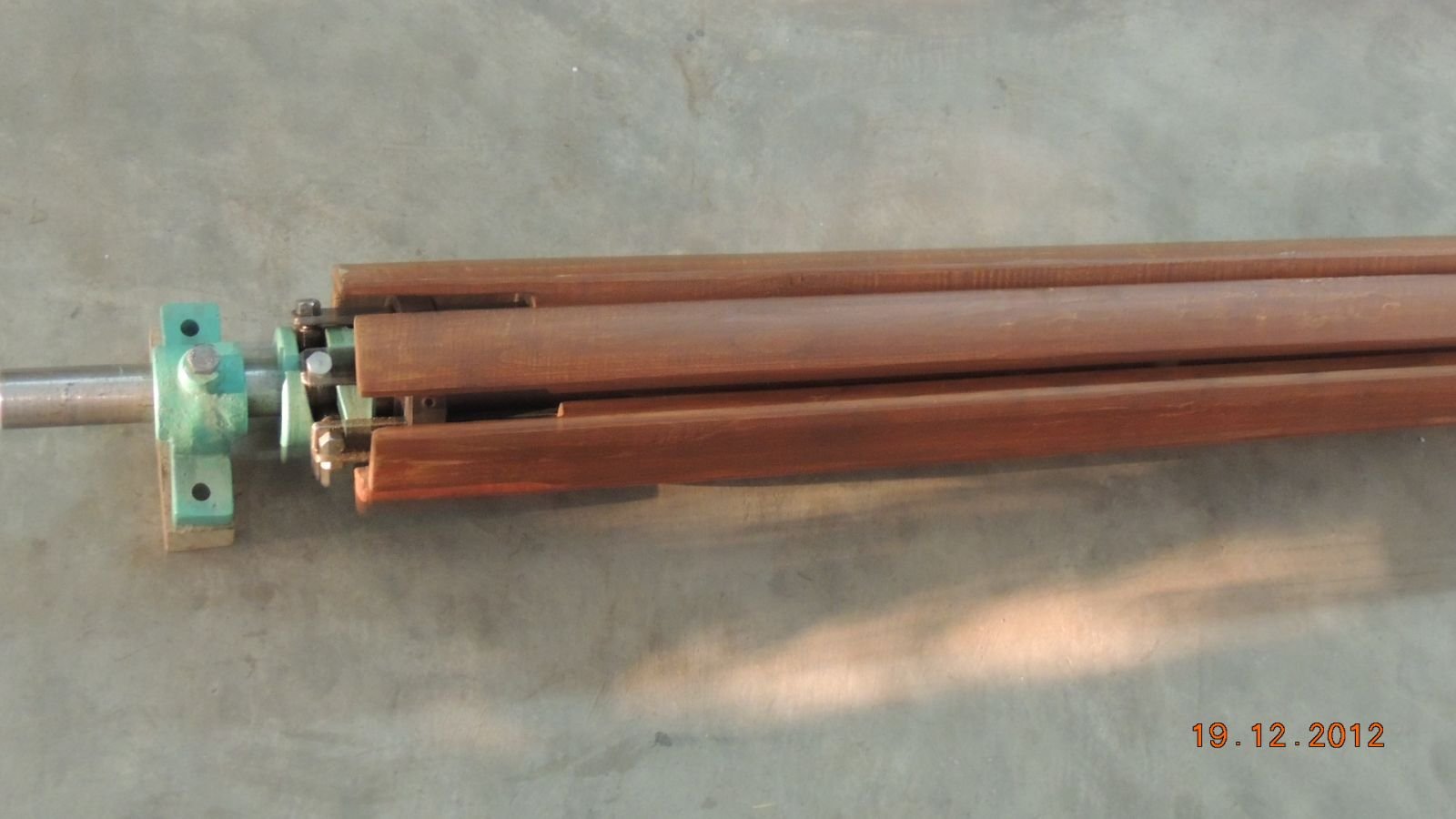

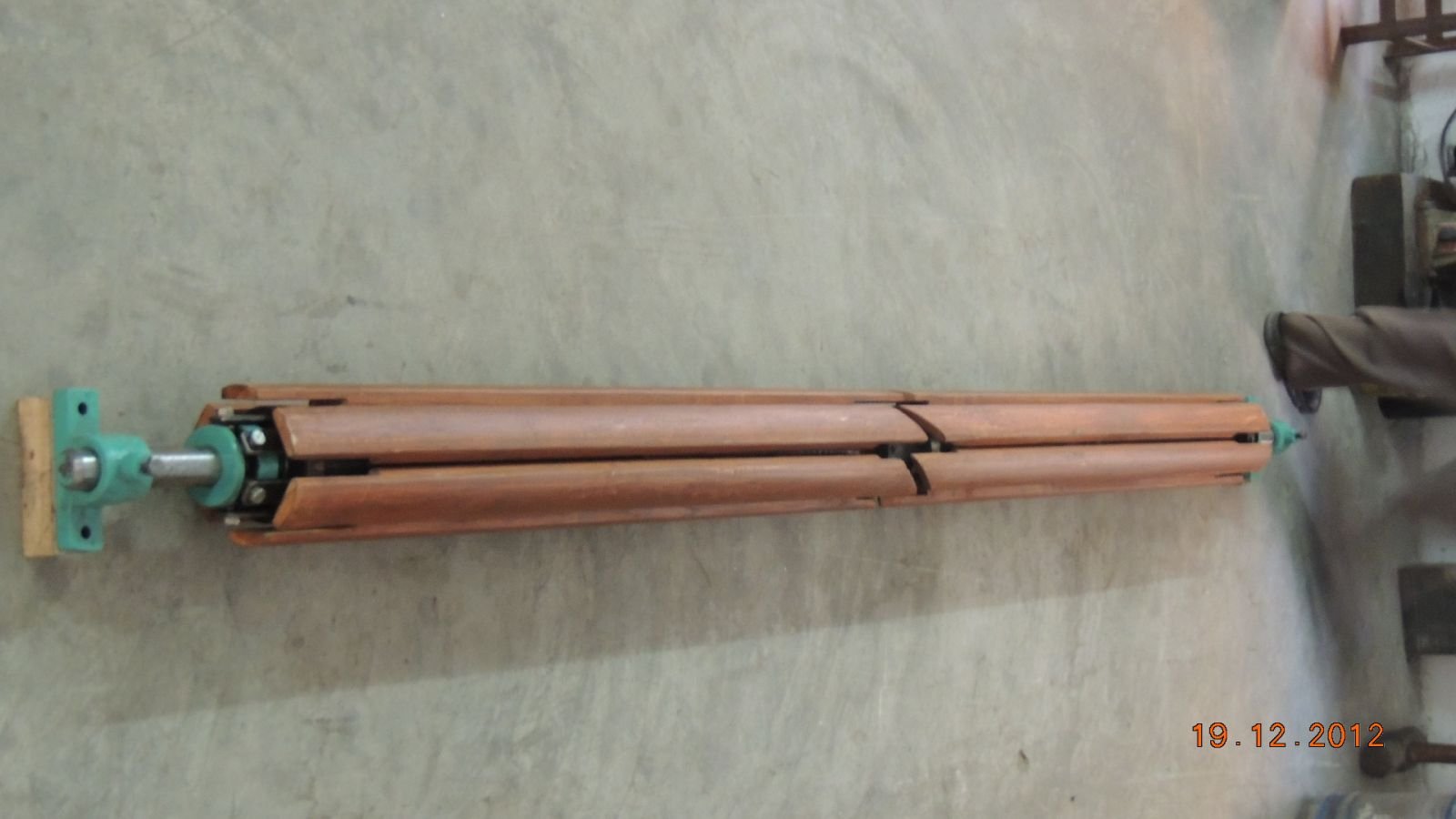

Slat Expander Rolls are available in wooden slat with felt covering and With aluminum slats available in 6” diameter 8”diameter  & 12” diameter in any working width. Particularly suitable for slow speed machines like coating cloth coating machines, Flat Bed Printing machine, artificial leather cloth before Batching machine etc. The Roll is fitted with cam mechanism fitted with on bearings with left & Right slats from center. For longer width three slats are fitted and middle slats are fixed to avoid V shaped wrinkle-removing action. Available with foot mounting pedestals.

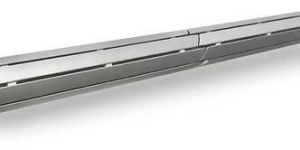

Aluminum Slat expanders are used for wrinkle removing on coating machines which is available in any length and standard diameter 6”. Bigger diameter can be made as per specific requirements. Normally plain surface is provided but some applications serration is required on surface for gripping. While ordering should provide the application temperature, web material, plain or serration required on surface, maximum speed of web material to meet all your requirements. For soundless working the rolls are also available with ball bearing type cam mechanism also. Normal expansion is 25mm. Slat Expander Roll is available with wooden slat with felt covering and with aluminum slats available in 6” diameter 8”diameter & 12” diameter in any working width. Particularly suitable for slow speed machines like coating cloth coating machines, Flat Bed Printing machine, artificial leather cloth, Vinyl, before Batching machine etc. The Roll is fitted with cam mechanism fitted with on bearings with left & Right slats from center. For longer width three slats are fitted and middle slats are fixed to avoid V shaped wrinkle-removing action. Available with foot mounting pedestals.

Slat Expander Rolls is very important to install the Roll in proper warp angle to get maximum results. Maximum Working Width 2500 mm in normal cases.  Type of Slat Expander Roll available: Aluminum Slat Expander Slat Expander Roll with Wooden Slat Diameter of Slat Expander Roll available: 6-, 8-, 12 Length: up to 3000 mm

Specification : Construction outside rubber sleeve is as per customer's requirement. It is either natural rubber or synthetic new prene Rubber. Shaft is of M.S. Polish bar or flame hexagonal shaft. Current of shaft as per customers requirement(centre distance of 2.0" x 2.50") Inside movable sleeve is made from M.S. pipe with necessary bore bearing or sleeve is of aluminum caste fitted with nylon bush.(Aluminum is only for round shaft) Both sides mounting bracket is as per customer's requirement.
