Solar Controller Dealers

A solar charge controller limits the rate at which charge is added to or drawn from electric batteries, protecting batteries against overcharging from solar panels as well as complete draining or ‘deep discharge’, which can reduce battery performance and lifespan or pose a safety risk. A Solar Charge Controller is needed in virtually every solar power system that utilizes batteries. A basic charge controller simply monitors battery voltage and stops the charging when the battery voltage rises to a certain level. Modern charge controllers slowly lower the amount of power applied to the battery as it gets closer and closer to full charge. The NEXTGEN Solar Charge Controller uses sophisticated PWM (pulse width modulation) technology to adjust charging rates, as the battery gets closer to full charge, allowing for uniform charging and improving battery performance and life.   Features Multi-stage PWM charge control to improve battery performance and life Integrated temperature compensation with external temperature sensor Low power load controller and PWM solar charger in a single unit Overload / short circuit / reverse flow and battery reverse polarity protections with status display Intelligent microprocessor control Adjustable charging and discharging control parameters Optional dawn / dusk operation with timer LCD monitor for parameter display and communication interface with PC for data logging Enables optimum utilization of solar power Low PV to battery drop Easy installation, simple handling Robust, inexpensive, energy efficient, suitable for rural / urban solar power systems

Rated charge Current: 6Amp. Maximum Load Current: 350mA Nominal Battery Voltage: 12V  Battery Floating Voltage: 13.8VBattery Voltage Range: 10.8V-14.5V Battery Low Voltage cut off: 10.8V (Reconnect at 12.3V)  Battery over Voltage cut-off: 14.5V Maximum PV open circuit Voltage: 20V   Maximum PV Panel Input: 148W   Efficiency: >95% at full load  Ambience: Operating Temp 0 to 50 Deg C, 90% RH   Rated Power / Capacity (W): 6A Diamension (LxWxH): 137 x 71 x 28 mm Weight (gms.): 132 IP Rating: IP20 Housing Material: Thermoplastic Warranty (Years): 2 Years

A solar charge controller helps in charging battery using solar energy collected by solar panels. Mppt charge controller generates approximately 25% more power as compared to pwm charge controller. All our solar charge controllers have been designed indigenous in our r&d lab for indian conditions and offer unique features at affordable prices. Pwm solar charge controller: - designed and made in india - 12v 24v auto-select - upto 20a charging current for 12v or 24v battery bank. Max dc load 20a - battery specific charging for flat plate battery, tubular battery or smf battery - high efficiency design - upto 98.8% efficiency - can convert your ordinary home inverter to a solar inverter using power saver box - battery charging status indication led battery connectedchargingchargedlow - 3 stage battery charging - boost absorption trickle charging mode - reverse polarity protection with indication led - for battery and pv panel separately - battery overcharge protection - rugged, compact and attractive product design

Supreme features coupled with excellent performance have resulted in Shakti Solar Pumps making a distinctive mark in the pump market, the world over. Available in the range of 1 HP-100 HP, Shakti Solar Pumps offer 40% more discharge as compared to other ordinary pumps. Naturally, this makes our pumps the undisputed leader in the pump market. India's largest manufacturer and exporter of Solar Pumps. Proven motor, pump and motor control and solar pv maximum power point technology for a reliable and fail safe operation Remove existing bullet text and put " Supply, Installation and Commissioning Turnkey Capability " for solar pumps either direct or through our channel partners Easy to operate, Simple to install, No maintenance, Value for money, Attractive paybacks

Solar home system is a stand-alone solar power system, used for electrification in remote areas where the utility grid is not available. This system consists of charge controller and inverter in the same enclosure. The charge controller controls charging current from solar array to storage battery and the inverter converts DC from battery to AC to supply to AC appliances. The built-in MPPT (Maximum Power Point Tracking) functions to help maximize the power generated by PV array.

The solar power controller acts as an interface between photovoltaic (PV) array, battery, battery charger and load. The solar power controller will regulate the charge of battery (battery charge / Discharge Relay, Battery overcharge Relay) & will monitor the charging current from the solar Array. It maintains the battery within the specified limits through appropriate control action.

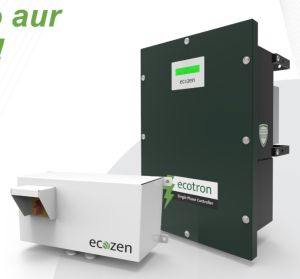

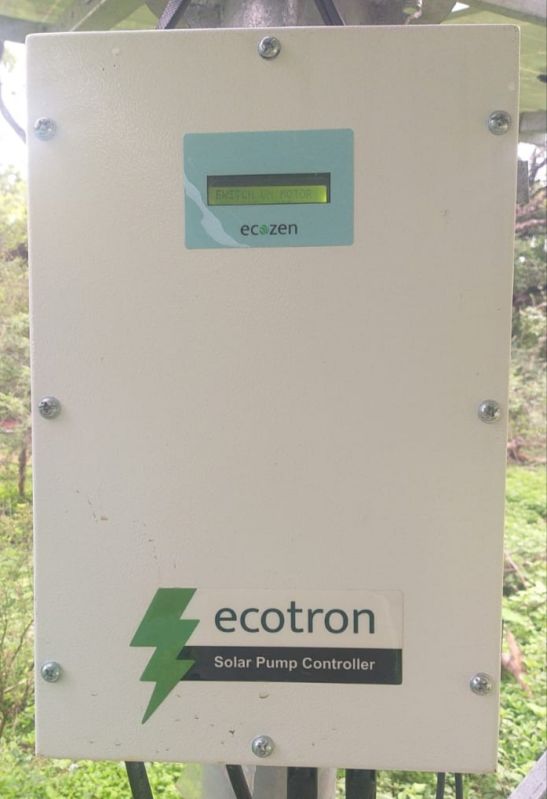

Solar Pump Controller Unique Features No Grid Power Required One Time Low Investment MPPT + VFD Technology Zero Maintenance Use Existing AC Pump 9 Easy to Install No Battery Bank Required

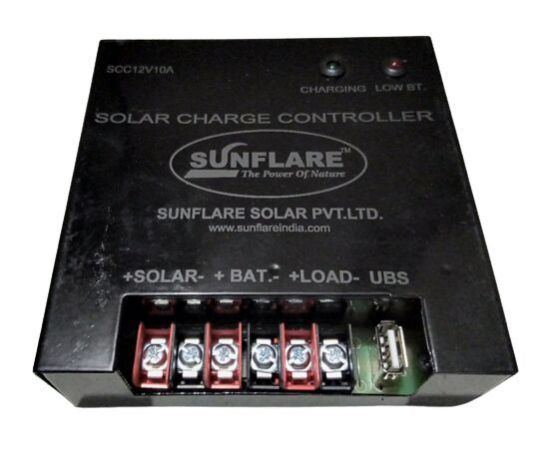

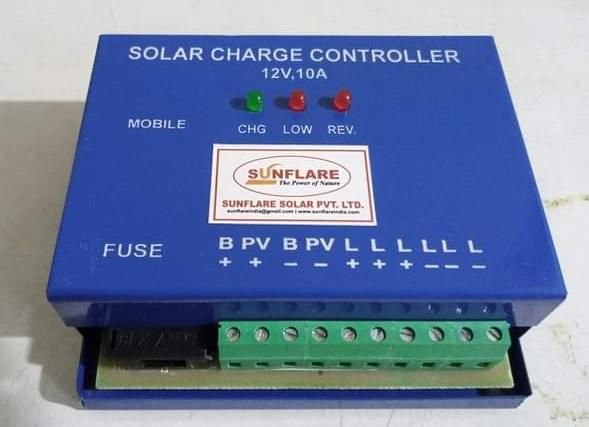

Easy Photovoltech Pvt Ltd. is a reputed solar charge controller manufacturer in India. We deals in manufacturing and supplying high-quality solar charge controller at affordable prices. Our products come equipped with various features such as low voltage disconnects (LVD) facility. Our charge controllers are ideal either for 12V, 6V and 24V systems, and for solar panels rated up to 60A. We also manufacture the device according to your needs and requirements.A solar charge controller or voltage regulator or solar panel regulator is designed to control the amount of energy from the soar PV panels going to batteries. It is an essential component of most of the solar charging systems. It is a must because it protects batteries from overcharging panel from reverse current flow.If you are looking for a reliable solar charge controller manufacturers, give a call to us. We are committed to providing a wide range of solar charge controllers at market’s best price. At Easy Photovoltech, we manufacture our products in our ultramodern manufacturing unit using high-grade materials.   Features : Clean & Silent source of Power No fuel required Provision of Battery Bank Negligible Maintenance No recurring fuel cost Modular design Simple installation Savings on electricity bills Transportation problems and uncertainty in availability of fuel are totally avoided by using solar photovoltaic systems.

We are offering solar charge controller. nominal voltage 12 / 24 v, automatic recognition boost voltage 14.5 / 29.0 v (25°c),2h equalization voltage 14.8 / 29.6 v (25°c),2h float voltage 13.7 / 27.4 v (25°c) low voltage disconnect function 11.4 - 11.9 / 22.8-23.8 v controlledby state of charge 11.0 / 22.0 v controlled by voltage load reconnect voltage 12.8 / 25.6 v temperature compensation -4 mv/cell*k max. Solar panel current 20 a @ 50°c max. Load current 20 a @ 50°c max. Wire size 16 mm2 (awg #6) self consumption 4 ma ambient temperature range -40 to + 50°c nominal voltage 12 / 24 v, automatic recognition boost voltage 14.5 / 29.0 v (25°c),2h equalization voltage 14.8 / 29.6 v (25°c),2h float voltage 13.7 / 27.4 v (25°c) low voltage disconnect function 11.4 - 11.9 / 22.8-23.8 v controlledby state of charge 11.0 / 22.0 v controlled by voltage load reconnect voltage 12.8 / 25.6 v temperature compensation -4 mv/cell*k max. Solar panel current 20 a @ 50°c max. Load current 20 a @ 50°c max. Wire size 16 mm2 (awg #6) self consumption 4 ma ambient temperature range -40 to + 50°c
